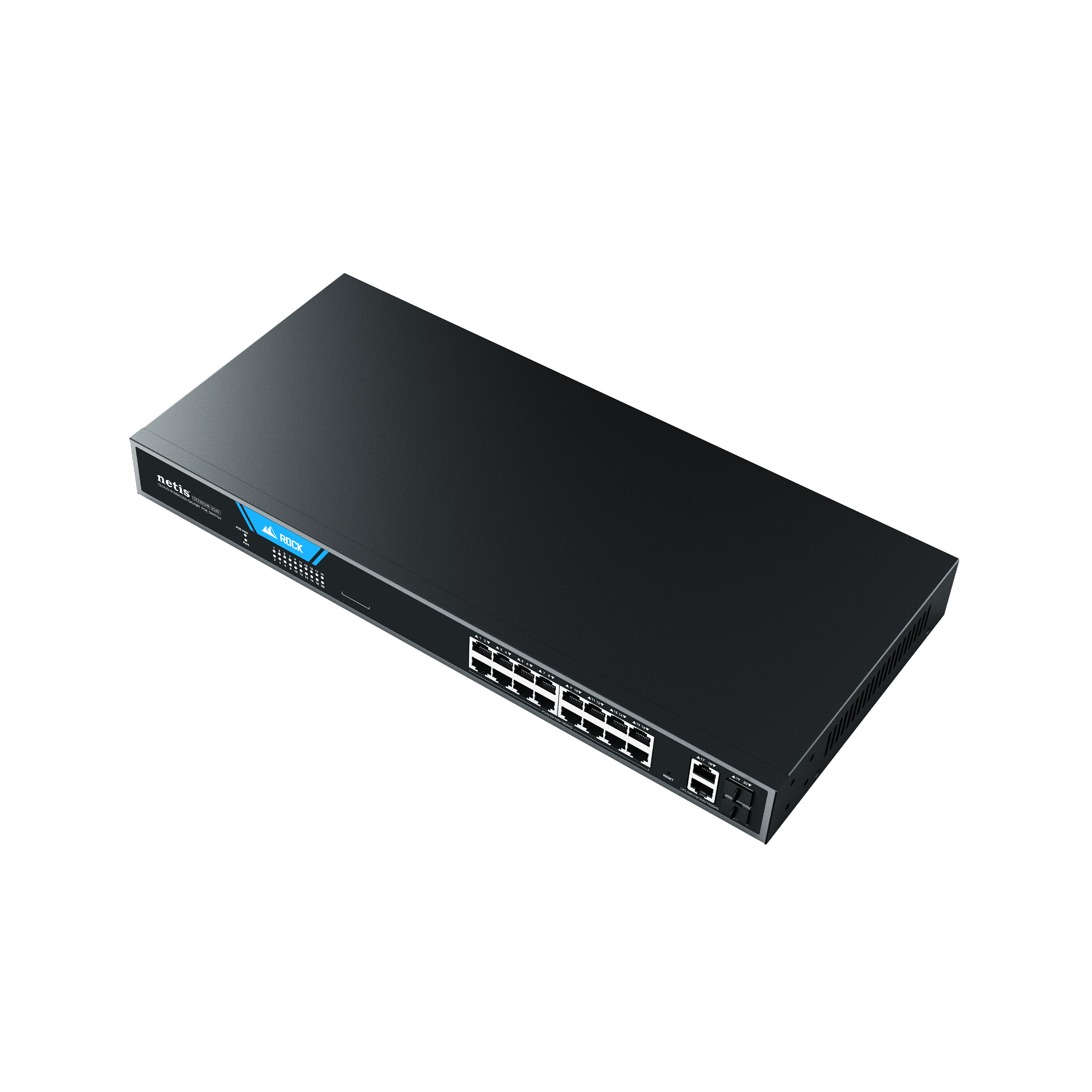

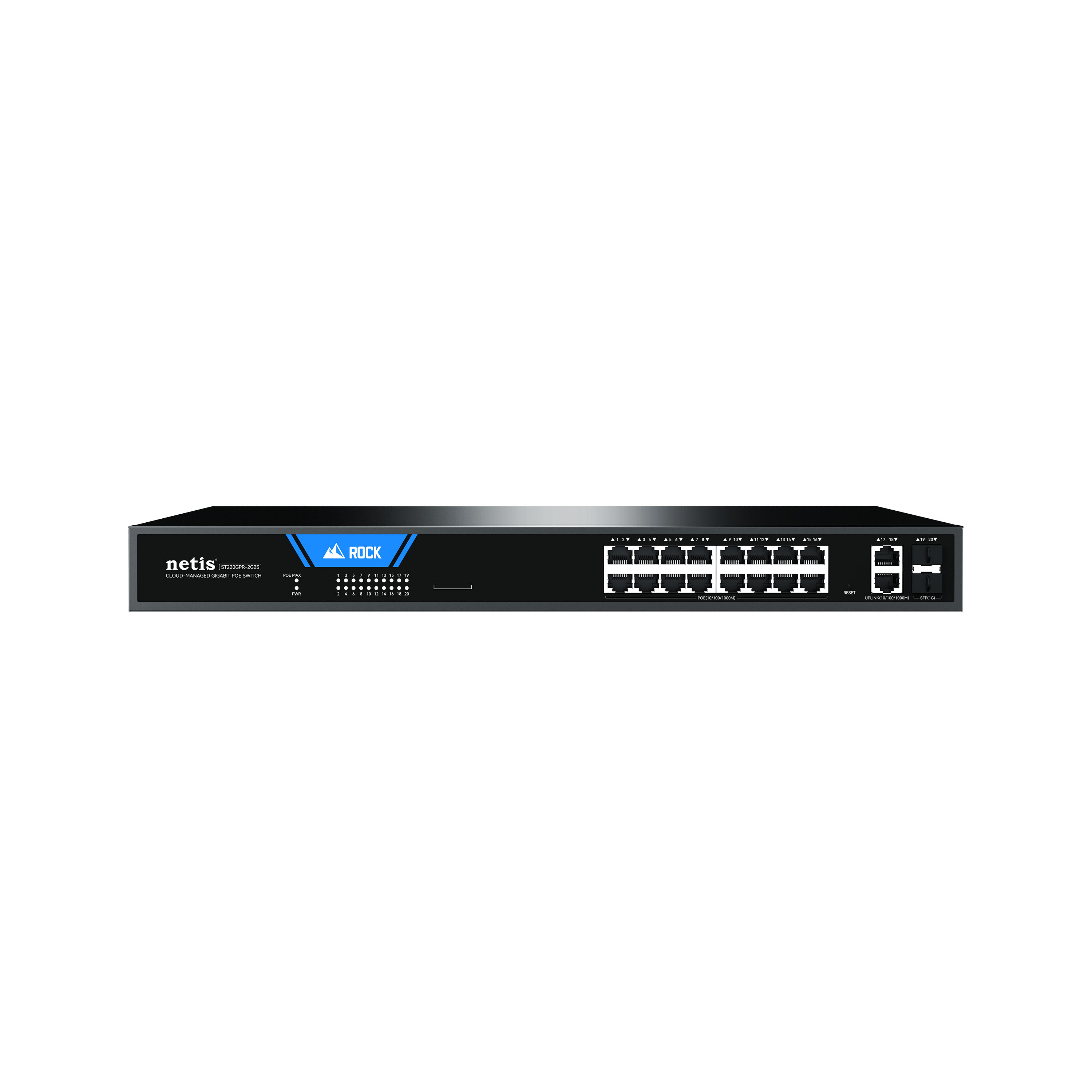

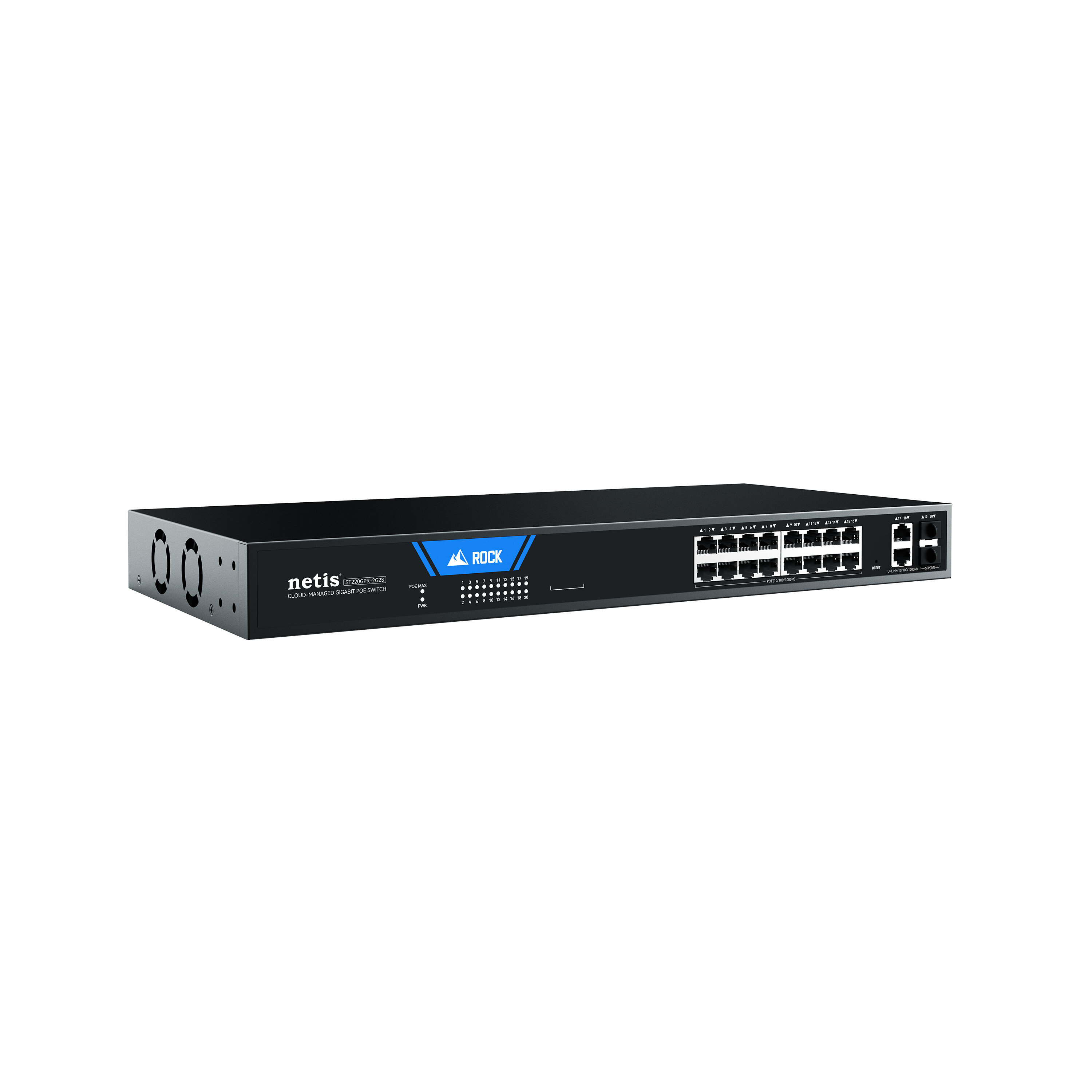

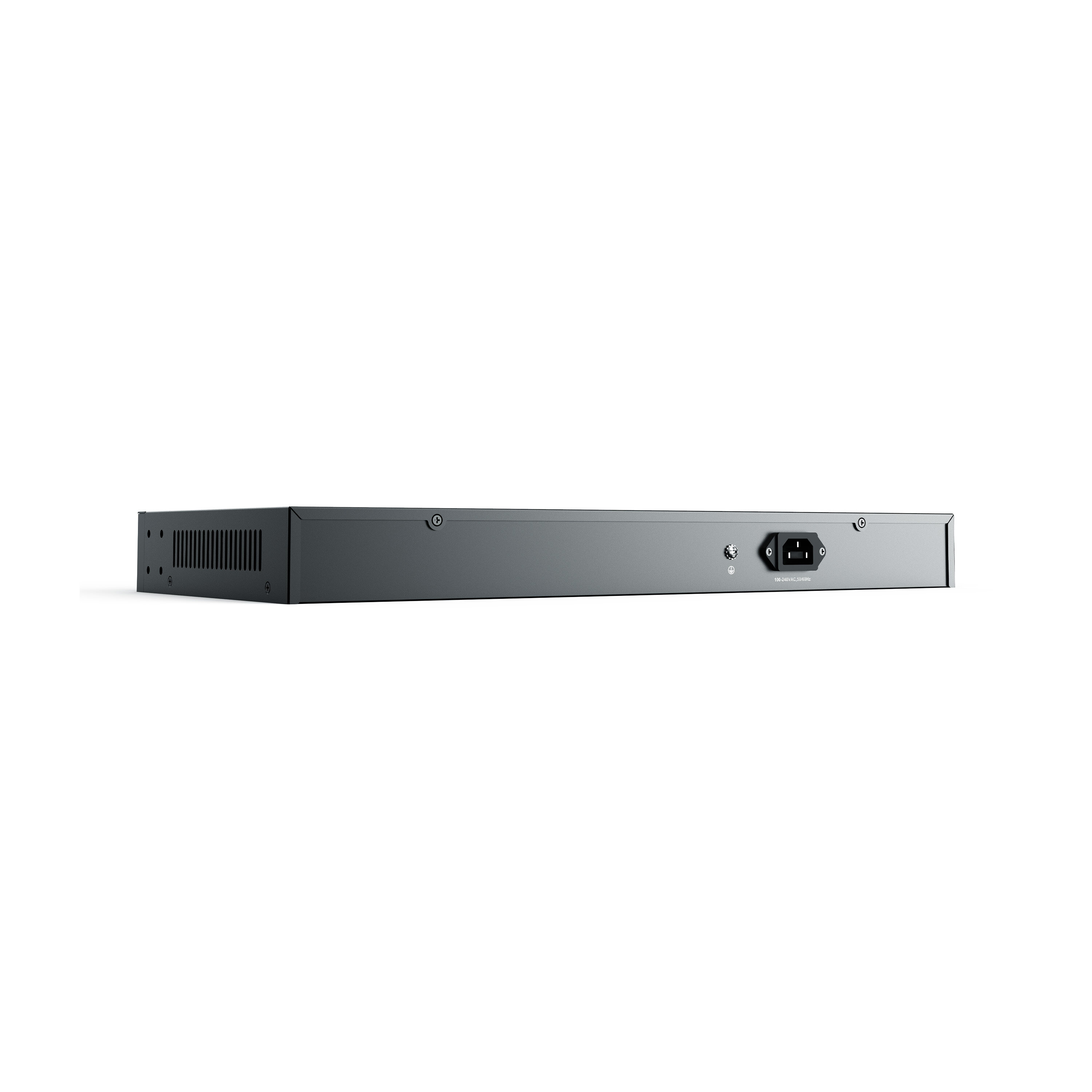

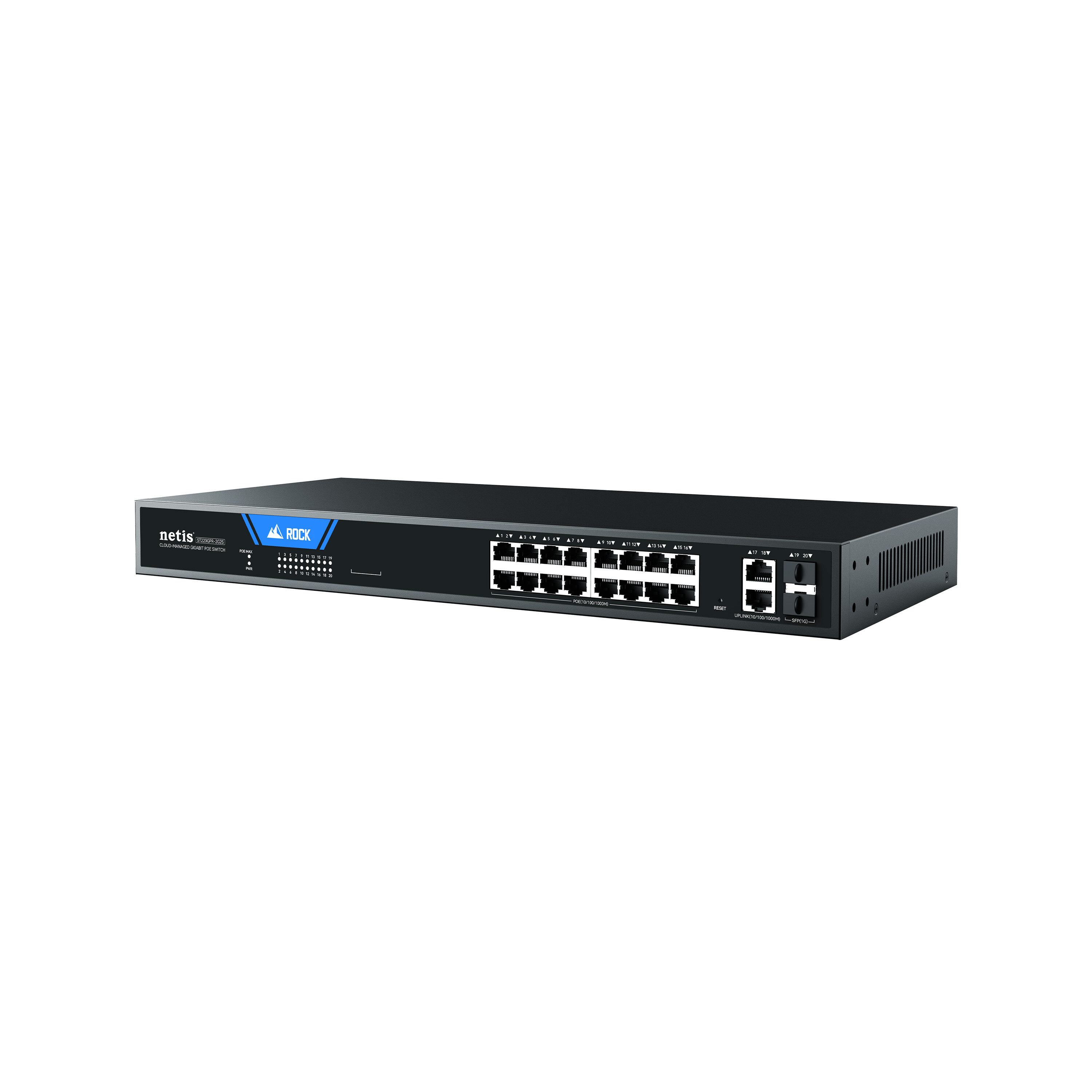

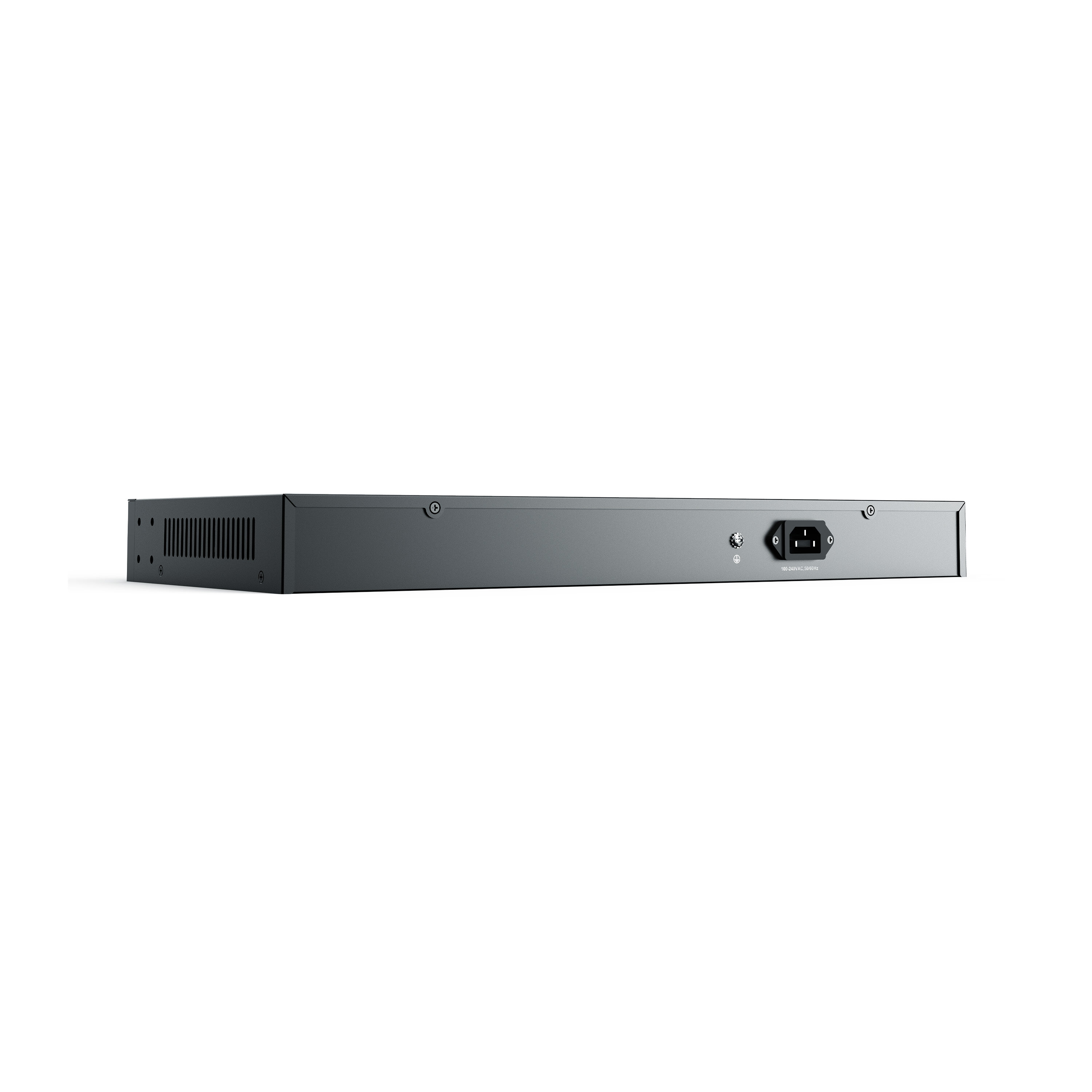

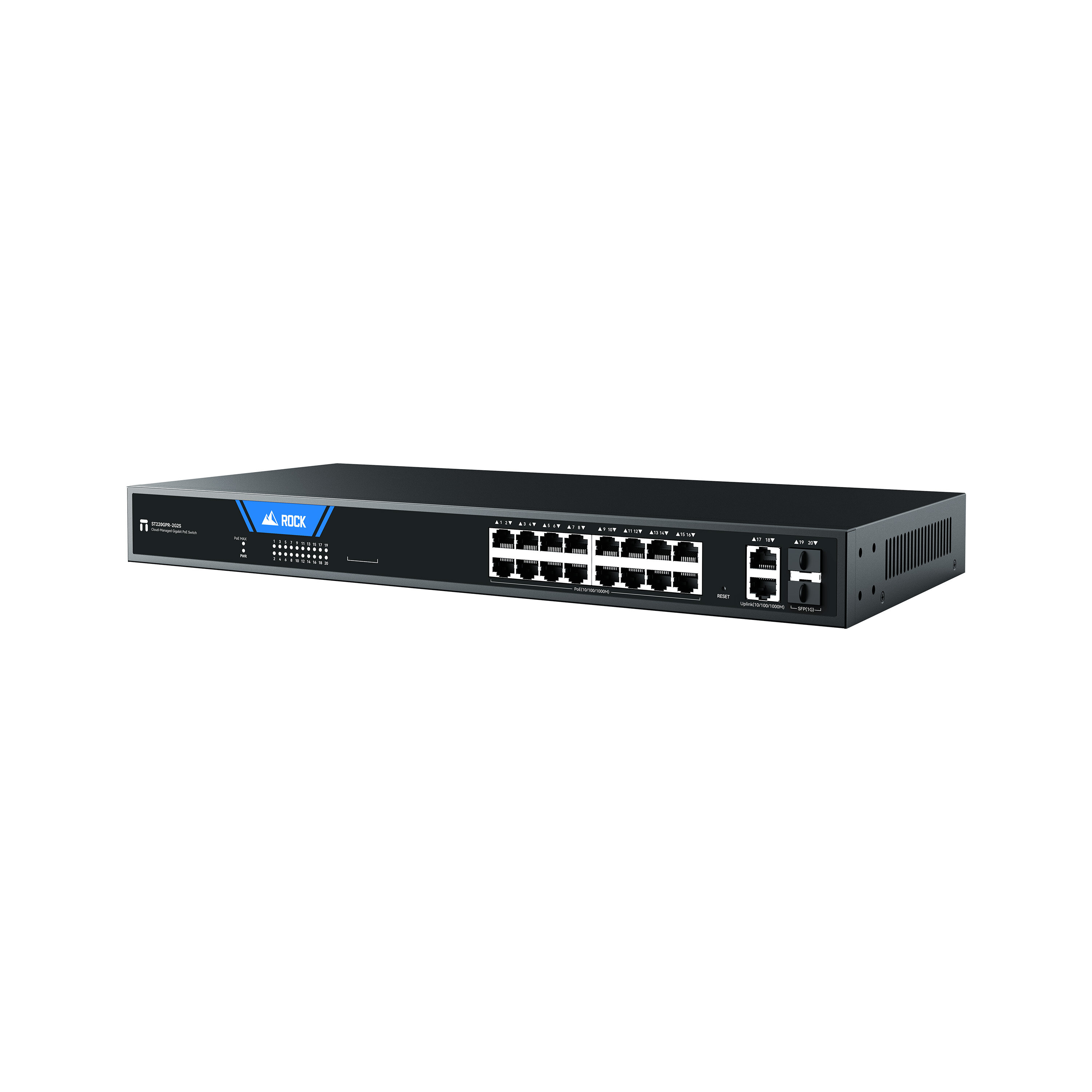

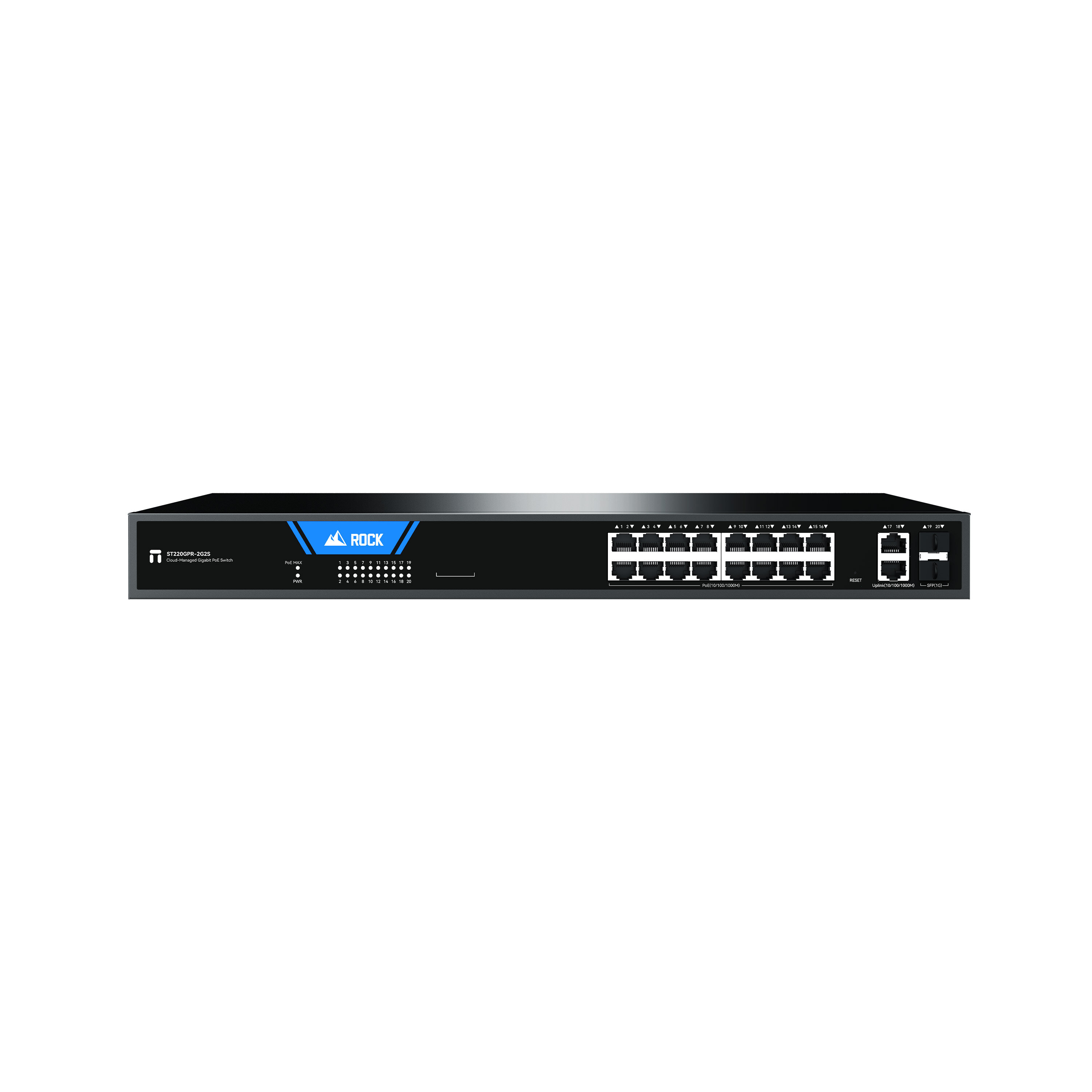

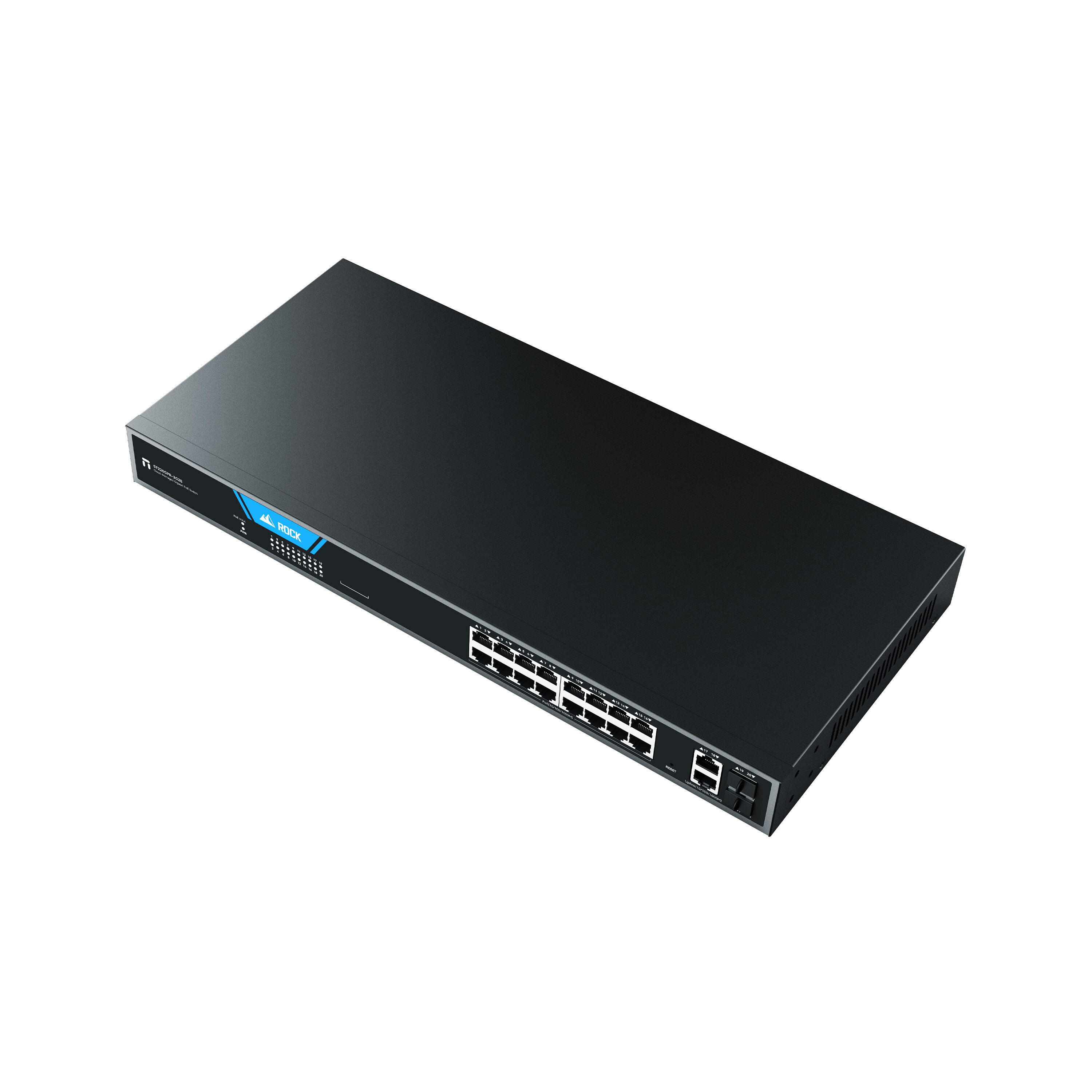

ST220GPR-2G2S | 16GE PoE + 2GE + 2 SFP slots Cloud Managed PoE Switch

ST220GPR-2G2S

16GE PoE + 2GE + 2 SFP slots Cloud Managed PoE Switch

Ports: 16* Gigabit adaptive PoE ports, 2* Gigabit Uplink ports, 2 SFP slots.
Power: Built-in 250W power supply, Max PoE Output Power: 225W
Supports IEEE 802.3af/at standards
40G Backplane Bandwidth, 8K MAC Address Table Size
Support BeeWiFi application, anytime, anywhere management network
Auto MDI/MDI-X: All ports support auto MDI/MDI-X function
Supports IEEE 802.3X full-duplex flow control and Backpressure half-duplex flow control
Forwarding: All ports support line-speed forwarding.
Supports automatic MAC address learning and aging.
PoE port Restart/Port Rate Limiting/Loop Prevention/Custom Port Configuration/Scheduled Port Restart/Port Isolation/VLAN Configuration/Storm Control/Cable Detection/Port-based Extended Transmission/Port aggregation/Optical Fiber Port Aggregation
Supports 6Kv lightning protection design

Overview | Specifications | Download

Specification

LED Indicators

Power Indicator	Lights up when the device is powered on.
Port Indicator (Link/ACT)	Lights up when the port link is normal; Flashes when data is being transferred
PoE MAX Indicator	Lights up when the PoE power supply exceeds the threshold.

Hardware

Button	1* Reset
Ports	161000Mbps POE ports 21000Mbps uplink ports 2* Gigabit SFP slots
Backplane Bandwidth	40Gbps
MAC Address Table	8K
Input Power	100-240V~ 50/60Hz
Power Supply	250W
Maximum POE Output Power	225W
Network Media & Transmission Distance	1000BASE-T: UTP category 5, 5e, 6 or above cable (≤ 100m) 100Base-TX: UTP category 5, 5e, 6 Category 5 (Cat5) or higher UTP/STP cables (≤100m) 10Base-TX: UTP category Category 6 (Cat6) or higher UTP/STP cables (≤250m) Tips：The actual transmission distance is related to the connected terminal/network cable type and condition; it is recommended to use Category 6 cable preferentially.

Software

Basic Functions	Complies with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet protocol standards Compatible with IEEE 802.3af/at compliant powered devices (PD) Compatible with certified non-standard powered devices (PD) Supports store-and-forward switching Supports full power output Supports automatic MAC address learning and aging Extended cable transmission,supports long-distance monitoring power supply Supports IEEE 802.3X full-duplex flow control and Backpressure half-duplex flow control
Ethernet Protocols and Standards	IEEE 802.3 10BASE-T Ethernet IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control
Local management function	System Info IP Settings Account Settings Port Settings IGMP Snooping Aggregation management Loopback protection Port mirroring Speed Limit Jumbo Frame EEE Config SNMP EEE Config Spanning Tree LLDP Config LLDP Neighbor QOS MTU VLAN 802.1Q VLAN MAC Manage Storm Control Flow monitoring Cable Diagnostics DHCP Snooping System upgrade Ping Tool Backup and Restore System Reset Save Settings System Reboot
Cloud management function	Storm Control Loop Prevention Port Isolation Automatic extension Anti-spoofing AI watchdog VLAN Cable Detection Rebooting device Speed Limit Port Scheduled Reboot POE Switch Port Status Port Rate Statistic Port Power Statistic

Environmental Requirements

Temperature	Operating Temperature:0℃ ~ 40℃(32 °F ~104°F) Storage Temperature:-20℃ ~ 70℃(-4 °F ~158°F)
Humidity	Operating Humidity:10% ~ 90% RH(non-condensing) Storage Humidity:5% ~ 90% RH(non-condensing)

Others

Dimensions (W x D x H)	440mmx205mmx44mm(17.32x8.07x1.73 in)
Protective Packing	EPE protection
Stacking Limit	Maximum of 4 layers when fully packaged
Humidity	5%～90% RH(non-condensing)
Storage Temperature	-20℃ ~ 70℃(-4 °F ~158°F),with the most suitable storage condition being room temperature considering humidity
Storage Precautions	Store in a clean,ventilated environment free from corrosive gases,flammable,explosive,and other hazardous chemicals.Keep away from heat sources and sources of strong mechanical vibration
Storage Period	Under the above conditions,the product can be stored for one year.It is recommended to re-inspect and test the product after two years before use
