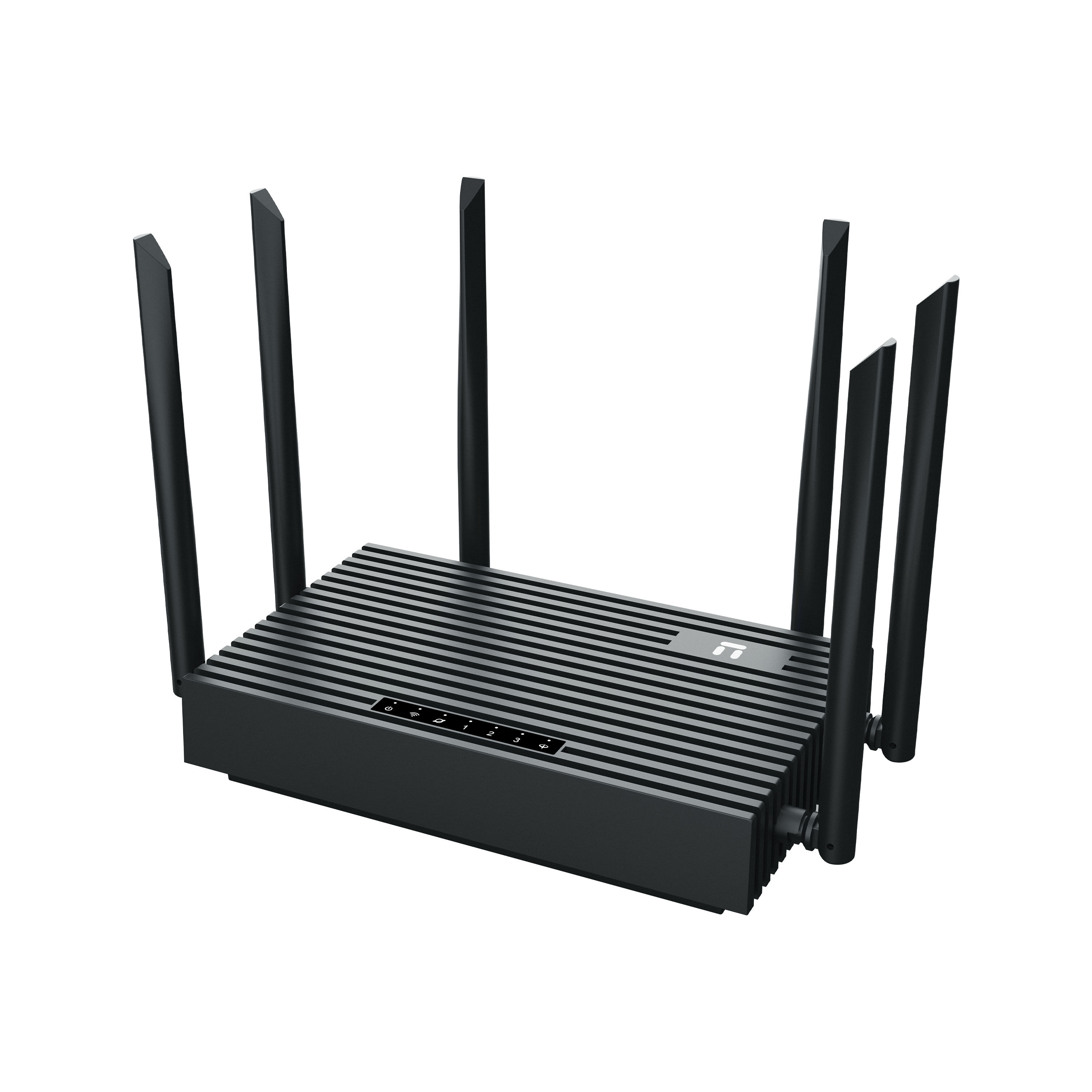

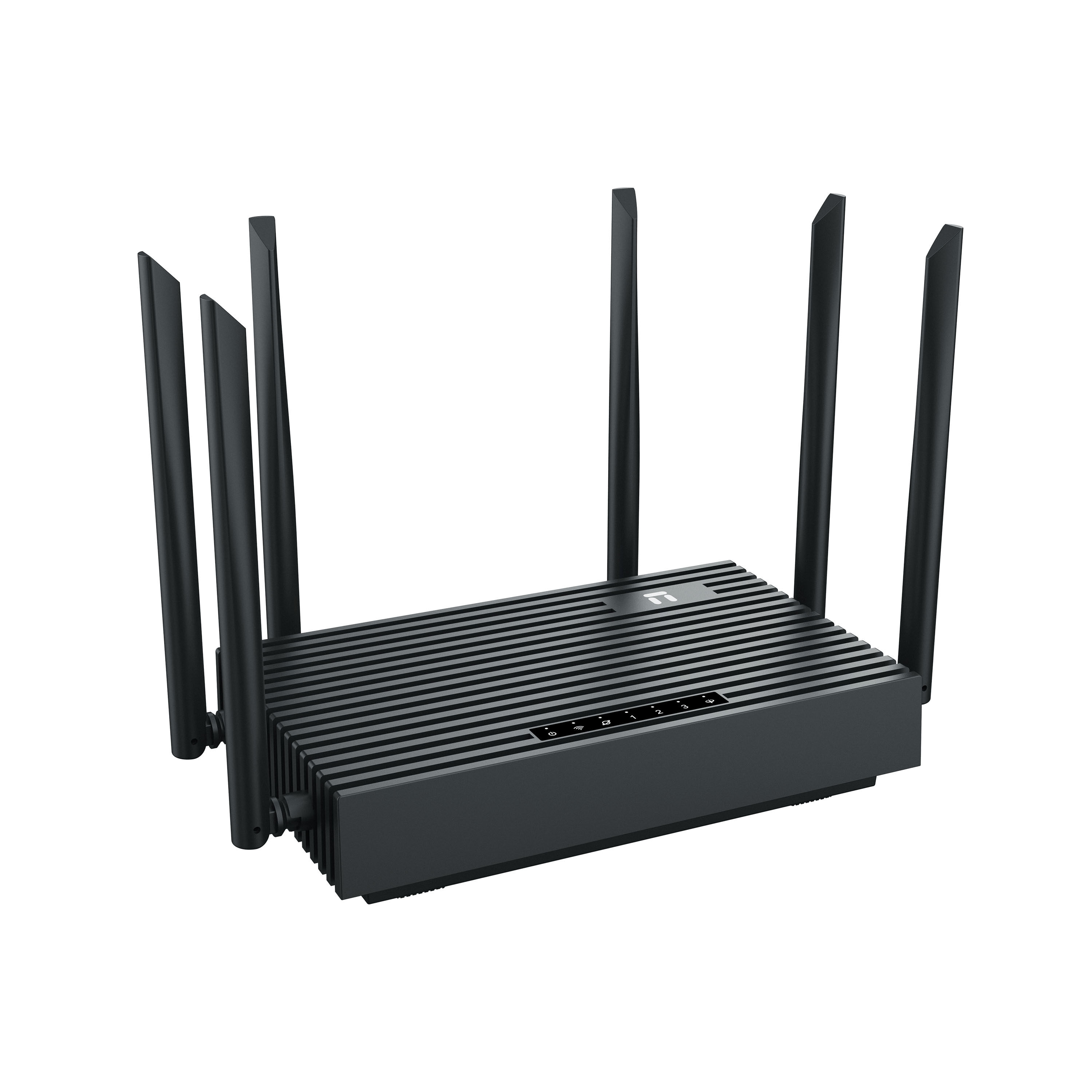

MW5630
AX3000 4G CAT6 LTE
- AX3000 Dual Band Wi-Fi: Enjoy home entertainment without any lag, reaching speeds up to 3000Mbps (2402 Mbps on the 5 GHz band and 547 Mbps on the 2.4 GHz band)
- Fast 4G LTE Cat 6: Dramatically increase LTE speeds through carrier aggregation, the theoretical download speed of up to 300Mbps, providing faster and more stable Internet connection.
- Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reduced latency.
- Plug and Play: Compatible with major ISP cards, just insert SlM cards, you can enjoy WiFi anywhere, and can be realized easily online in one step.
- Easy Setup: Set up your router in minutes with the simply web-Ul.
Specification
Hardware
|
Memory |
RAM:256MB DDR3; Flash:128MB |
|
Standards |
IEEE802.11b/g/n/ac/ax |
|

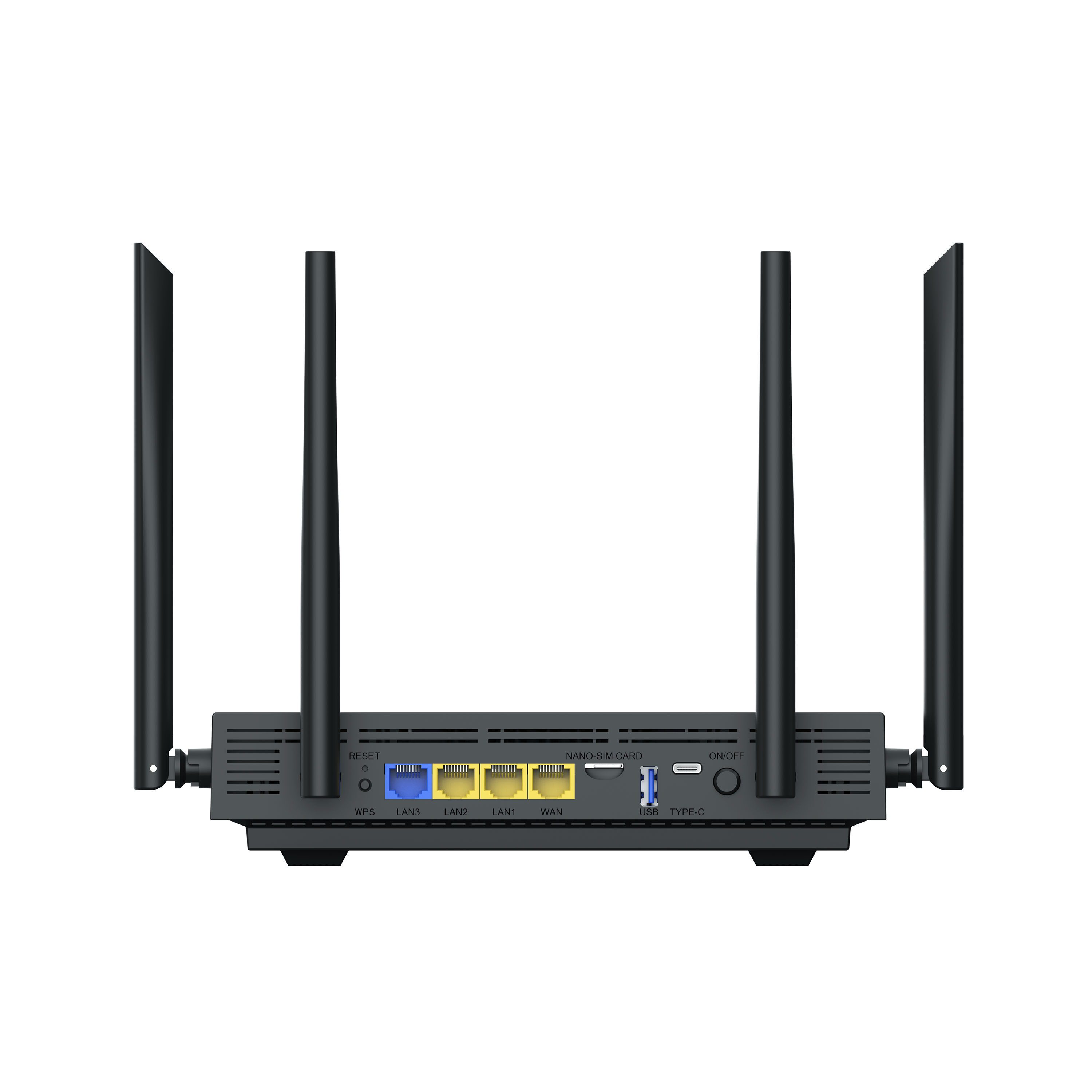

Interface |
1 Gigabit WAN+4 Gigabit LAN Ports |
|
LTE |
1 Nano SIM slot(4G Cat6); Downlink: 300 Mbps,Uplink: 50 Mbps |
|
Wi-Fi Speed |
2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps HE160 |
|
Antennas |
Wi-Fi: 2*5GHz 5.0dBi & 2*2.4GHz 5.0dBi antennas |
|
Button |
Power &WPS(MESH)&Reset Button |
|
USB ports |
1×USB 3.0 |
|
Power Supply |
12V/2A Type-C |
|
LED |
PWR,WIFI,WAN,3*LAN,LTE |
|
Dimensions(W*D*H) |
220m*136mm*38mm |
Wireless
|
Network Type |
Compatible with majority of mobile operators and supports 4G/3G: LTE FDD:B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/66/71 LTE TDD:B38/39/40/41/42/43/48 WCDMA:B1/2/4/5/6/8/19 |
|
Wireless Standards |
802.11ax: 8 Mbps to 2402 Mbps 802.11ac: 6.5 Mbps to 2166.7 Mbps 802.11n: 6.5 Mbps to 300 Mbps 802.11g: 6,9,12,18,24,36,48,54 Mbps 802.11b: 1,2,5.5,11 Mbps 802.11a: 6,9,12,18,24,36,48,54 Mbps |

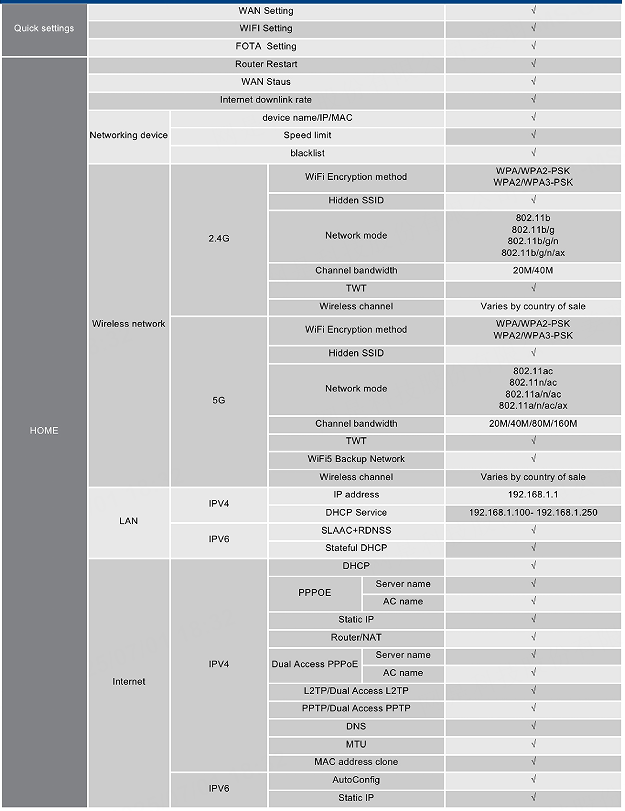

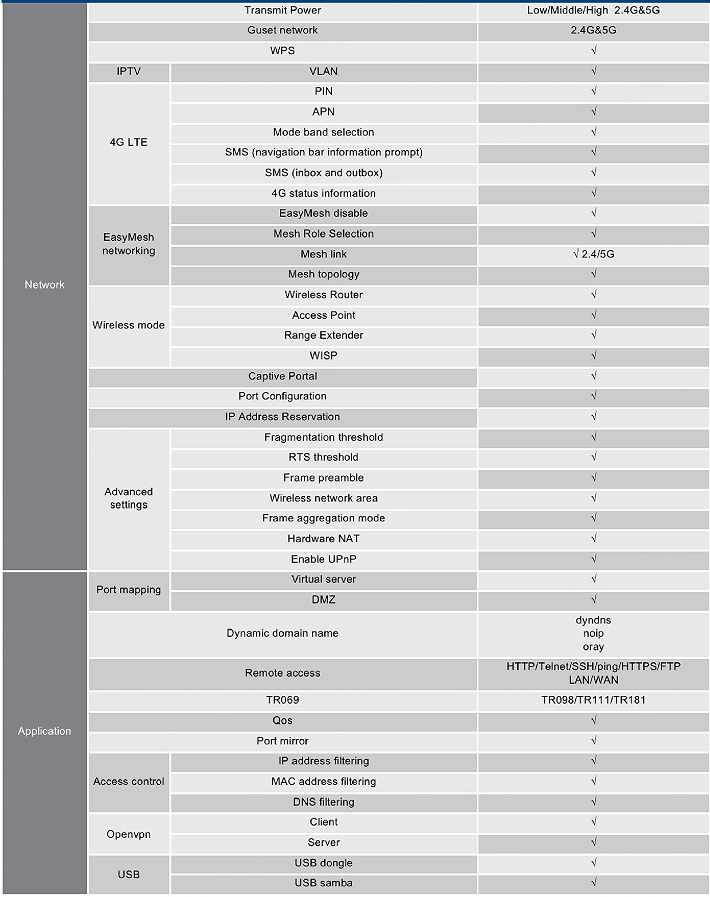

Software
Others
|
System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable Subscription with an internet service provider (for internet access) |
|
Environment |
Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%～90%non-condensing Storage Humidity: 5%～90%non-condensing |
|
Certification |
CE/FCC |
|
Package |
1*MW5630 1*12V/2A Type-C Power Adapter RJ45 Ethernet Cable 1*Quick Installation Guide(Multilingual) |
