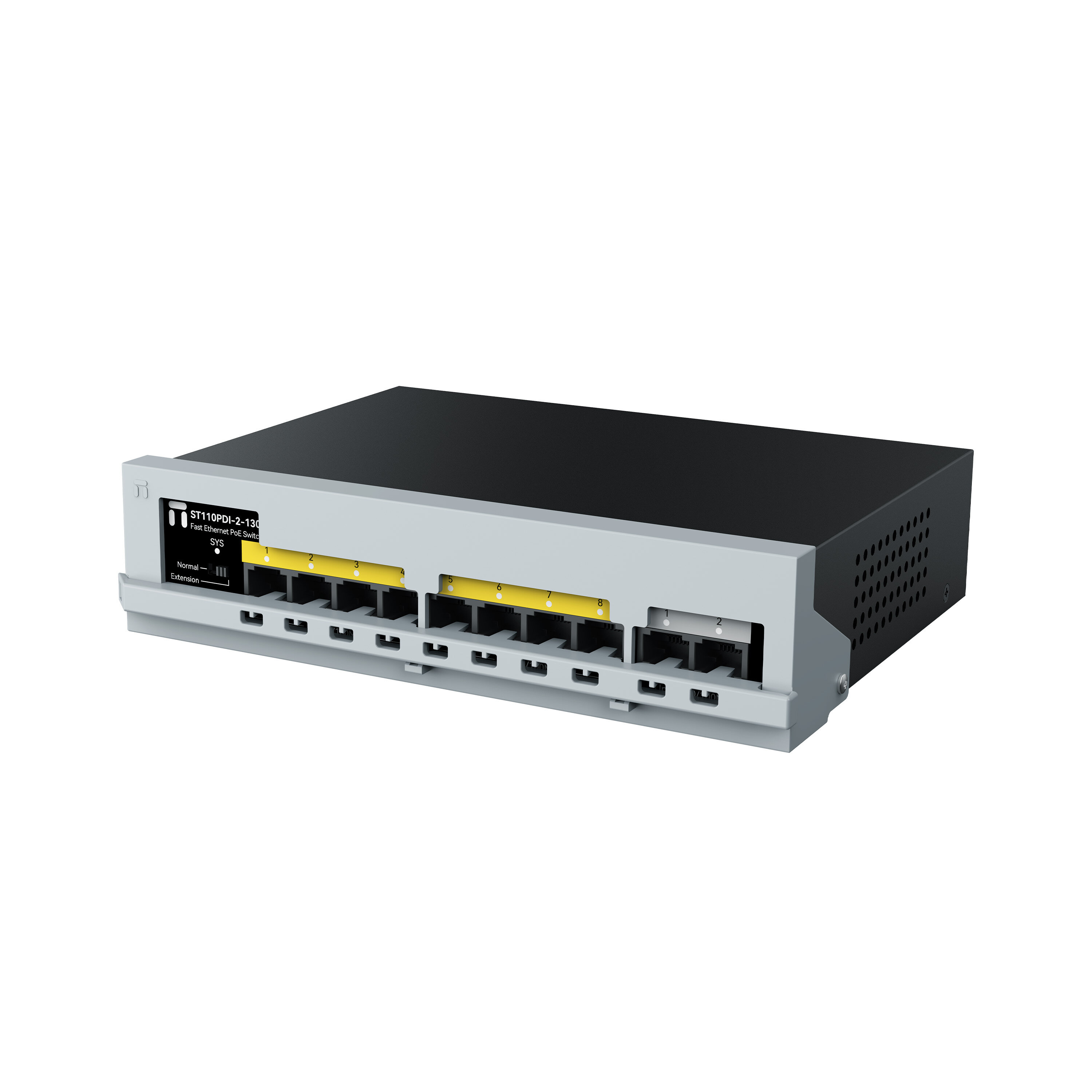

ST110PDI-2-130 | Fast Ethernet PoE Switch with Attached Safety Lock

ST110PDI-2-130

Fast Ethernet PoE Switch with Attached Safety Lock

Attached safety lock, more stable connection.
10*10/100M ports: 8 PoE ports+2 uplink ports.
Built-in 130W power supply with up to 30W PoE output per port.
Durable steel shell for better heat dissipation.
Support IEEE 802.3af/at standards, compatible with powered devices (PD) that meet IEEE 802.3af/at.
All ports support auto MDI/MDI-X function.
Equipped with a convenient DIP switch that can be easily switched between normal mode and extend mode.

Overview | Specifications | Download

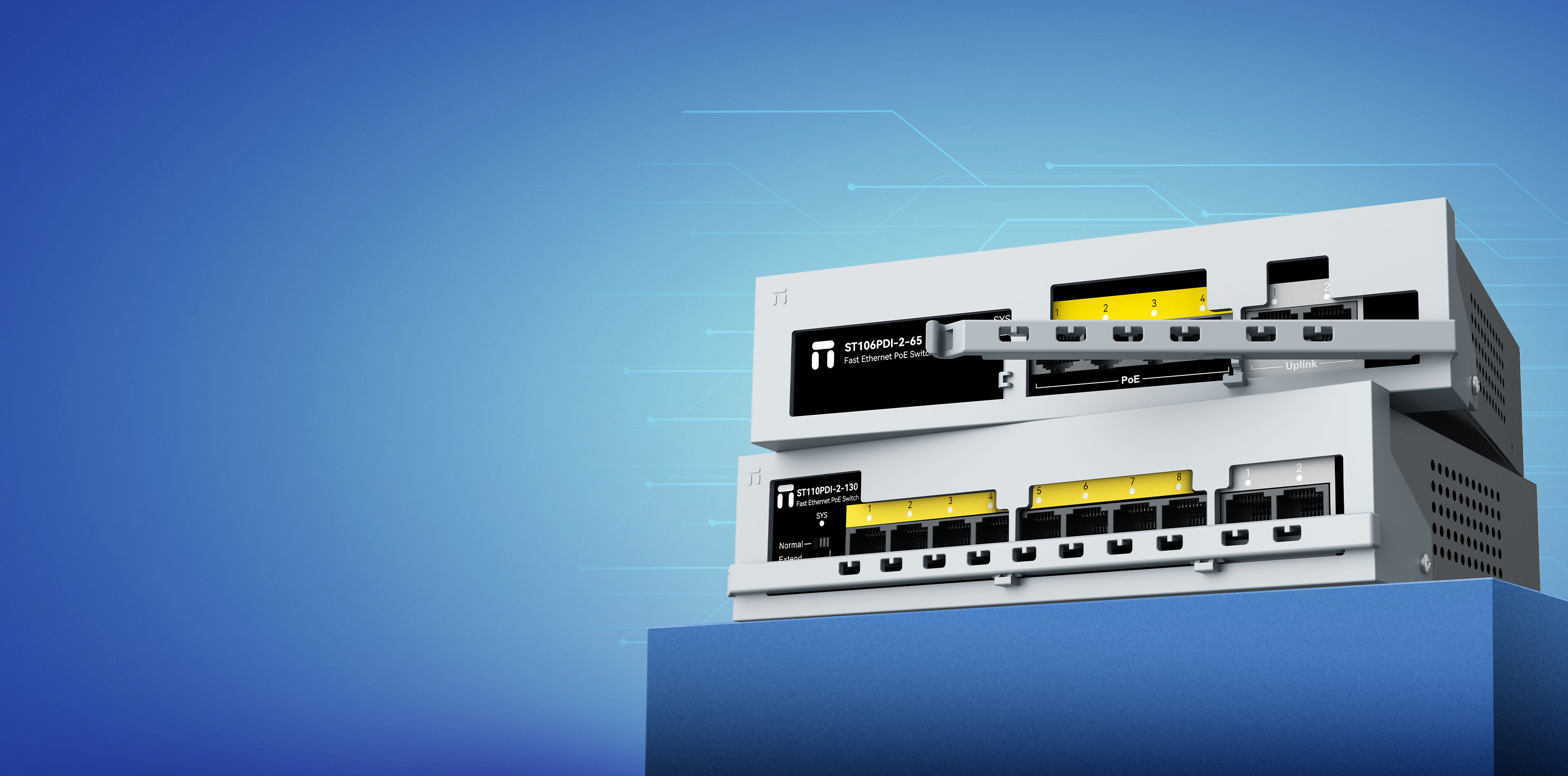

Fast Ethernet PoE Switch with Attached Safety Lock

4FE PoE + 2FE Uplink · ST106PDI-2-65
8FE PoE + 2FE Uplink · ST110PDI-2-130

Attached Safety Lock

130W Power Supply Unit

Support 802.3AF/AT

Extend to 250M

Steel Housing

Surge Protection

Flow Control

Plug and Play

More Durable!

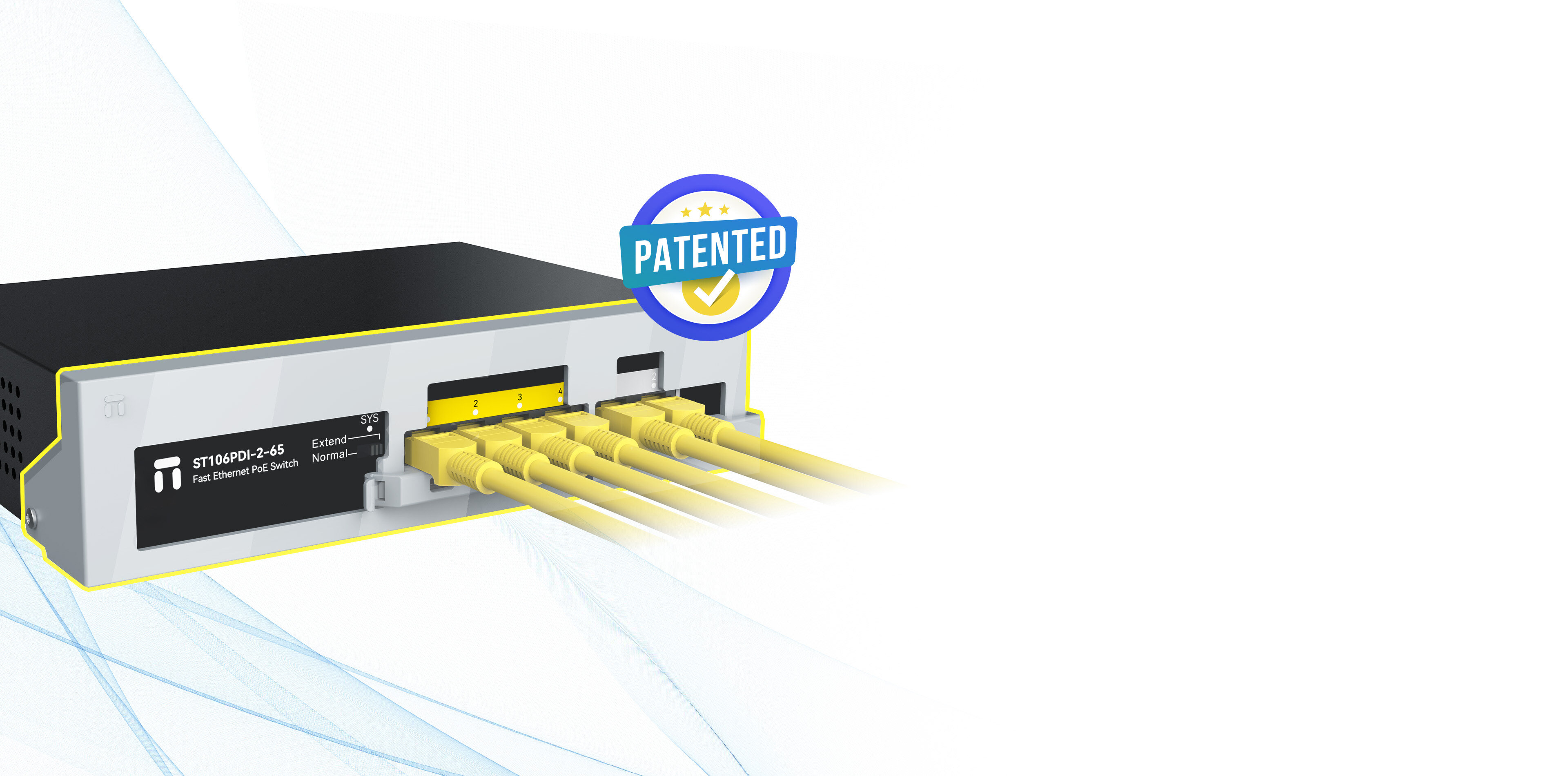

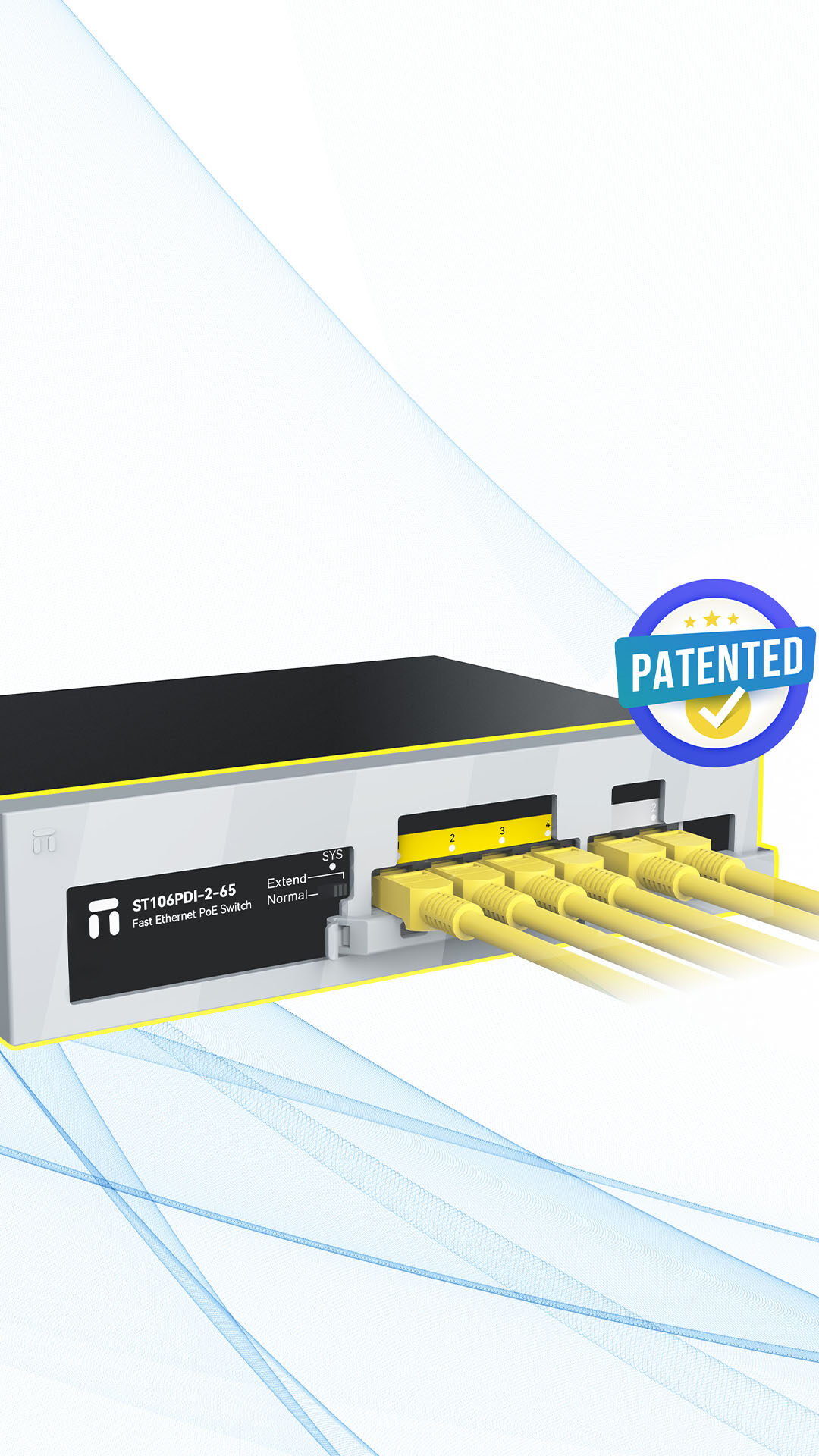

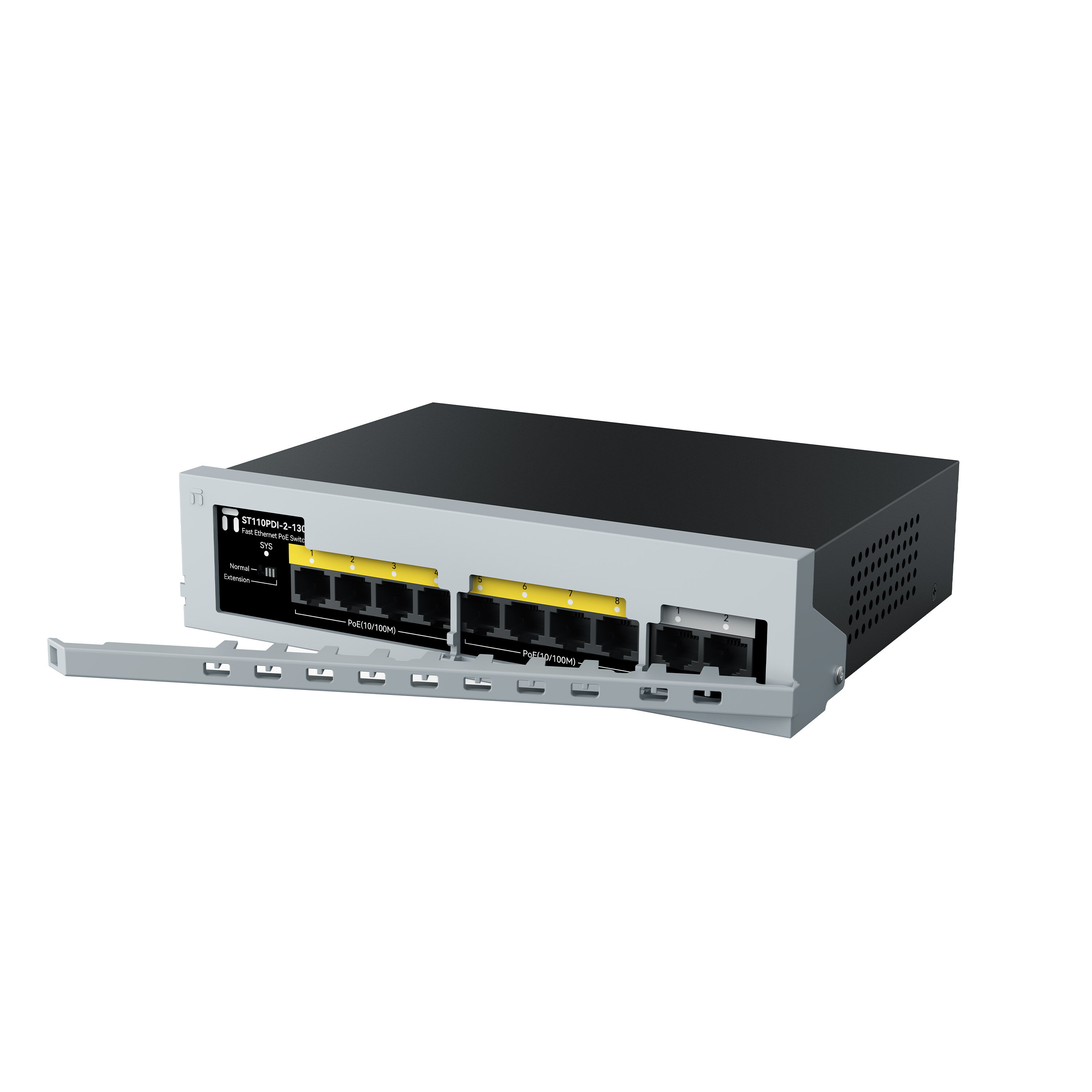

Attached safety lock design, no need to install, it will keep your network cable fixed stable with the switch.

*Attached safety lock with exclusive patent certification, 100% quality assured.

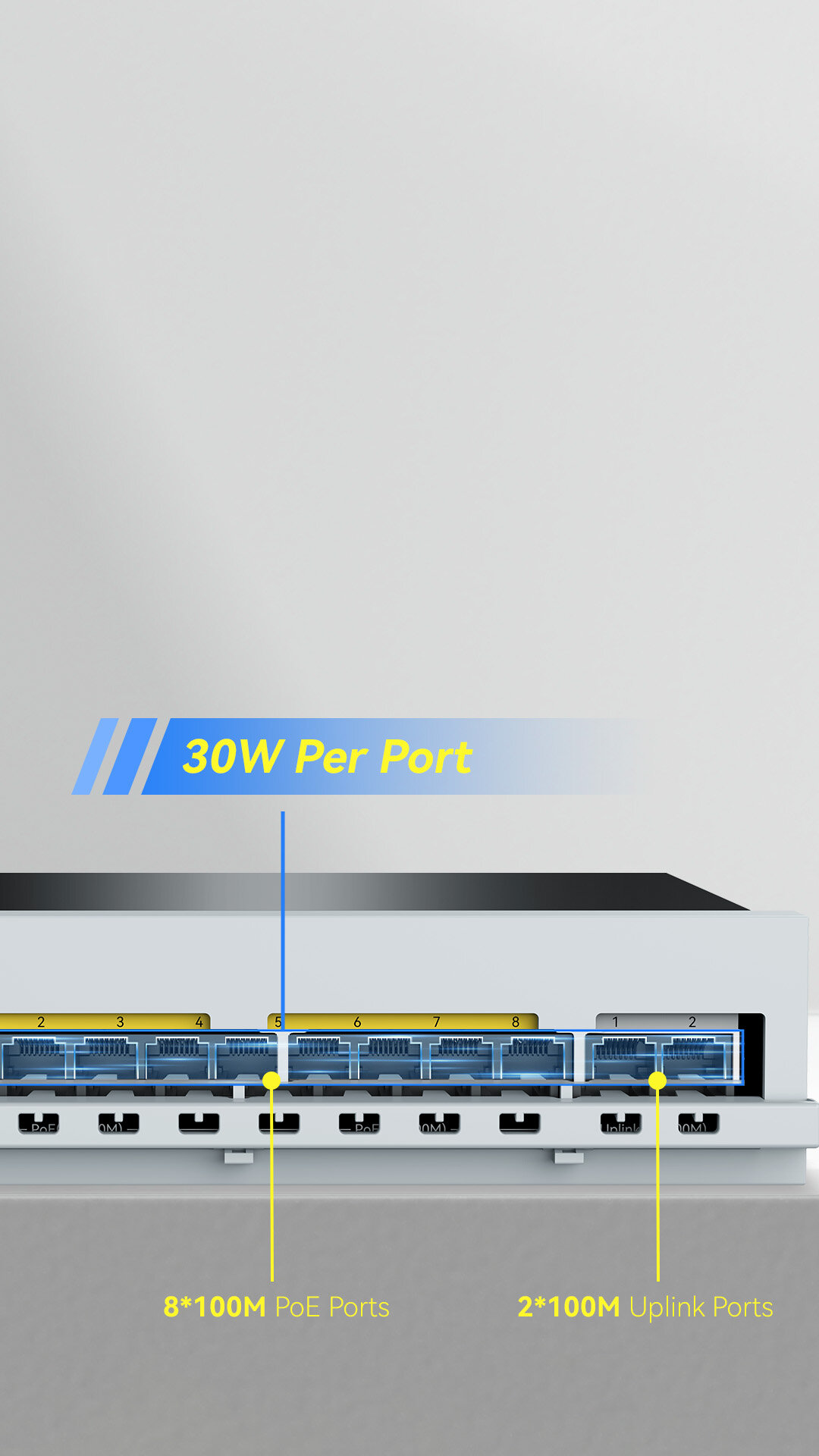

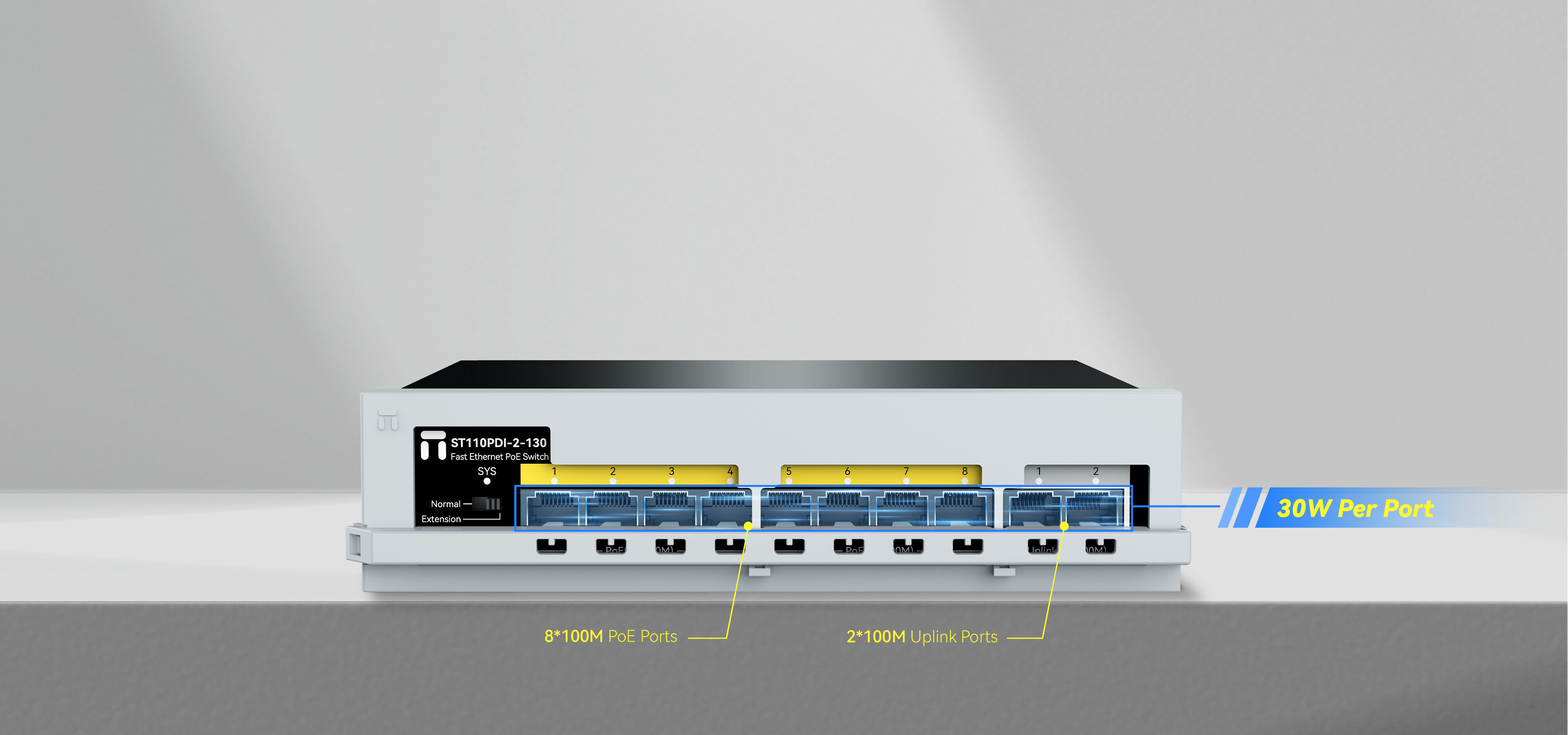

Standard PoE Power Supply

Up To 30W PoE Output Per Port

ST106PDI-2-65 has a total power of 65W with 4*100M PoE ports and 2*100M uplink ports.
ST110PDI-2-130 has a total power of 130W with 8*100M PoE ports and 2*100M uplink ports.

It can support multiple IP cameras and other high-power devices running simultaneously, ensuring a stable and sufficient power supply.

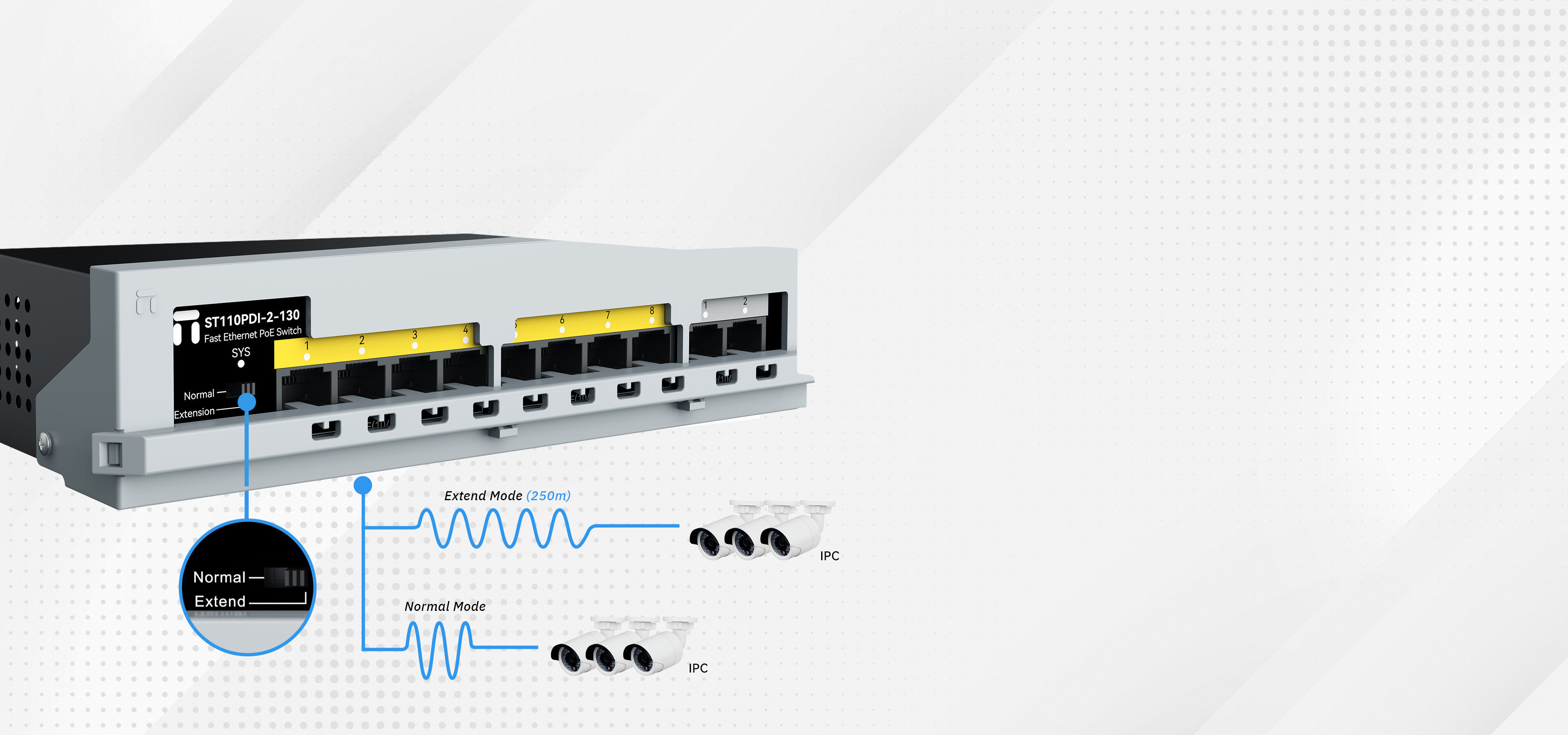

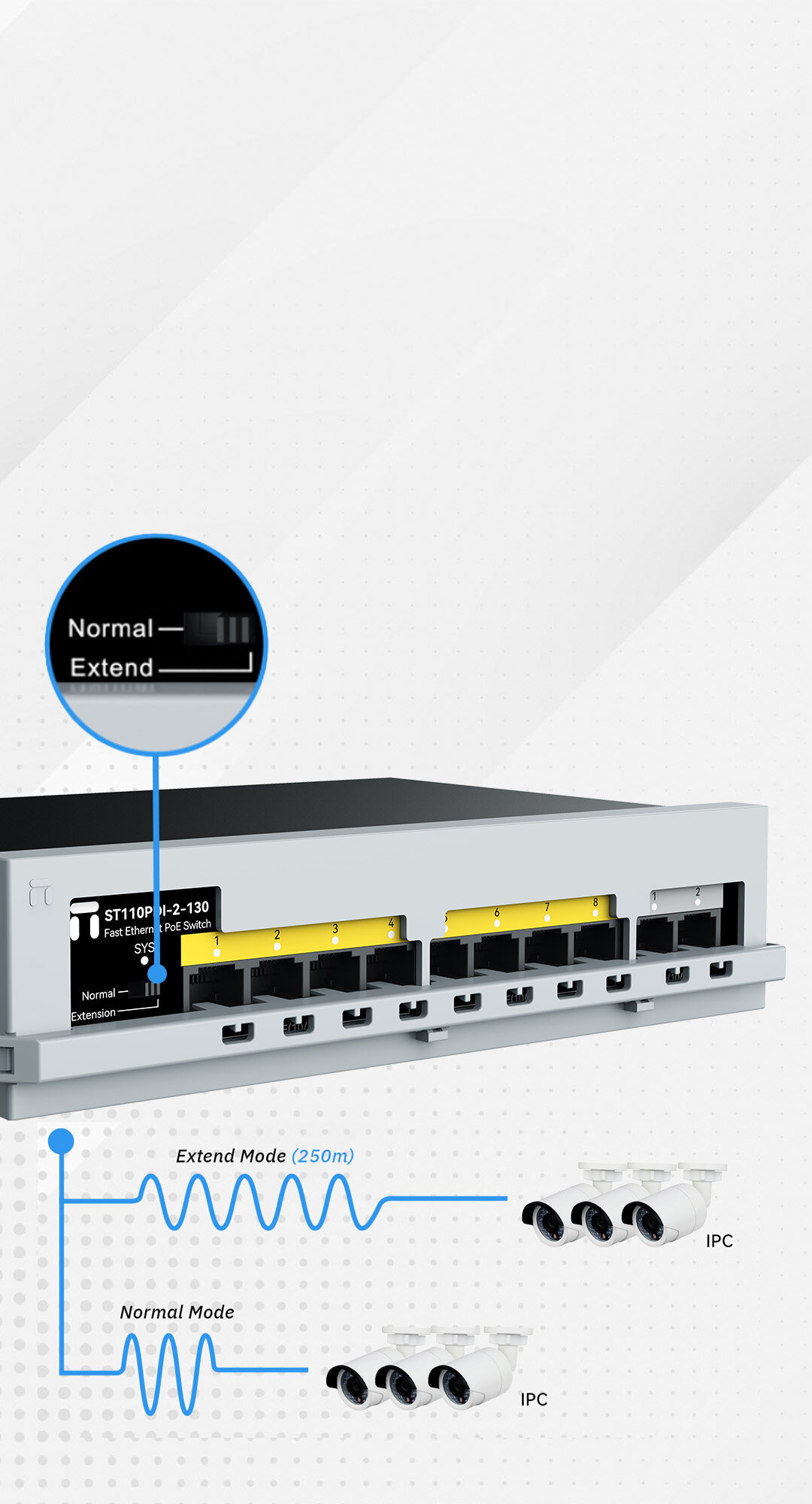

Extend to 250M

Unlocking More Possibilities

Equipped with a convenient DIP switch. It can be easily switched between normal mode and extend mode to meet network needs in different environments and improve deployment flexibility.

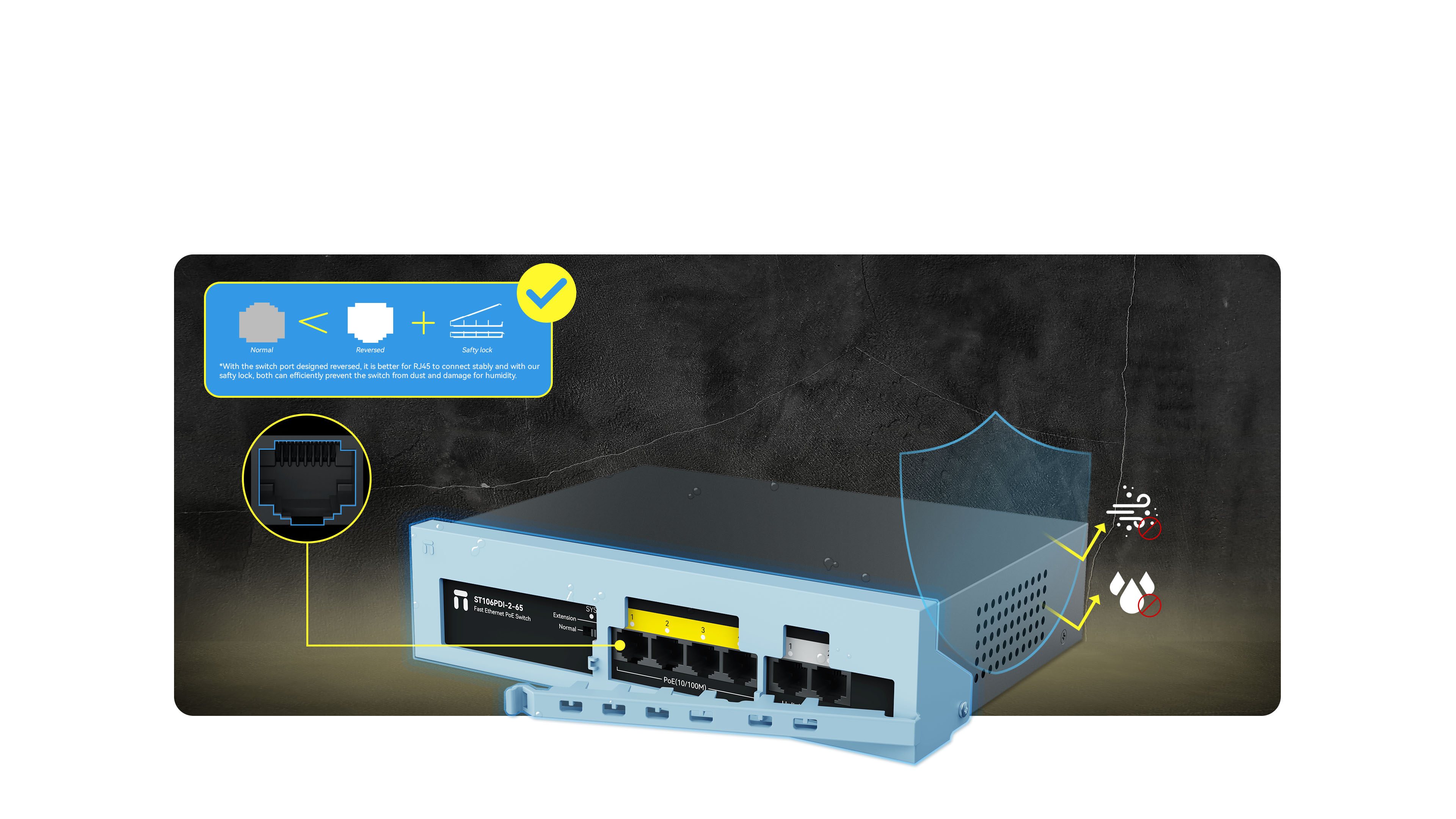

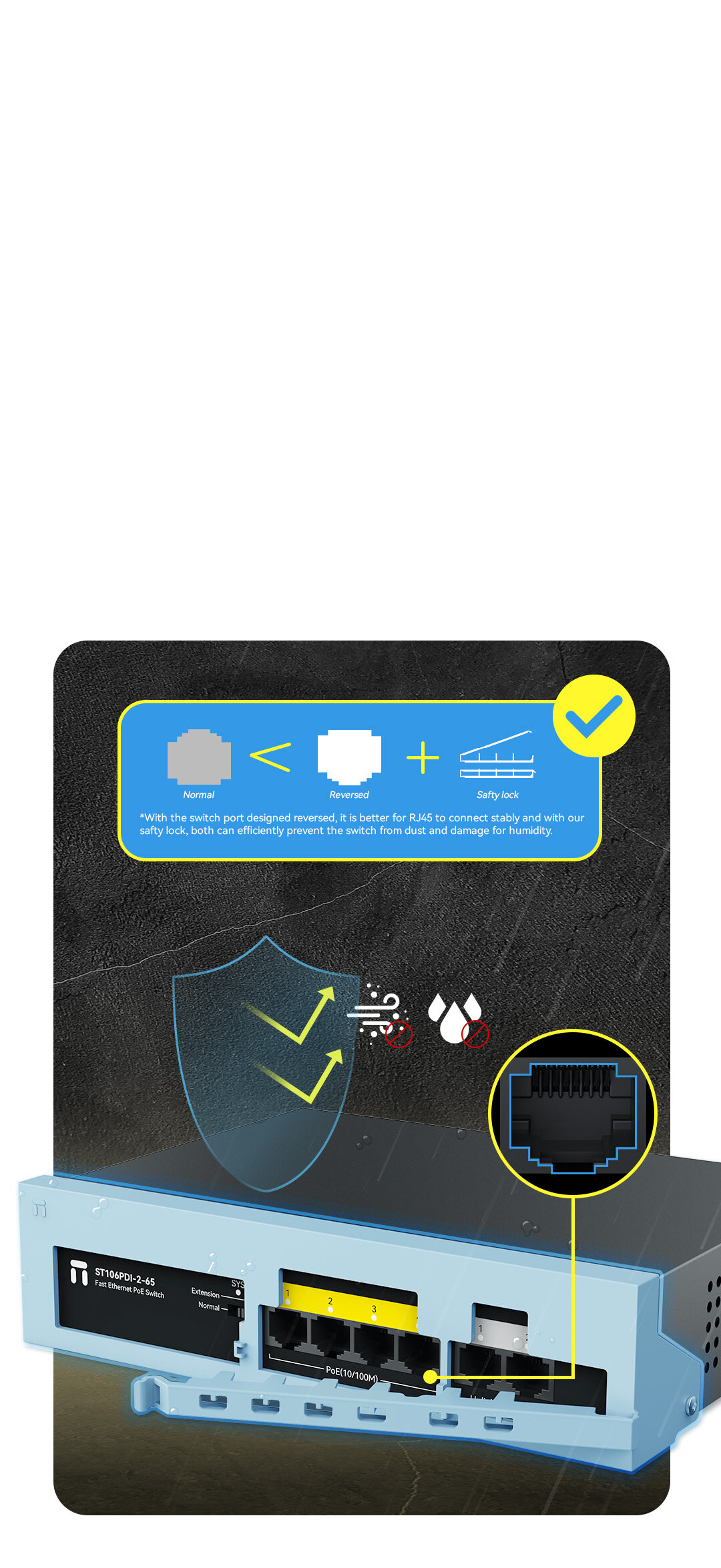

Ingenious Design Lowers Failure Rates

With the port designed upside down, it reduces the risk of damages from dust/humidity when connecting with cables. The attached safety lock also helps preventing dust from entering the switch, in order to avoid metal corrosion/board short circuit. Meanwhile in thunderstorm/humid environments, it helps to reduce product failure rates.

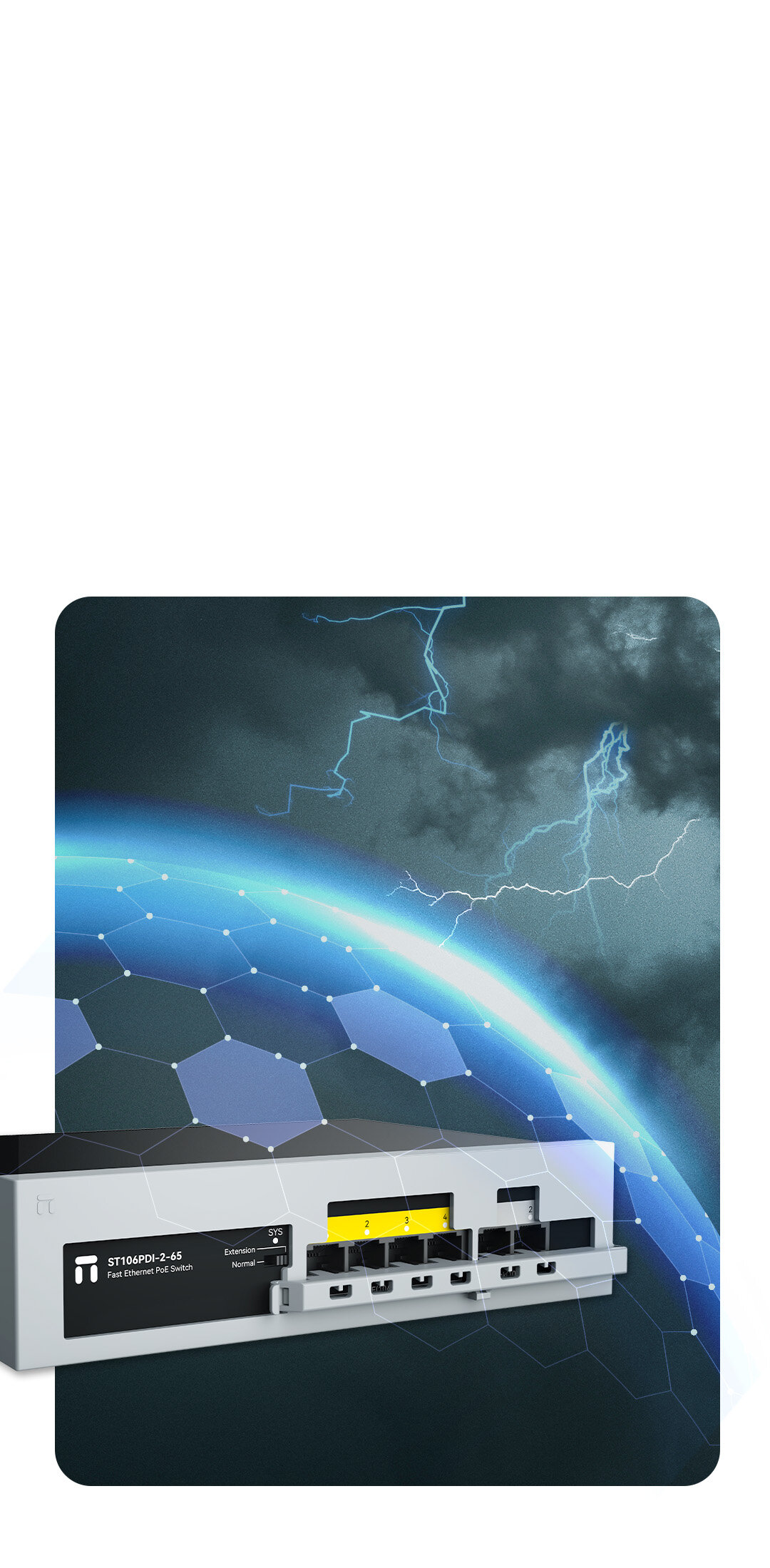

Multiple Protections

Ensure Safety without Worries

Built-in 4KV common-mode and differential-mode lightning protection module can effectively resist lightning strikes and surges.
At the same time, it has overcurrent, overload and short-circuit protection functions.

Multiple Application Scenarios

Specification

LED Indicators

Power Indicator	Lights up when the device is powered on.
Function Indicator	Lights up when the extended transmission function is enabled.

Hardware

Switch Ports	Normal mode/Cable Extension mode
Ports	8x100Mbps POE ports + 2x100Mbps uplink ports
Backplane Bandwidth	2Gbps
MAC Address Table	2K
Input Power	100-240V~ 50/60Hz
Power Supply	130W 54V/2.4A
Maximum POE Output Power	120W
Network Media & Transmission Distance	100Base-TX: 2 pairs of Category 5 (Cat5) or higher UTP/STP cables (≤100m) 10Base-TX: 2 pairs of Category 6 (Cat6) or higher UTP/STP cables (≤250m)

Software

Basic Functions	Complies with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet protocol standards Compatible with IEEE 802.3af/at compliant powered devices (PD) Compatible with certified non-standard powered devices (PD) Supports store-and-forward switching Supports automatic MAC address learning and aging Extended cable transmission,supports long-distance monitoring power supply Supports IEEE 802.3X full-duplex flow control and Backpressure half-duplex flow control
Ethernet Protocols and Standards	IEEE 802.3 Ethernet Media Access Control (MAC) protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af Power over Ethernet (POE) IEEE 802.3at High Power over Ethernet (POE) IEEE 802.3x Flow Control
Data Transfer Rates	10/100Mbps support for both full-duplex and half-duplex modes

Environmental Requirements

Temperature	Operating Temperature:0℃ ~ 40℃ Storage Temperature:-40℃ ~ 70℃
Humidity	Operating Humidity:10% ~ 90% RH(non-condensing) Storage Humidity:5% ~ 90% RH(non-condensing)
Altitude	Operating: Max 6500 feet (2000 meters) Storage: Max 6500 feet (2000 meters)

Lightning Surge Protection

Differential Mode	4KV
Common Mode	4KV

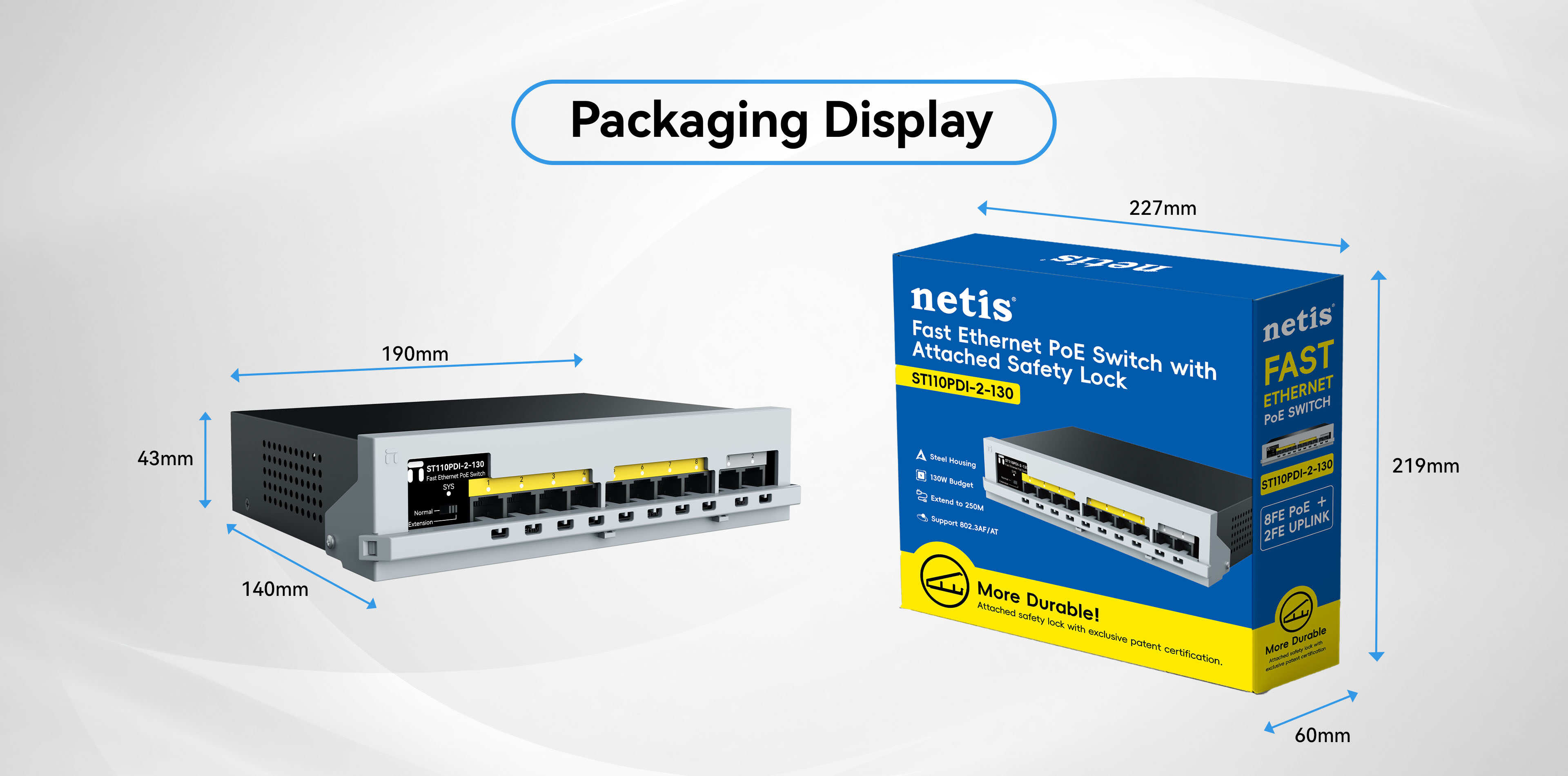

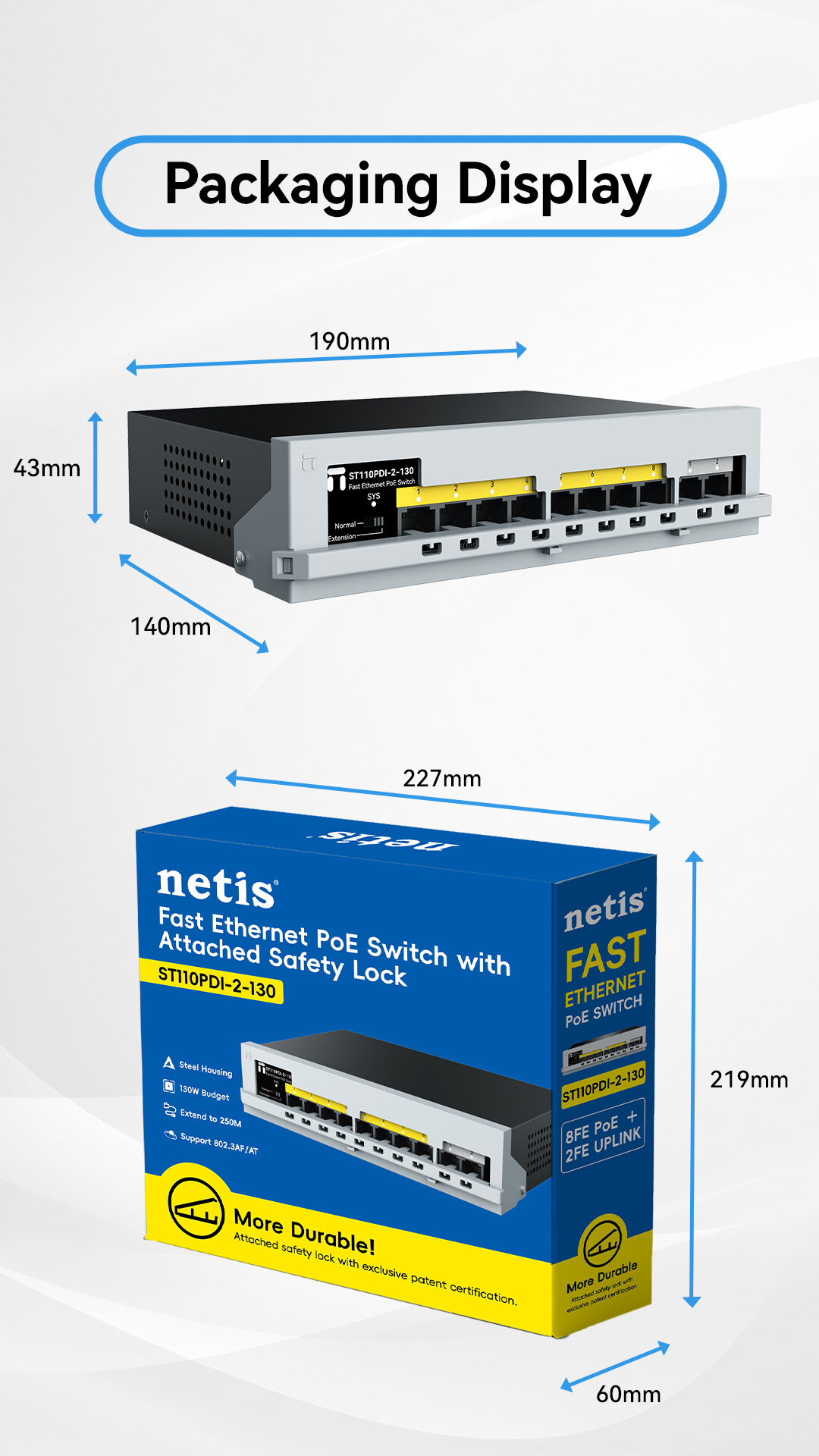

Physical Dimensions

Dimensions

(W x D x H)

190mmx140mmx43mm

Packaging and Transportation

Protective Packing

EPE protection

Others

Stacking Limit	Maximum of 4 layers when fully packaged
Humidity	5%～90% RH(non-condensing)
Storage Temperature	-40℃ ~ 70℃,with the most suitable storage condition being room temperature considering humidity
Storage Precautions	Store in a clean,ventilated environment free from corrosive gases,flammable,explosive,and other hazardous chemicals.Keep away from heat sources and sources of strong mechanical vibration
Storage Period	Under the above conditions,the product can be stored for one year.It is recommended to re-inspect and test the product after two years before use
