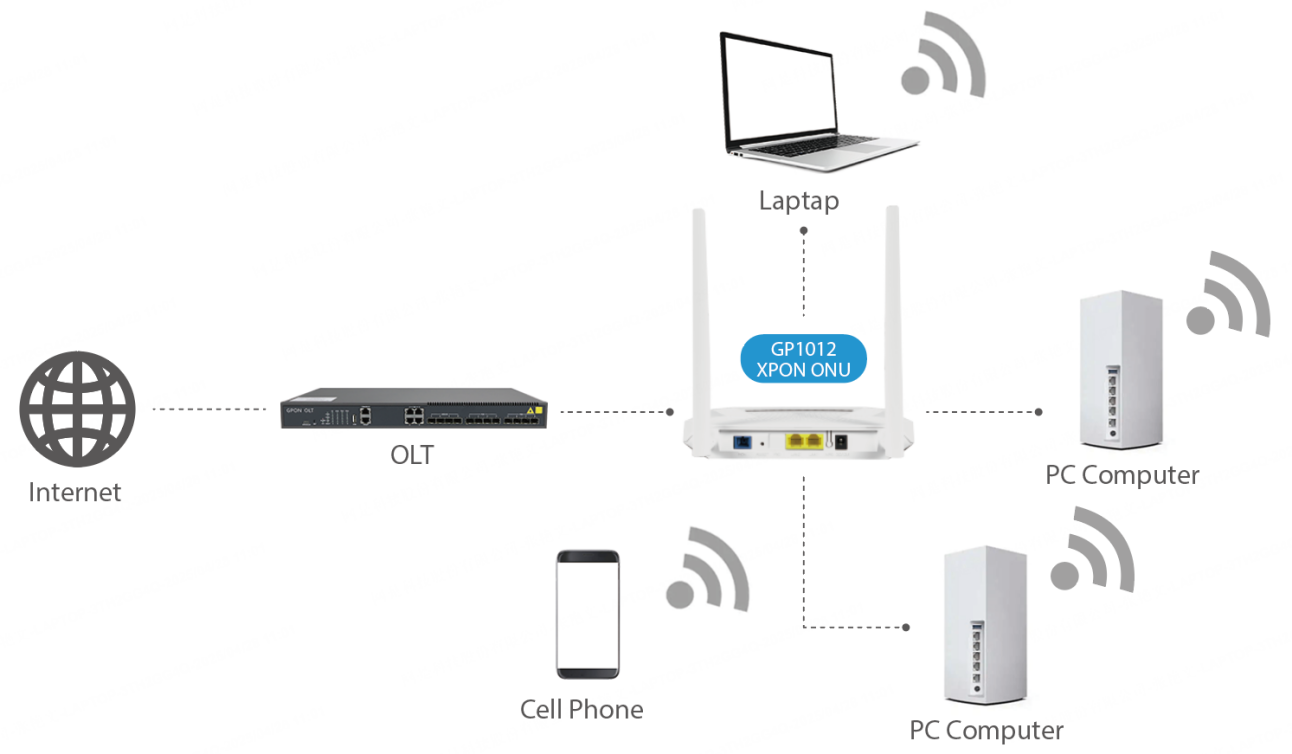

PON Interface

1 GPON BOB (Bosa on Board)

Receiving sensitivity ≤-27dBm

Transmitting optical power: 0~+5dBm

Transmission distance: 20km

Wavelength

TX: 1310nm, RX: 1490nm

Optical Interface

SC/UPC Connector

Chip Spec

DDR2 64MB

Flash Compliance

SPI Nor Flash 16MB

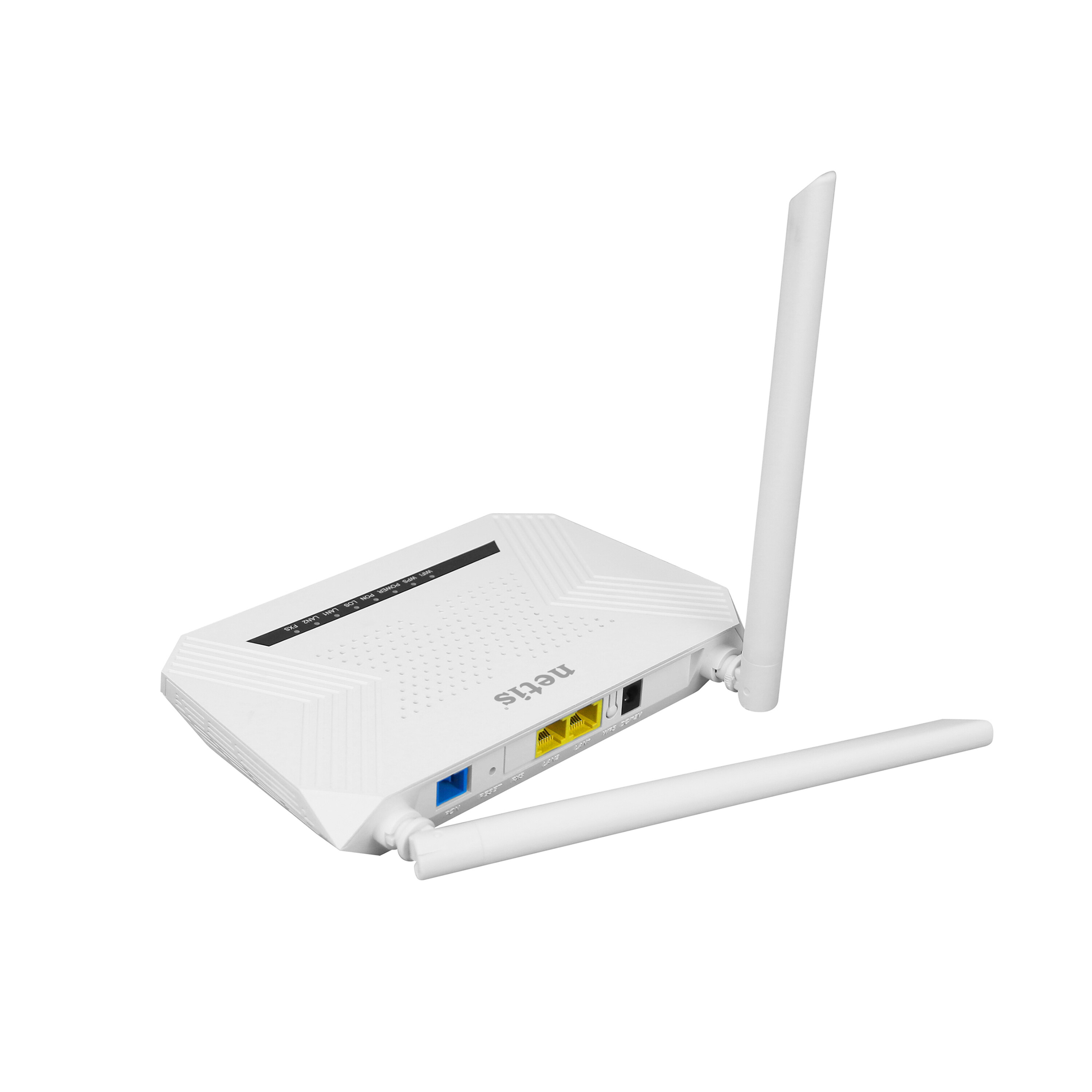

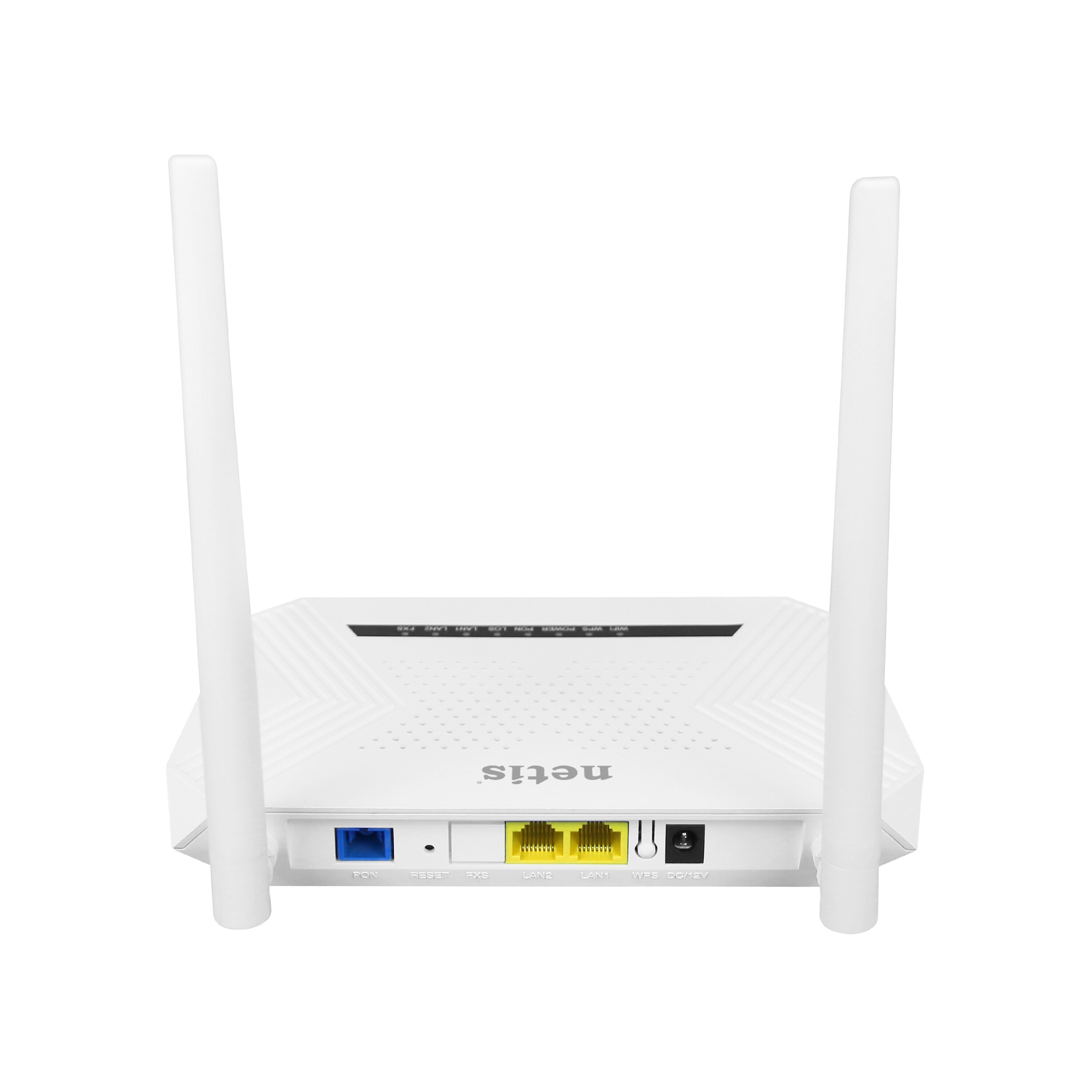

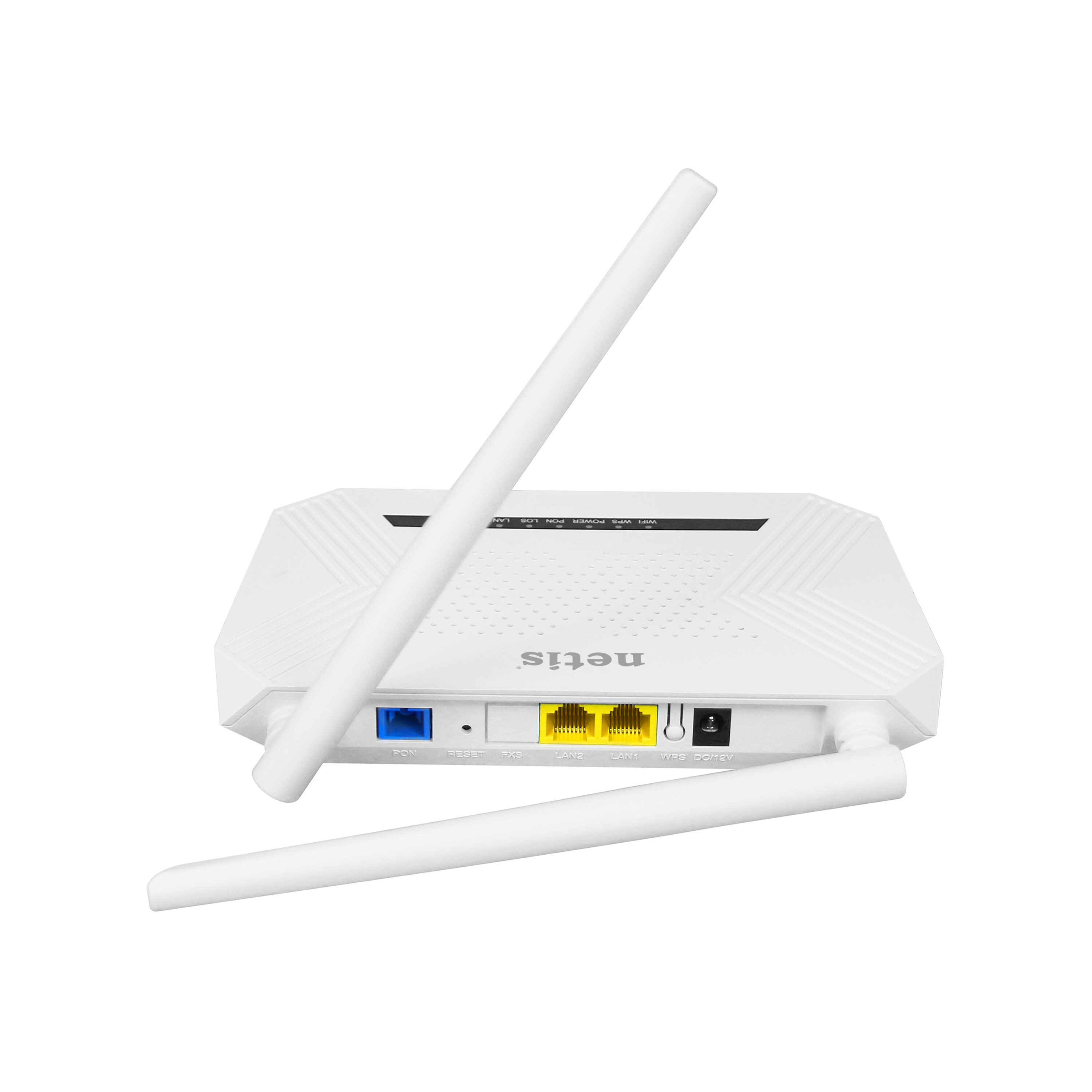

LAN Interface

1x10/100/1000Mbps (GE) and 1x10/100Mbps (FE) auto adaptive

Ethernet interfaces. Full/Half, RJ45 connector

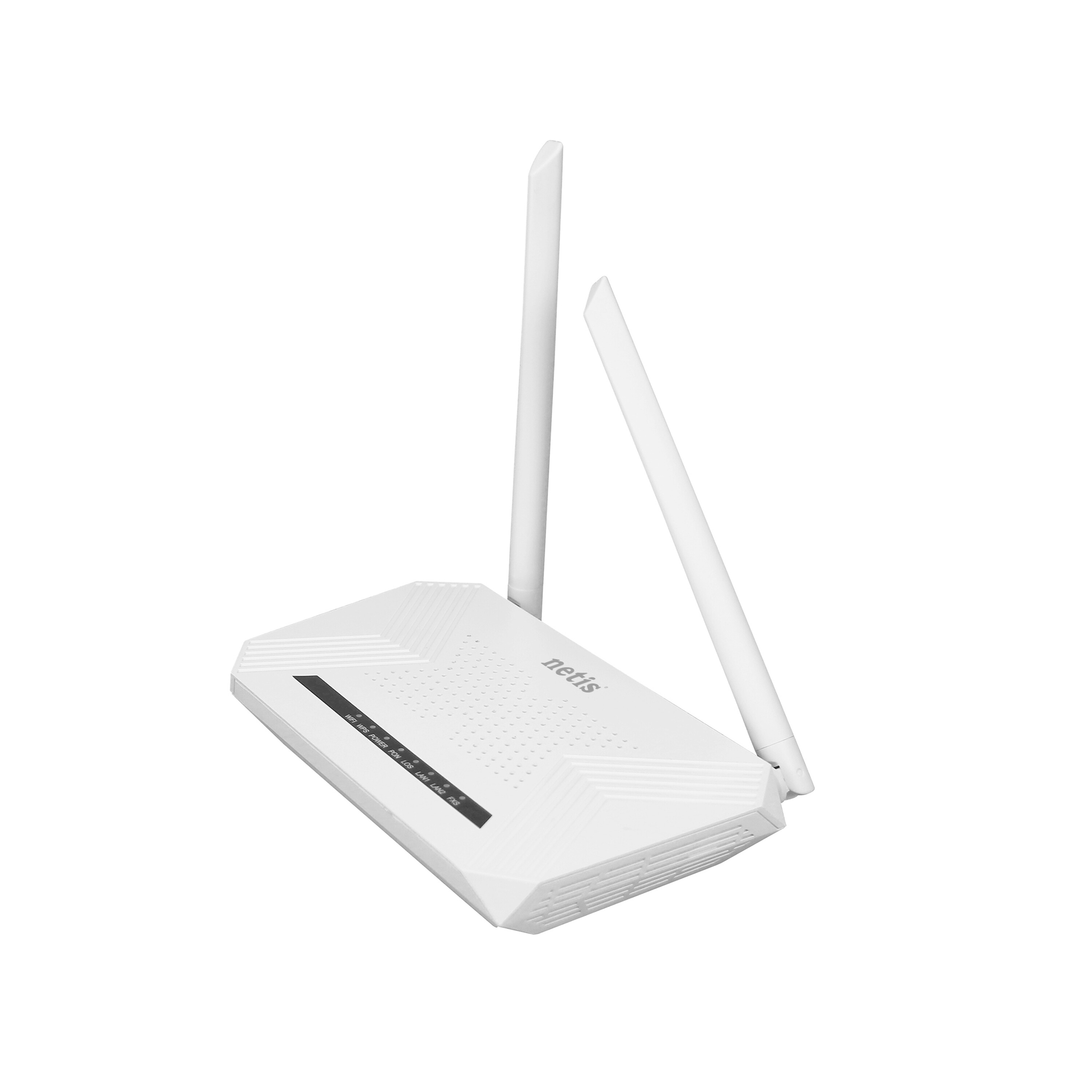

Wireless

Compliant with IEEE802.11b/g/n,

Operating frequency: 2.400-2.4835GHz

Support MIMO, rate up to 300Mbps,

2T2R, 2*5dBi external antenna,

Support: Multiple SSID

LED

7 LEDs, For Status of WIFI, WPS, PWR, LOS, PON, LAN1, LAN2

Push-Button

2, For Function of Factory Reset, WPS

Operating Condition

Temperature: 0°C~50°C

Humidity: 10%~90%(non-condensing)

Storing Condition

Temperature: -20°C~70°C
Humidity: 10%~90% (non-condensing)

Power Supply

Requirements

DC 12V/1A

Power Consumption

≤6W

Dimension

180mm×107mm×28mm (L×W×H)

Net Weight

150g

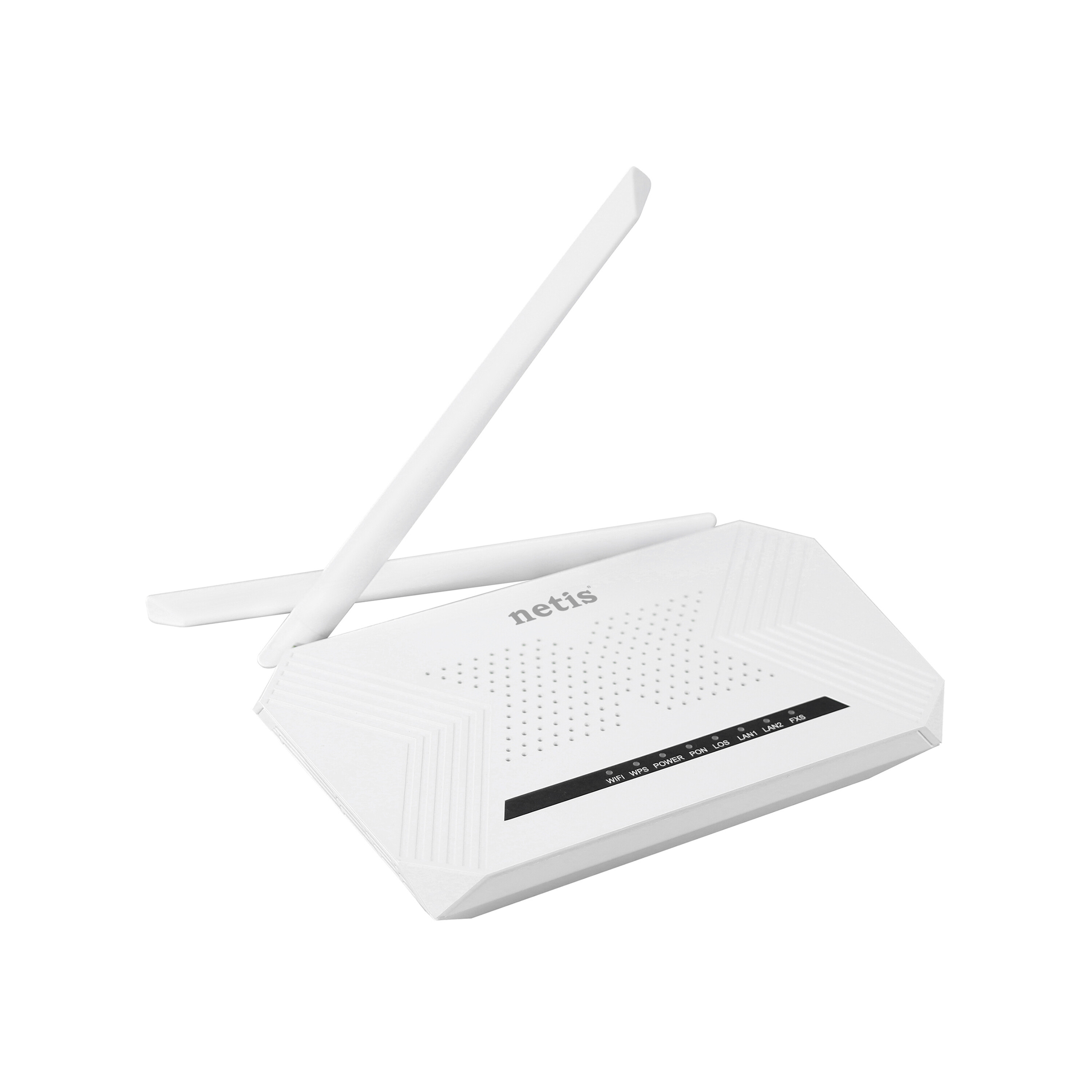

Pilot Lamp

Description

WiFi

ON
The WIFI interface is up.

BLINK
The WIFI interface is sending or/and receiving data (ACT).

OFF
The WIFI interface is down

WPS

BLINK
The WIFI interface is securely establishing a connection.

OFF
The WIFI interface does not establish a secure connection.

PWR

ON
The device is powered up.

OFF
The device is powered down.

LOS

BLINK
The device doses not receive optical signals or with low signals.

OFF
The device has received optical signal.

PON

ON
The device has registered to the PON system.

BLINK
The device is registering the PON system.

OFF
The device registration is incorrect.

LAN1-LAN2

ON
Port (LANx) is connected properly (LINK).

BLINK
Port (LANx) is sending or/and receiving data (ACT).

OFF
Port (LANx) connection exception or not connected.
