WF2409PD
300Mbps Multi-Mode Wireless Router
- Up to 300Mbps wireless high speed,satisfying your daily surfing needs like web browsing, files downloading, HD video streaming and IPTV
- Equipped with 3* 5dBi high-gain antennas, 1 Fast WAN port + 4 Fast LAN ports
- Support both DC power supply and POE power supply, meeting more networking scenarios
- Superior 1GHz high-performance processor with 64MB RAM and 8MB Flash Memory optimizes your network performance

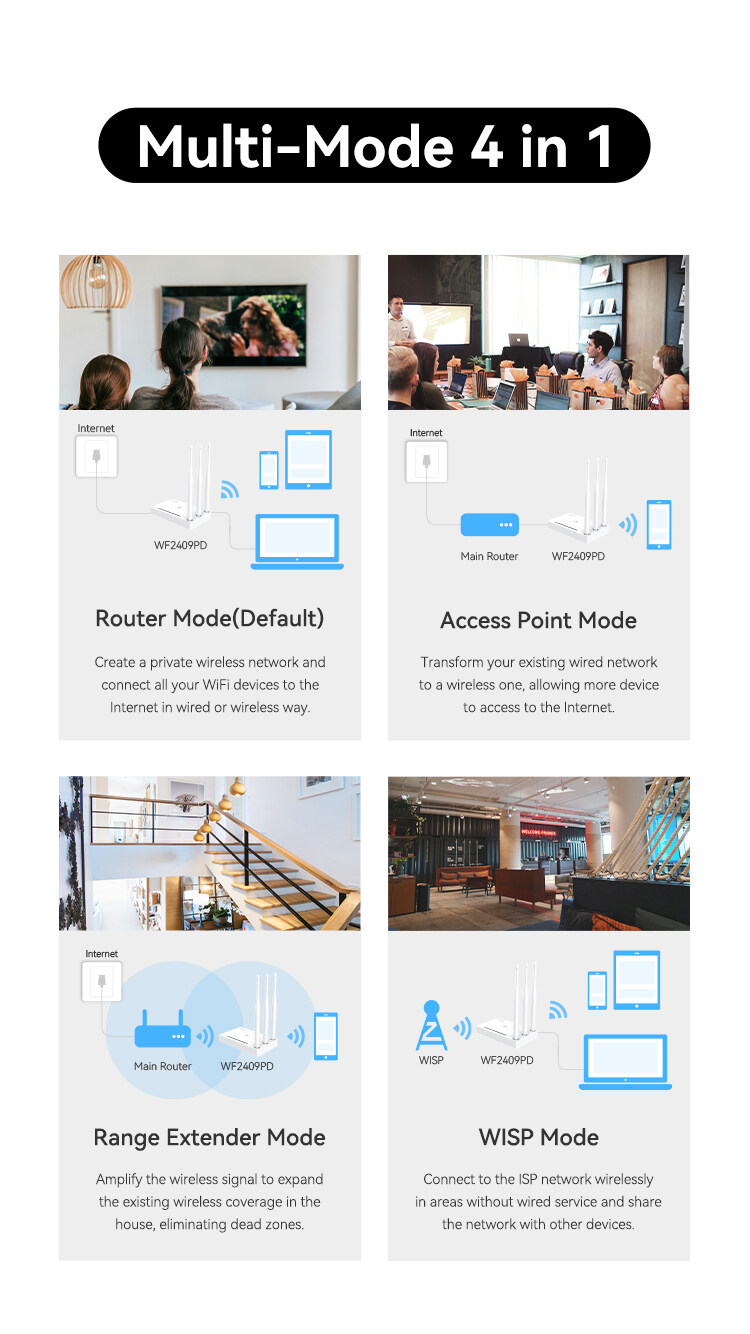

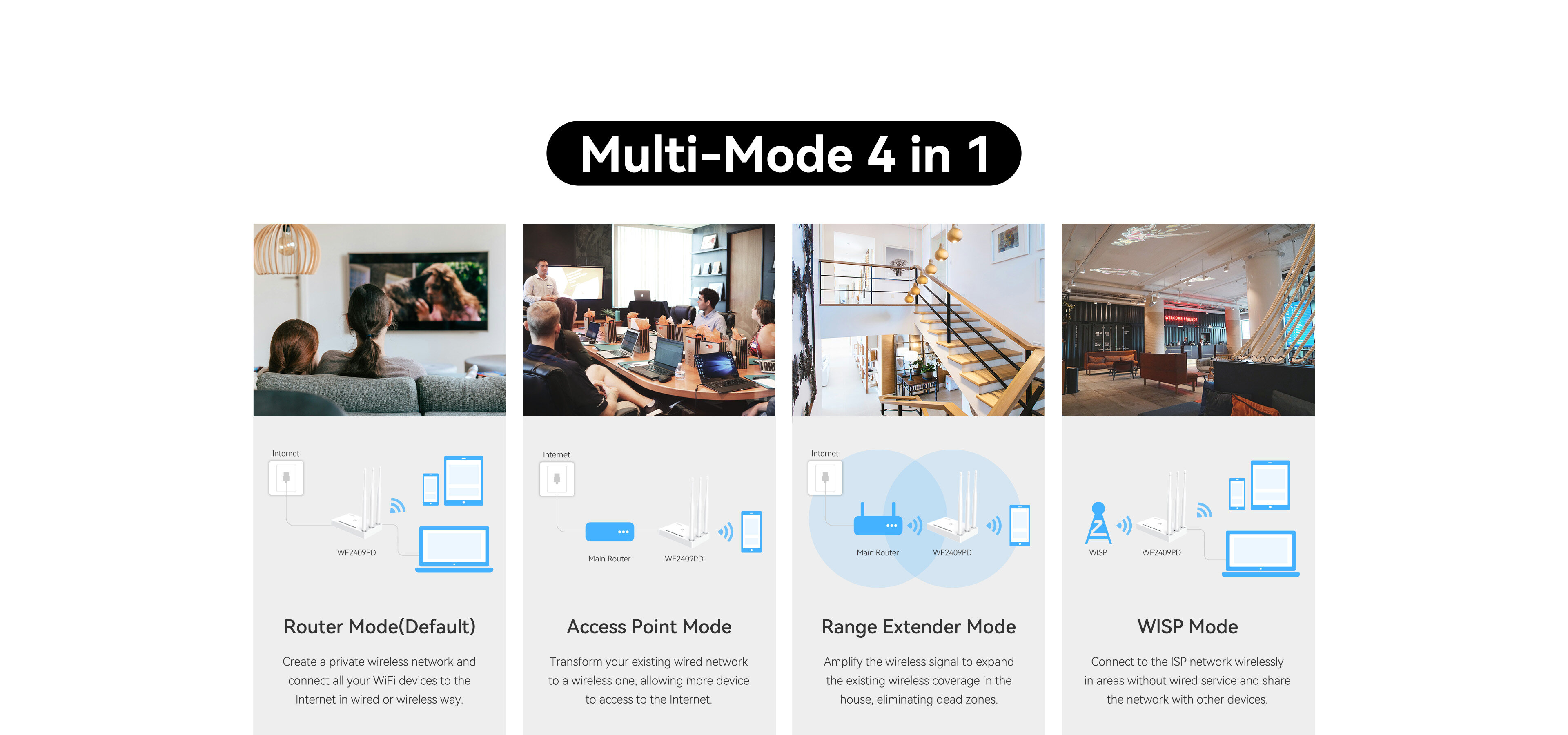

- 4 multi-mode in 1: support Router Mode,Access Point Mode, Range Extender Mode and WISP Mode
- Guest network supported, protect your private network better
- Easy setup in minutes and BeeWiFi App management help save your time and efforts
- Intelligent bandwidth control and advanced wireless security by supporting WPA-PSK/WPA2-PSK (TKIP/AES)
- Support IPv6 and TR069 protocol
Building up Your Flexible Wi-Fi Network
300Mbps Multi-Mode Wireless Router
WF2409PD
300Mbps Wireless High Speed
Up to 300Mbps wireless speed on the 2.4 GHz band provides you a practical solution for smart home network tasks like web browsing, files downloading,Internet calling and HD video streaming.

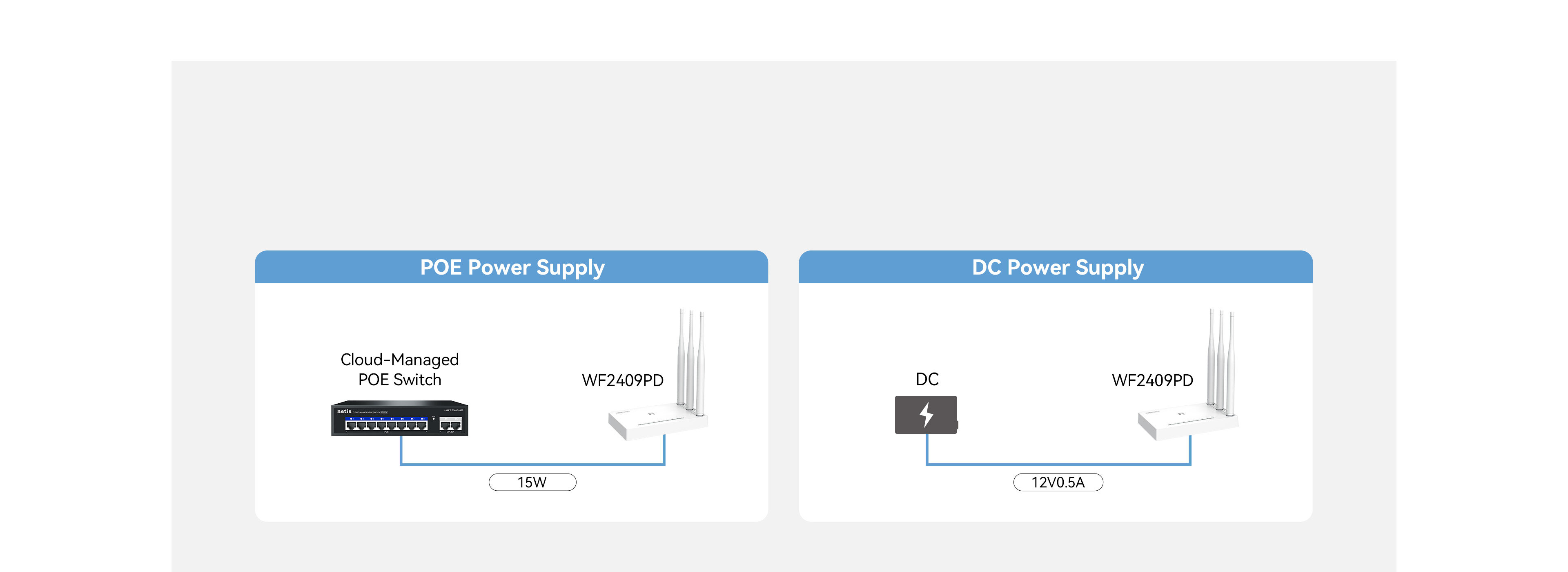

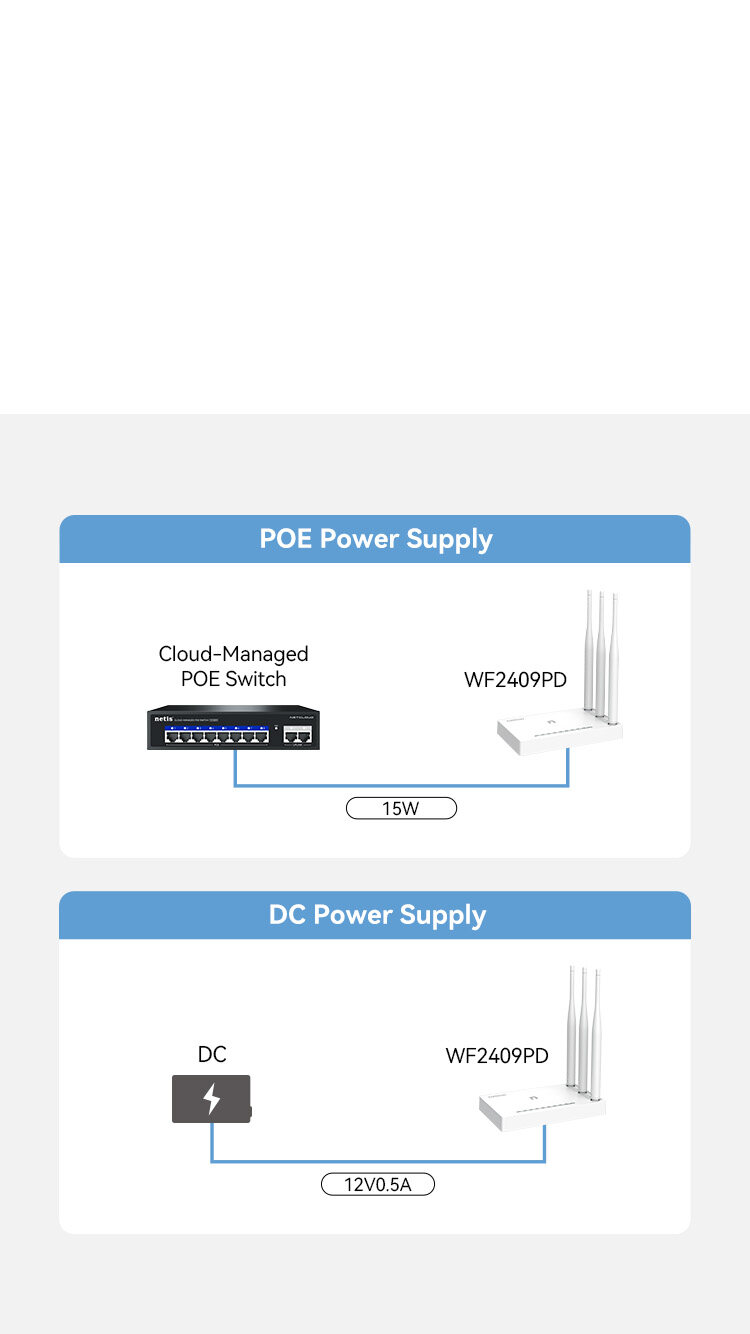

Flexible Two Power Supply Mode
WF2409PD supports not only traditional DC power supply, but also POE power supply for convenient and affordable installation, enabling more flexibility.

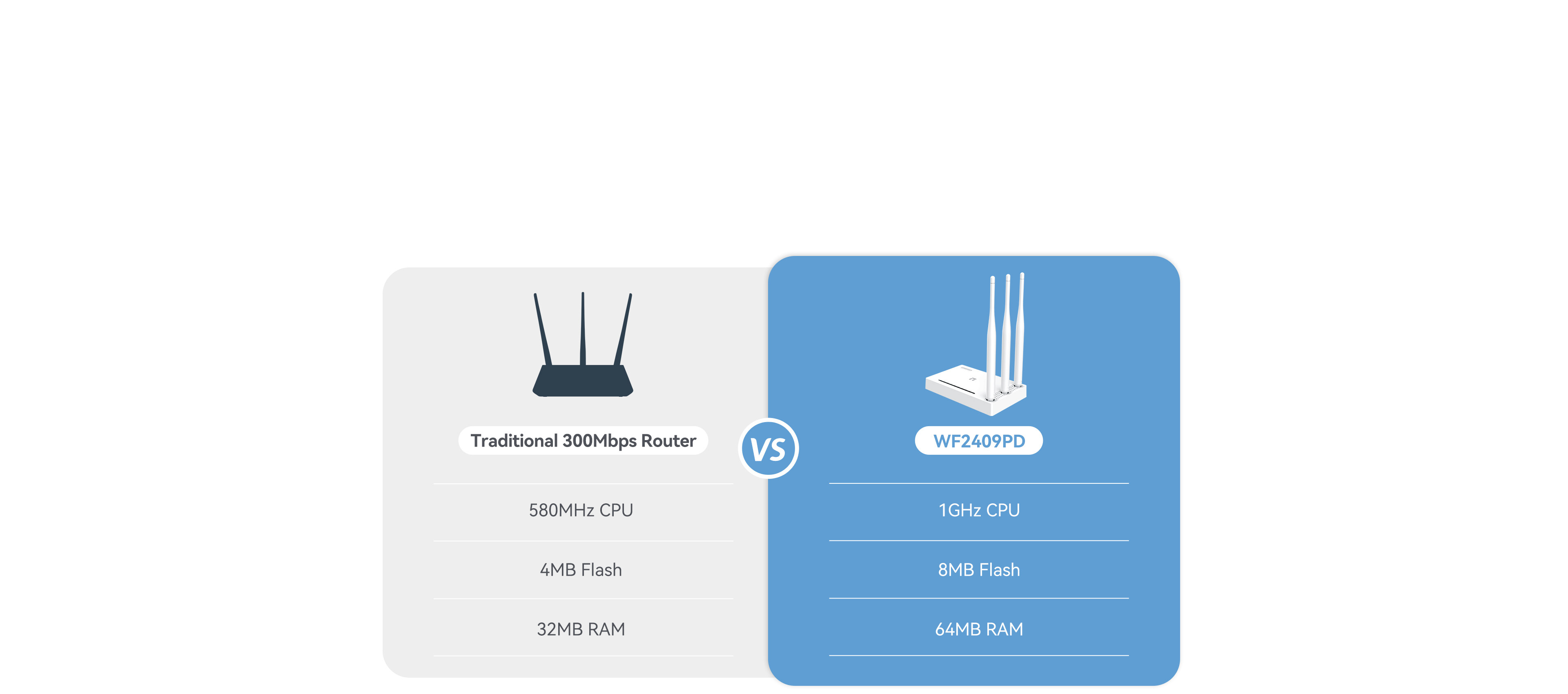

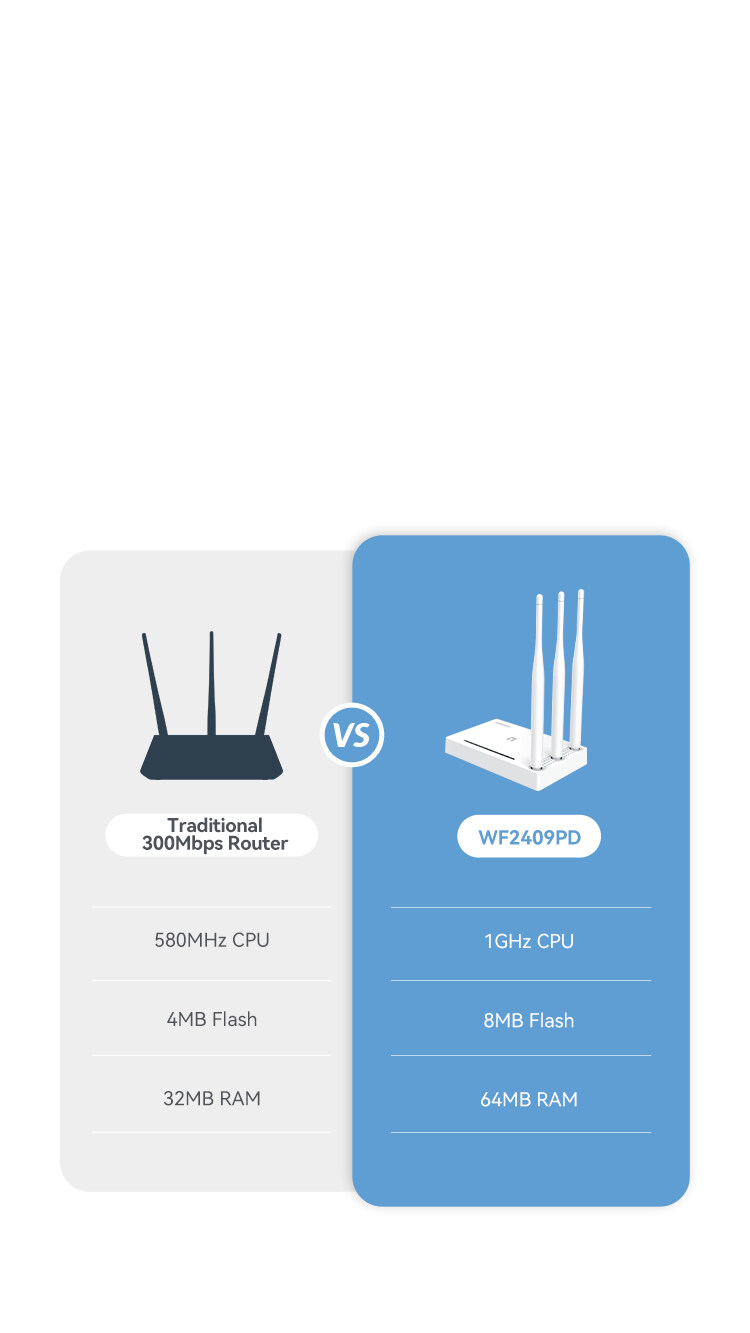

Newly Upgraded！Fast and Stable
Engineered with the upgraded 1GHz high-performance processor, 64MB of RAM, 8MB of flash memory, WF2409PD delivers stronger data transmission and more powerful performance for a smooth network experience.

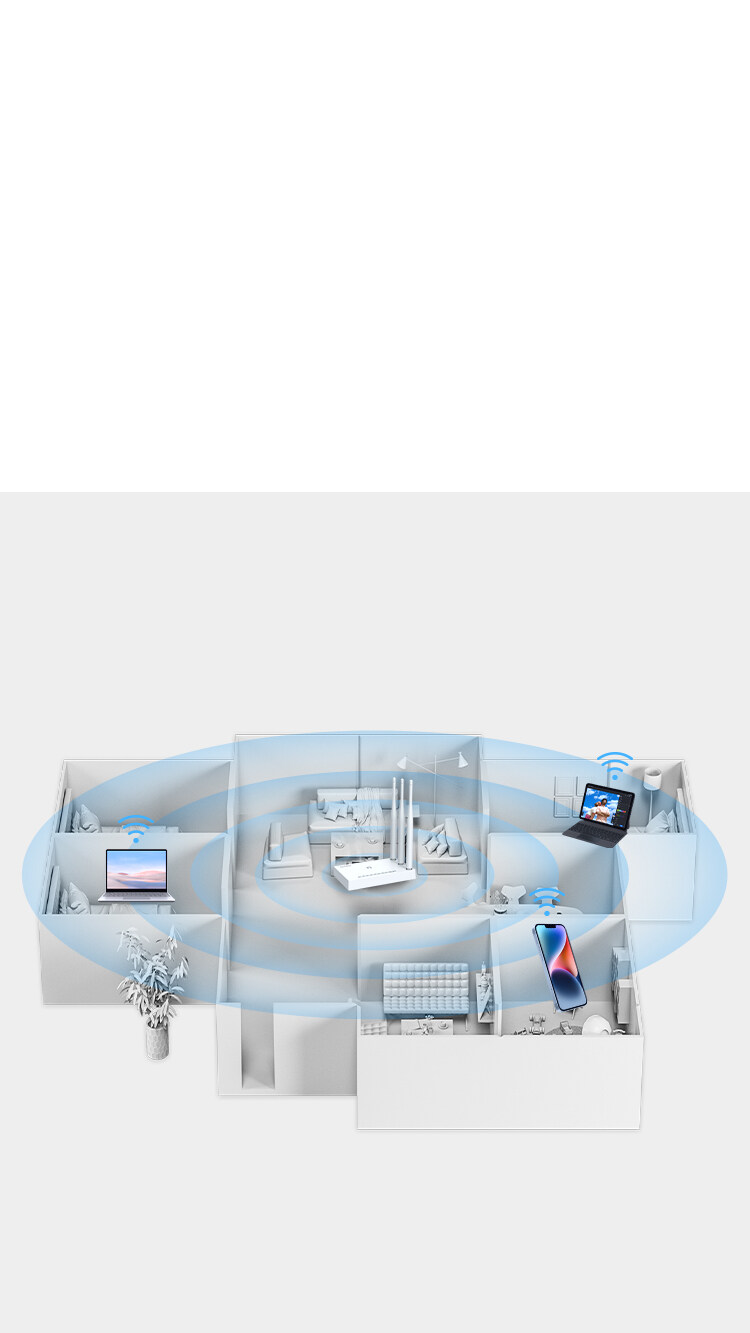

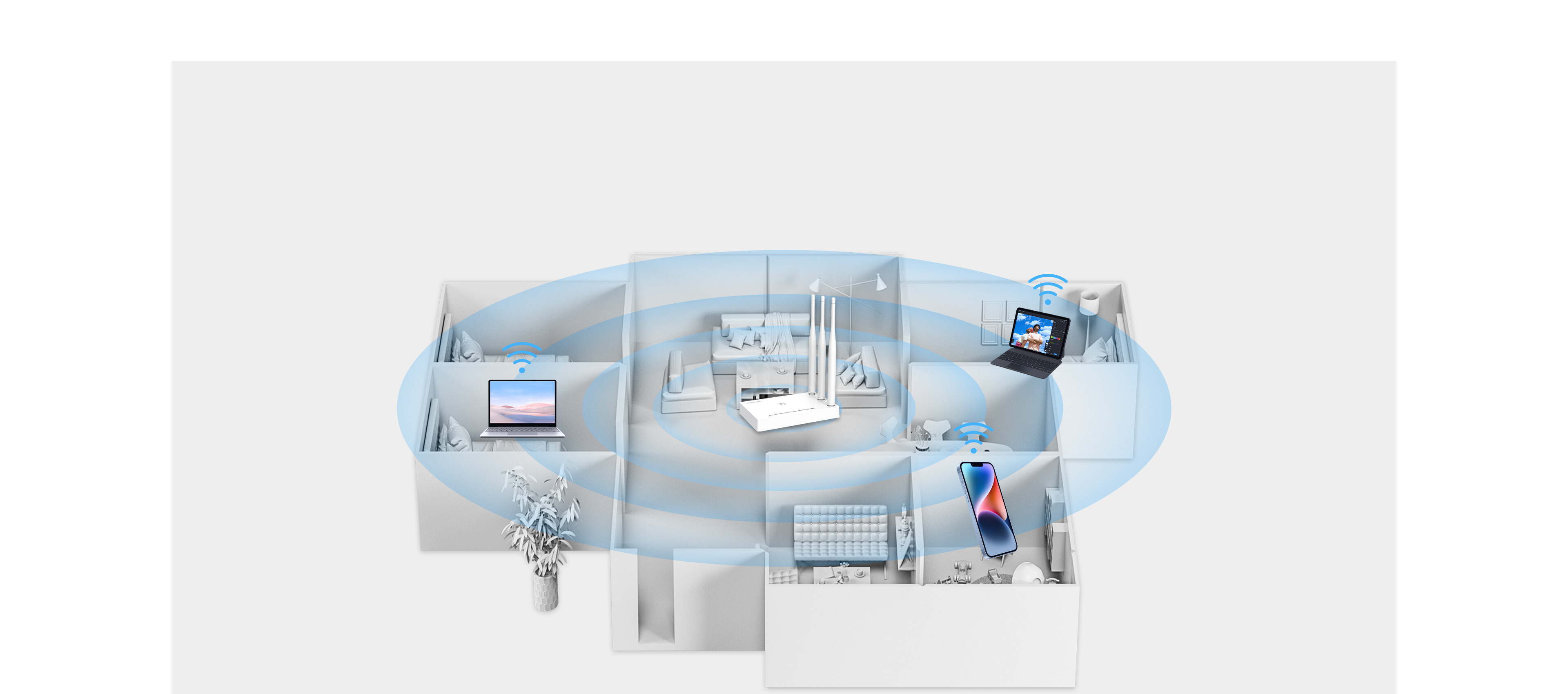

3 MIMO High-Gain 5dBi Antennas
Equipped with 3* 5dBi high-gain antennas, WF2409PD offers you broader wireless coverage and stronger WiFi signal, eliminating the signal deadzone more efficiently than 3dBi antennas.
IPTV for Online Streaming
Supports IPTV, meeting your needs for streaming any online TV, sports events, and more.
Guest Network Access
WF2409PD supports guest network access function, allowing your friends and guests safely and conveniently connect to your Wi-Fi while secure your private network.

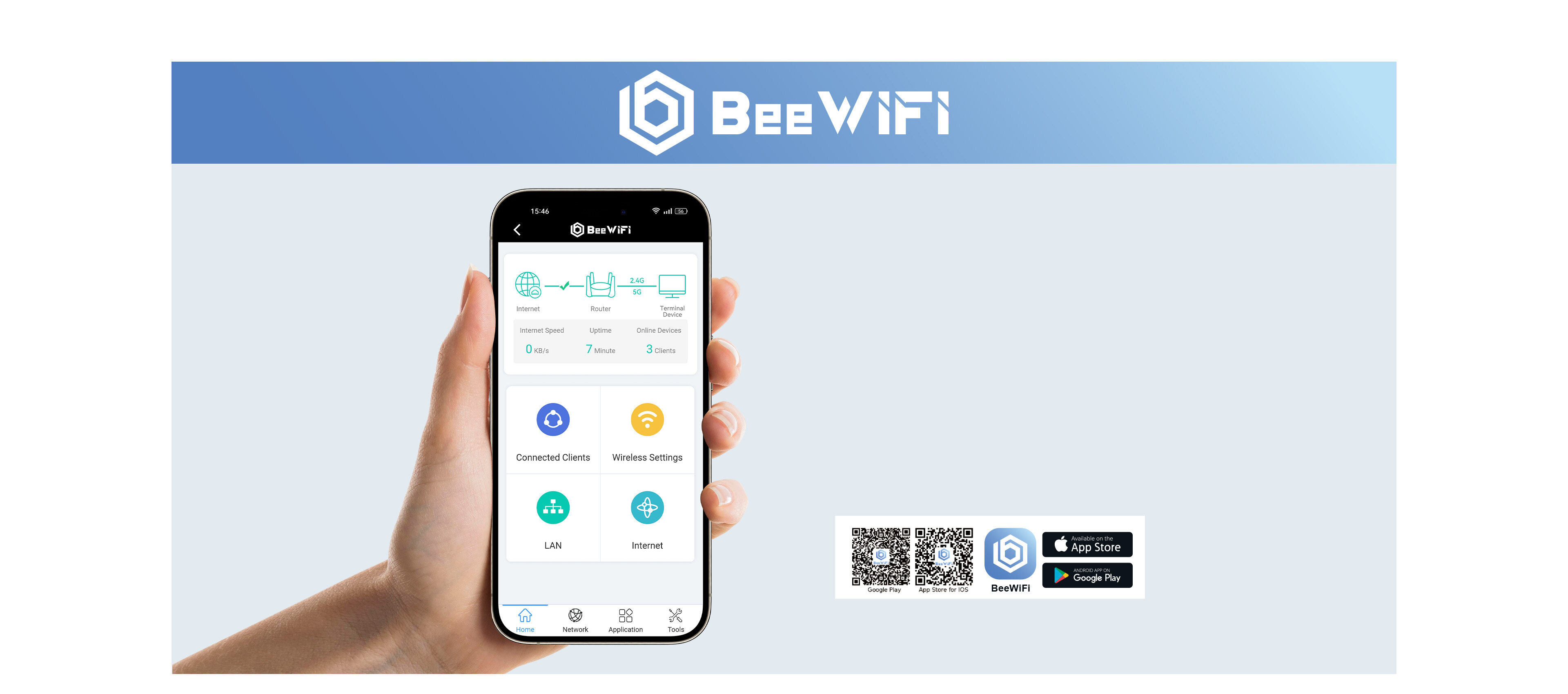

Easy Setup & Management
Setup strong and reliable WiFi that can be managed from anywhere on you smart phone using netis BeeWiFi app. You can also set up your network through our intuitive web interface. Both ways deliver simple and convenient management.

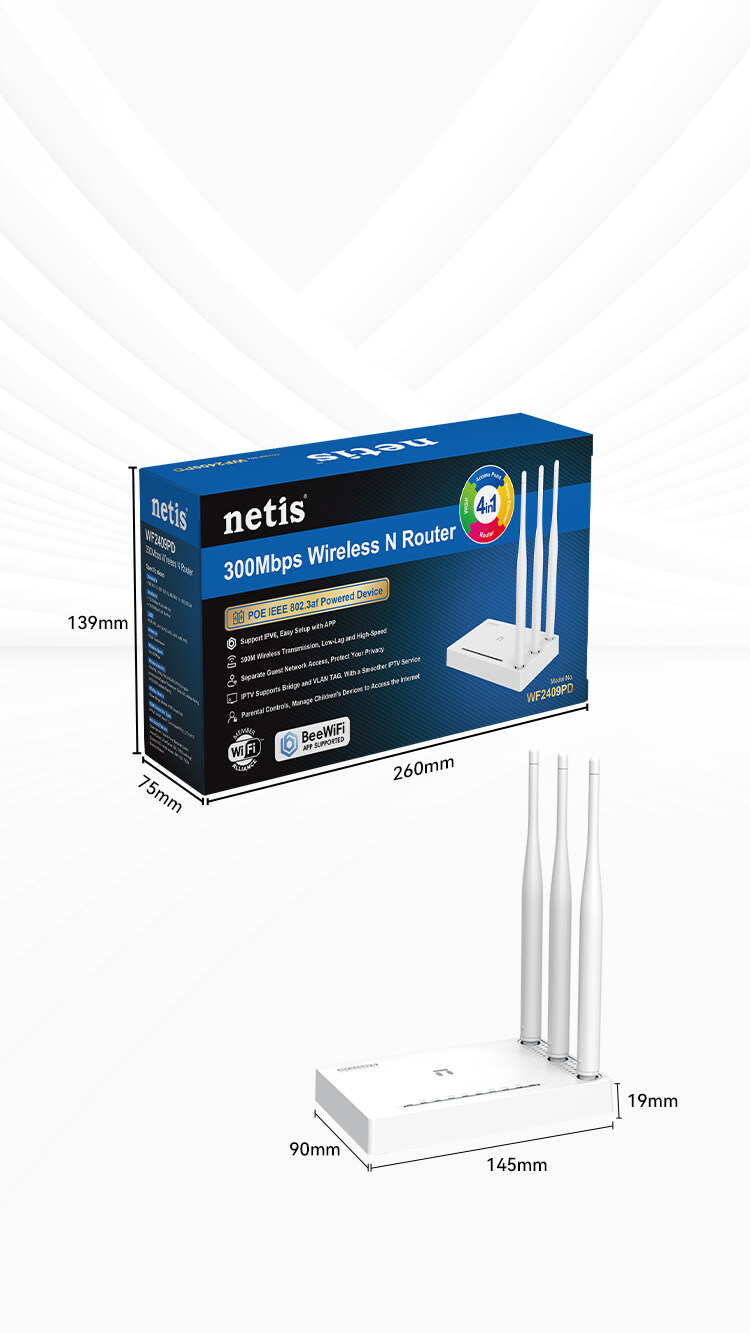

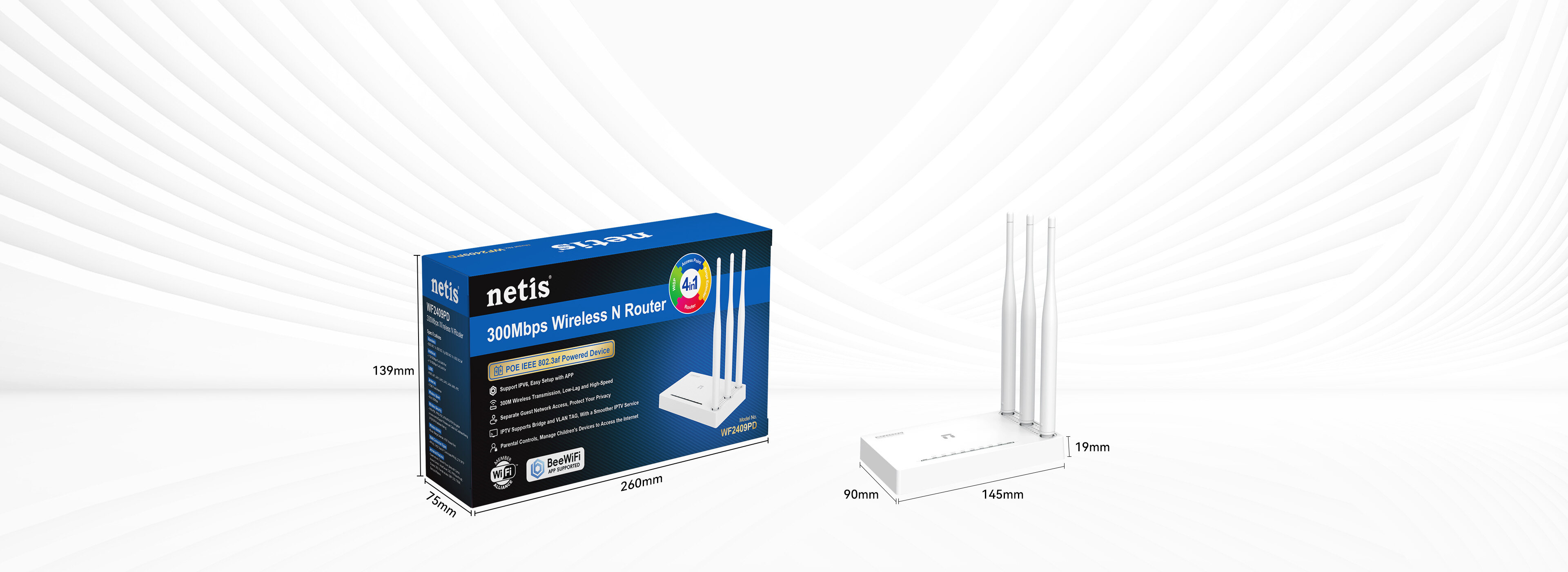

Packaging Display
Specification
Wireless
|
Standards |
N300 IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
|
Signal Rate |
Up to 300Mbps |
|
Frequency Range |
2.4-2.4835GHz |
|
Transmit Power |
20dBm(MAX) |
|
Data Transfer Rate |
802.11n: 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps) 20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) 802.11g:(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps) 802.11b:(11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps) |
|
Wireless Mode |
Router, AP |
|
Wireless Security |
64/128-bit WEP WPA-PSK/WPA2-PSK (TKIP/AES) SSID Broadcast Enable/Disable Wireless MAC Filtering |
|
Advanced |
Wireless Roaming, AP Isolation, Short GI, WMM, Protection, RF Output Power |
Hardware
|
Standards |
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3af |
|
Button |
WPS/ Default |
|

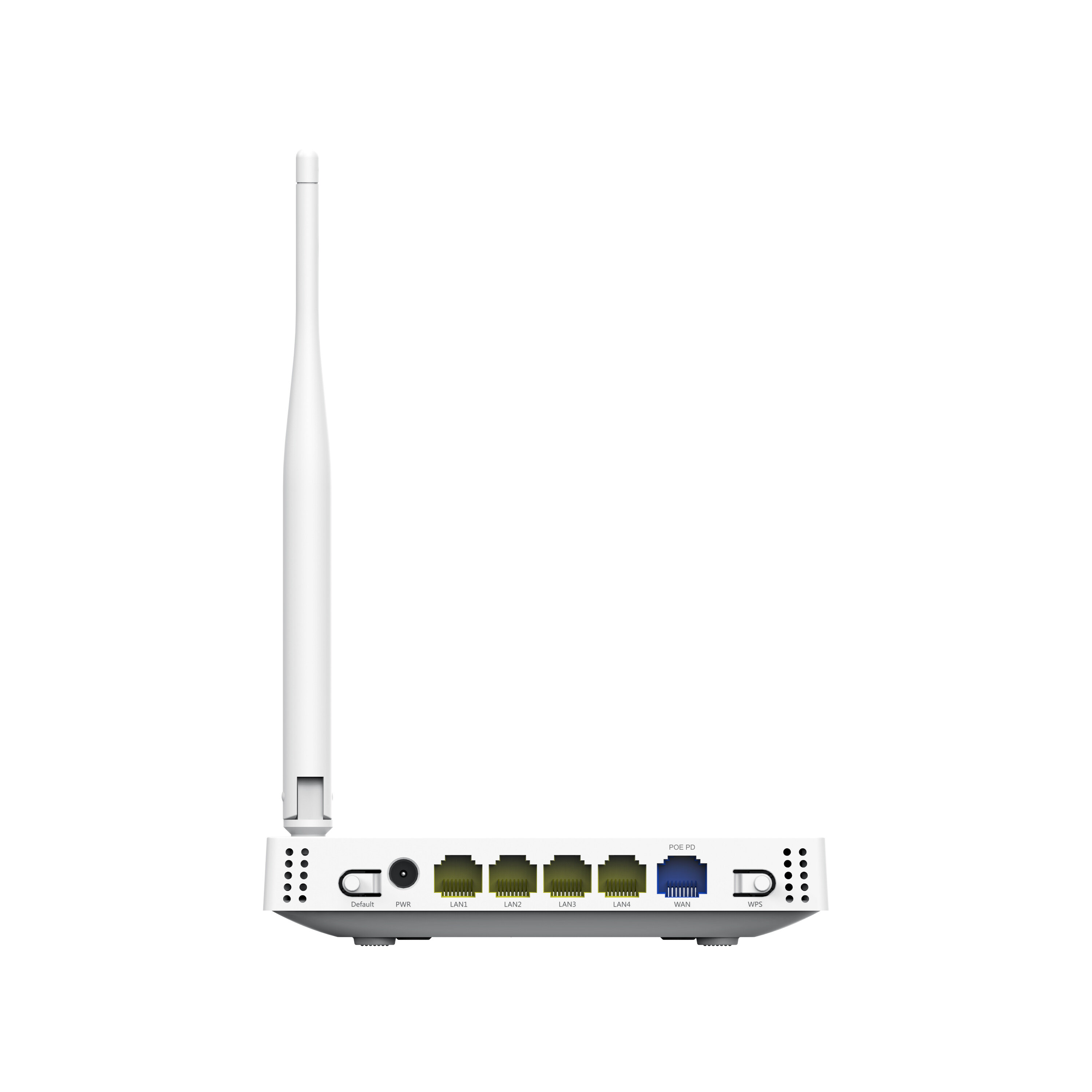

Interface |
1 * 10/100Mbps Auto MDI/MDIX RJ45 WAN port 4 * 10/100M Auto MDI/MDIX RJ45 LAN port |
|
LED |
PWR, WIFI, WAN, LAN4-LAN1, WPS |
|
Power |
DC 12V/0.5A (Output) |
|
Antenna |
3* 5dBi Fixed Antenna |
Software
|
WAN Type |
DHCP, Static IP, PPPoE, WISP, L2TP, PPTP, Dual Access(Russia PPPoE/PPTP/L2TP) |
|
LAN |
LAN IP Setup, STP Status, DHCP Server, Address Pool, Lease Time, DNS(Auto/Manual), DHCP Client Li |
|
IPTV |
Support |
|
Address Reservation |
Support |
|
Operation Mode |
Support |
|
IPV6 |
Support |
|
Wireless Client |
Support |
|
Multiple SSID |
Support |
|
Bandwidth Control |
Support |
|
Forwarding |
Virtual Servers, DMZ, UPnP |
|
Access Control |
IP/MAC/Domain/IPv6 filtering |
|
Dynamic DNS |
Support |
|
Advanced |
IGMP Proxy, IGMP Snooping, VPN, WOL, ARP List, Static Routing, Port Setting, Port Mirror, Remote Access |
|
TR069 |
Support |
Others
|
Certification |
FCC, CE |
|
Environment |
Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
Package |
1* WF2409PD 1* Ethernet Cable 1* Quick Installation Guide |
