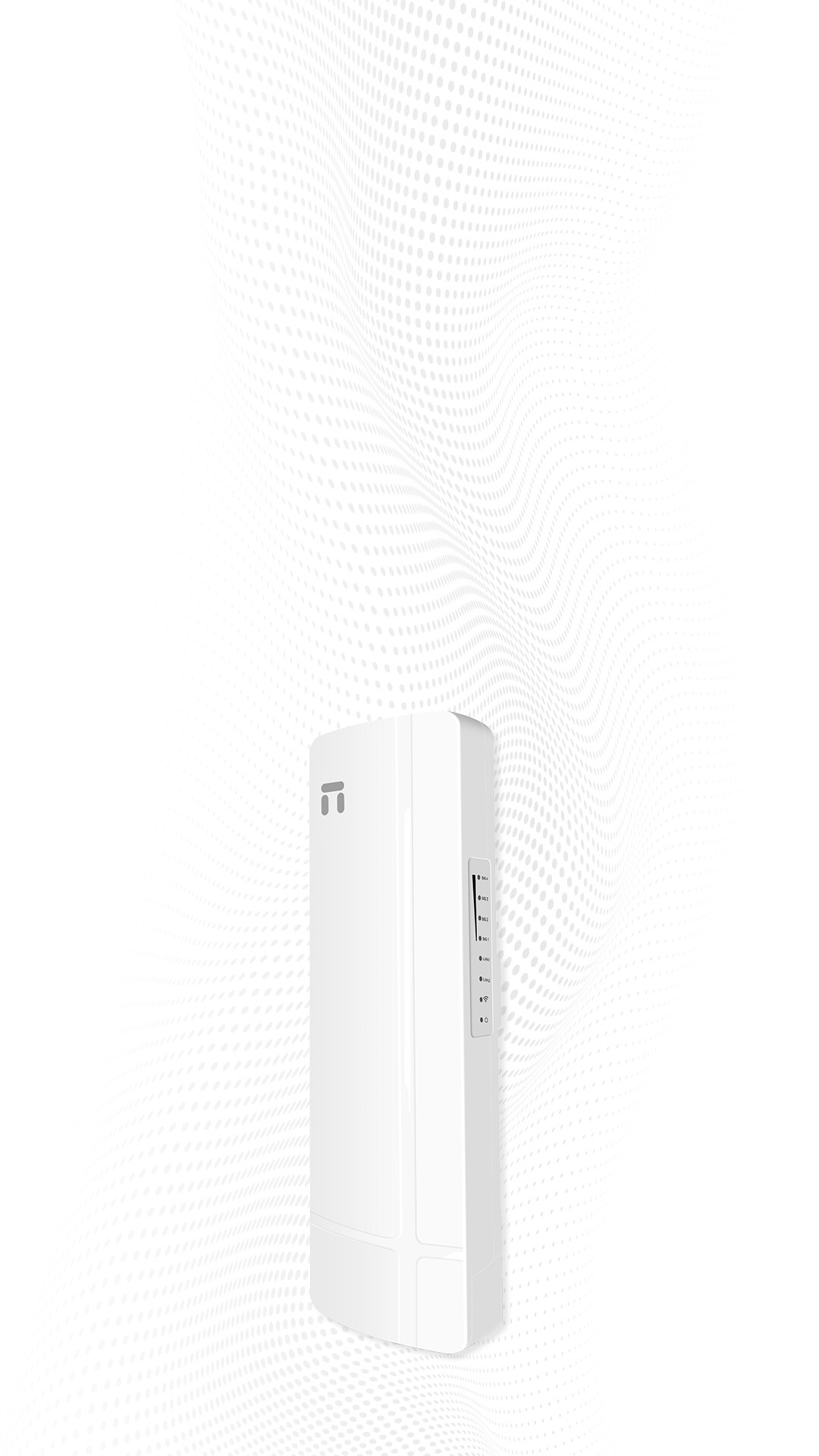

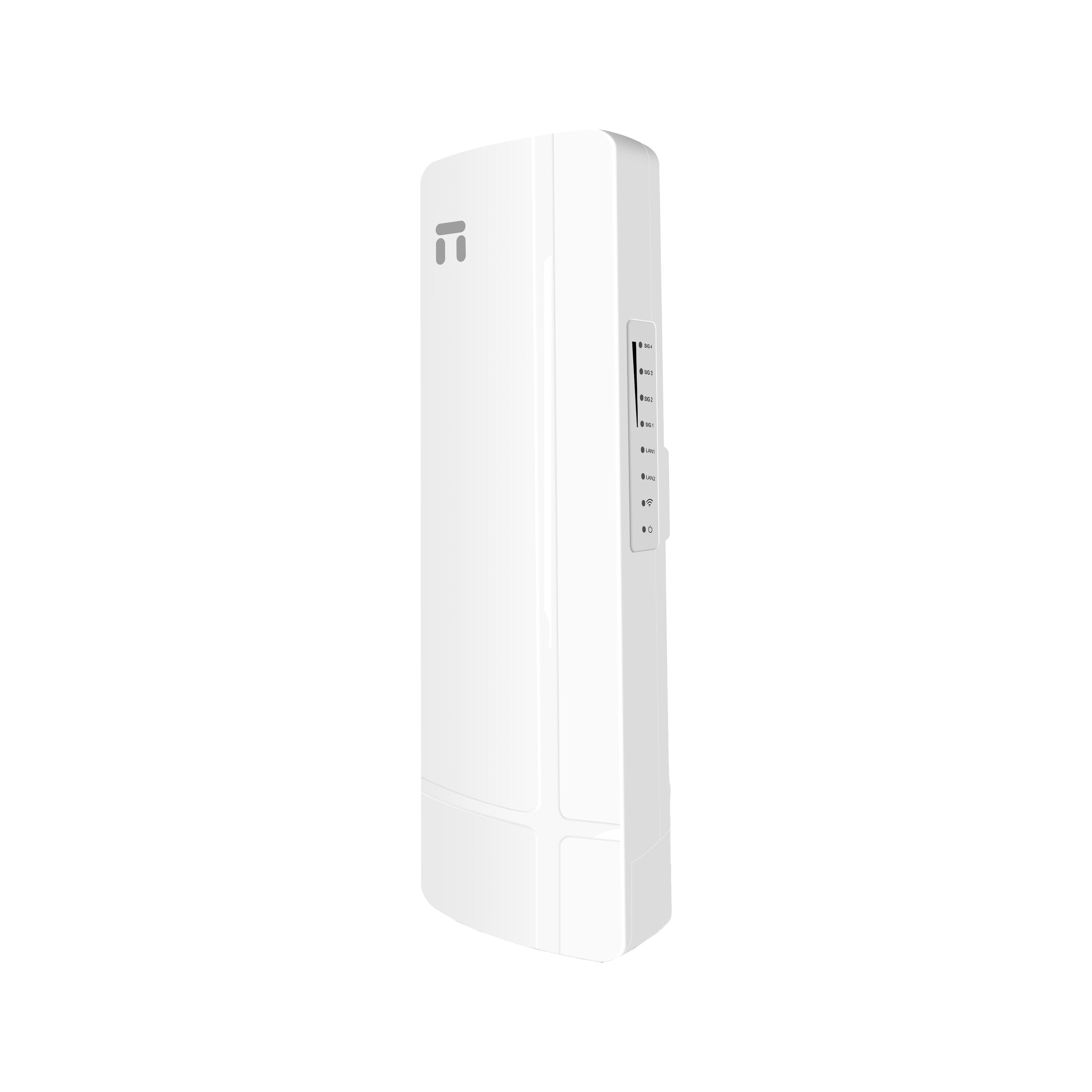

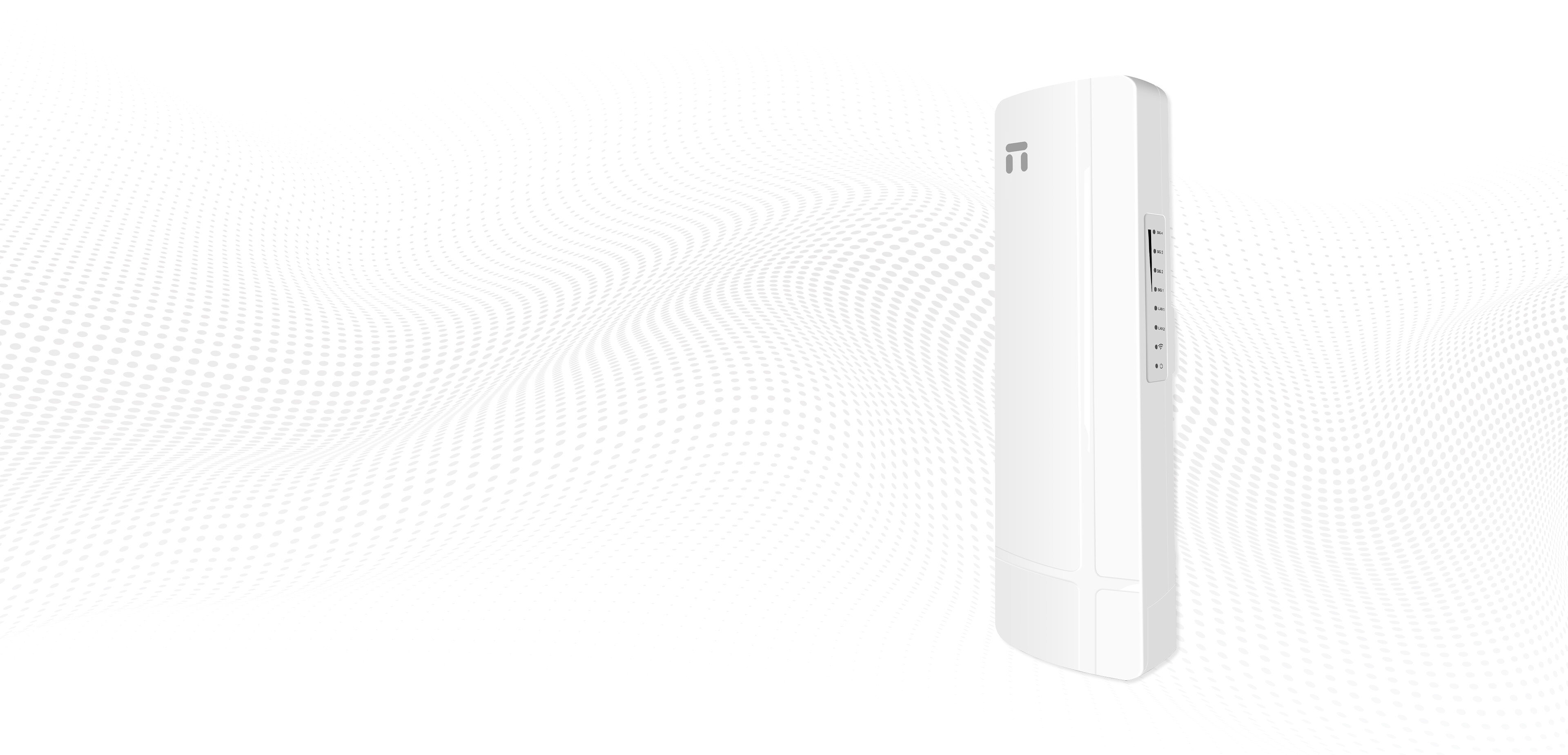

NB50
450Mbps Enterprise Outdoor Digital Bridge
- The NB50 is a high-performance outdoor digital bridge.
- It support 802.11AC technology.
- It operates in the 5.8G wireless band.
- It has unique digital tube pairing technology, no computer configuration, easy to finish point to point, point to point (less than 8 points) equipment matching.
- It support 24V POE network cable power supply and12V 1A DC local power supply, and the distance of the network wire supply can reach 50-70 meters(Related to the material of the netting twine).
- Equipped with 14dBi dual intensifying plate antenna.
3KM
Outdoor Engineering Network Bridge
NB50

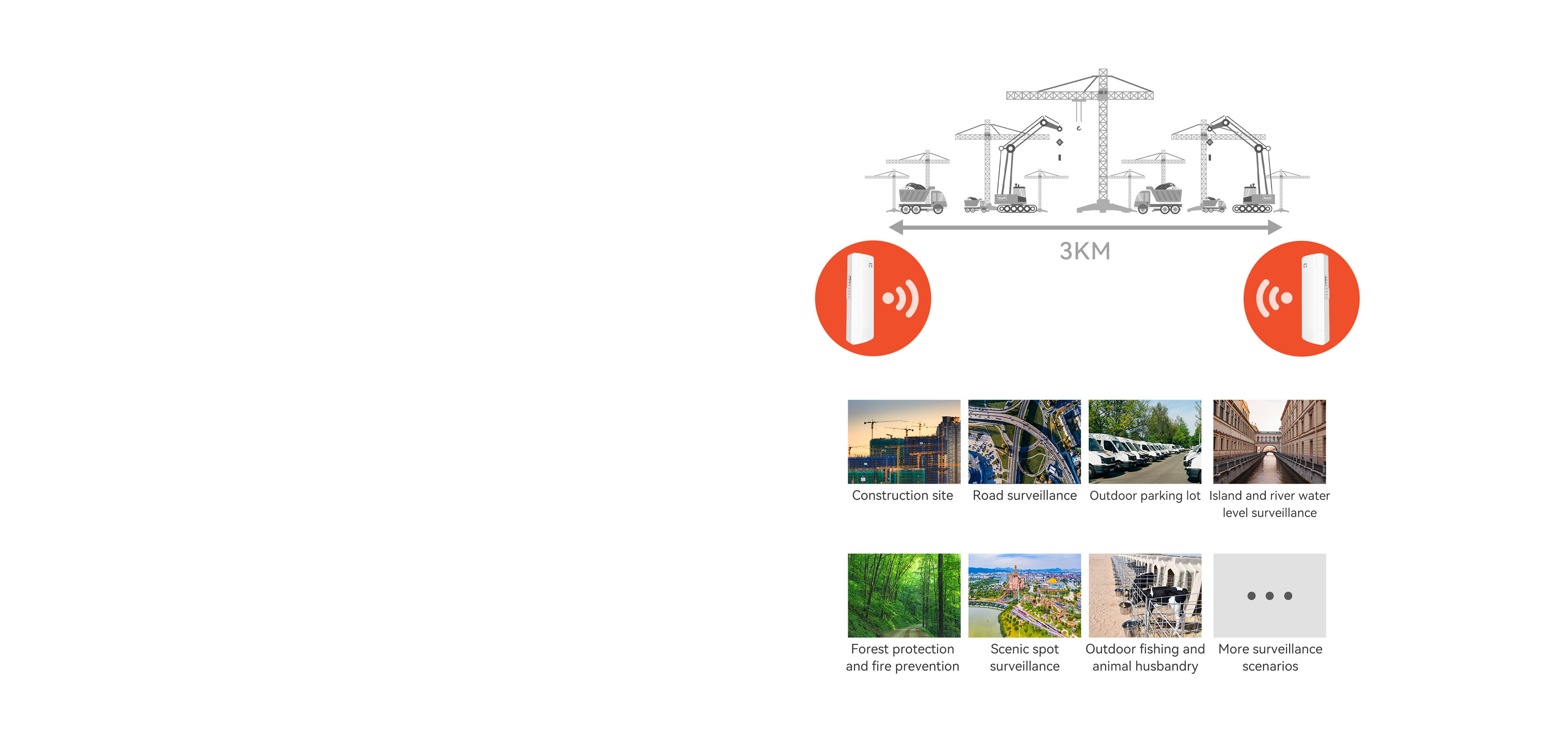

3km Longest Transmission
450Mbps Wireless Speed
Flexible Power Supply
Digital Display Screen
No Configuration Needed
5GHz Band
Directional Patch Antenna
IP65

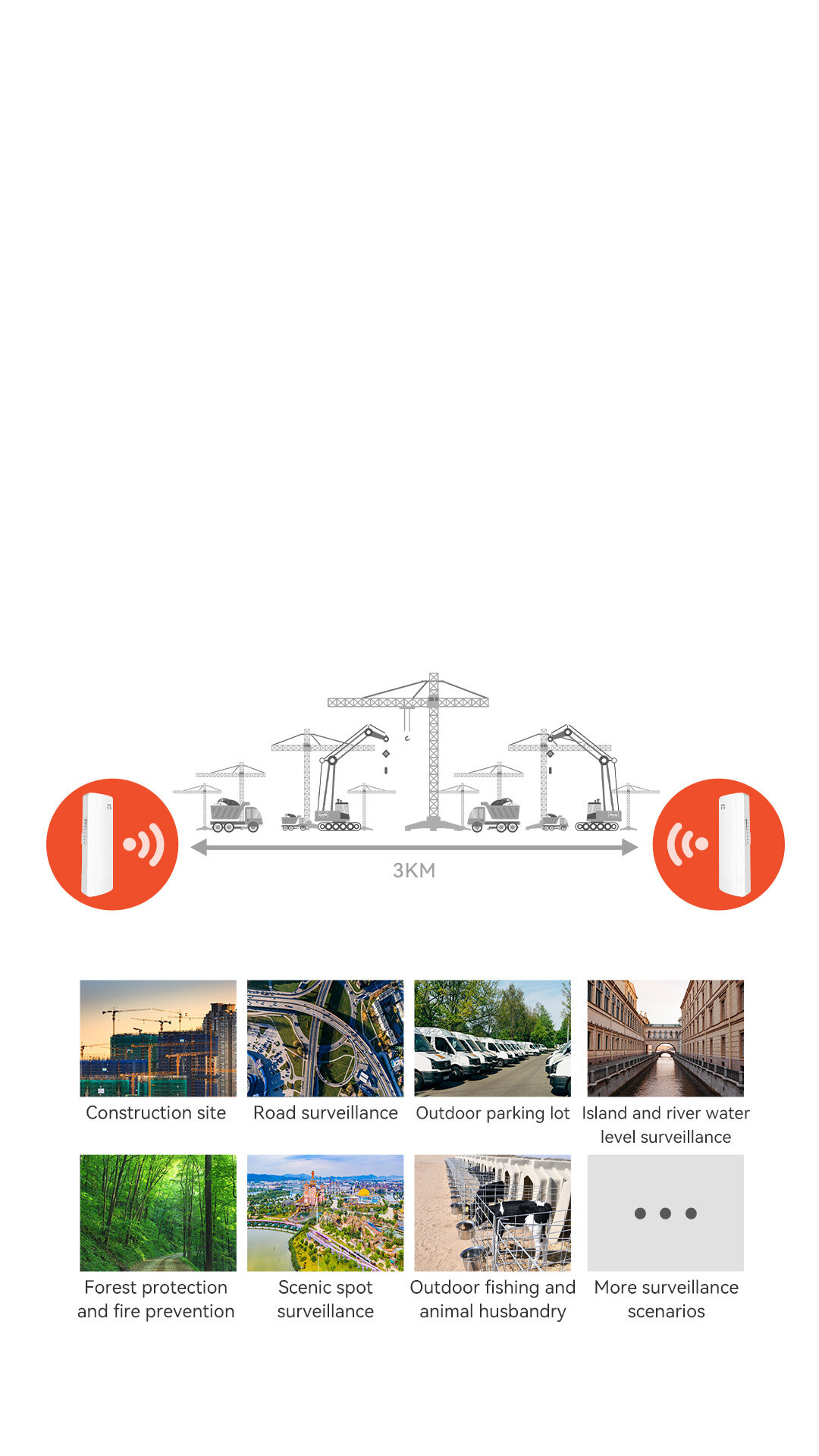

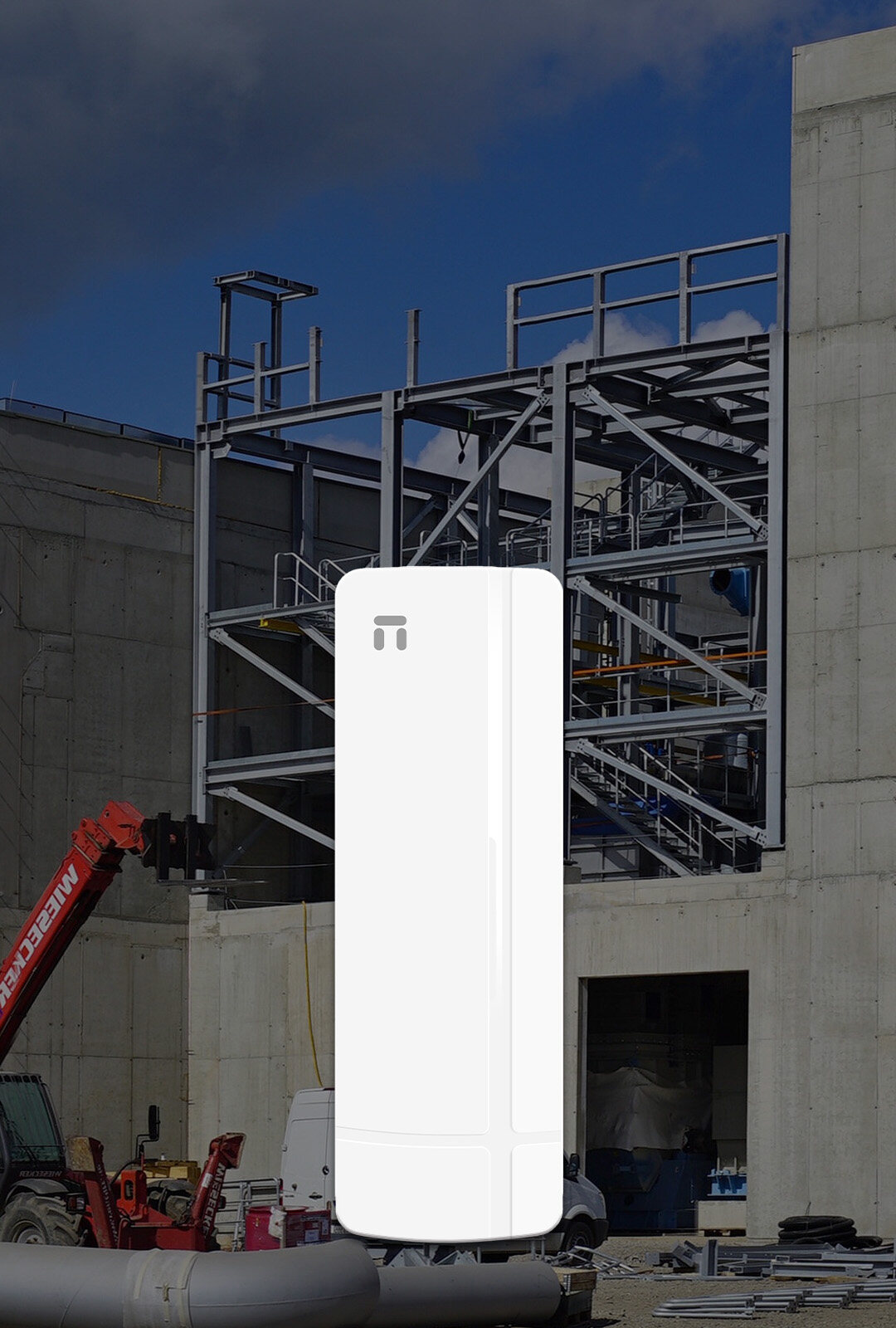

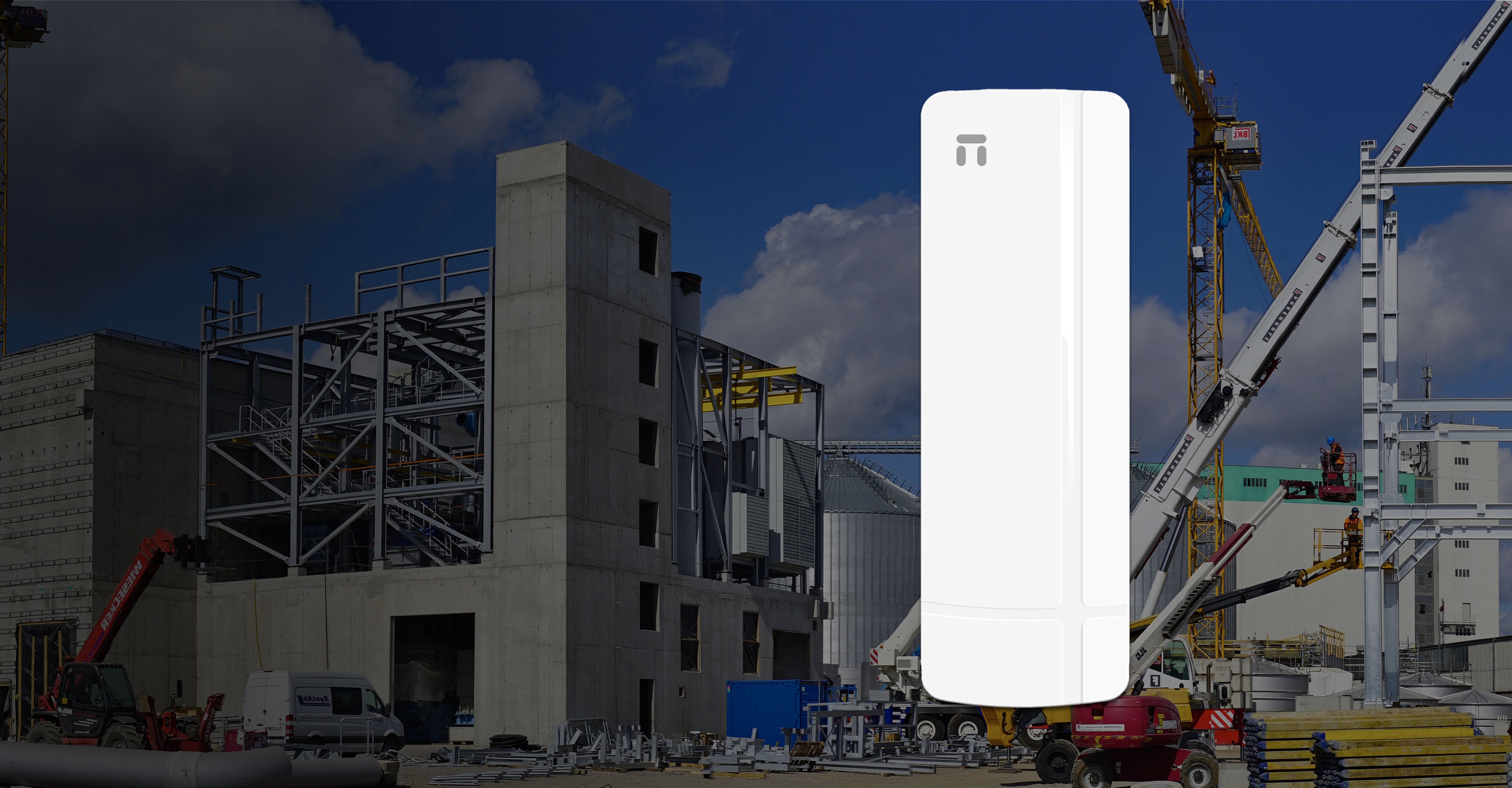

Dedicated for Outdoor Projects
Cost is Low and Construction is Easy
It is specially designed for outdoor large places with open field and long distance. Wireless transmission method is used to solve the problem of difficult wiring outdoors. The construction is simple and the cost is effective.

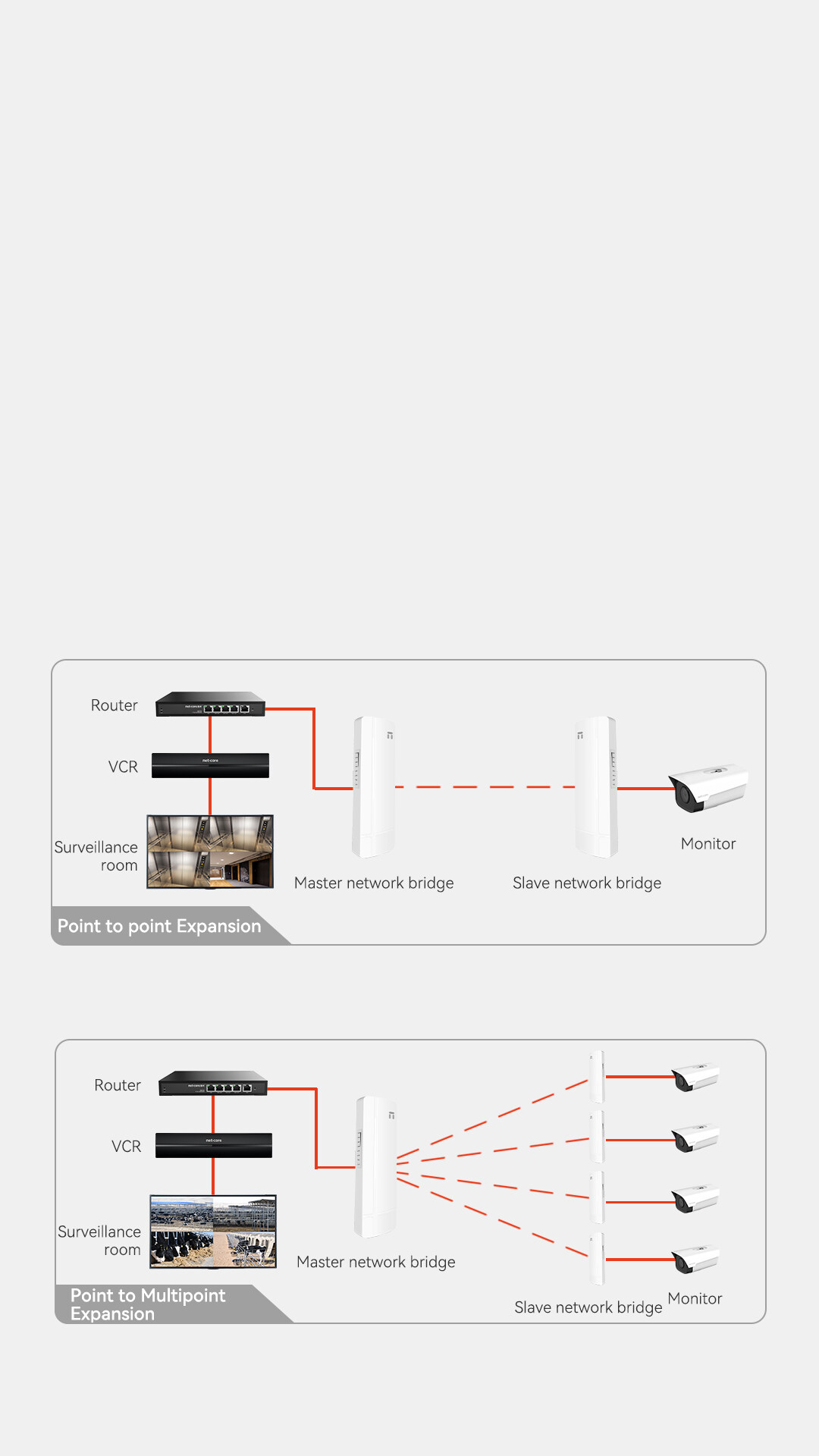

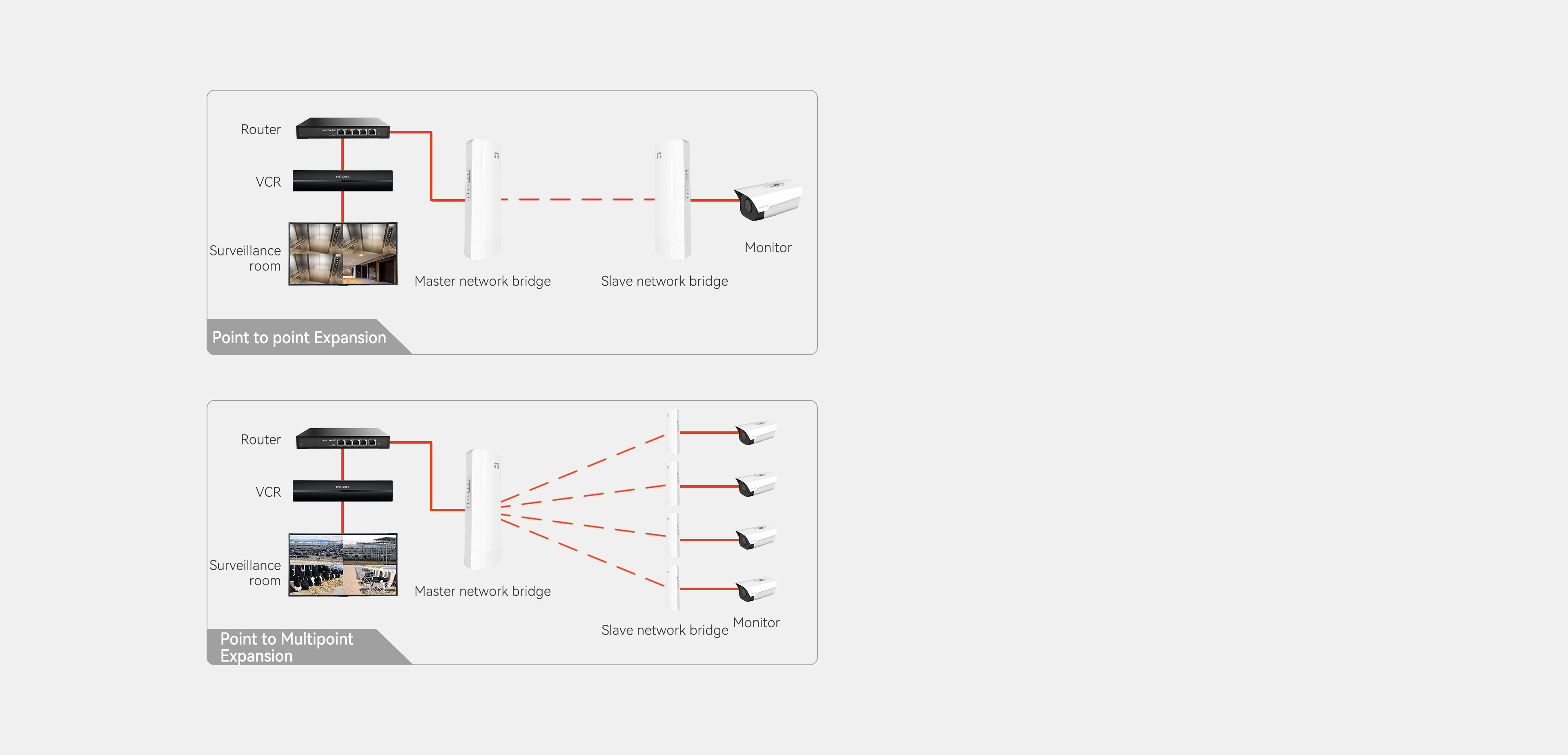

Point to Point/Point to Multipoint
Flexible Expansion
Supports point-to-point and point to multipoint applications, Outdoor sites such as fish ponds and orchards can be flexibly configured according to the actual situation.
Wave Velocity Forming Technology
Signal Self-Check and Anti-Interference
Wave velocity forming technology is adopted to enhance the signal detection capability, automatically adjust the signal, optimize the antenna and track the useful signal when the interference direction is unknown, so as to suppress interference and noise
and ensure that the network bridge signal is always in the working state of strong signal.
and ensure that the network bridge signal is always in the working state of strong signal.
Support 5GHz Full Band
Enjoy High-Speed Network
Support IEEE802.11AC wireless protocol, support 5G full band, built-in with two 14dBi directional plate antennas, NAT conversion rate>93%, enjoying 5G high-speed network.

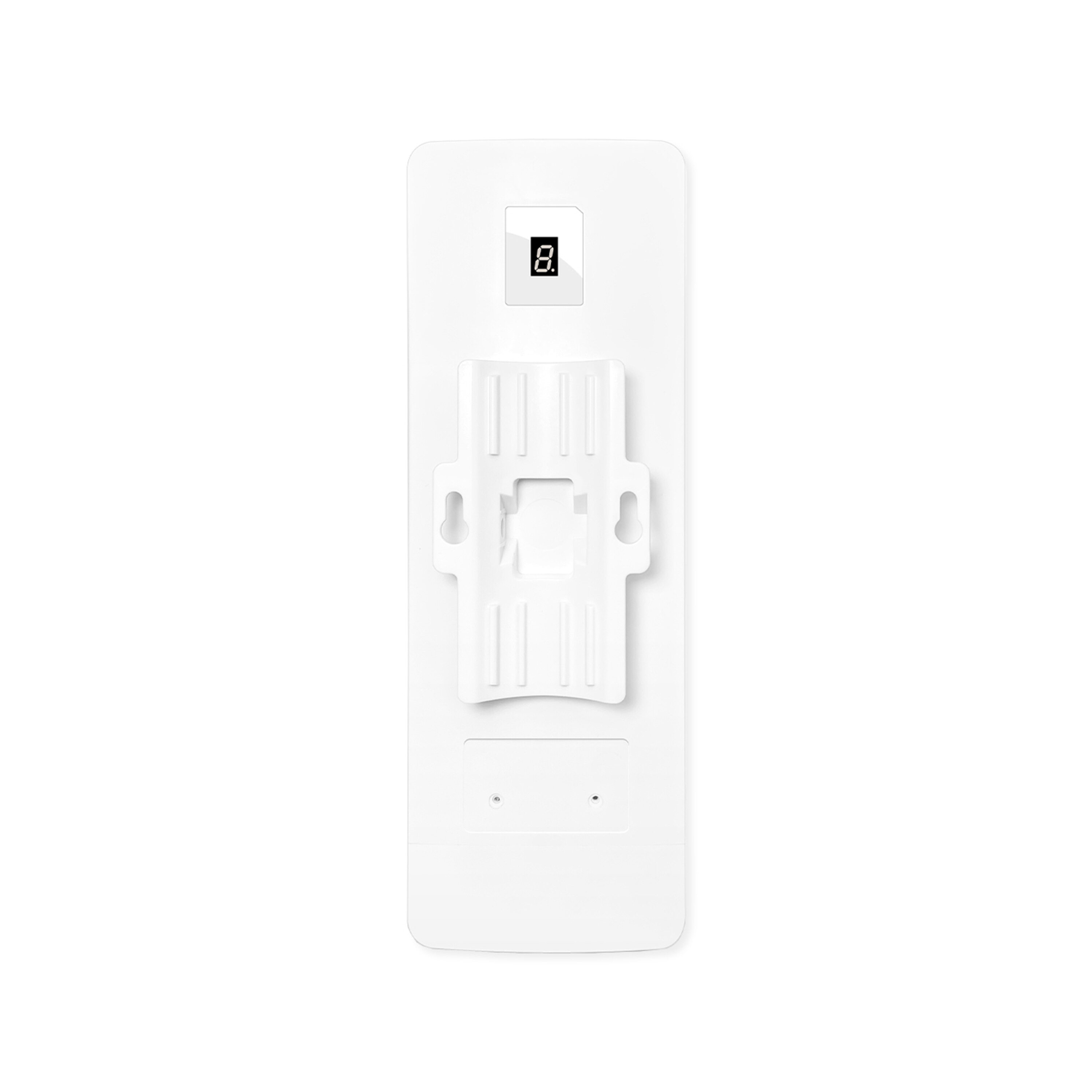

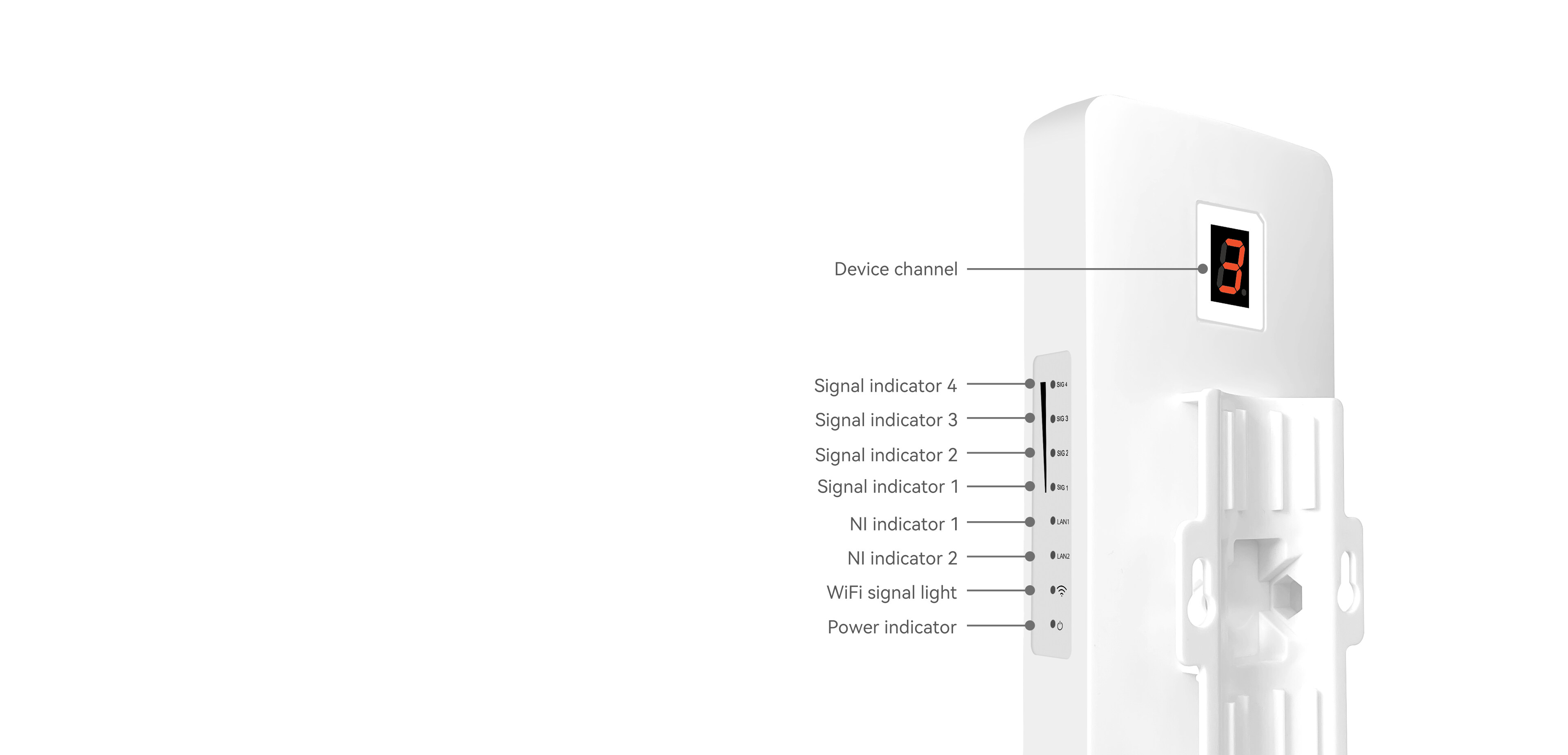

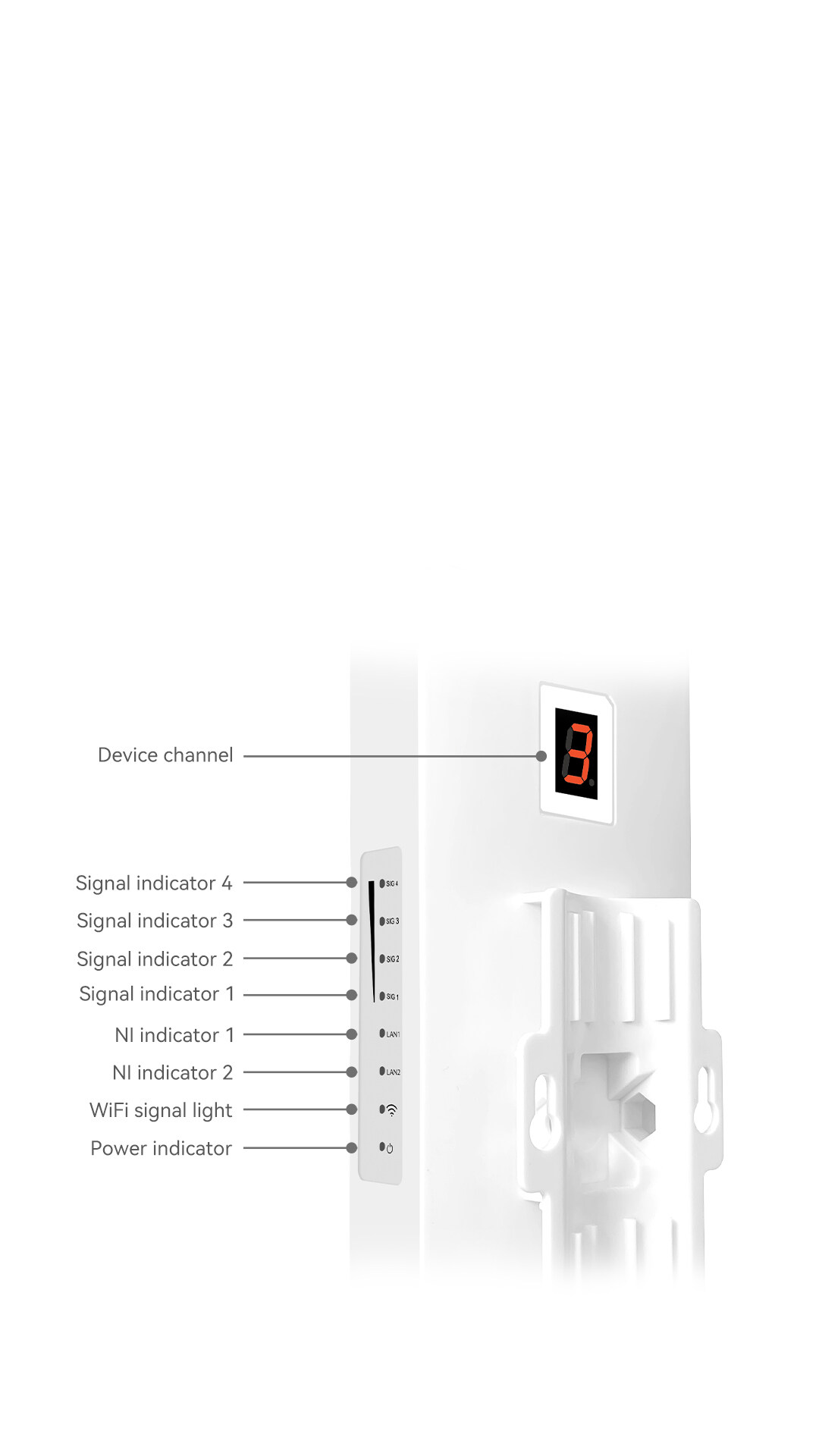

Digital Display Screen Design
Simple for Configuration
Digital tube pairing technology, equipment channel, signal strength, and network port conditions are clear at a glance, convenient and fast.

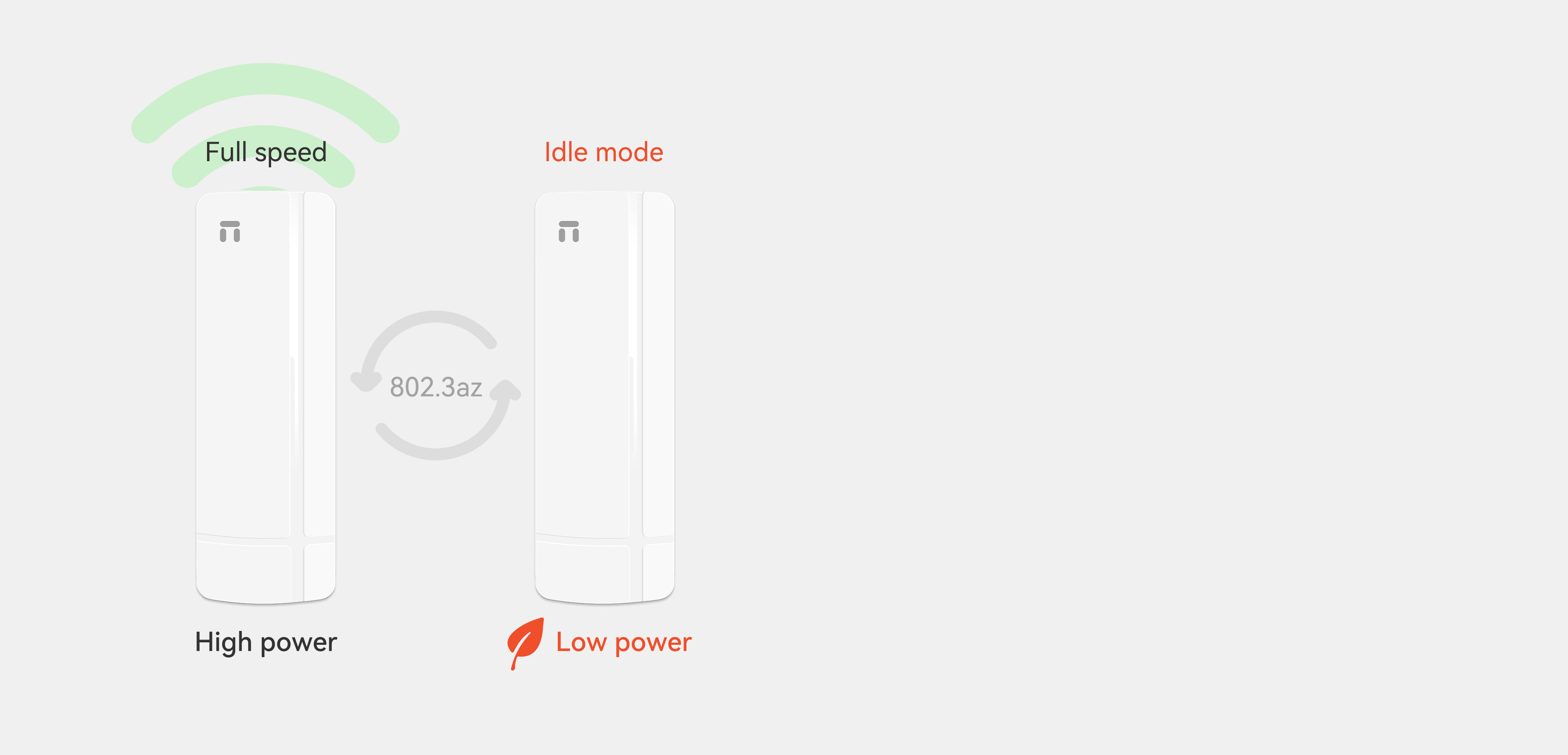

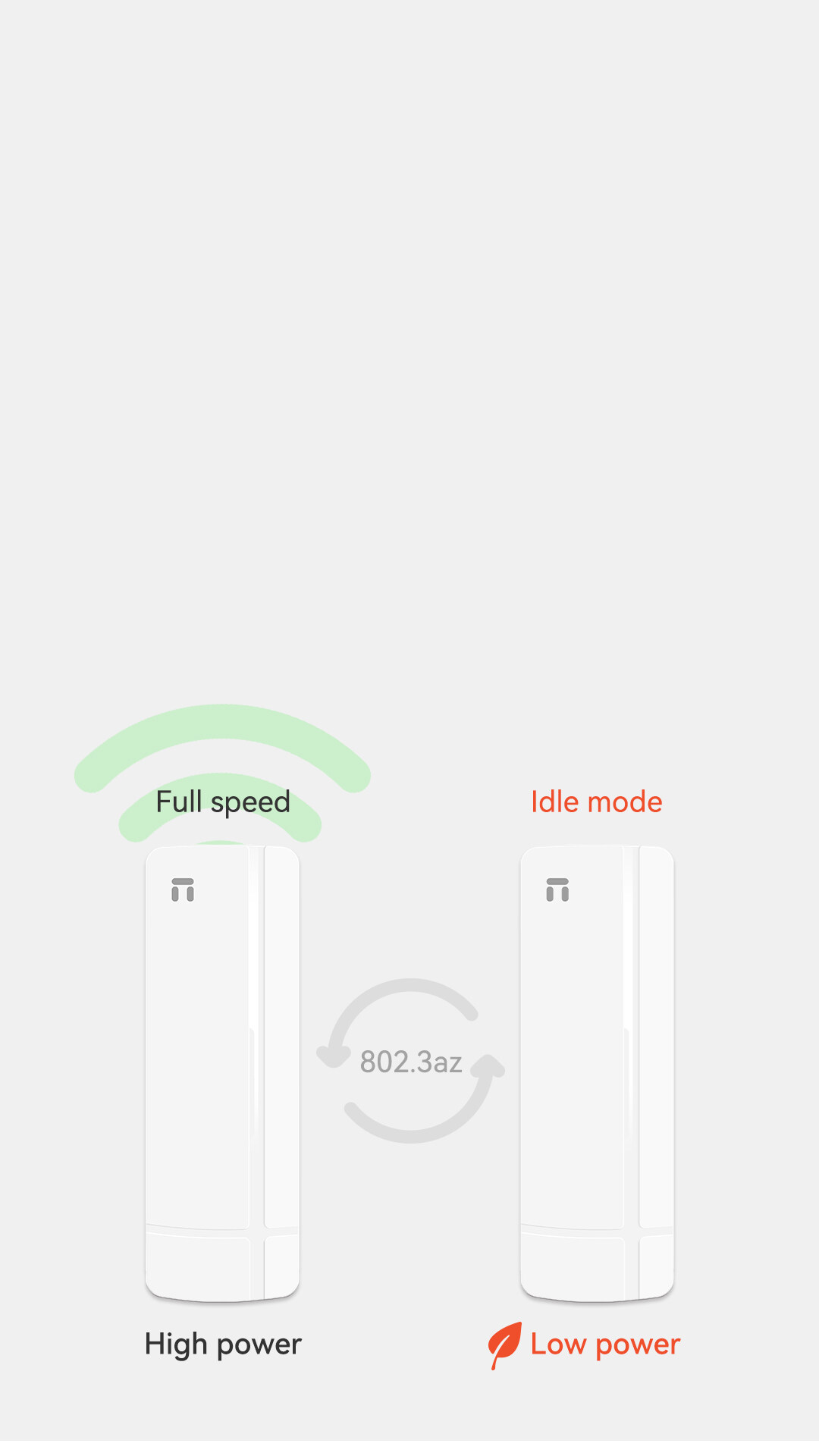

Highly Efficient and Energy Saving
Reducing Power Consumption by 30%
Support 802.3az protocol, enter low power consumption mode when there is no transceiver that can send frames. When a new frame arrives, the transceiver immediately enters active mode, and can automatically adjust the consumption according to the real-time traffic of the port, quickly realize the conversion between full speed mode and low-power idle mode, and save energy efficiently.

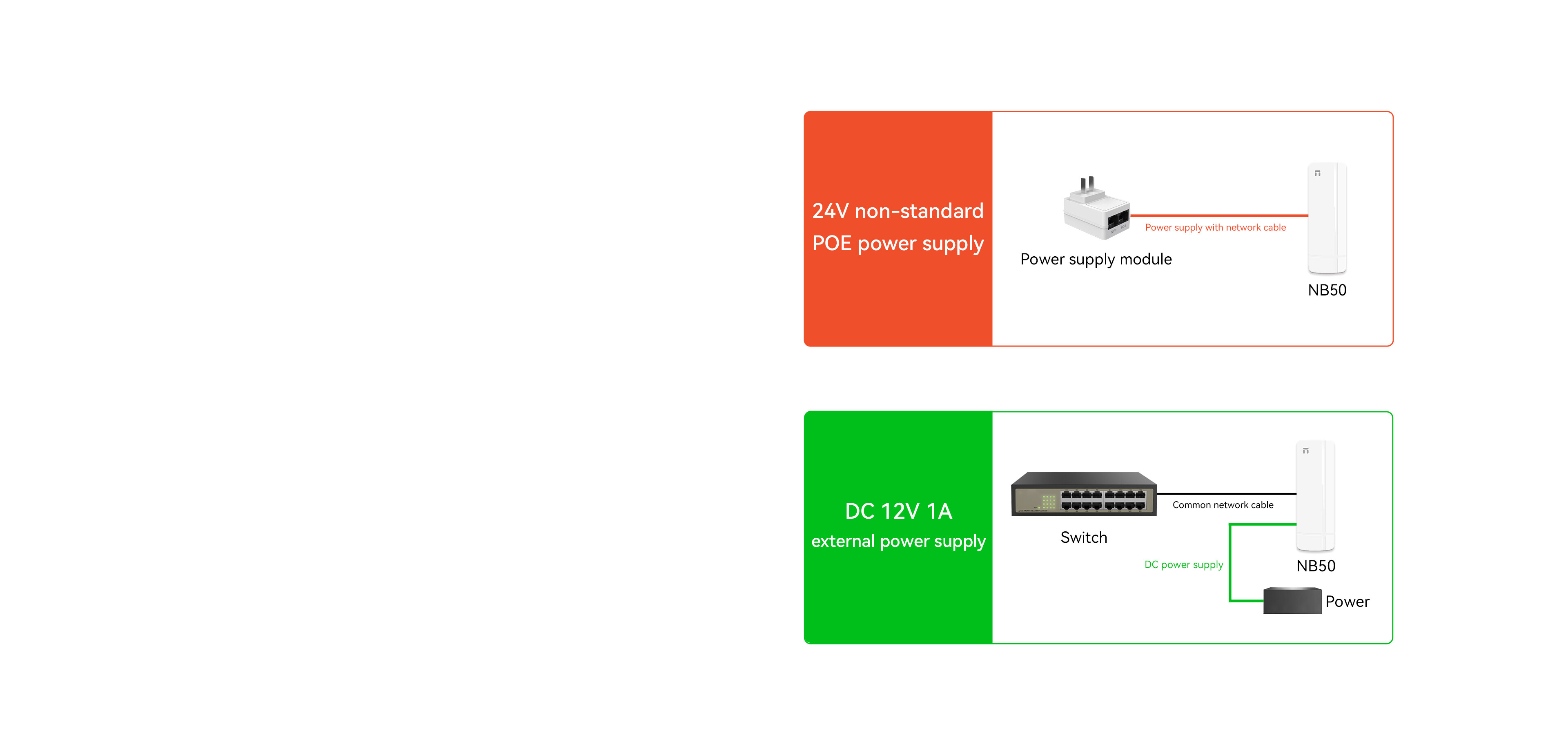

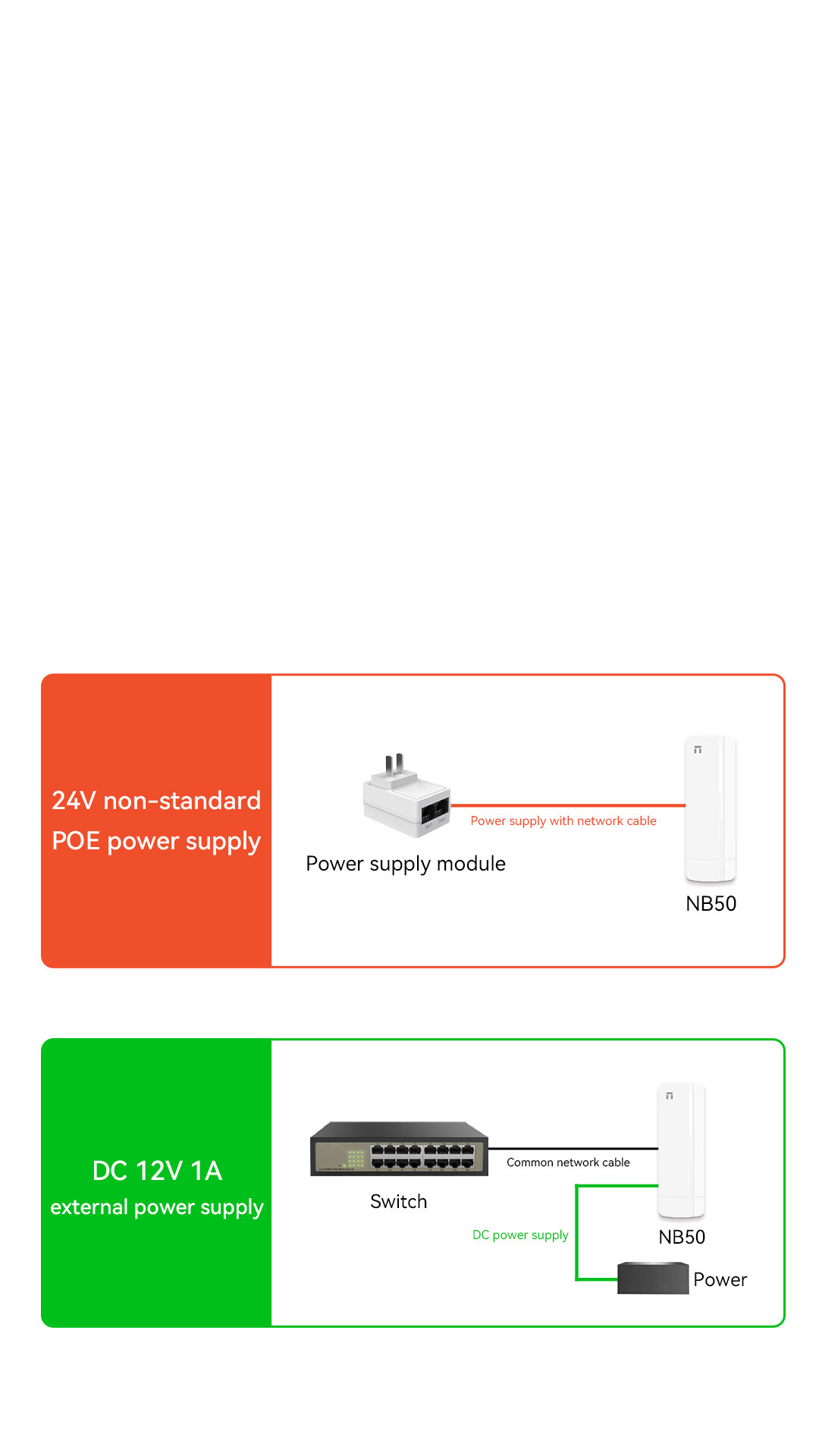

Two Power Supply Modes
Flexible Choice
The device supports power supply with 24V non-standard POE network cable and 12V DC power supply Two power supply modes are available to meet the actual use needs of multiple scenarios, and the construction cost is flexible and controllable.

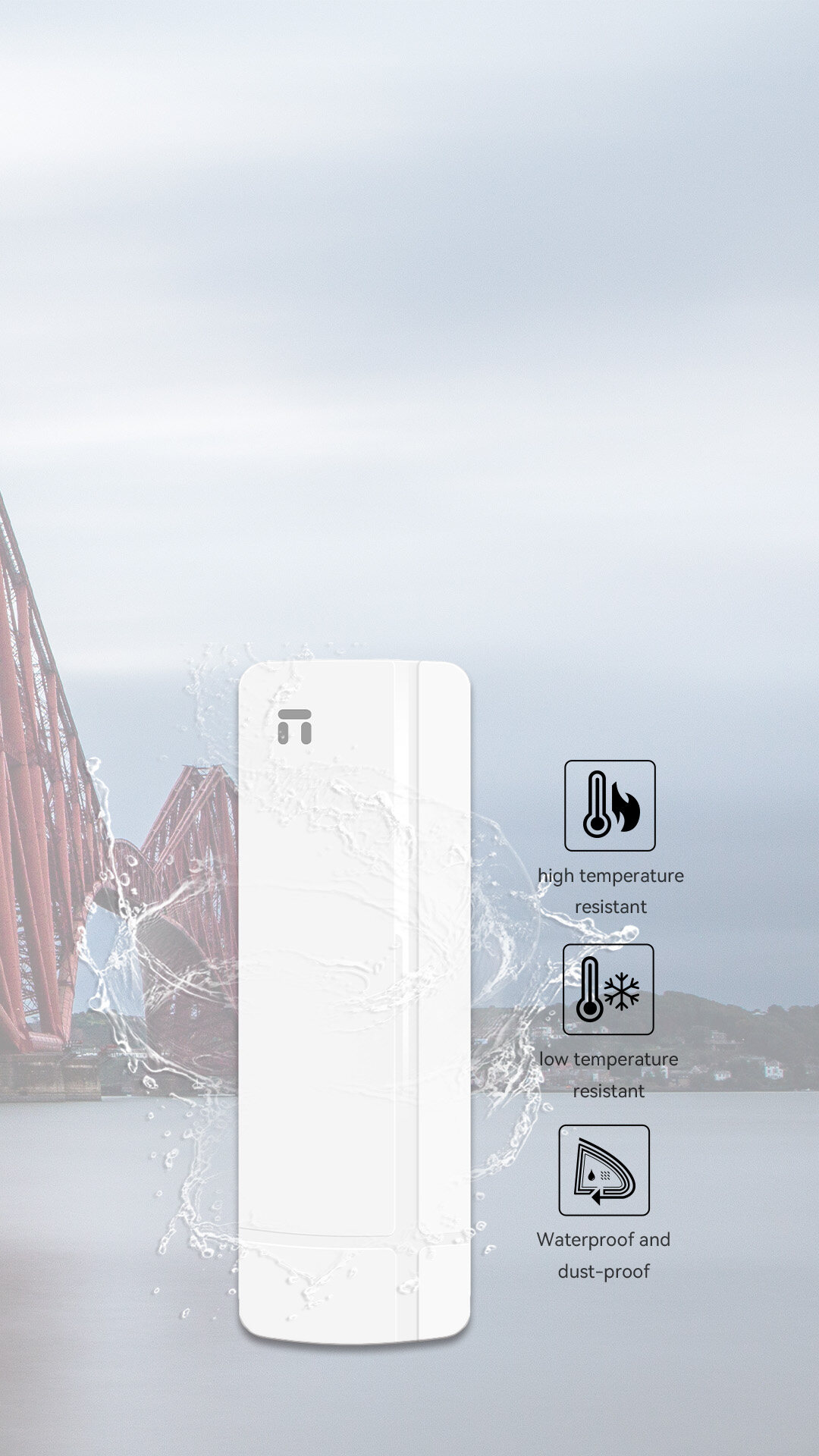

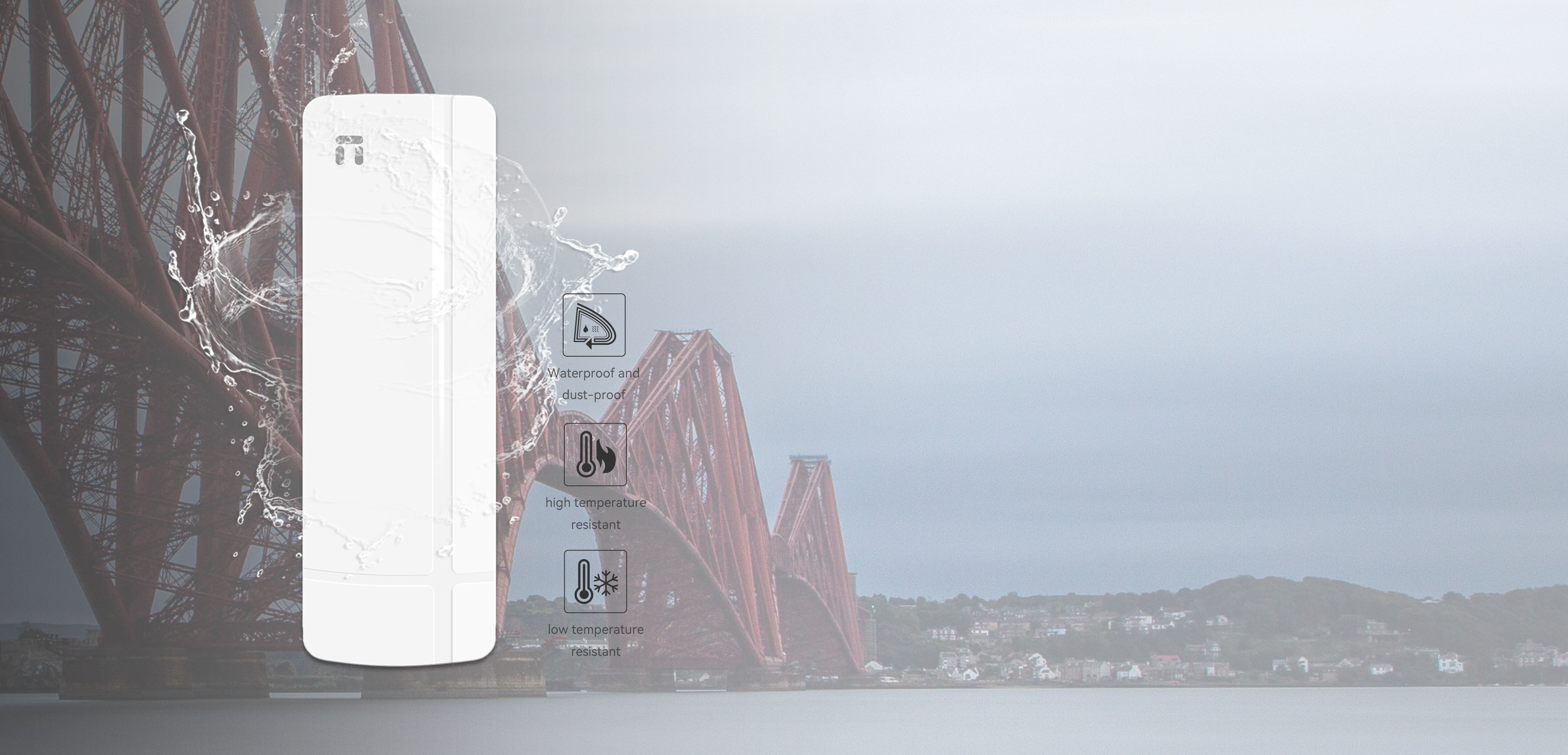

Outdoor IP65 Protection
Adaptable to a Variety of Harsh Environments
The outer shell is made of IP65 outdoor material, effectively designed and is waterproof, dust-proof, high temperature and low temperature resistant. The equipment runs smoothly under a variety of harsh environmental conditions, and can run stably for a long time.
Specification
Hardware Configuration
|
Frequency |
560MHz |
|
Wireless technology |
5G, 450M, 802.11ac MIMO technology |
|
Memory |
64MB DDR RAM |
|
Flash |
8MB |
|
Network interface |
2*10/100Mbps Adaptive Network Interface |
|
Button |
1*Reset, Press and hold for 15 seconds to restore factory settings |
|

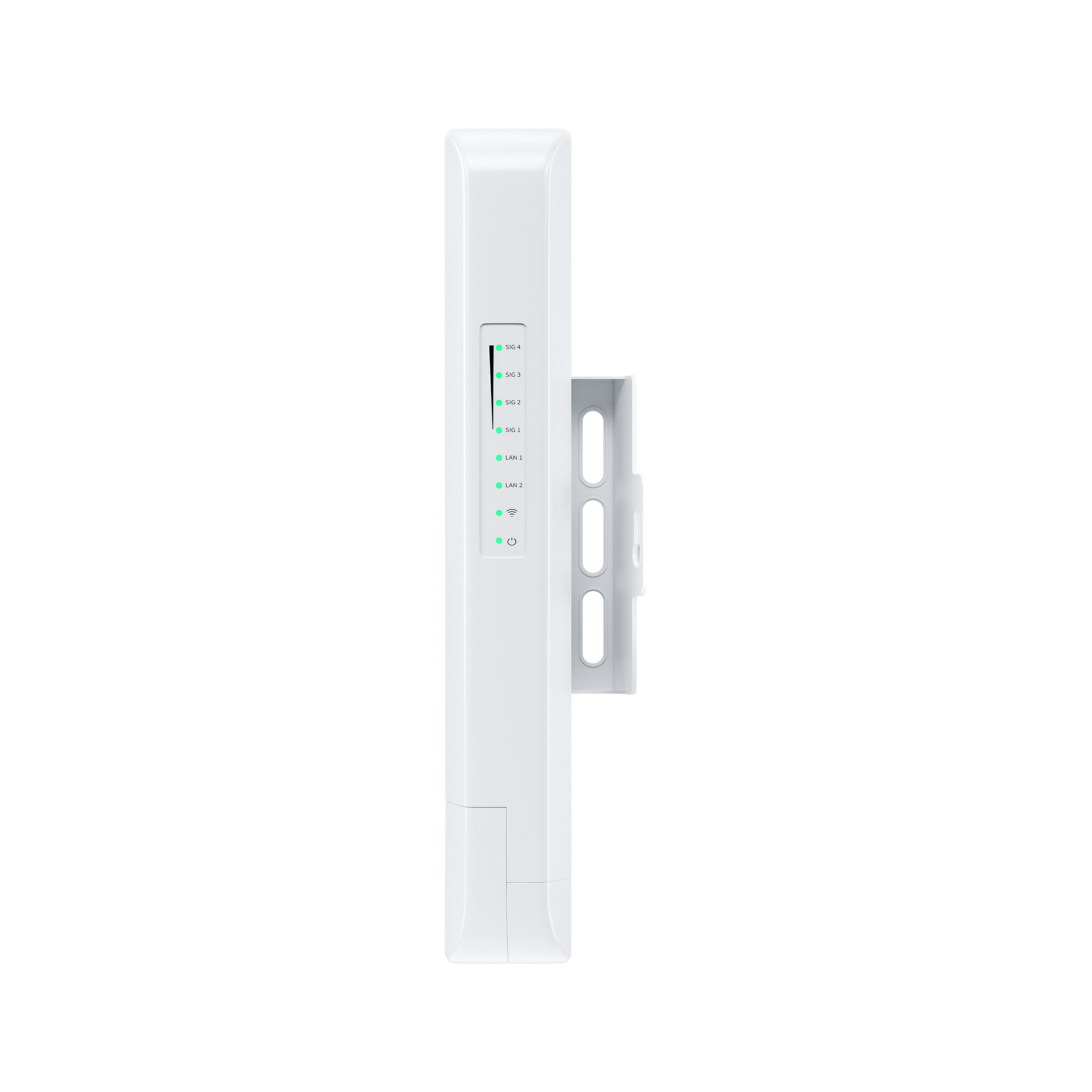

Indicator light |
Signal SIG indicator, ETH network interface status indicator, power indicator lamp, digital tube indicator lamp |
|
Power supply |
24V 0.5A non-standard POE power supply, DC 12V 1A, power consumption <10W |
|
Working conditions |
Temperature:-40°C～+55°C(work),-40°C～+70°C(Storage) Humidity (non-condensing): 5% to 90% (working), 5% to 95% (storage) |
|
Product size |
Length 188mm*Width 188 mm*Height 33 mm |
|
Antenna |
Built-in dual polarized high gain directional antenna (14dBi plate wave angle of 60 degrees, 60 degrees vertical wave width) |
Frequency
|
Frequency Range |
ISM band: 4.900GHz ~ 5.850GHz |
|
Channel distribution |
5G：36、40、44、48、52、56、60、64、149、153、157、161、182、186、190、194 |
|
Modulation method |
OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK |
|
Output Power |
11a @54M:25±2DB, @6M:27±2DB 11n @MCS7:23±2DB, @MCS0:25±2DB |
|
Receiver sensitivity |
11a: 72dbm@54Mbps, -90dbm@6Mbps 11n: -70dbm@MCS7, -90dbm@MCS0s |
|
EVM |
802.11n: ≤-28 DB 802.11a: ≤-25 DB |
|
Frequency deviation |
±20ppm |
Software
|
Operating mode |
Main AP mode, Slave AP mode |
|
Networking mode |
Point to point and point to multipoint (within 8 points) |
|
Internet |
Bridge: static IP/ DHCP Gateway: static IP/ DHCP/PPPoE |
|
Bridge Management |
Free binding cloud account, real-time remote management device. |
|
Wireless management |
Bridge configuration / advanced configuration /WiFi settings |
|
System |
Time zone time configuration, login password modification, backup / restore, restart / timed restart |
|
System update |
Based on WEB browser local update, online update |
