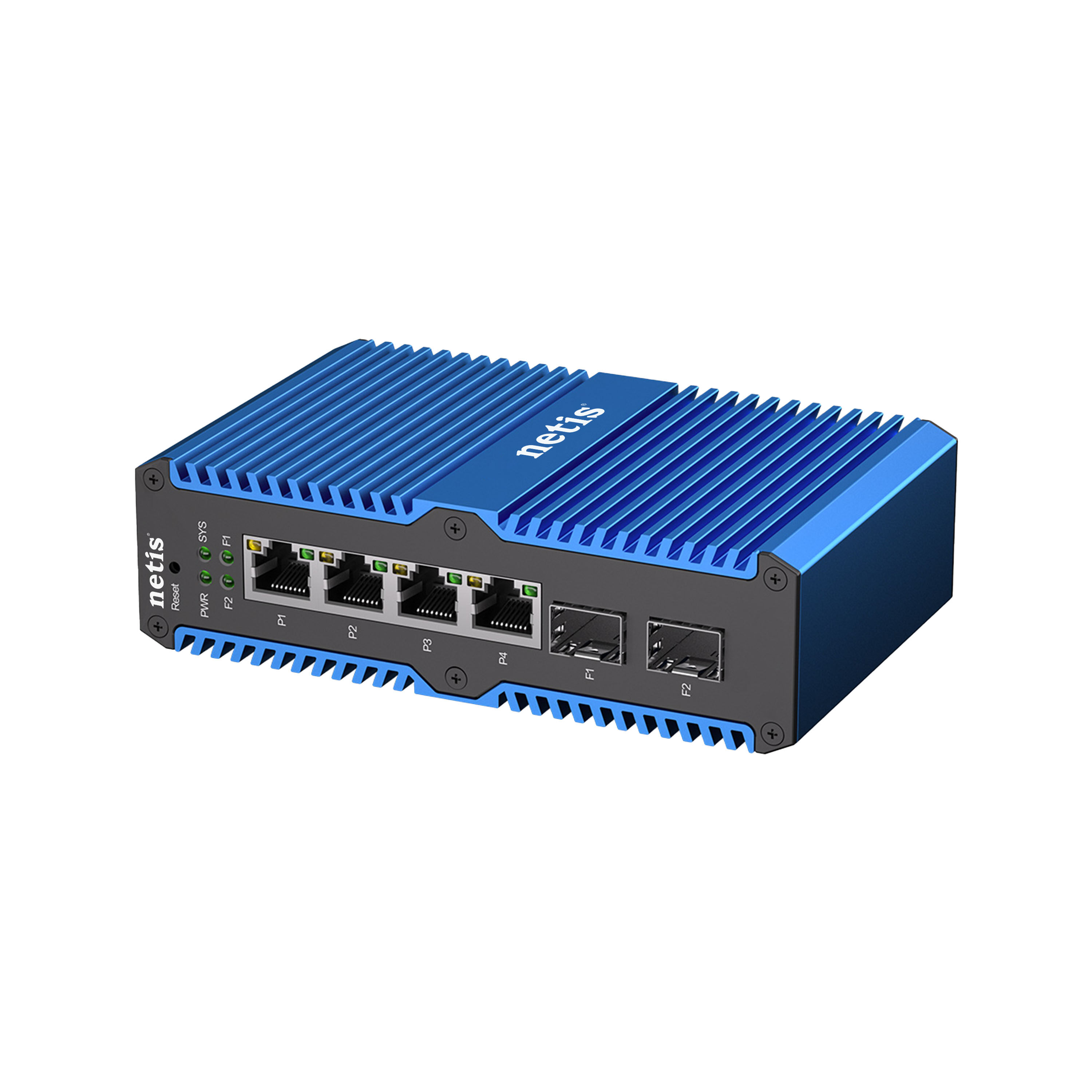

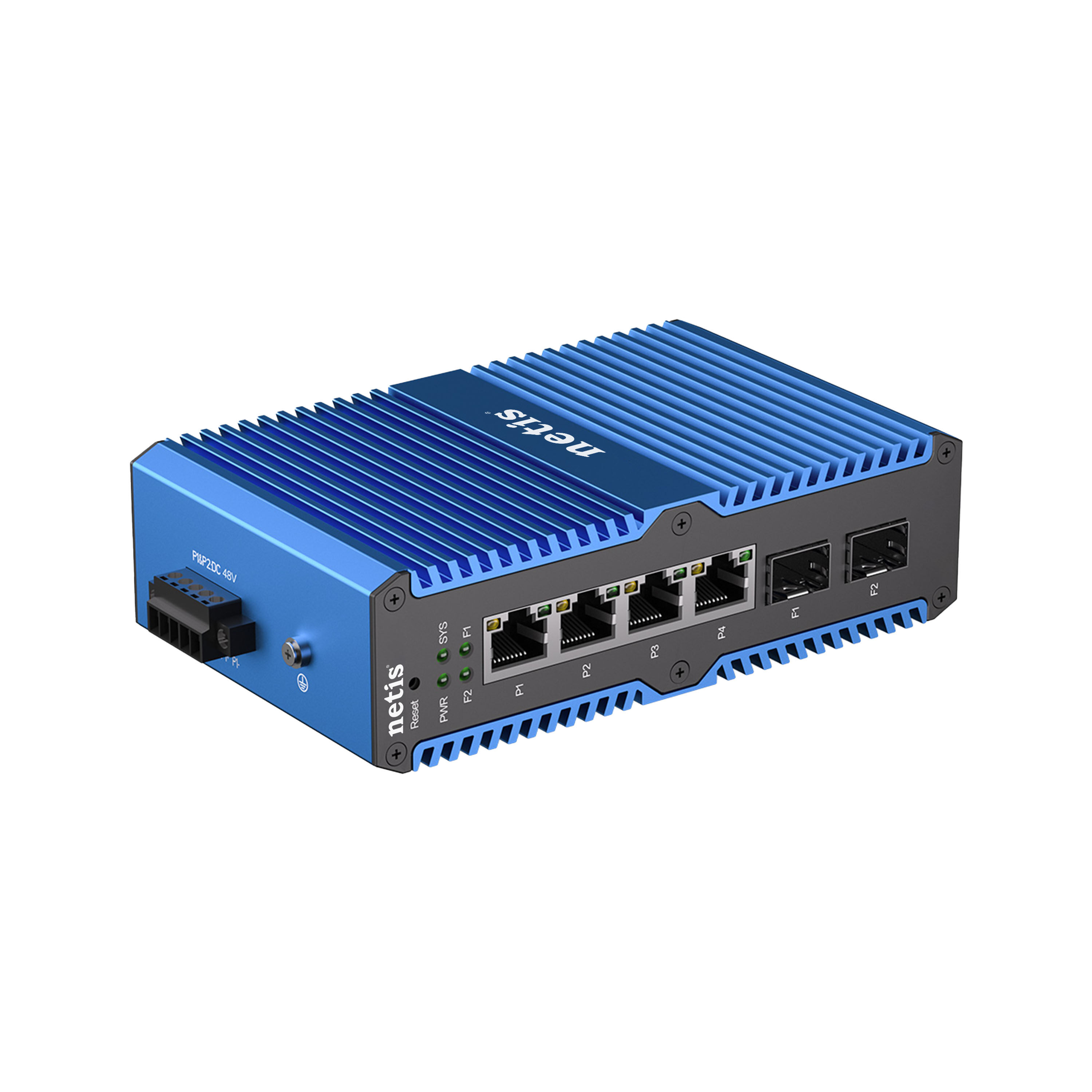

NIS3006G-WMC
4+2 Gigabit Ethernet Management Industrial Switch
- The NIS3006G-WMC is L2 full gigabit industrial Ethernet switches providing 4*10/100/1000Base-T electrical ports and 2*1000Base-X optical ports.
- It supports abundant L2 features such as VLAN, RSTP, supports Web management.
- NIS3006G-WMC has industrial metal case with IP40 protection class and meets EMC level 4 industrial requirements.
- It provides DIN rail mounting design and supports wide operating temperature range of -40 to the +85°C.
- These features make the product ideal for cost-effective applications that require high-reliability transmission, such as video surveillance, tolling systems, ITS, and factory automation.
Specification
Hardware
|
Interface |
Optical port: 2 1000Base-X (SFP) Electrical port: 4 10/100/1000Base-T (RJ45) |
|
Power |
Power Terminal: 5-pin 3.81mm-spacing plug-in terminal block Input Voltage: 48-56V Full load power consumption: < 4W Overload Protection: Support Reverse Connection Protection: Support Redundancy Protection: Support |
|
LED |
Power LED: PWR Interface LED: RJ45 (Link&ACT)，Fiber(Link&ACT) |
|
PoE |
IEEE 802.3.af : Supported 15.4W/port IEEE 802.3.at: Supported 30W/port |
|
Ethernet Properties |
MAC Table: 4K MTU: 9K Bytes Switch Capacity: 12Gbps Packet Buffer:4.1M Packet Forwarding Rate: 8.928Mpps VLAN: port VLAN，802.1Q VLAN range:4K VLAN port type: Access/Trunk/Hybrid Port rate limiting：0~1G, 8Kbps step Ring protection: IEEE802.1w RSTP, VRing with less than 20ms switch time Storm Control: Broadcast/multicast/DLF |
|
Physical |
Housing: Metal, Fanless Protection Class: IP40 Dimensions: 40mm x 90mm x 140mm (W×D×H) Weight: 0.5kg Mounting: DIN-Rail |
Management and Maintenance
|
Management mode |
WEB |
|
Configuration management |
Backup and restore |
|
User management |
password modification |
|
Upgrade management |
via WEB |
|
Maintenance |
LLDP, port mirror, DDM, port statistics |
Industrial Standard
|
EMI |
FCC CFR47 Part 15, EN55022/CISPR22, Class A |
|
EMS |
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
|
Machinery |
IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) |
|
Standards |
IEEE 802.3 10Base-T IEEE 802.3u 100Base-Tx IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-X |
Others
|
Environment |
Operating Temperature: -40°C to 85°C Storage Temperature: -45°C to 85°C Ambient Relative Humidity: 5 to 95% (non-condensing) |
|
Approvals |
CE, FCC, RoHS |
|
MTBF |
360,000 hrs |
