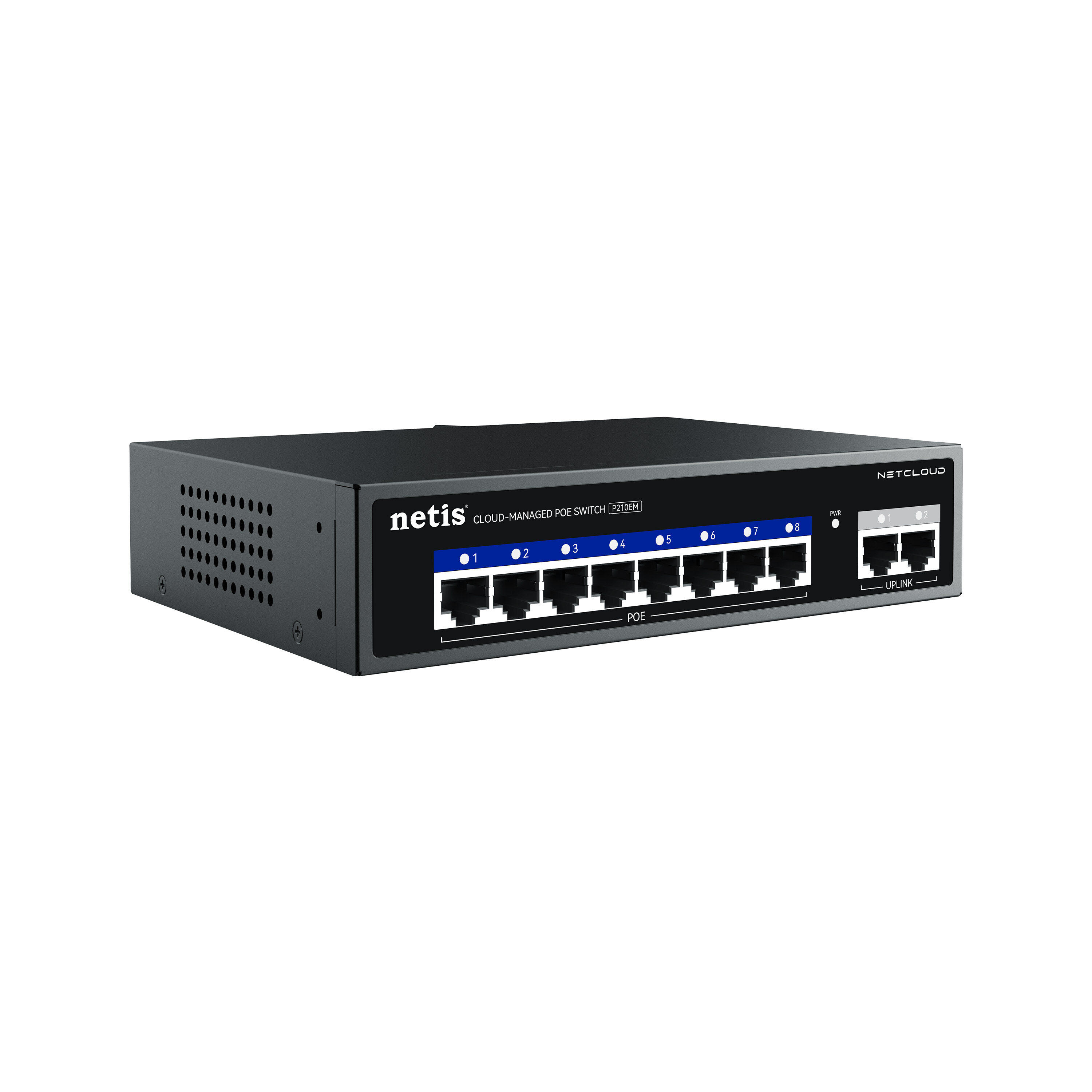

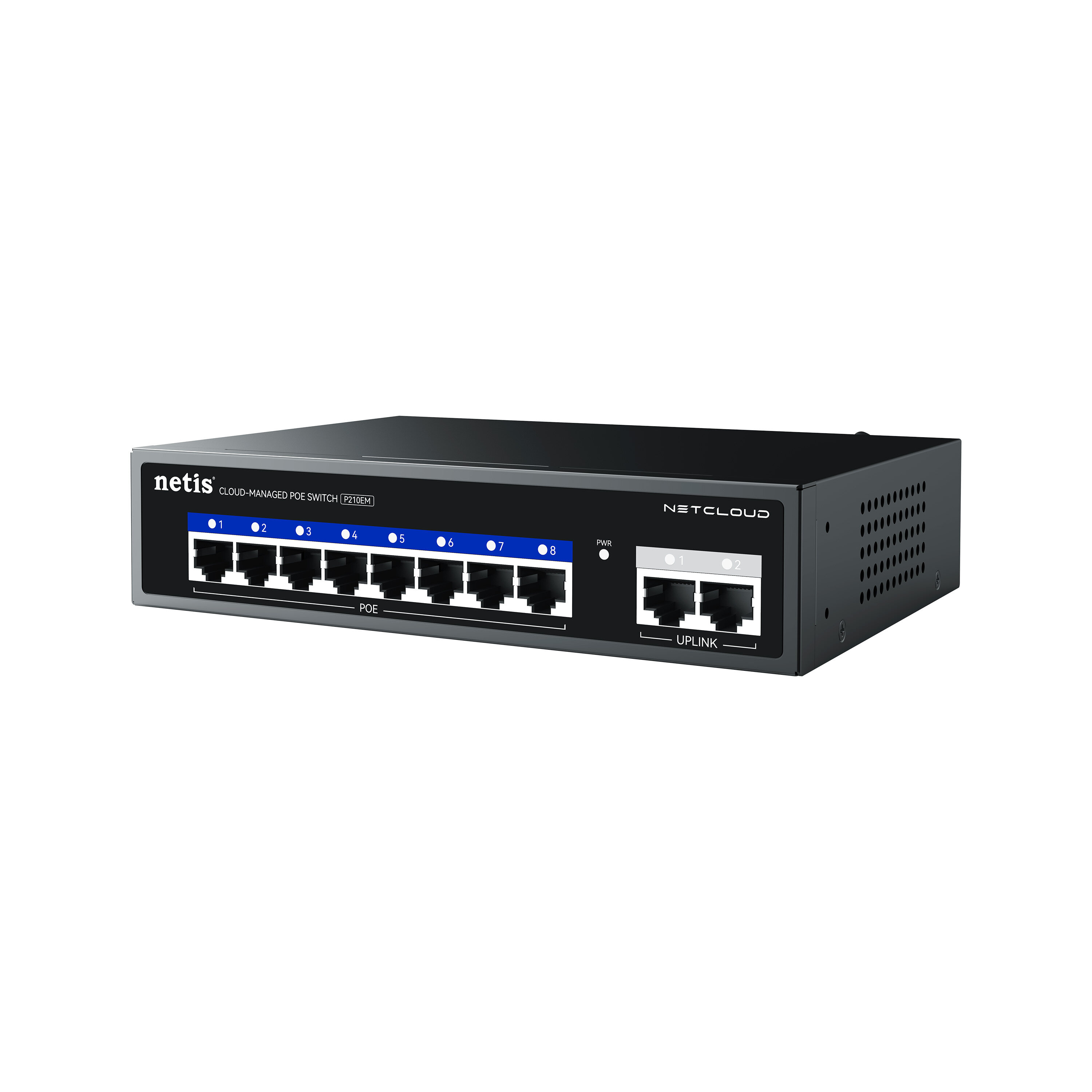

P210EM
8FE POE+2FE Cloud Managed POE Switch
- 10*10/100M ports: 8 POE ports+2 uplink ports.
- 120W total POE budget with up to 30W POE output per port.
- Remote management via BeeWiFi.
- Cloud managed: port reboot, real-time port status, port rename, device restart.
- Support VLAN isolation, overcurrent, overload and short circuit protection.
- Durable steel casing for better heat dissipation.
- More features: storm control, AI watch dog, automatic extension, scheduled port reboot.
Cloud-Managed
POE Switch
POE Switch
4FE POE + 2FE UPLINK · P206EM
8FE POE + 2FE UPLINK · P210EM
8FE POE + 2FE UPLINK · P210EM
BeeWiFi Management
Port Reboot
Device Restart
Real-time Port Status
Port Renaming
AI Watch Dog
VLAN Isolation
Automatic Extension
Manage with BeeWiFi, Easier and More Convenient!
With BeeWiFi on your smartphone. P206EM and P210EM allow you to setup and manage devices easily and conveniently,
whether you are at home or in the office.
whether you are at home or in the office.

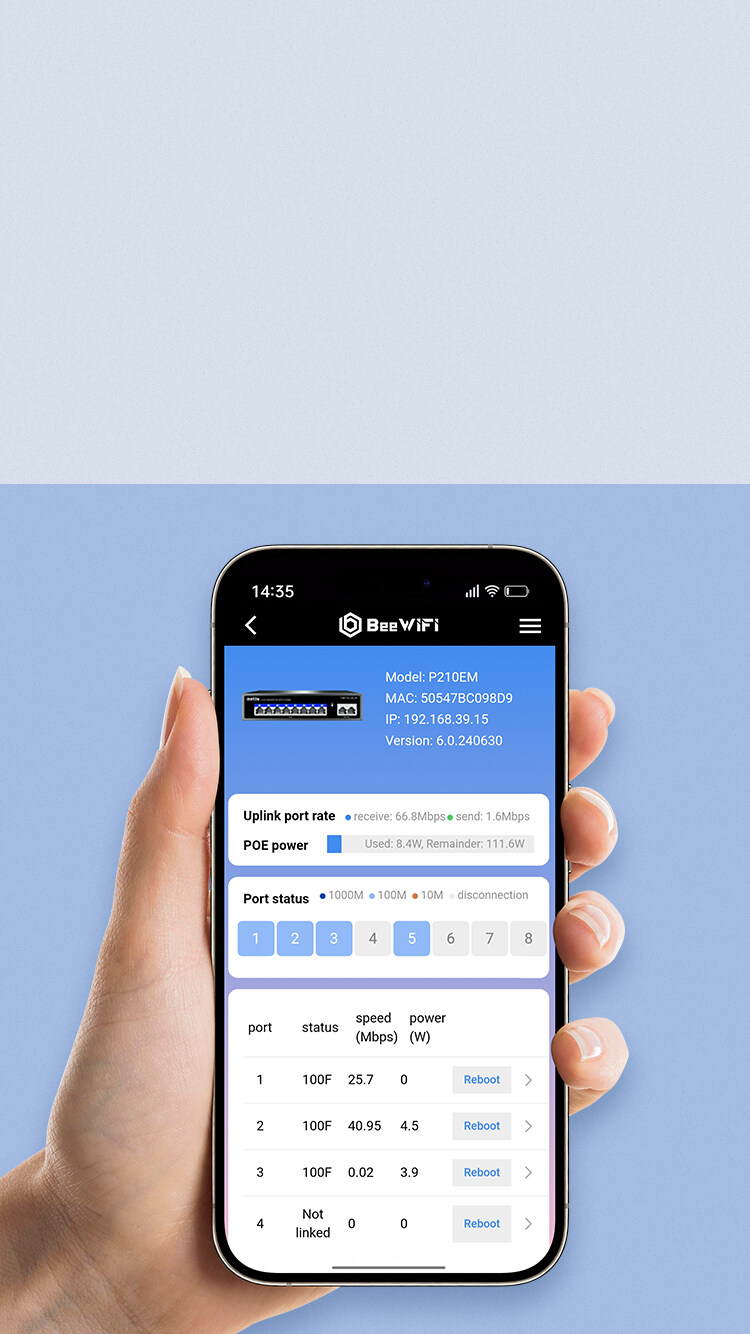

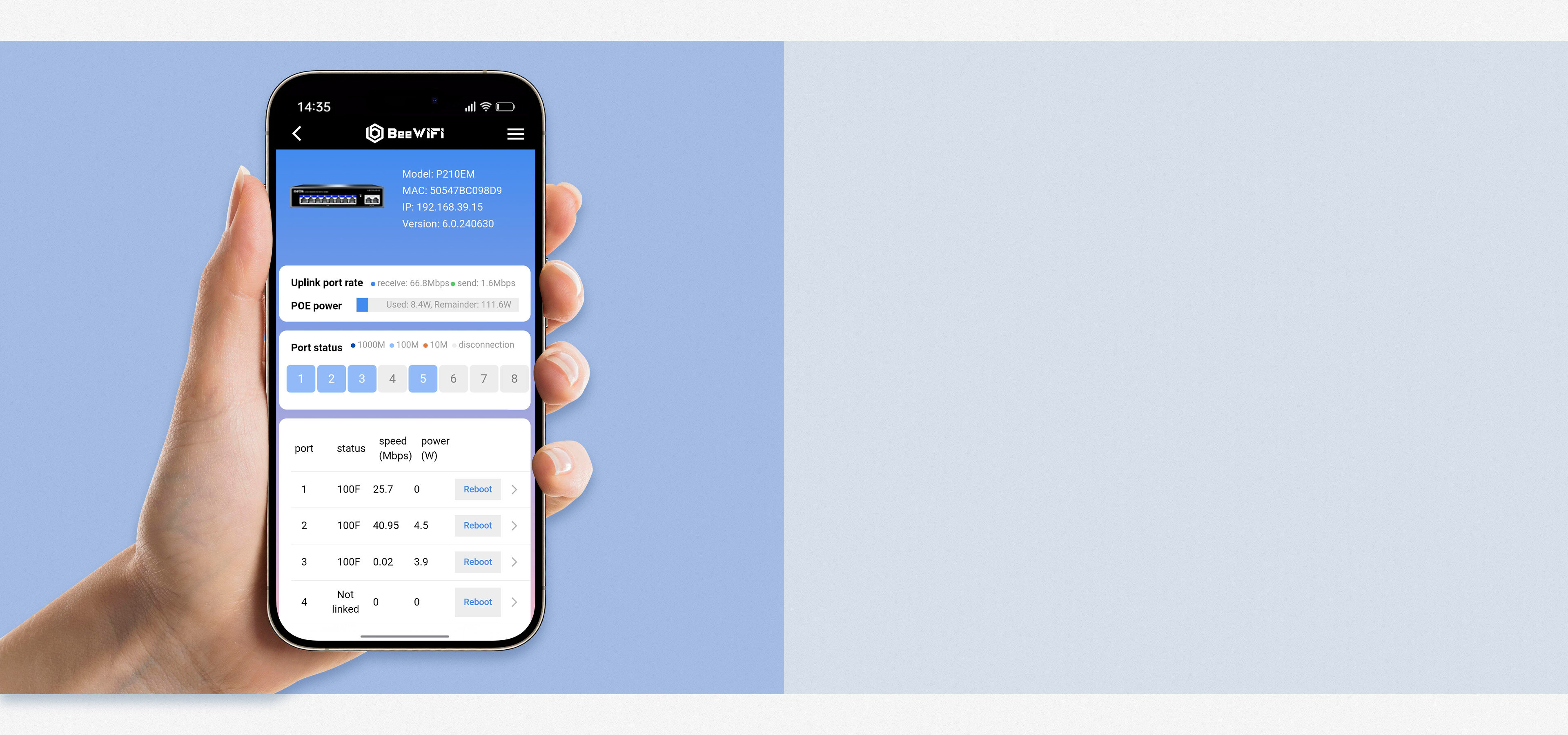

Real-time Port Status
Quick Troubleshooting
Through the BeeWiFi, you can monitor the working status of each port in real time. With clear information on port speed and power, it helps you enhance operational efficiency.

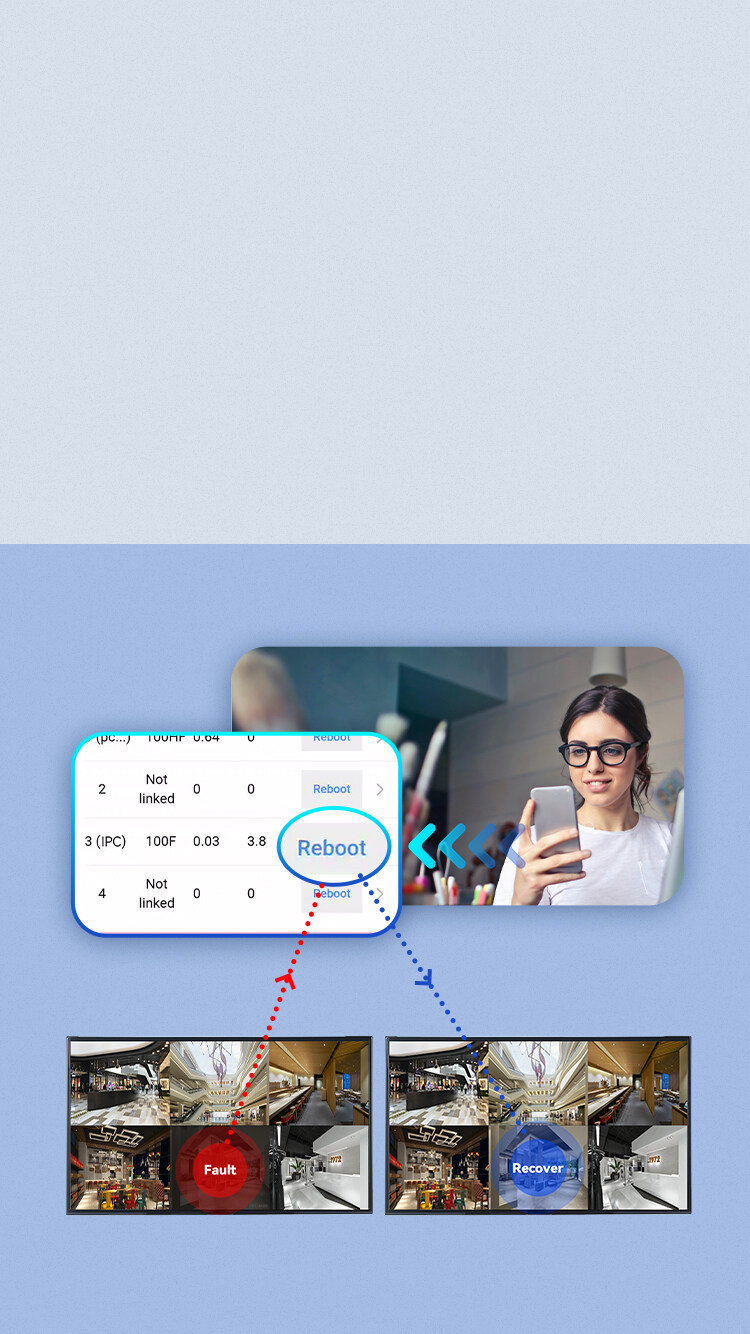

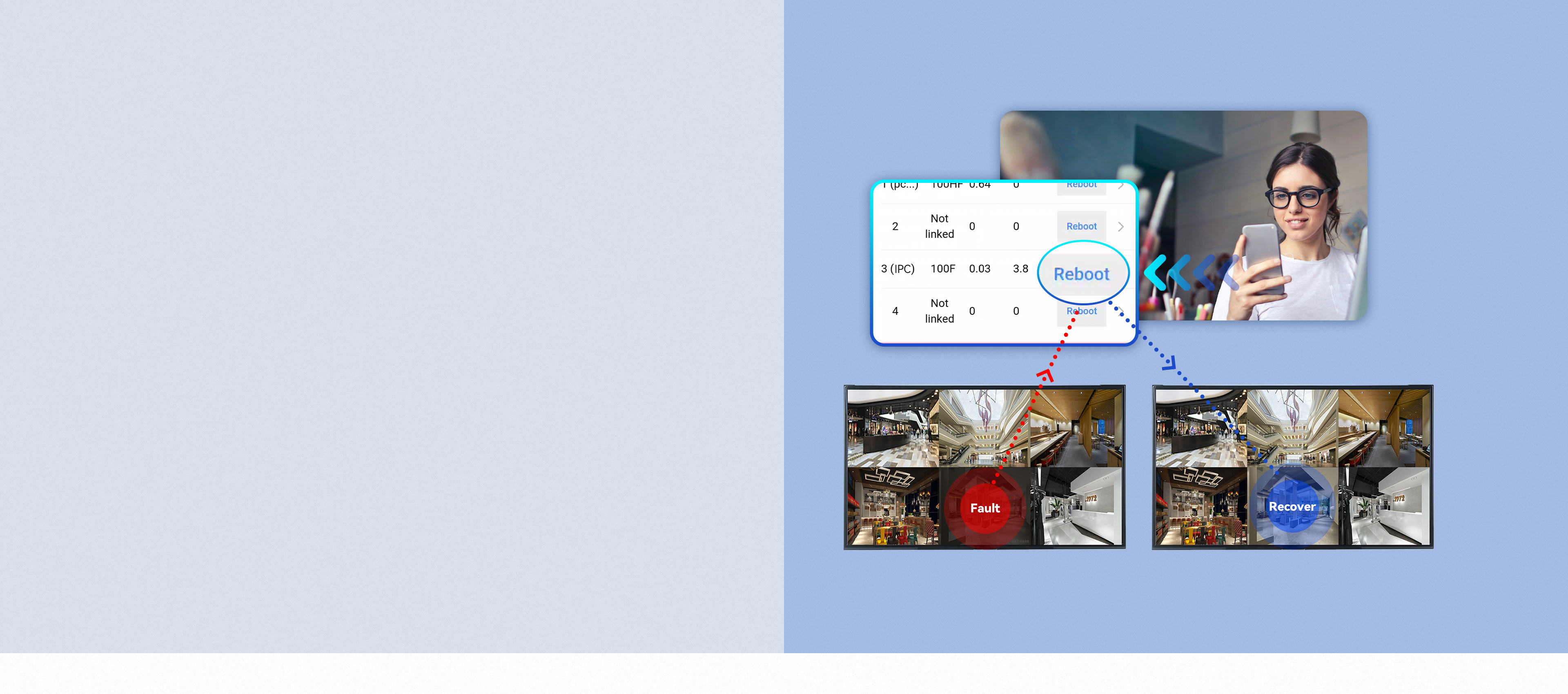

POE Port Reboot Remotely
Achieve More with Less Cost
When a powered device goes down, our cloud-managed POE switch allows you to reboot the corresponding POE port remotely. This one-step solution greatly saves your time and efforts, compared with on-site reboots.

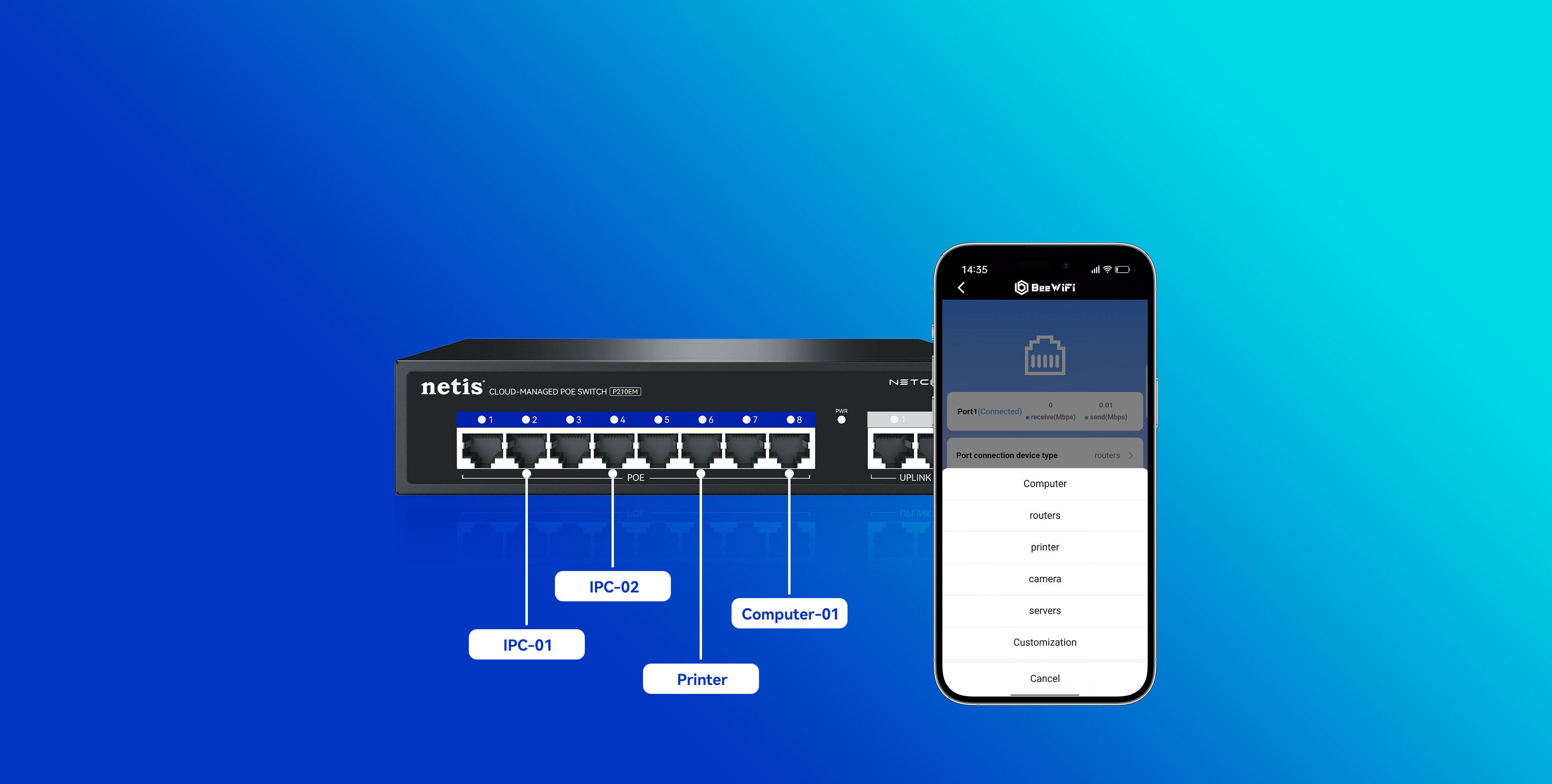

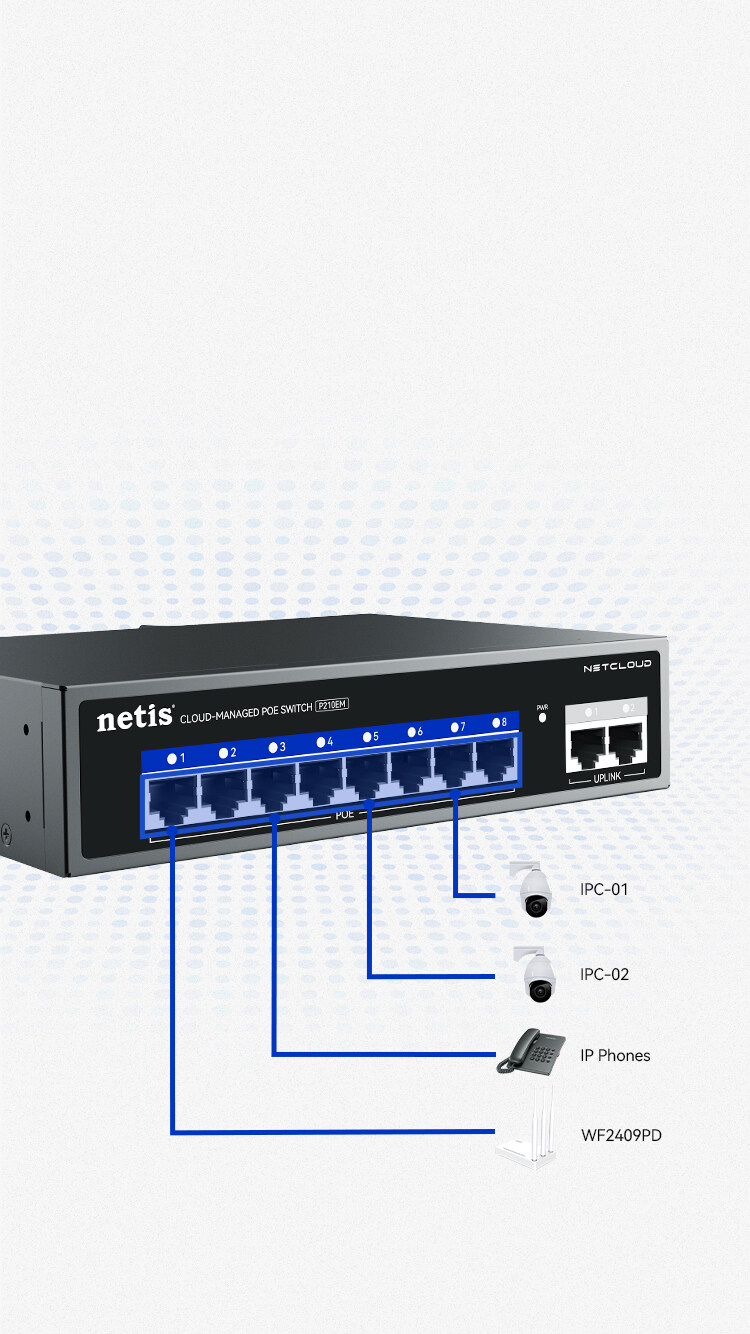

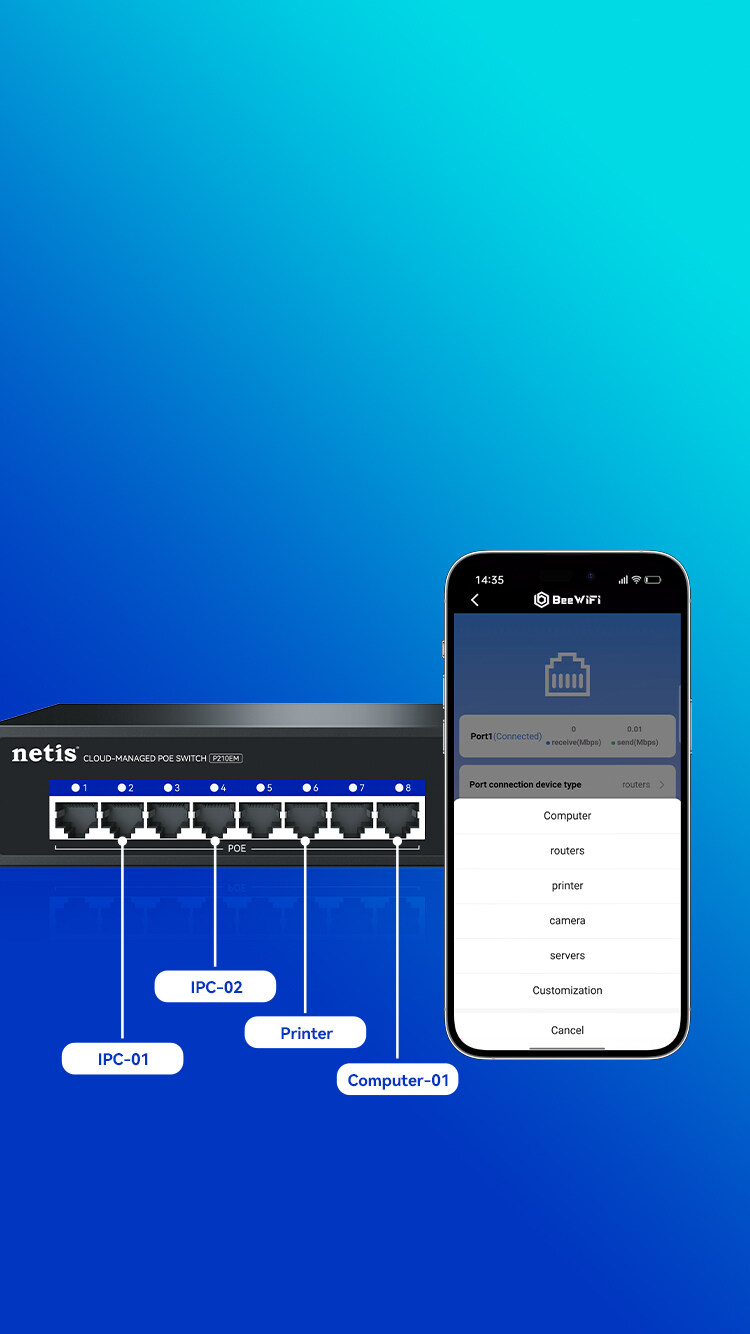

Customize Port Name for Easy Identification
You can label each port with clear, descriptive names, such as 'IPC-01' or 'Computer-01'.
This simplifies the identification and management of a large number of connected devices.
This simplifies the identification and management of a large number of connected devices.

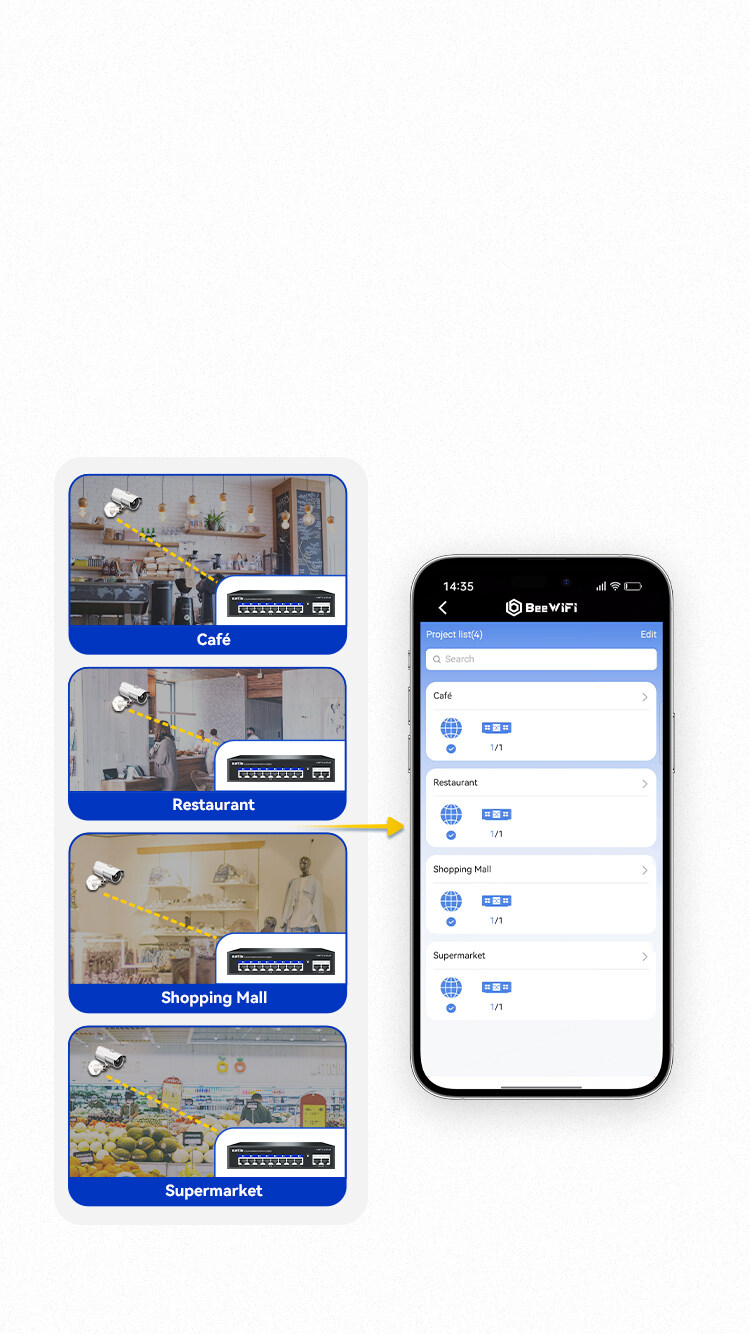

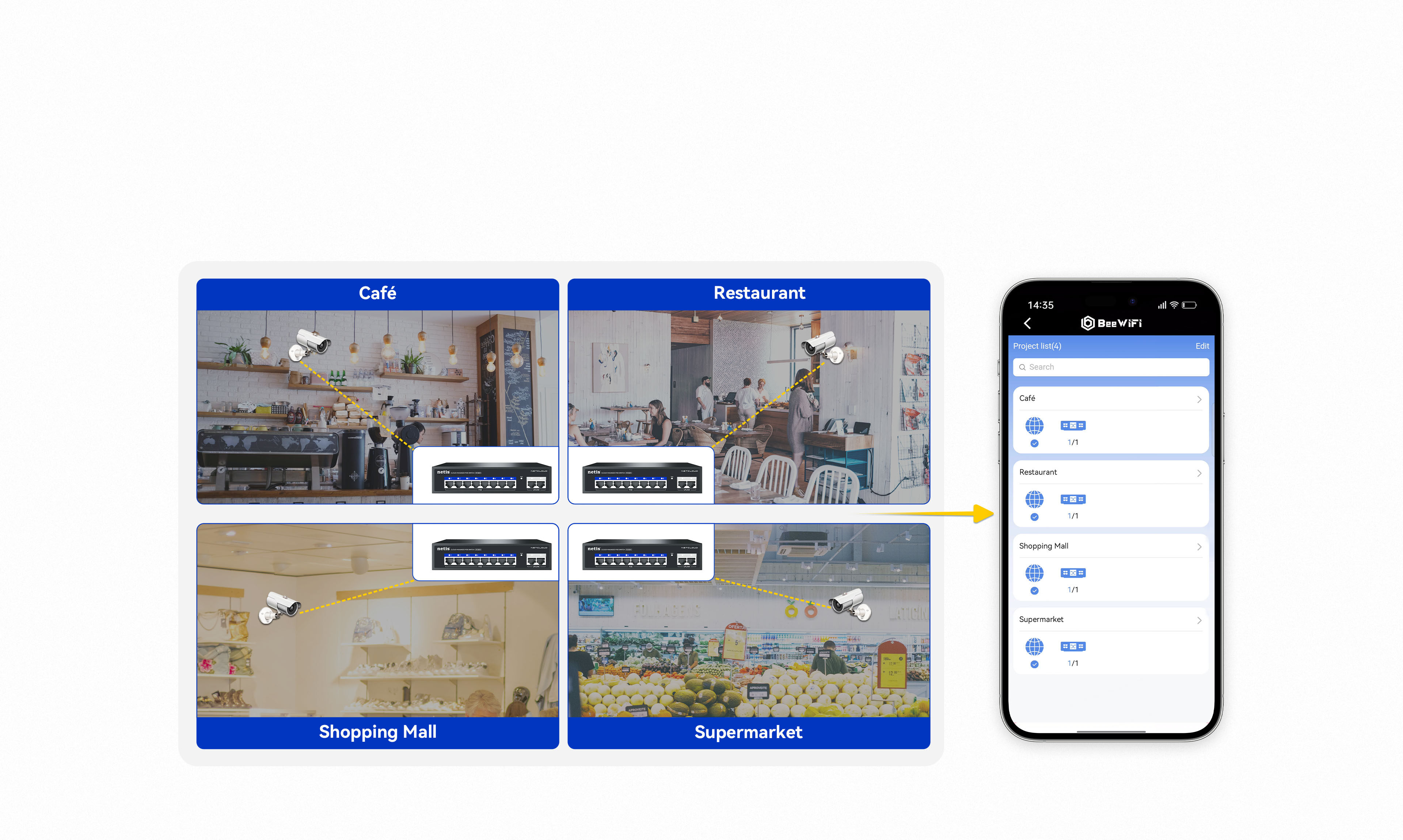

Unified Multi-Project Management
Save time by managing different projects simultaneously with BeeWiFi.
Experience the benefits of centralized control and remote operations.
Experience the benefits of centralized control and remote operations.

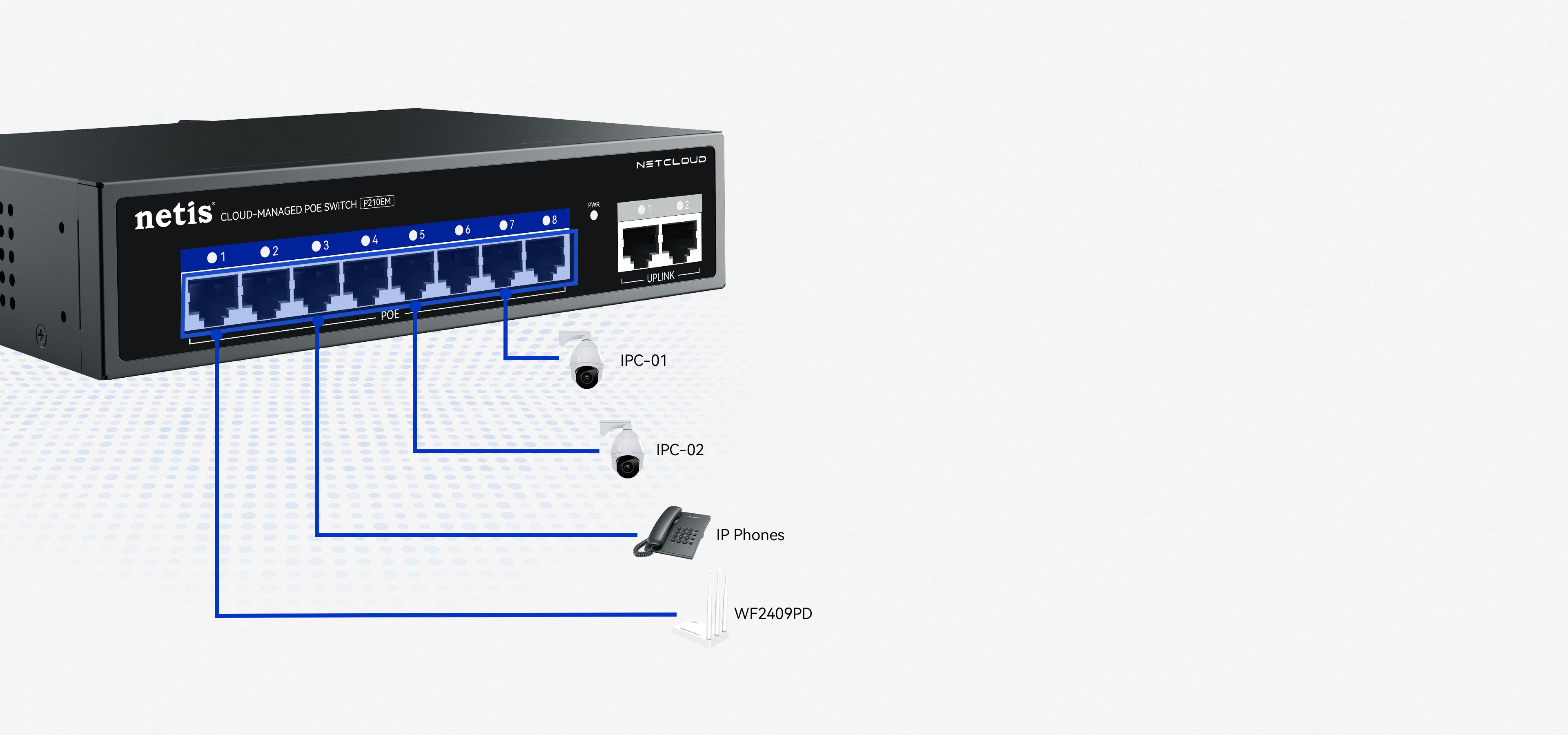

8FE POE Ports
The Maximum Output for One Port is 30W.
Eight POE ports, supply a total of up to 120W of power to 802.3at and 802.3af devices. Set up cameras, IP phones, wireless routers (support POE PD) and other powered devices quickly and easily, avoiding the hassle and cost of installing power cabling.

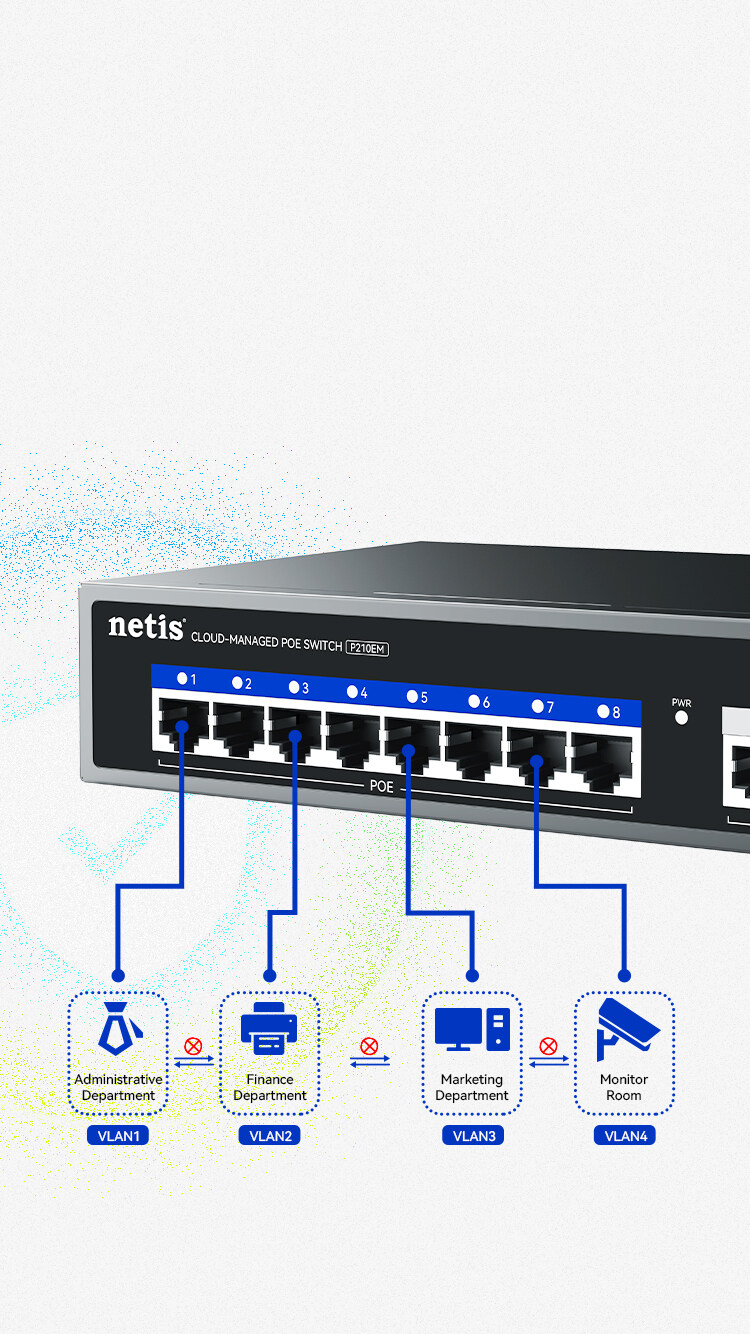

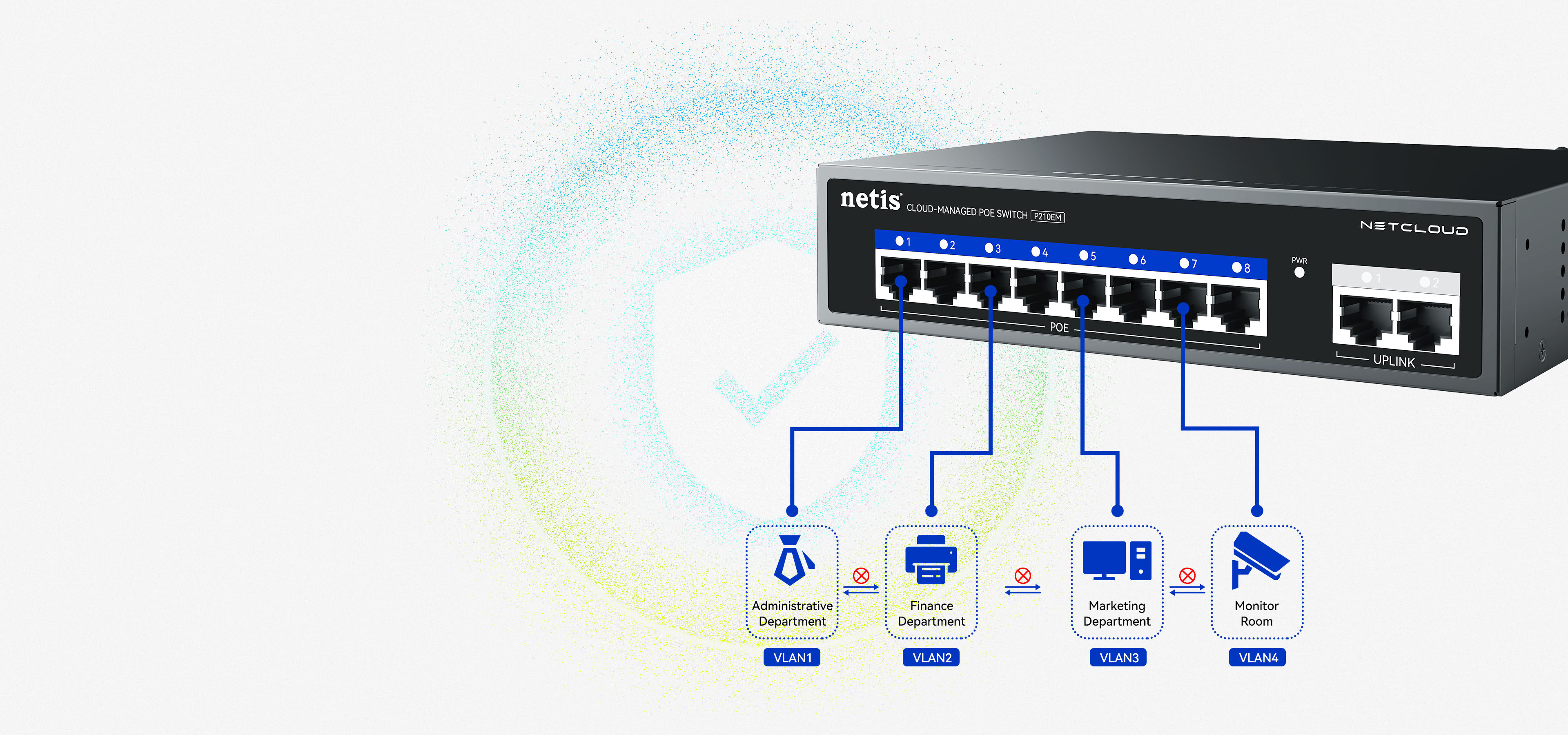

VLAN Isolation for Enhanced Security
VLANs streamline network management and strengthen security by segmenting networks into efficient, smaller units, it optimizes traffic flow for improved performance and resource allocation.

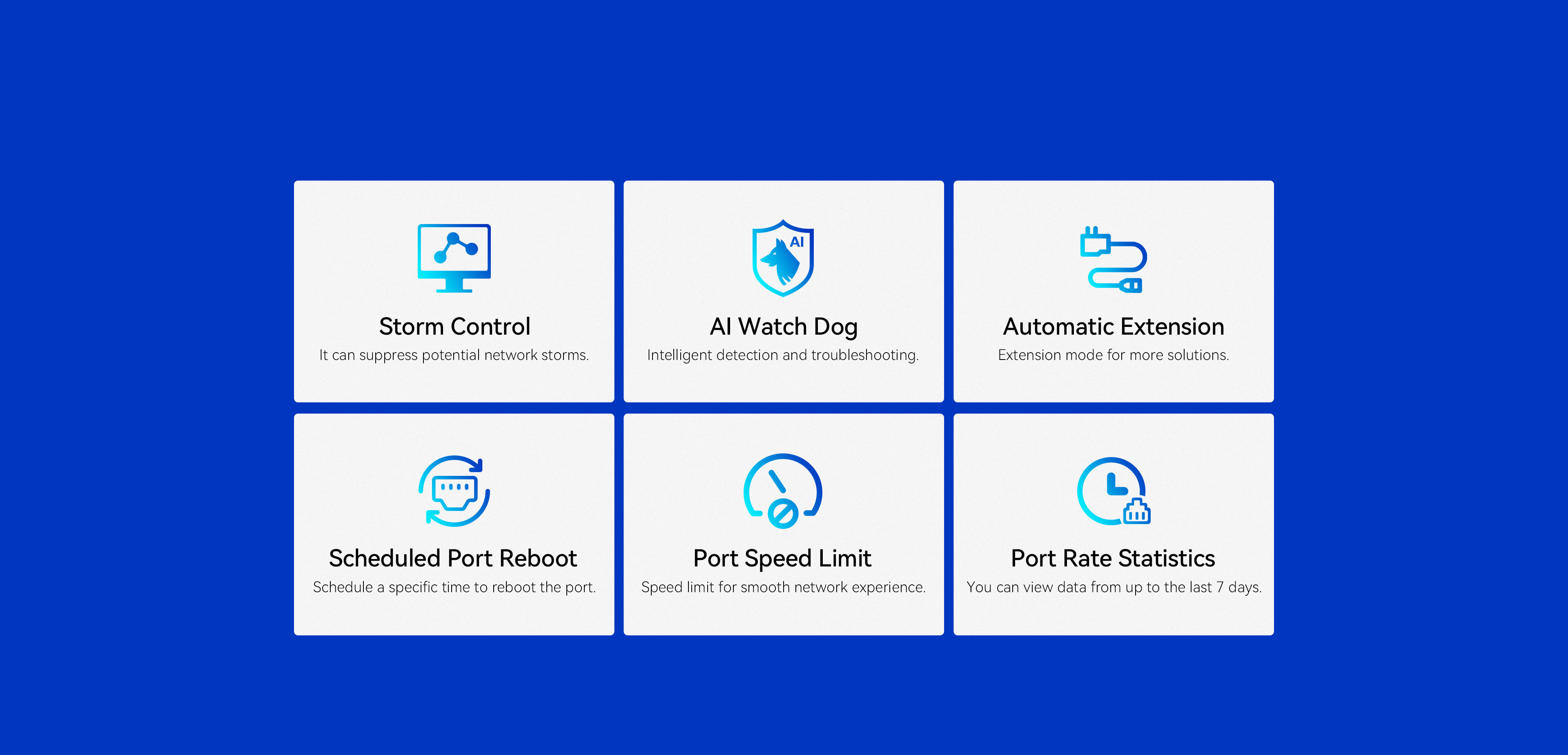

More Features

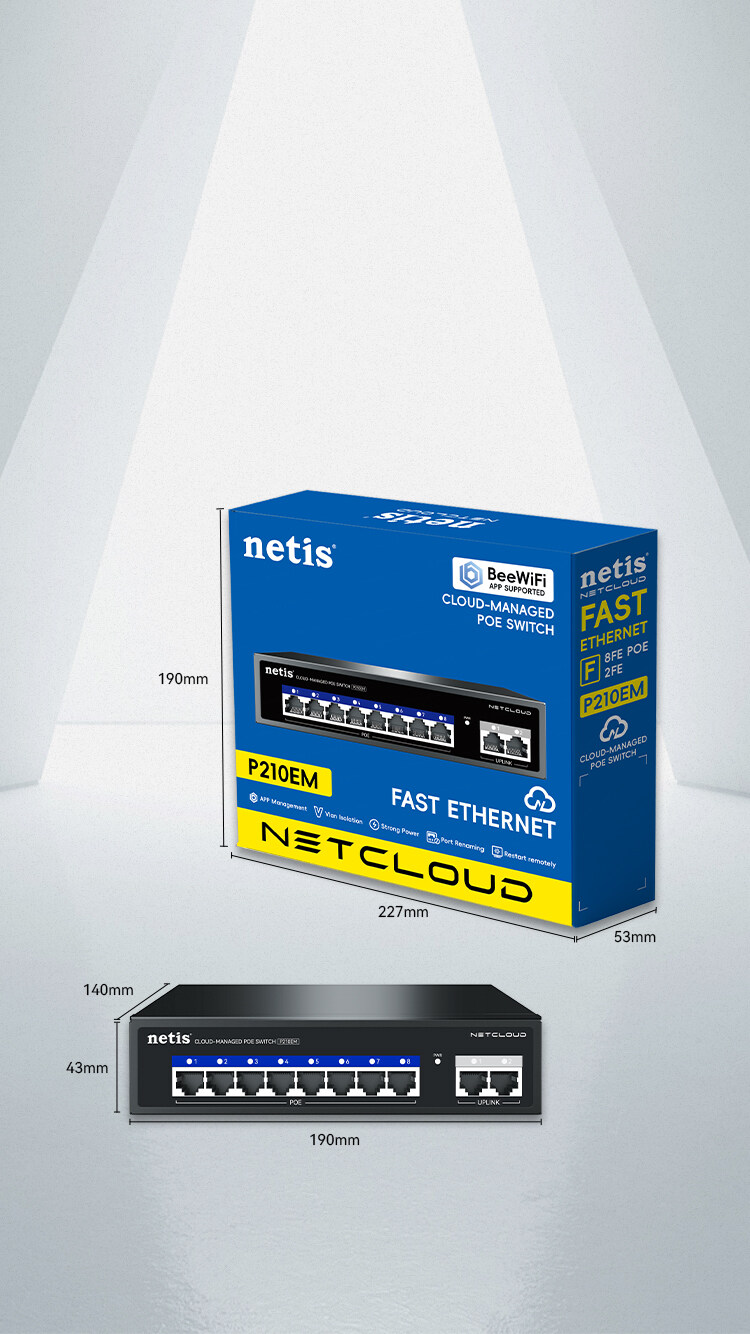

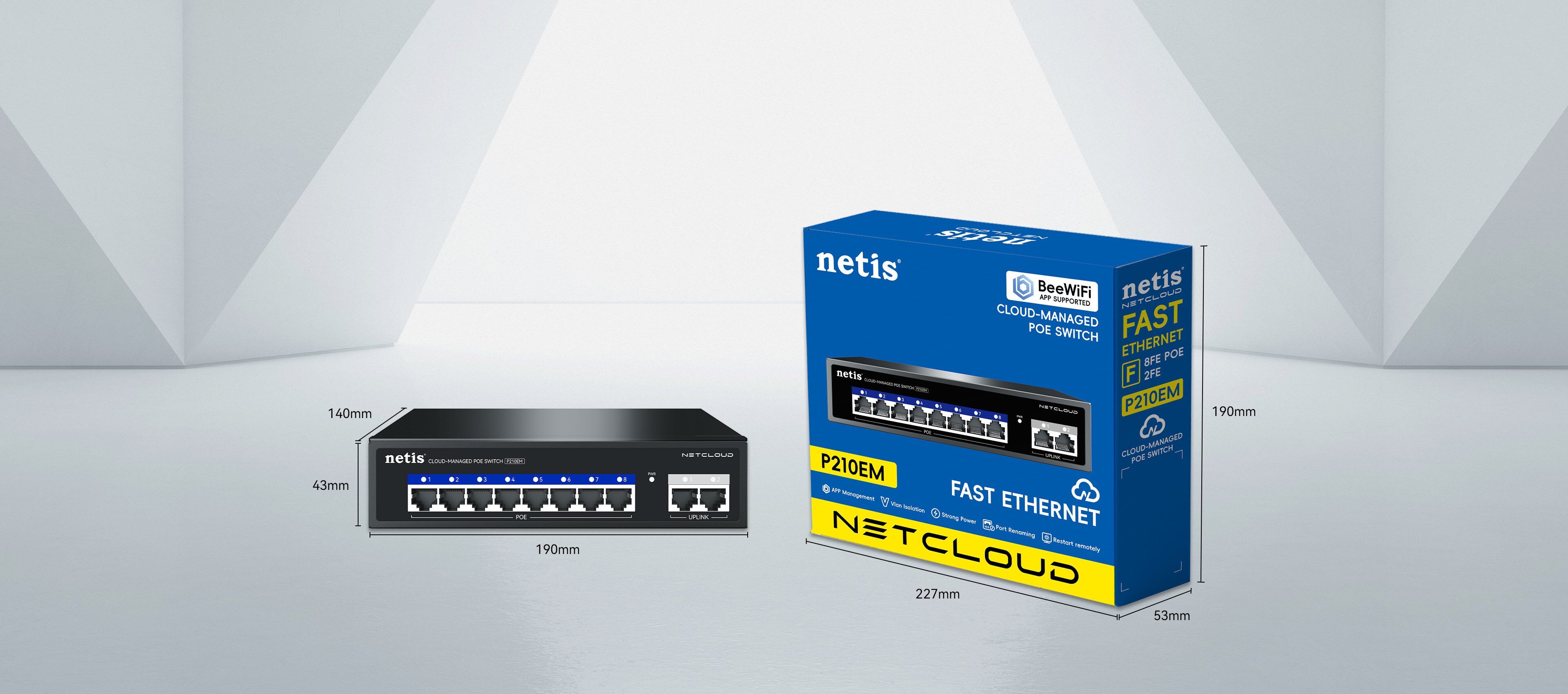

Packaging Display
Specification
Hardware
|
Interface |
8*10/100Mbps POE Ports(Data/Power) 2*10/100Mbps RJ45 Ports(Data) |
|
Backplane Bandwidth |
2G |
|
MAC Address Table Size |
2K |
|
Power Supply |
AC input 100-240V, standard 120W power supply |
|
Cabling Type |
100Base-TX: 2 pairs of class 5 (Cat5) or more UTP/STP(≤100m) 10Base-TX: 2 pairs of class 5 (Cat6) or above UTP/STP(≤250m) |
Software
|
Basic Functions |
Follow IEEE 802.3 Ethernet IEEE802.3u Fast Ethernet Protocol standards Support POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Compatible with certified non-standard electrified equipment (PD) Support IEEE802.3X full duplex and Backpressure half duplex flow control MAC address auto-learning & auto-aging |
|
Standards |
IEEE 802.3 10BASE-T Ethernet IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
|
Transfer Rate |
Ethernet 10Mbps half duplex, 20Mbps full duplex Fast Ethernet 100Mbps half duplex, 200Mbps full duplex Gigabit Ethernet 2000Mbs full duplex |
|
Cloud Managed Information |
Switch SN information, device model, firmware version, real-time IP, real-time port power, port LINK status, link duplex, uplink and downlink rates |
Other
|
Temperature |
Working temperature：0℃～40℃ Storage temperature：-40℃～70℃ |
|
Humidity |
Working humidity：10%～90% RH Non-condensing Storage humidity：5%～90% RH Non-condensing |
|
Altitude |
Work: Maximum 6500 feet (2000 Meters) Storage: Maximum 6500 feet (2000 Meters) |
|
Dimensional |
190mm*140mm*43mm |
