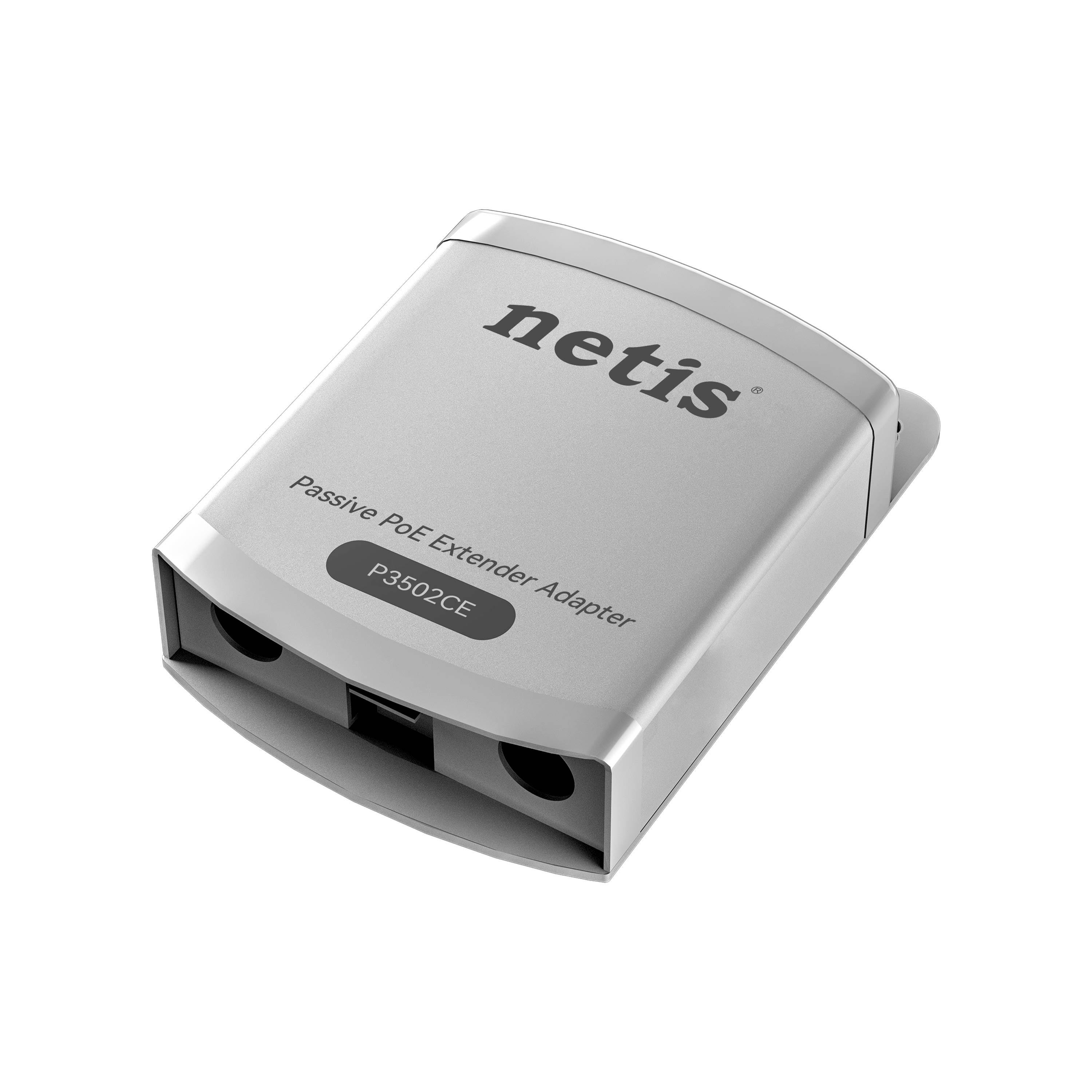

P3502CE
Waterproof Passive PoE Extender
- 2 Output + 1 Input : Equipped with 2*10/100M POE ports and 1*10/100M uplink port.
- 2 Modes: Standard mode and extend mode, support up to 100-meter and 250-meter POE extension.
- Compatible with IEEE802.3af/at standard, and the maximum output for one port is 30W.
- IP66 waterproof box-shaped housing, plug and play.
- Compatible with IEEE 802.3 ethernet and IEEE 802.3u fast ethernet protocol standards.
- All ports support auto MDI/MDI-X function.
- Supports IEEE802.3X full-duplex flow control and back pressure half-duplex flow control.
- Supports autonomous learning and aging of MAC address.
One Input
Two Outputs
Two Outputs

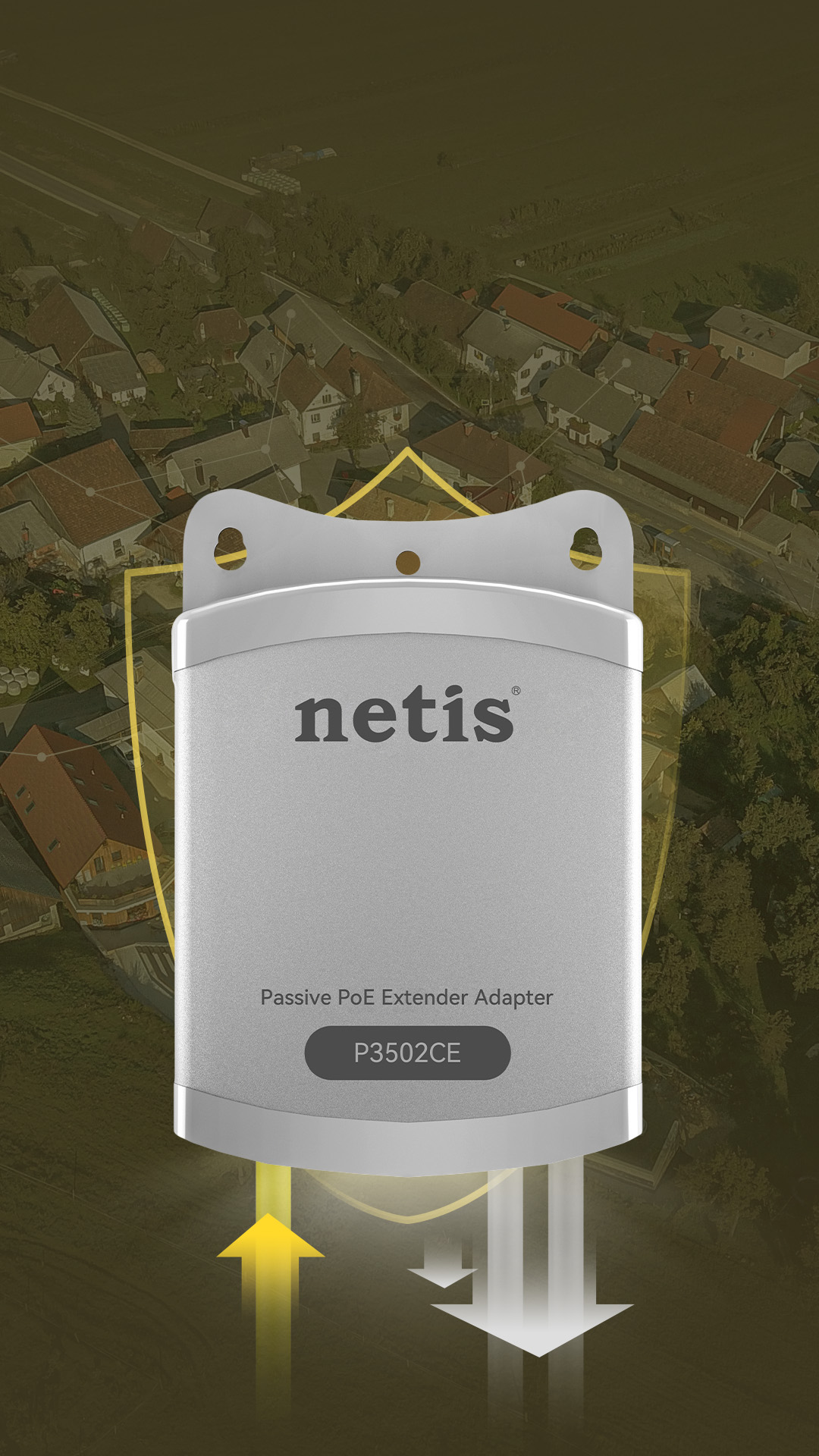

Passive Cascading POE Extender
P3502CE
250-meter Transmission
IP66 Outdoor Rating
One Input Two Outputs
Passive Cascading
Long Distance Mode
Up to 30W Per Port
Easy to Switch Mode
Plug and Play
POE Power Supply

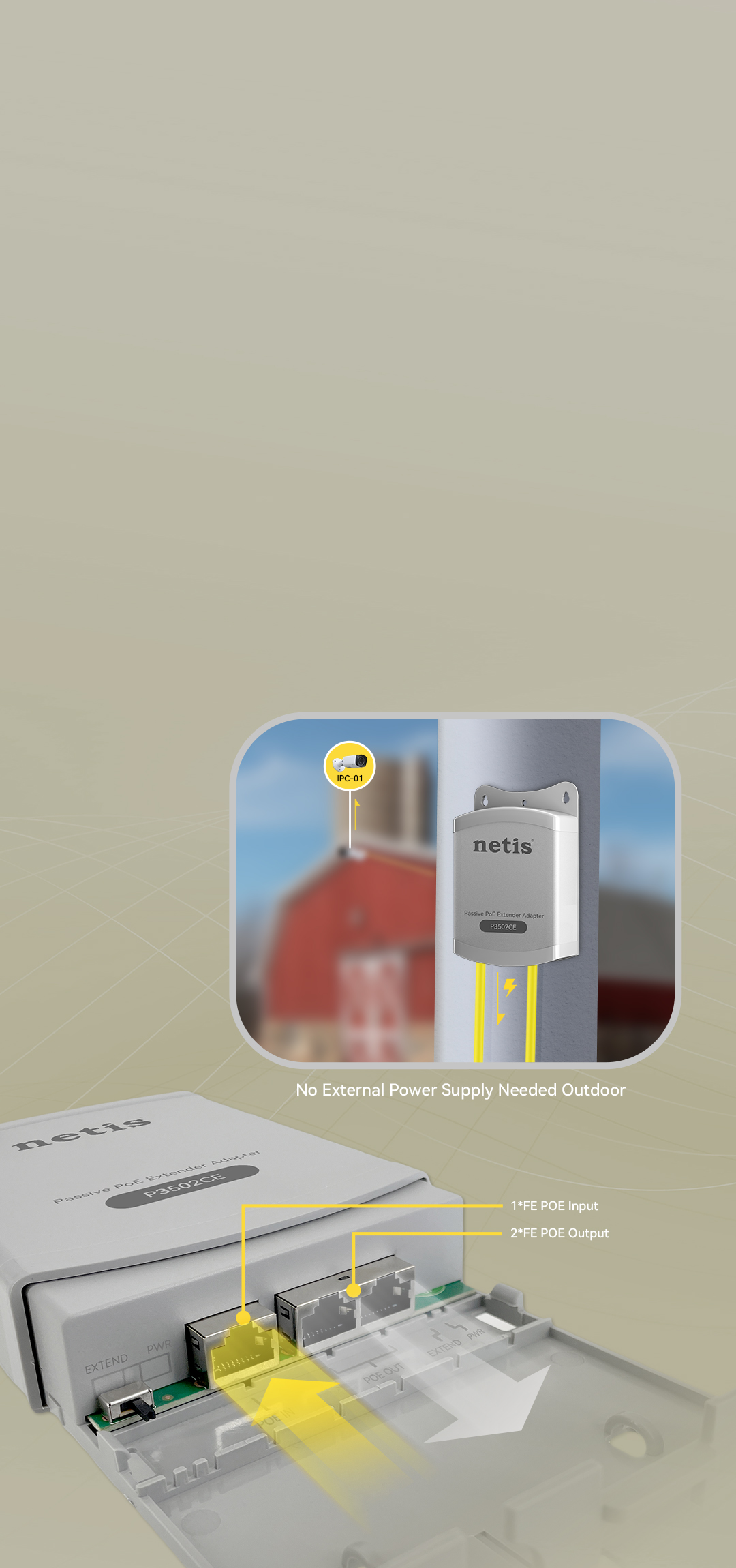

More Convenient and Flexible Deployment
More Convenient and Flexible Deployment

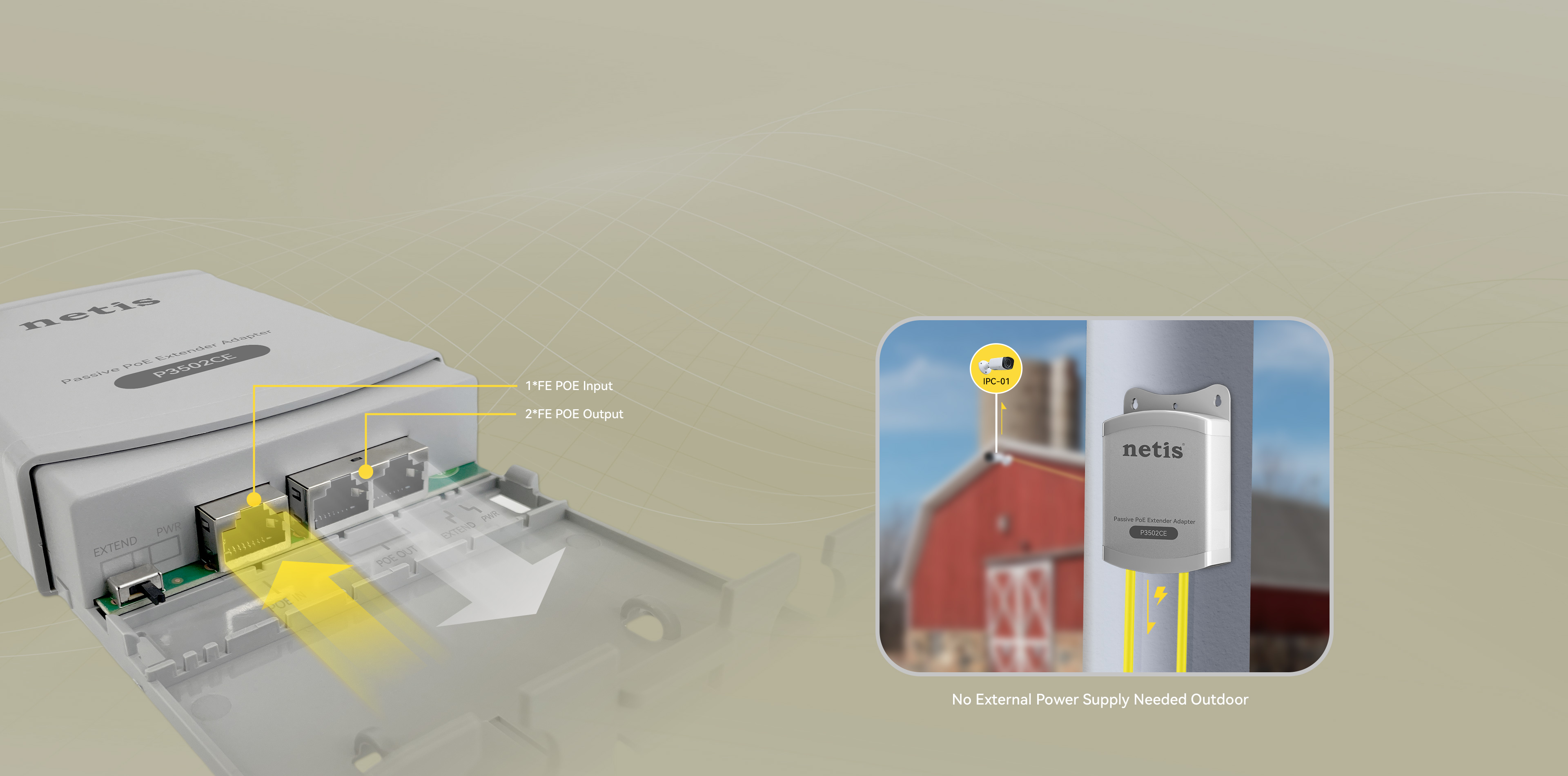

1RJ45 Uplink port and 2POE out ports, Maximum power per port: 30W
No external power supply needed. Data and power are transmitted through the network cable for flexible deployment.

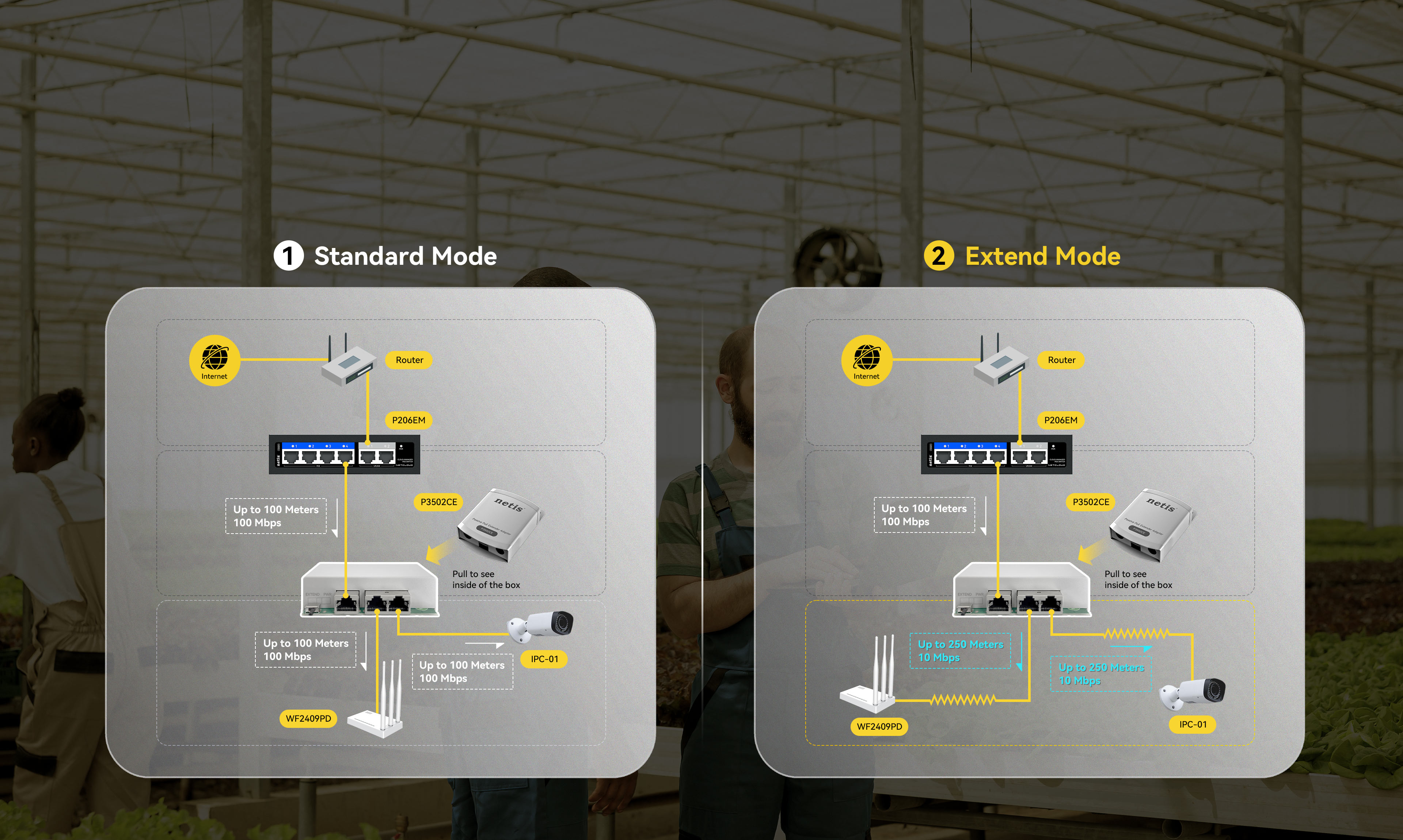

Network Cable Extension up to 350 Meters
With a button to turn on extend mode, you can connect your powered device in 350 meters, giving you more options.
Ideal for Various Scenarios
Farms | Villages | Orchards | Construction Sites
- No outdoor power supply needed
- No POE switches needed, saving costs
- No fiber optics needed, reducing expenses
- No POE switches needed, saving costs
- No fiber optics needed, reducing expenses

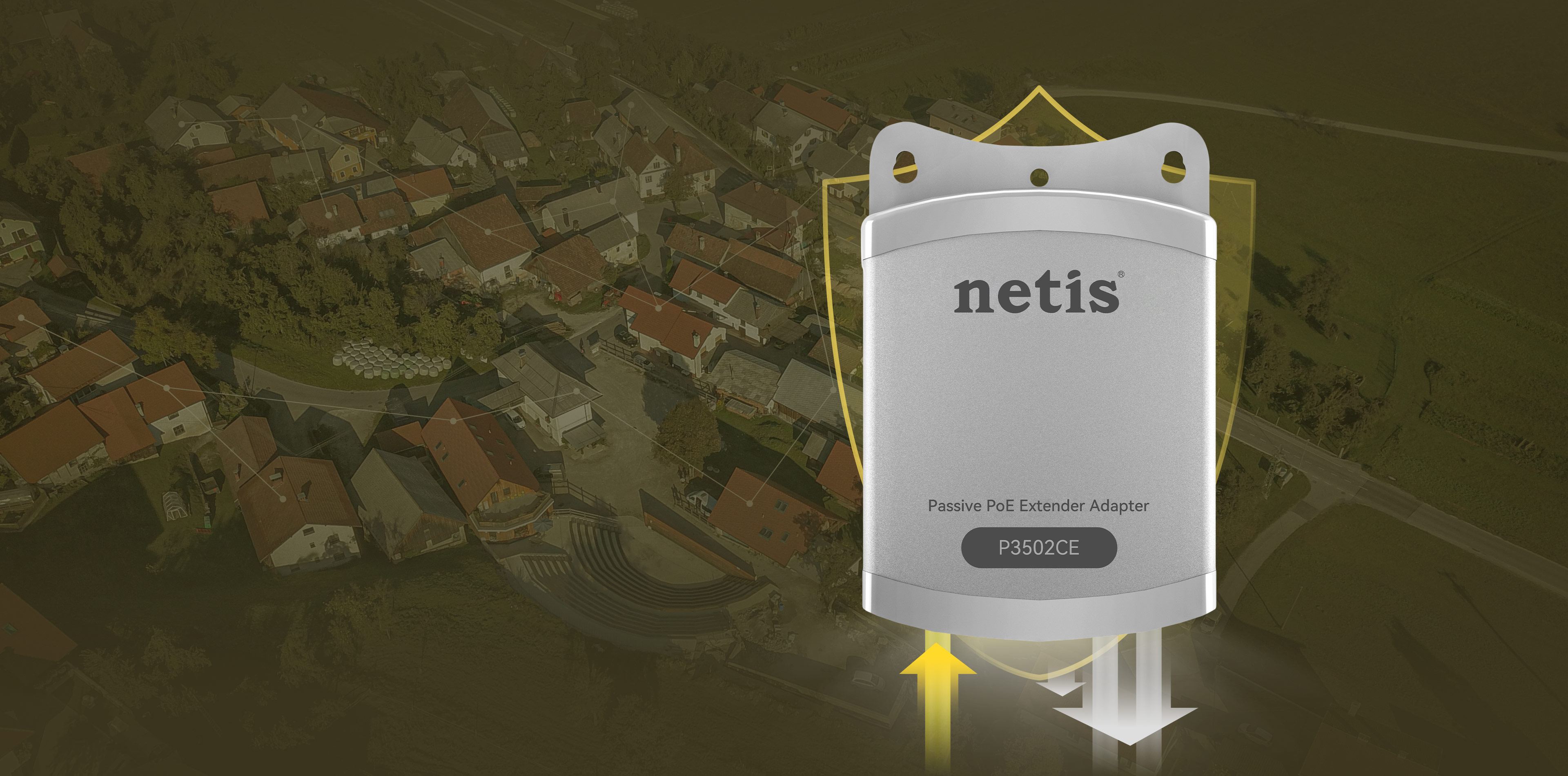

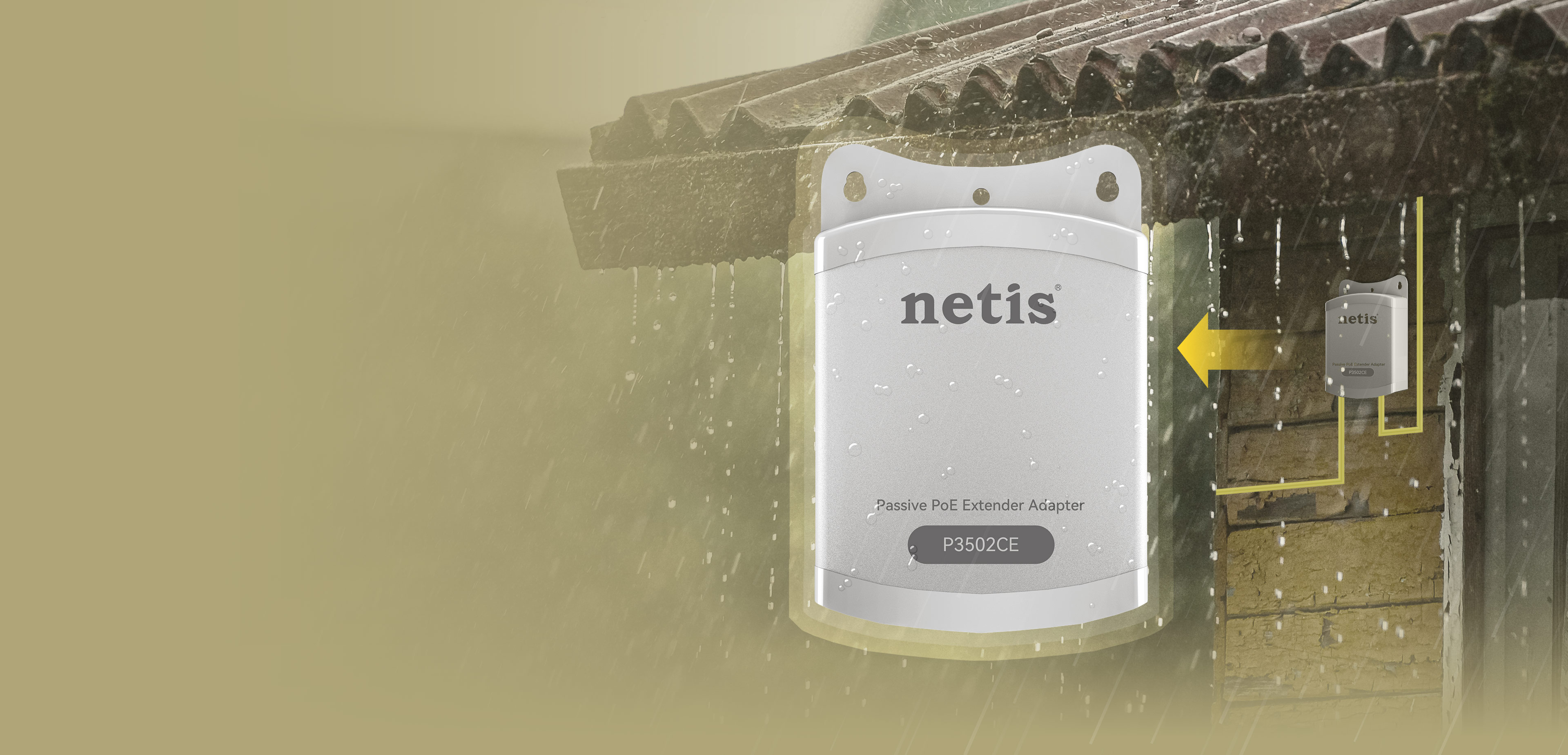

IP66-rated
Outdoor Waterproof
Outdoor Waterproof

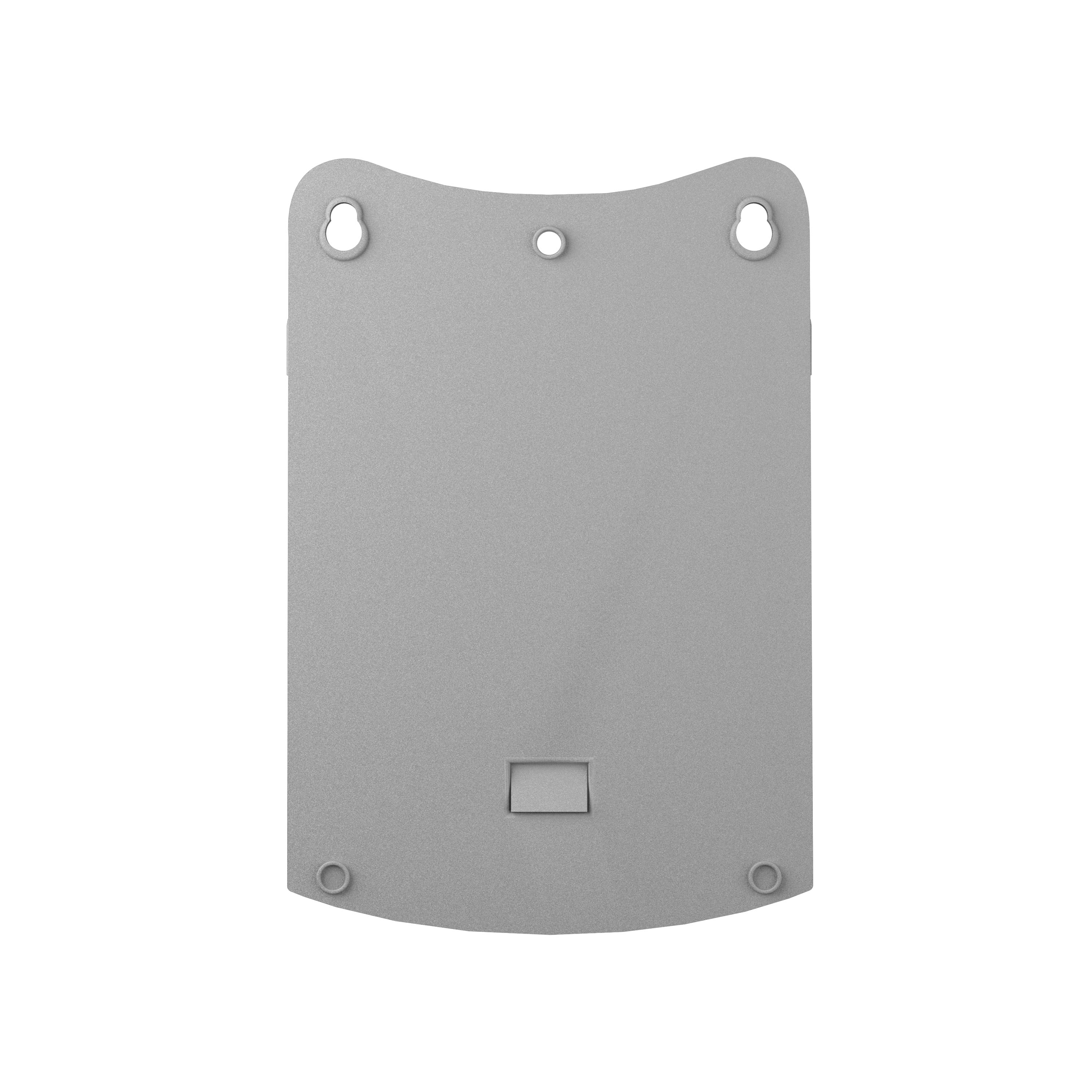

Unique cat ear-shaped hanging design, the body is made with special craftsmanship, offering more options for various scenarios.

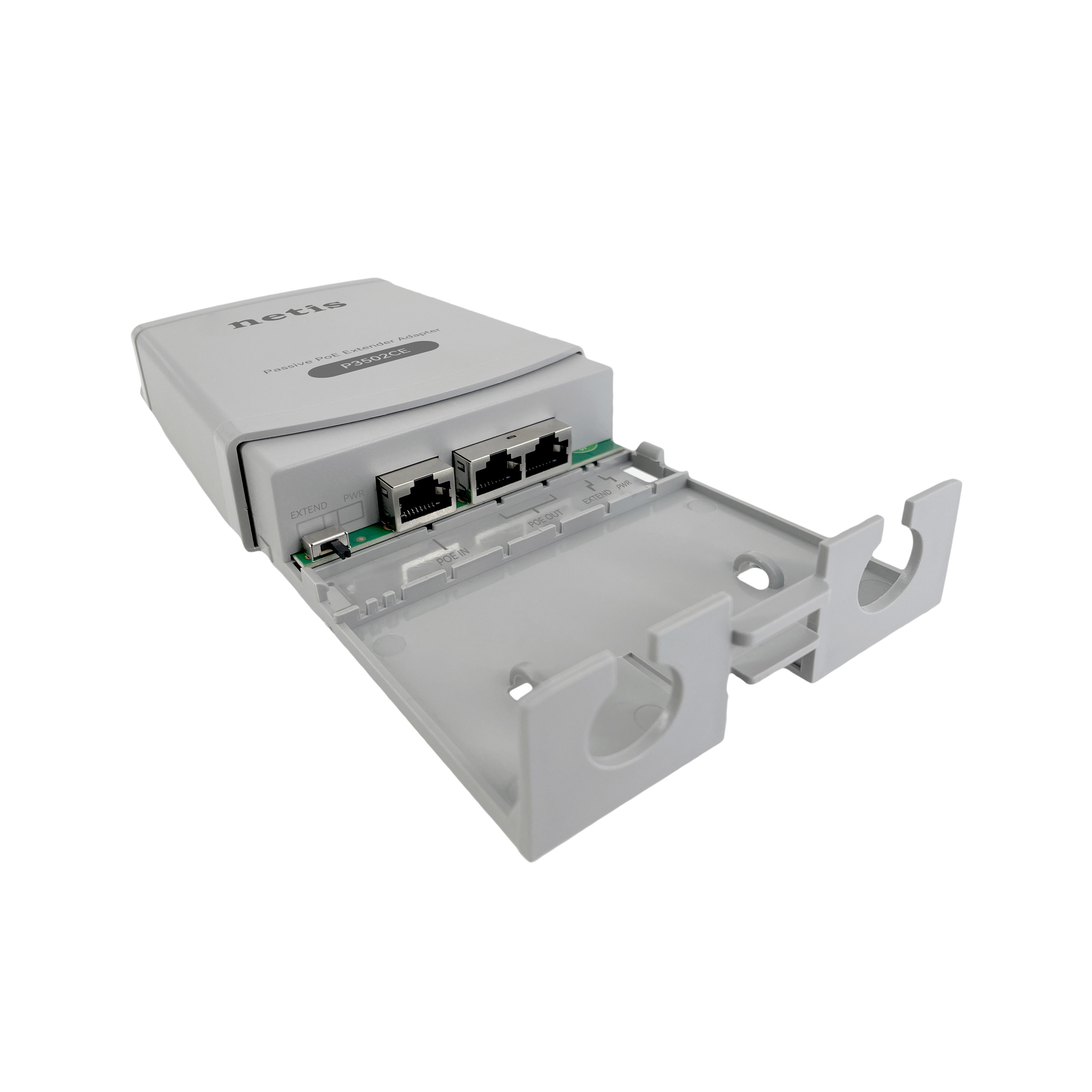

Plug and Play
Easy to plug and ready to go without configuration

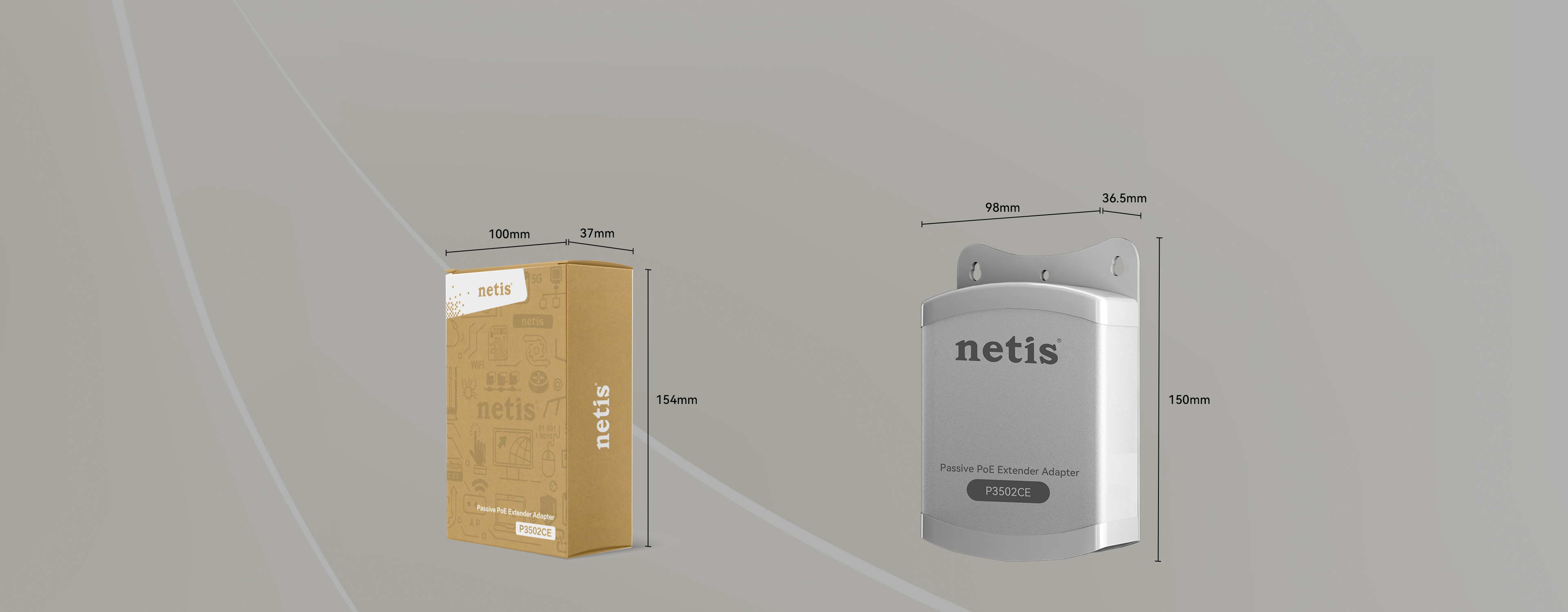

Packaging Display
Specification
Hardware
|
Interface |
2 * 100Mbps POE Port + 1 * 100Mbps Input Port |
|
Basic function |
IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards Compatible with PDs compliant with IEEE 802.3af/at standard Compatible with certified non-standard PD Store and Forward MAC auto learning and aging IEEE 802.3X full-duplex flow control and Backpressure half-duplex flow control |
|
Standards |
IIEEE 802.3 Ethernet Media Access Control Protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af enables powering Ethernet devices through Ethernet data pairs or devices IEEE 802.3at realizes high-power power supply for Ethernet devices through Ethernet data wire pairs or devices IEEE 802.3x flow control |
|
Mode |
OFF (Default mode) ON (Extended mode) |
|
Data Transfer Rate |
Ethernet 10Mbps half duplex, 20Mbps full duplex Fast Ethernet 100Mbps half duplex, 200Mbps full duplex |
|
Store & Forwarding |
Yes |
|
Switching Capacity |
0.6G |
|
MAC Address Table Size |
2K |
|
Power |
Supports standard POE, IEEE 802.3at to receive power, 30W max |
|
Environment |
Operation Temperature：0℃～40℃ Storage Temperature：-40℃～70℃ Operation Humidity：10%～90% RH Non-condensing Storage Humidity：5%～90% RH Non-condensing |
|
Cabling type |
100Base-TX: Cat 5e or better UTP/STP(≤100m) 10Base-TX: Cat 5e or better UTP/STP(≤250m) |
|
Dimensions(L * W * H ) |
150*98*36.5mm |
