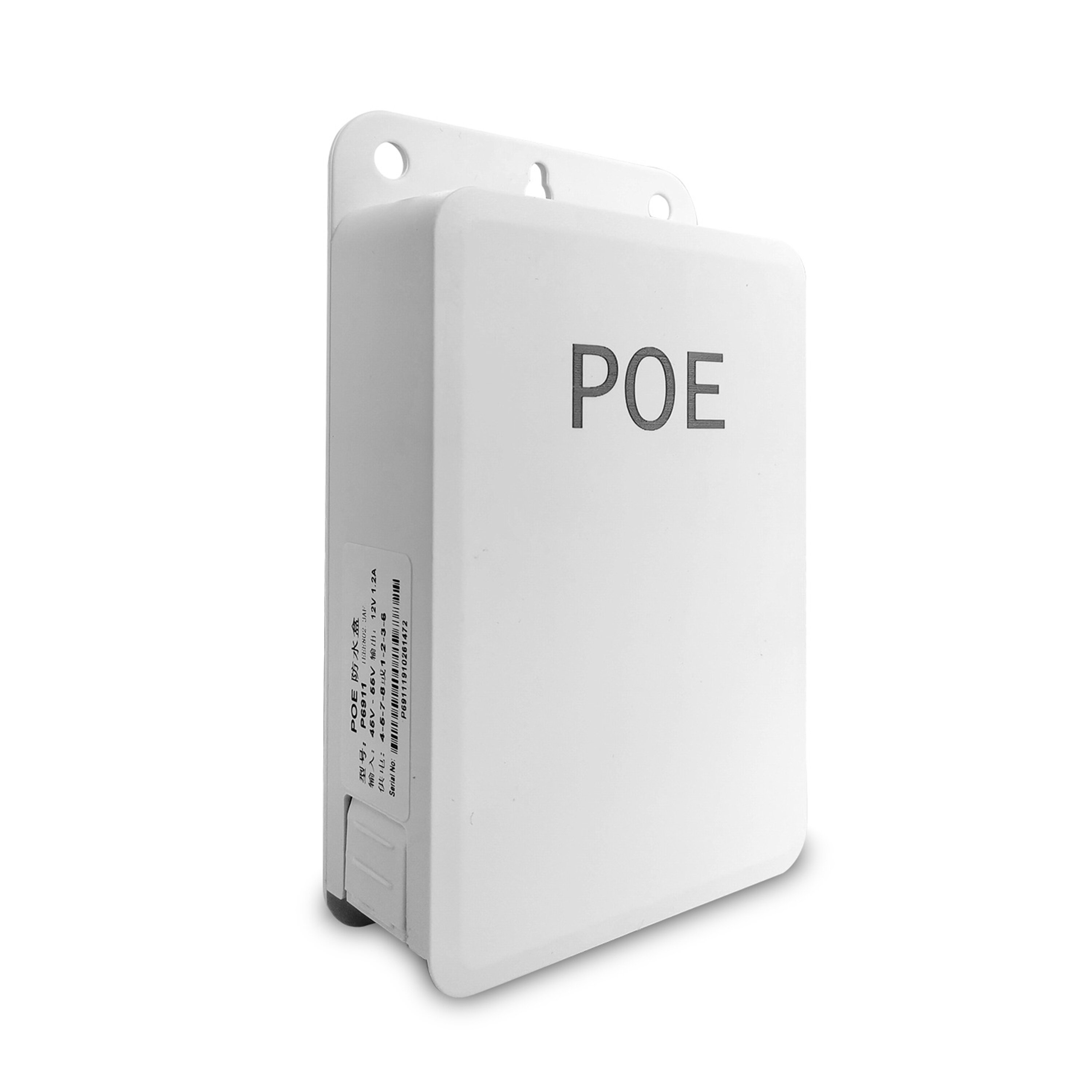

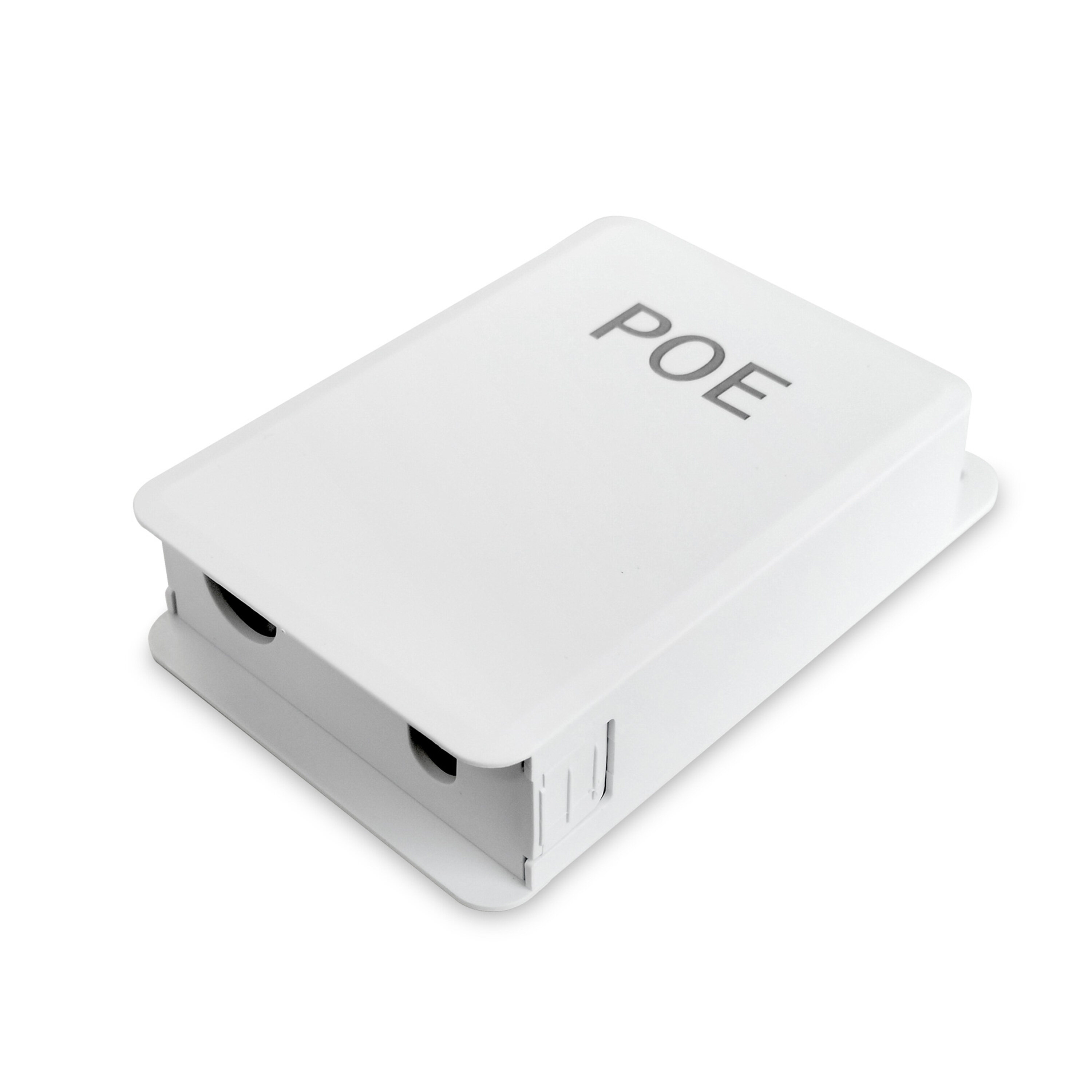

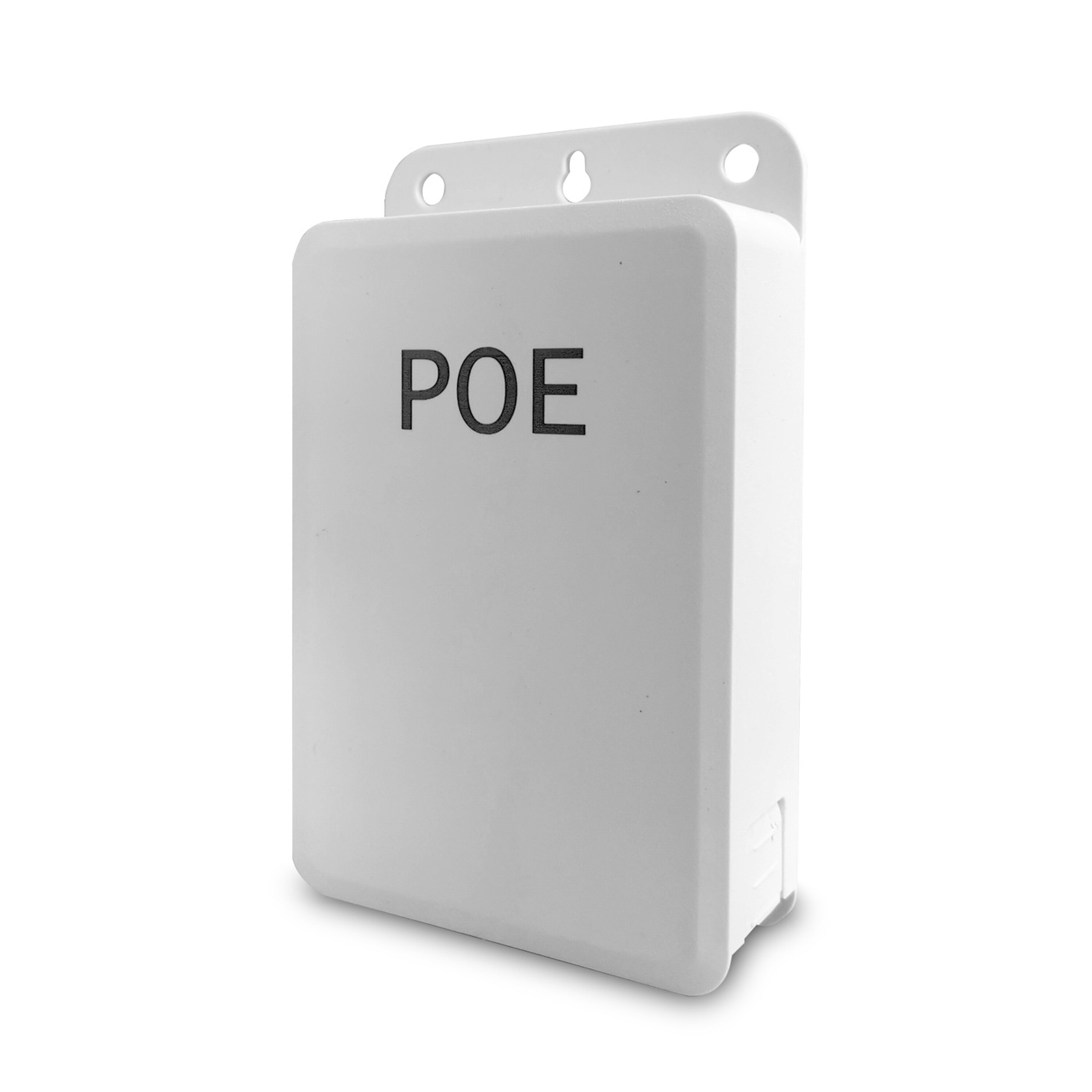

PS2
Out door POE Splitter
- Power & Data: It splits your standard 802.3af/at PoE power input in to 12V 1.2A (14W Max) DC power supply and 10/100 Mbps data onto the RJ45 output. Supports POE IEEE 802.3af/at compliant Powered Device (PD).
- High Performance: POE splitter is made of durable materials to maintain your power supply and data transmition. It is ideal for devices that don't support PoE in a PoE environment.
- Multiple Protection: Power over Ethernet IEEE 802. 3af/at compliant, compatible with DC voltage 44-57V standard POE switches, overvoltage protection, short-circuit protection and overcurrent protection, it is more safe.
- Broad Application: Eliminates the need for a power supply or for a camera to be located near a power outlet. Available with IP camera, IP phone, wireless AP and other 12V Non-POE devices for home, school, office, park, factory, mall, warehouse, etc.
- Outdoor waterproof: Outdoor design with plastic cover, waterproof IP65.
Specification
Hardware
| Power supply pin | 1,2/ 3,6);(4,5/7,8) |

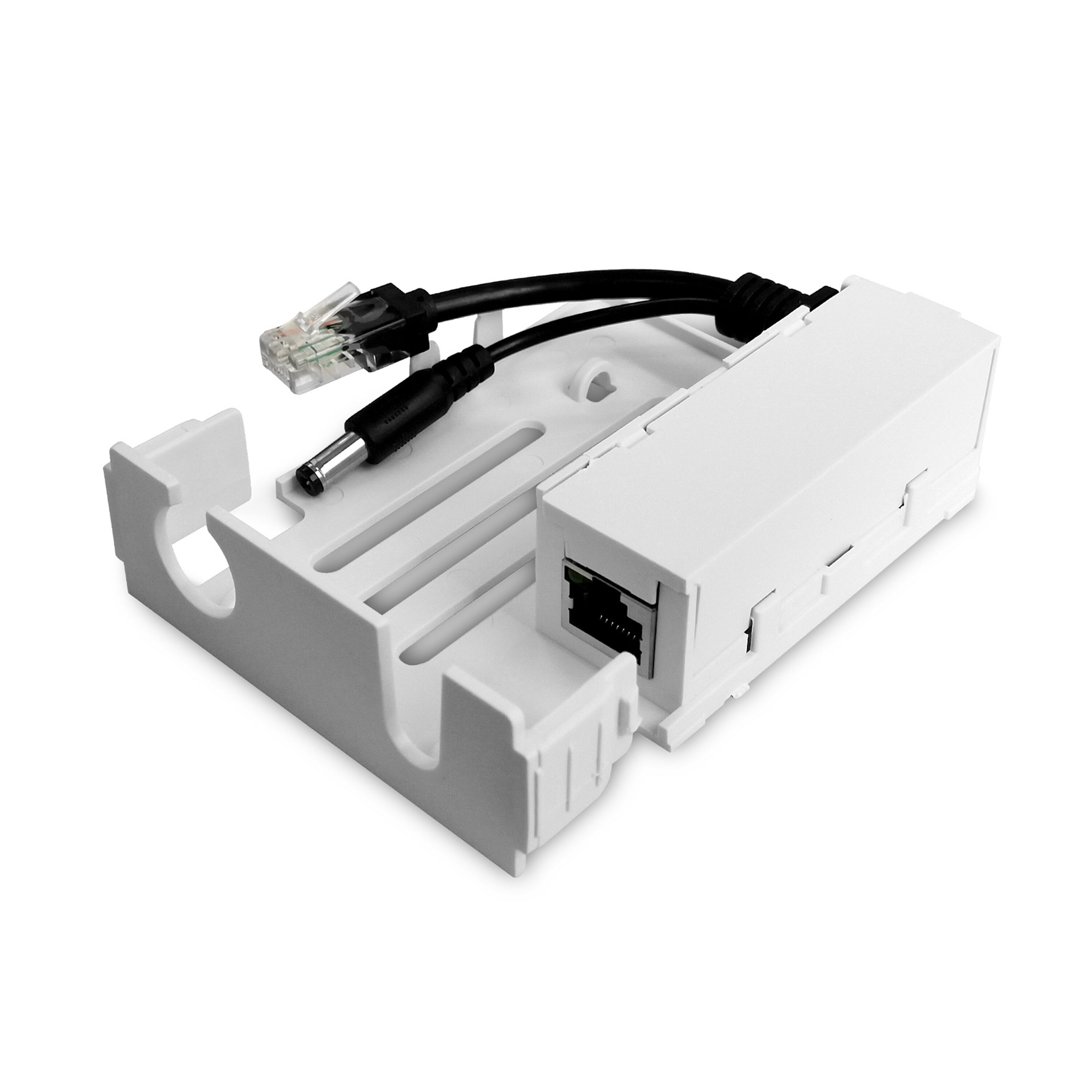

| Connector | 1*10/100Mbps POE RJ45 Input Port 1*10/100M male output port 1*(5.5*2.1mm) DC output port |
| Network Medium | Cat 5e or better UTP |
| Standard | IEEE 802.3 i 10 BASE-T IEEE 802.3 u 100 BASE-TX IEEE 802.3 x Flow Control IEEE 802.3af Power over Ethernet |
| Rate | 10/100Mbps |
| Transmission Method | Store and Forward |
| LED Status | POE power input indicator light |
| Environment |
Operation Temperature：0℃～40℃ Storage Temperature：-40℃～70℃ Operation Humidity：10%～90% RH Non-condensing Storage Humidity：5%～90% RH Non-condensing |
| Physical dimensions | 84mm*150mm*42mm(W x D x H) |
| Package | 1 * PS2 |
