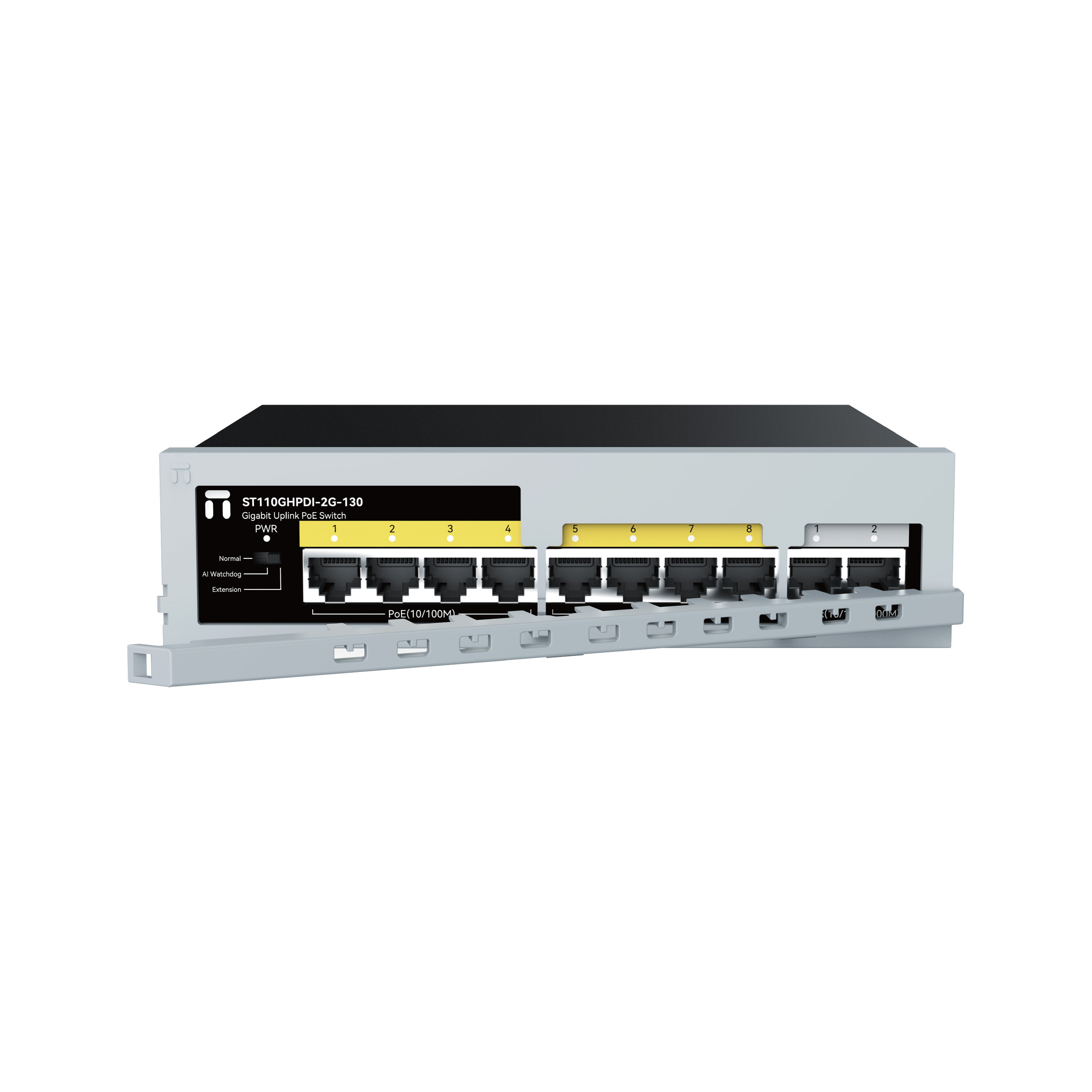

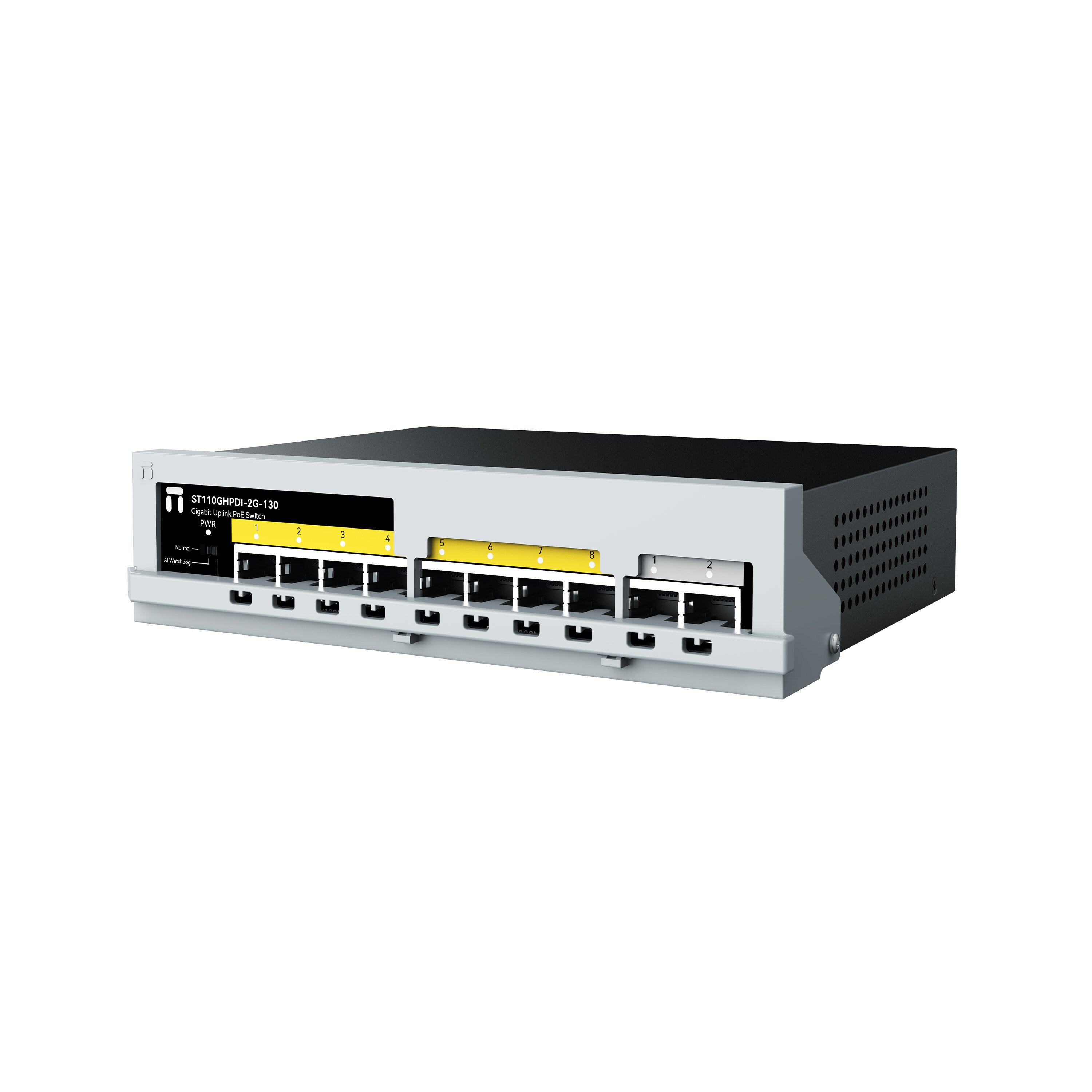

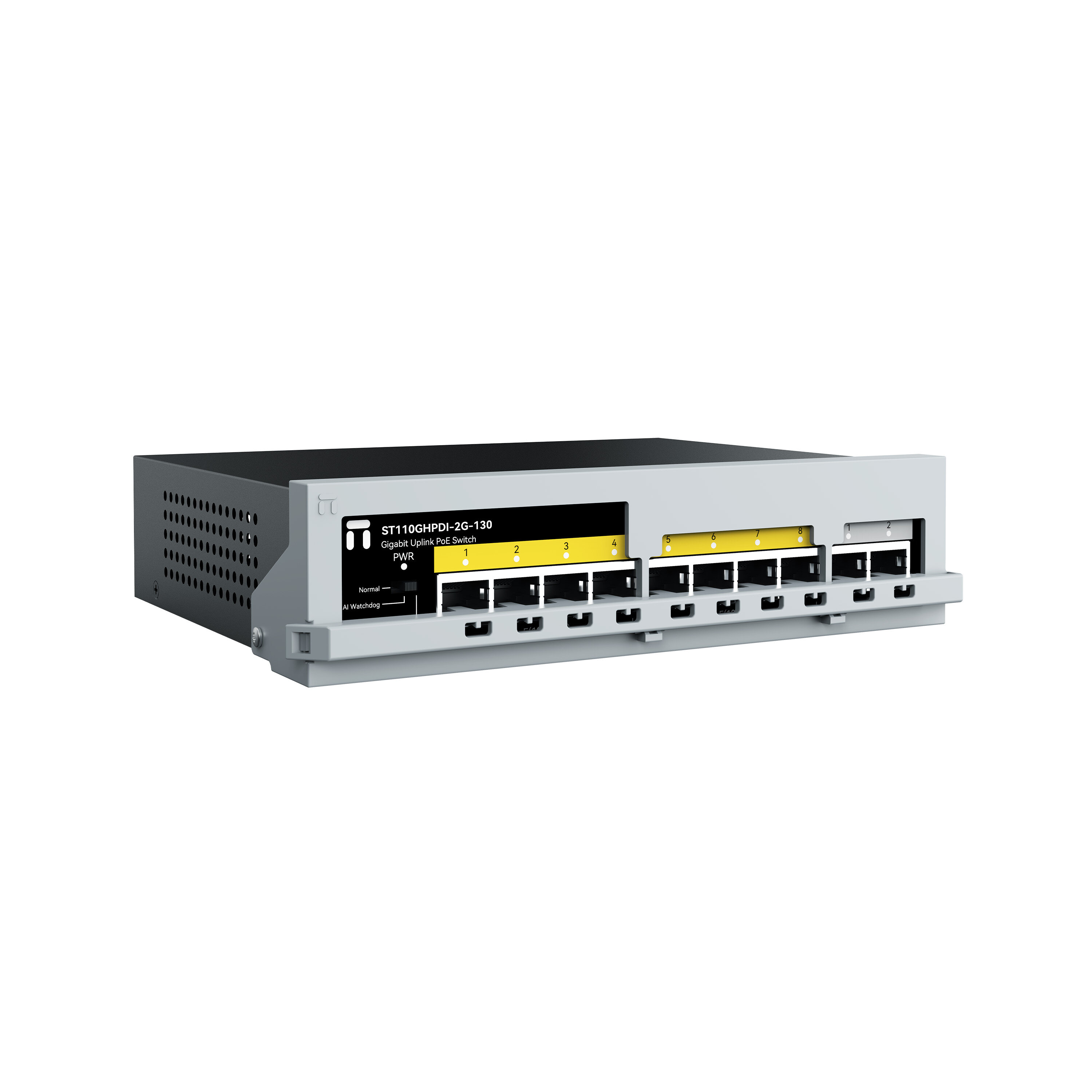

ST110GHPDI-2G-130
8FE PoE+2GE Uplink PoE Switch
- Attached safety lock, more stable.
- 8* 10/100M PoE ports+2* 10/100/1000M uplink ports.
- Internal 130W power supply with up to 30W PoE output per port.

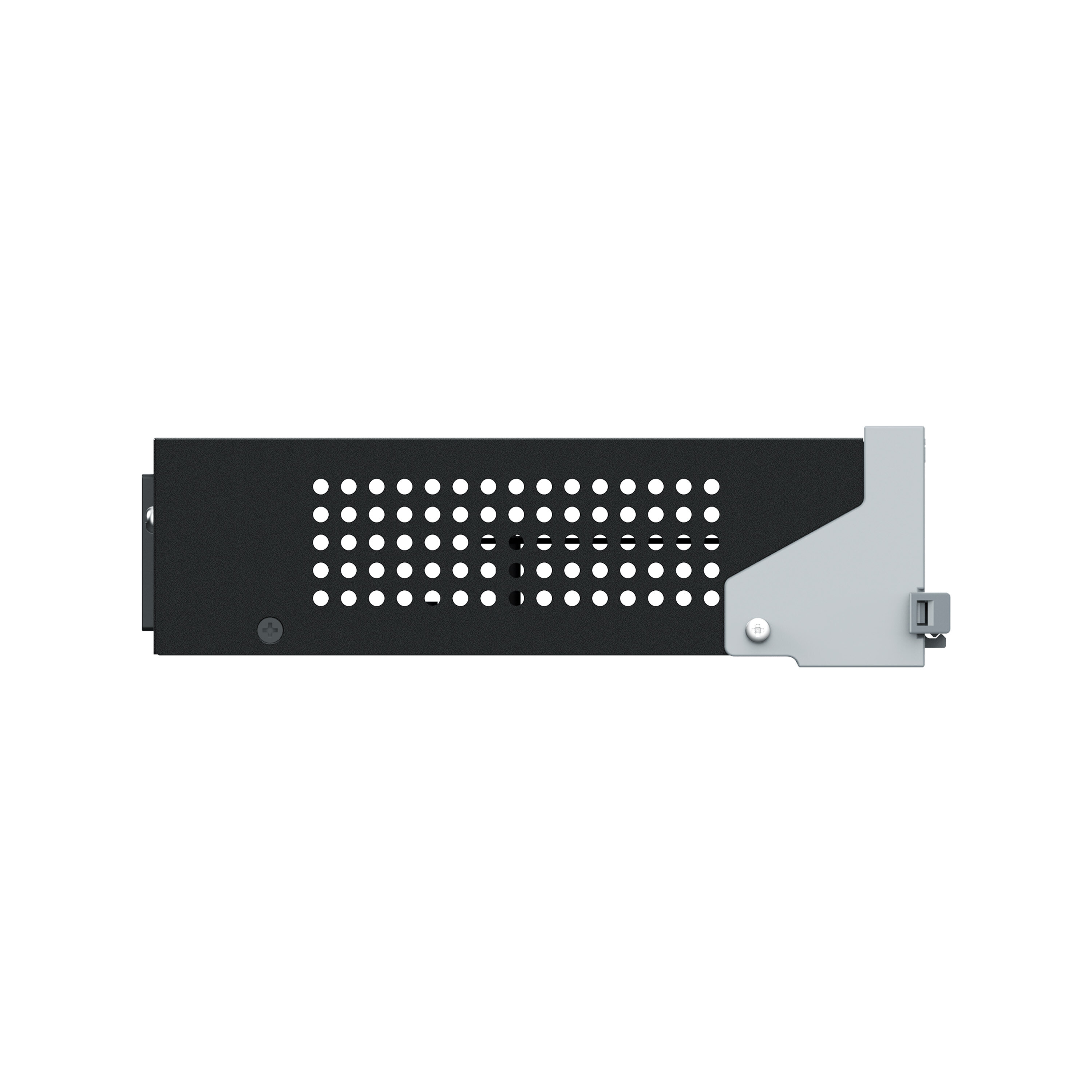

- Durable steel housing for better heat dissipation.
- Support IEEE 802.3af/at standards, compatible with powered devices (PD) that meet IEEE 802.3af/at.
- All ports support auto MDI/MDI-X function.
- Equipped with a convenient DIP switch that can be easily switched between Normal mode, Extension mode, and AI Watchdog mode.
8FE PoE+2GE Uplink PoE Switch
8FE PoE + 2GE Uplink
ST110GHPDI-2G-130
ST110GHPDI-2G-130
Attached Safety Lock

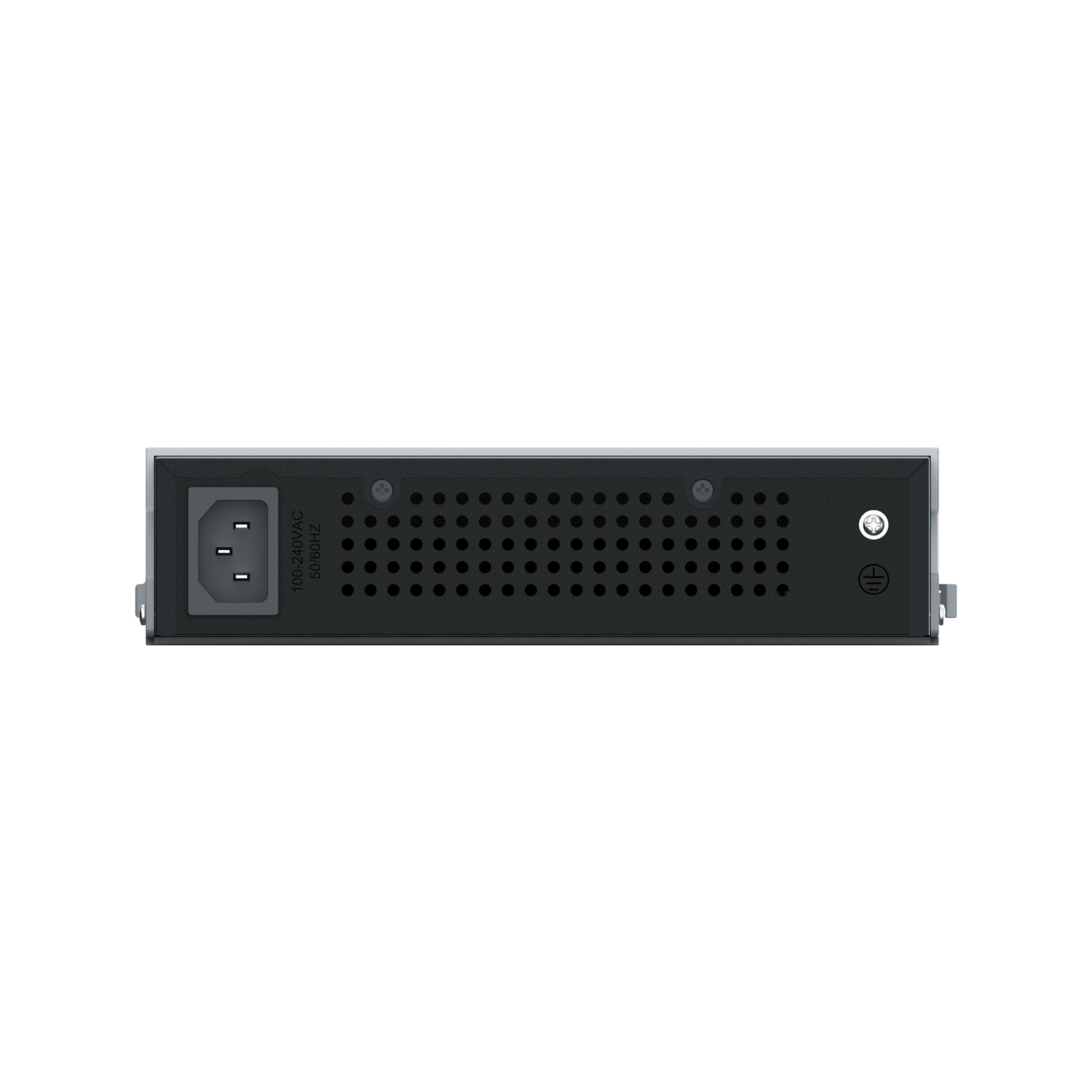

130W Power Supply Unit
Support 802.3AF/AT
Extend to 250M
Steel Housing
Surge Protection
AI Watchdog
Plug and Play

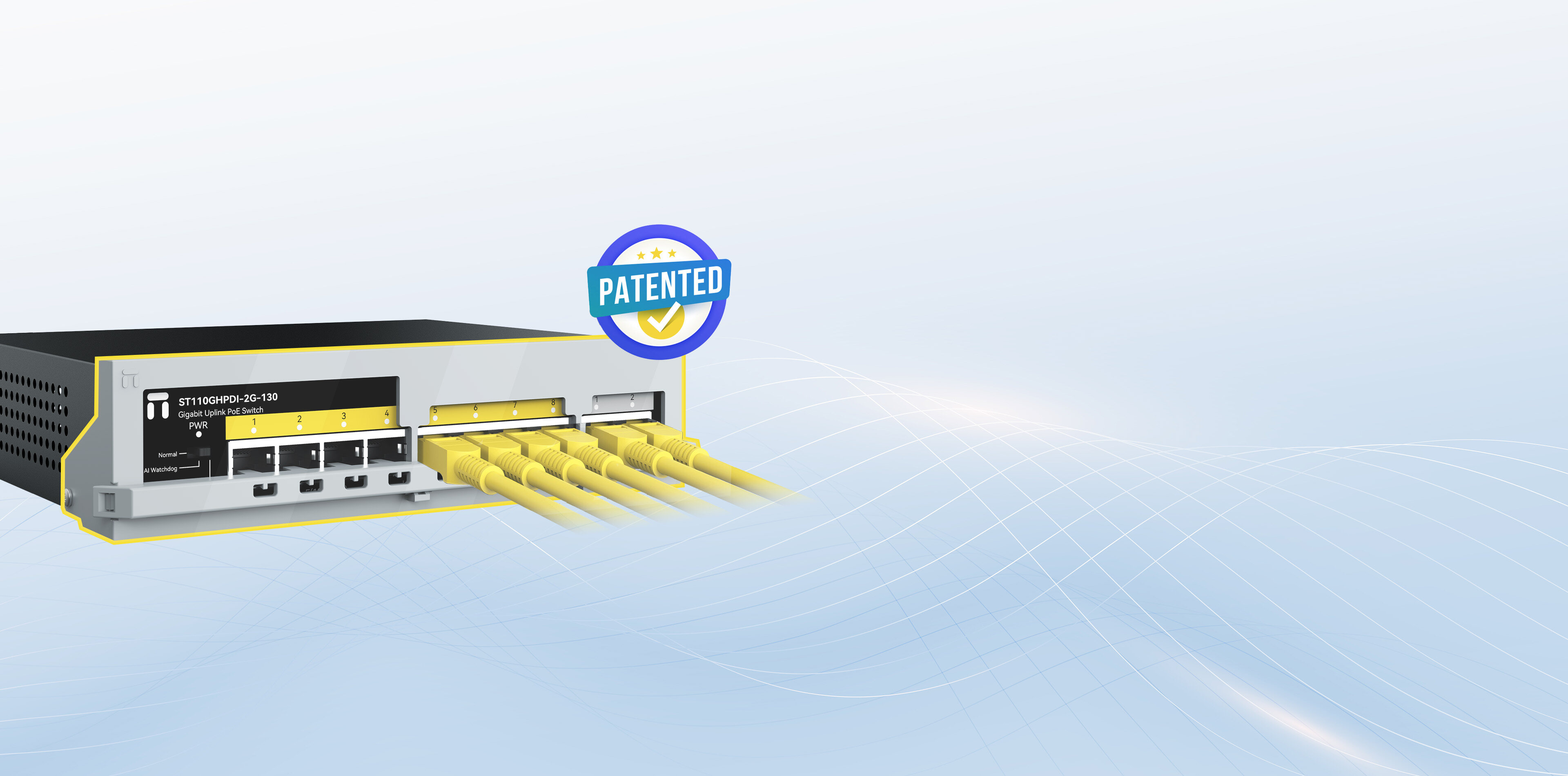

More Durable!

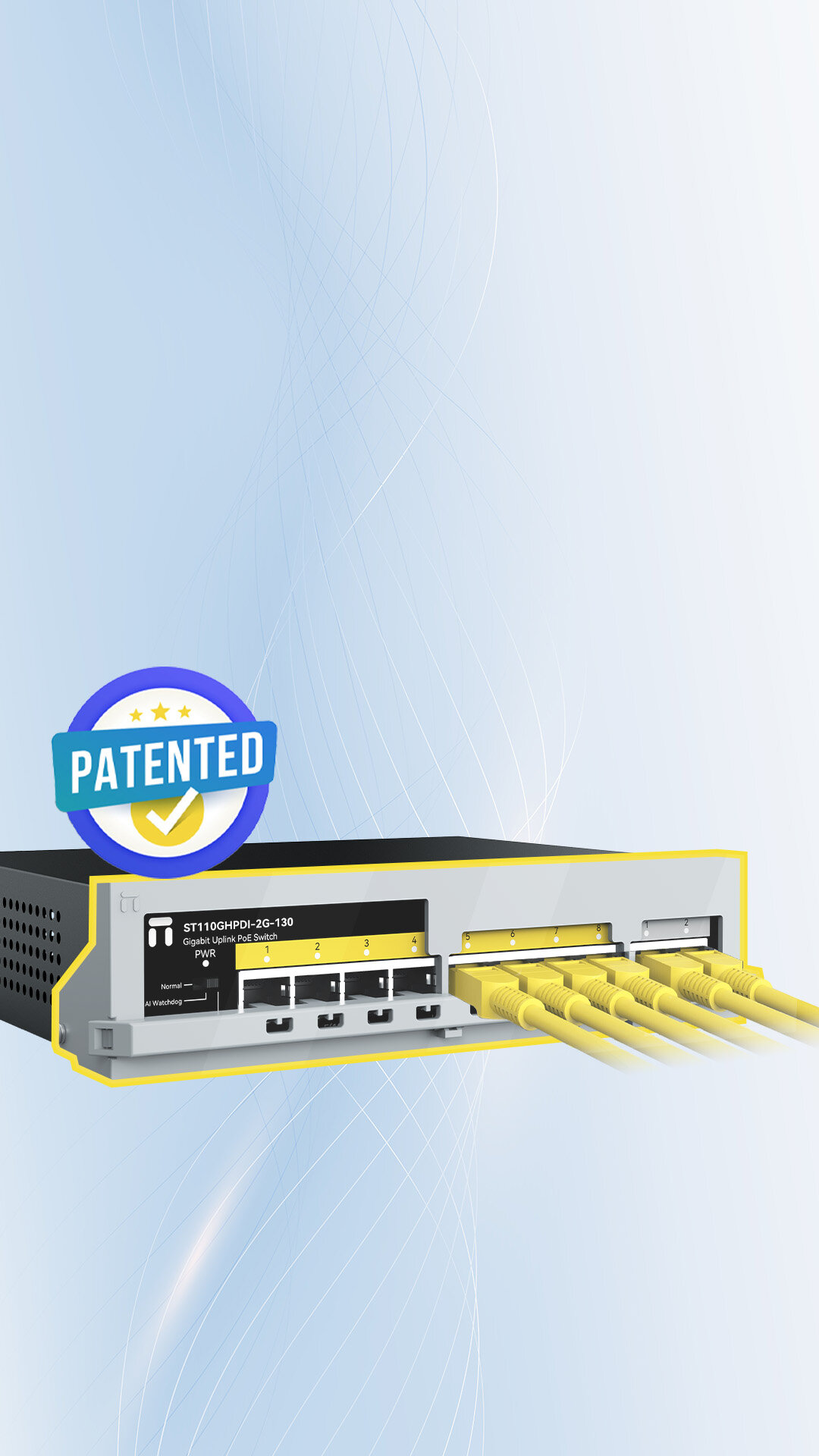

Attached safety lock design, no need to install, it will keep your network cable fixed stable with the switch.
*Attached safety lock with exclusive patent certification, 100% quality assured.
*Attached safety lock with exclusive patent certification, 100% quality assured.

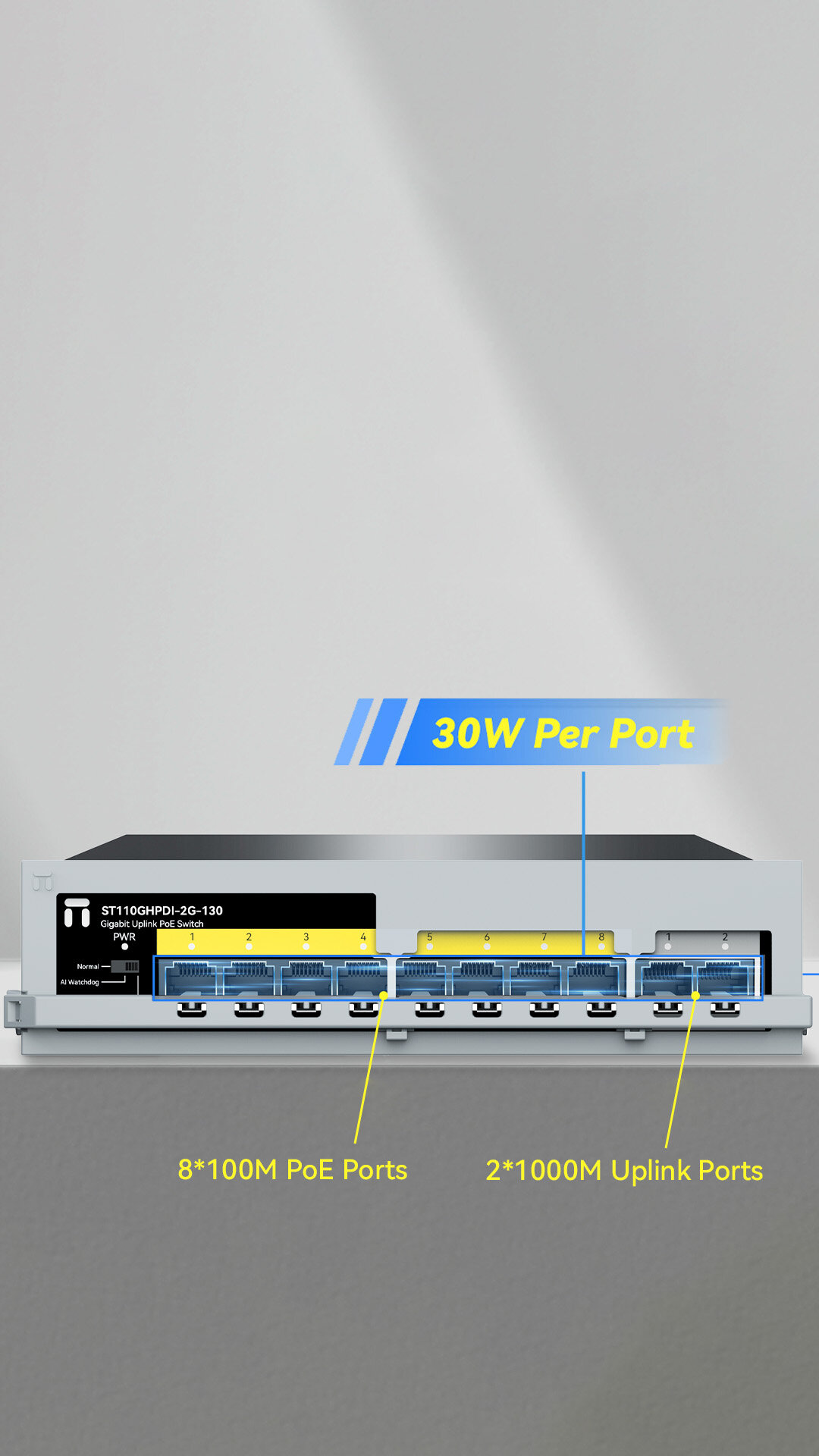

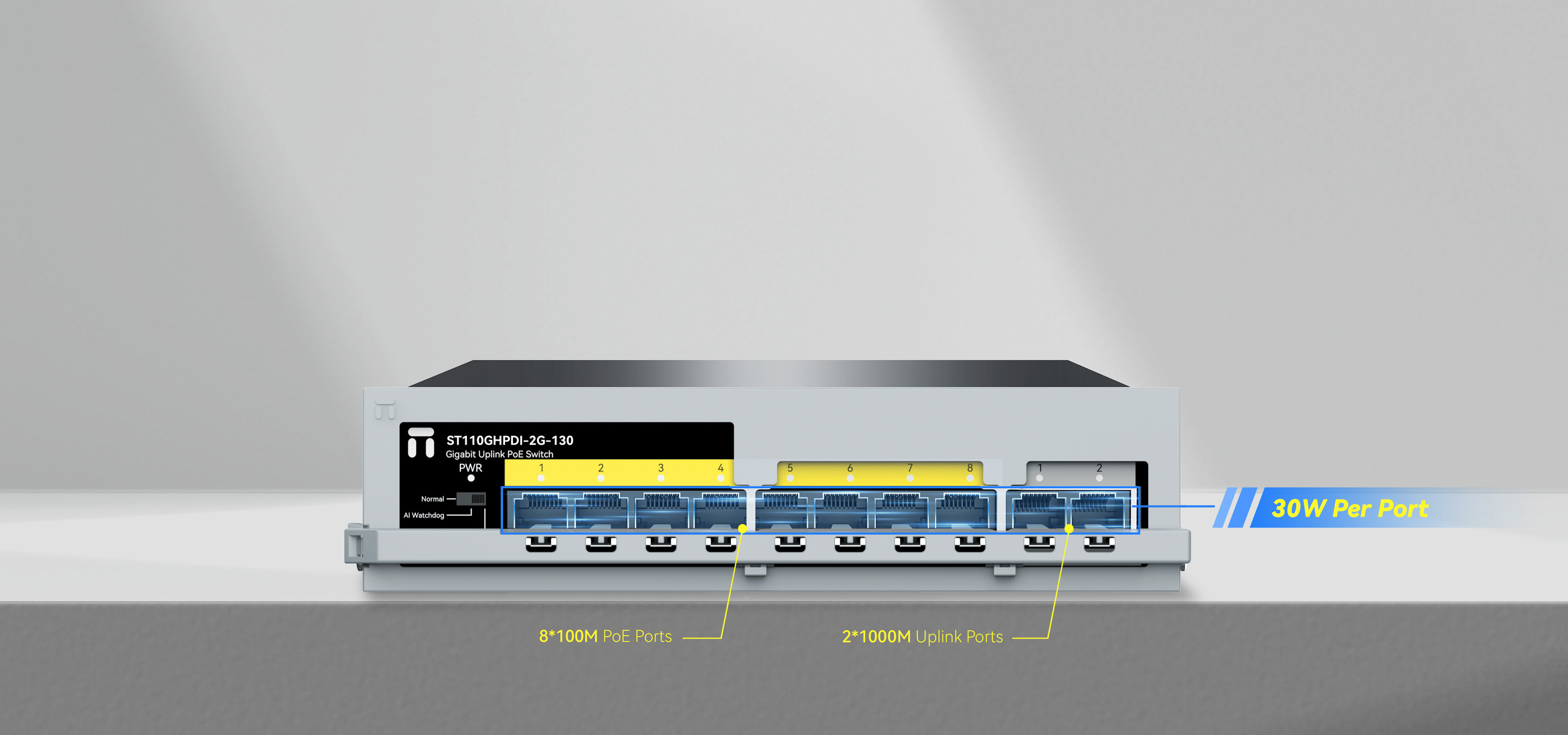

Standard PoE Power Supply
Up To 30W PoE Output Per Port
ST110GHPDI-2G-130 has a total power of 130W with 8*100M PoE ports and 2*1000M uplink ports.
It can support multiple IP cameras and other high-power devices running simultaneously, ensuring a stable and sufficient power supply.
It can support multiple IP cameras and other high-power devices running simultaneously, ensuring a stable and sufficient power supply.

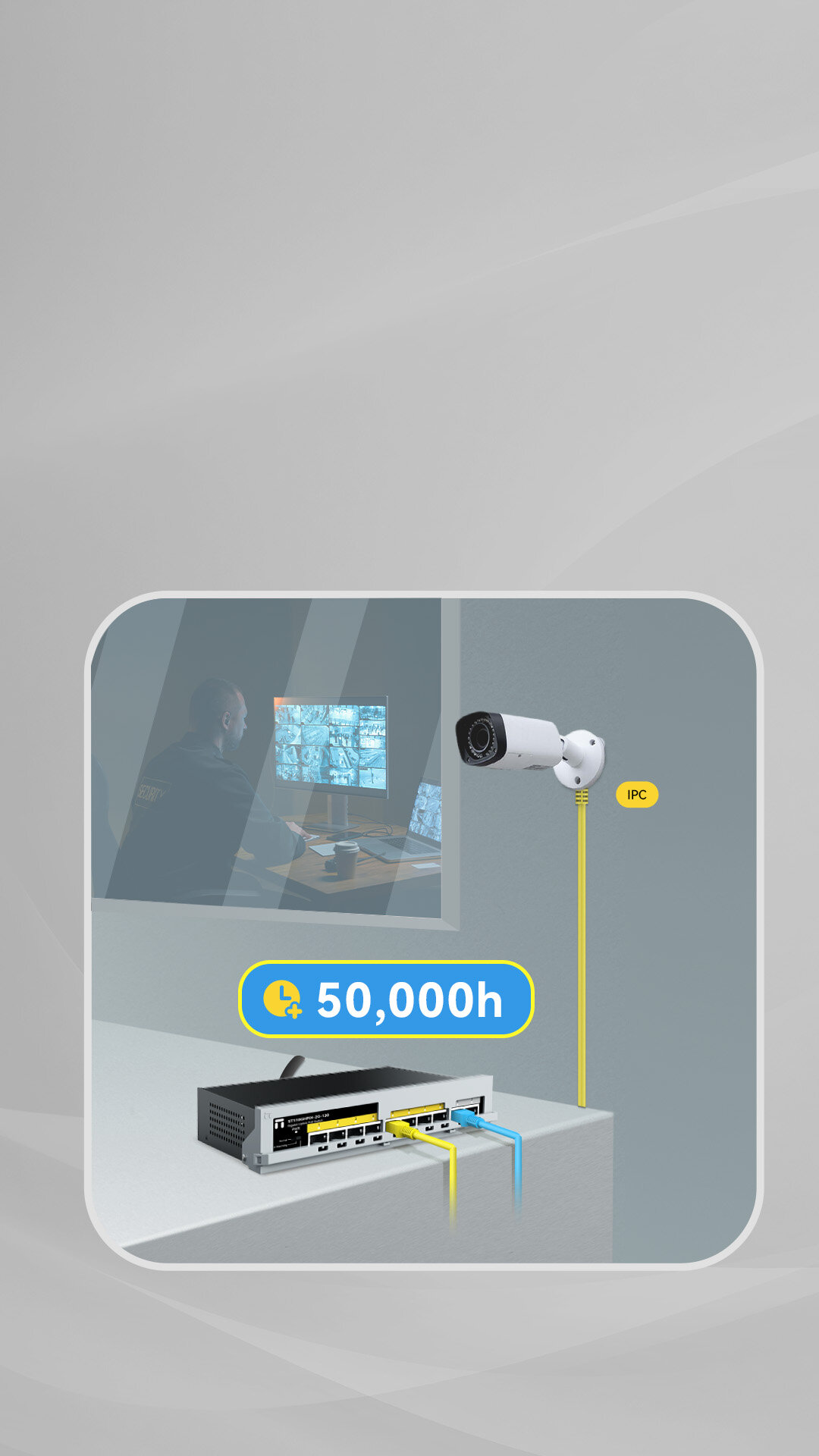

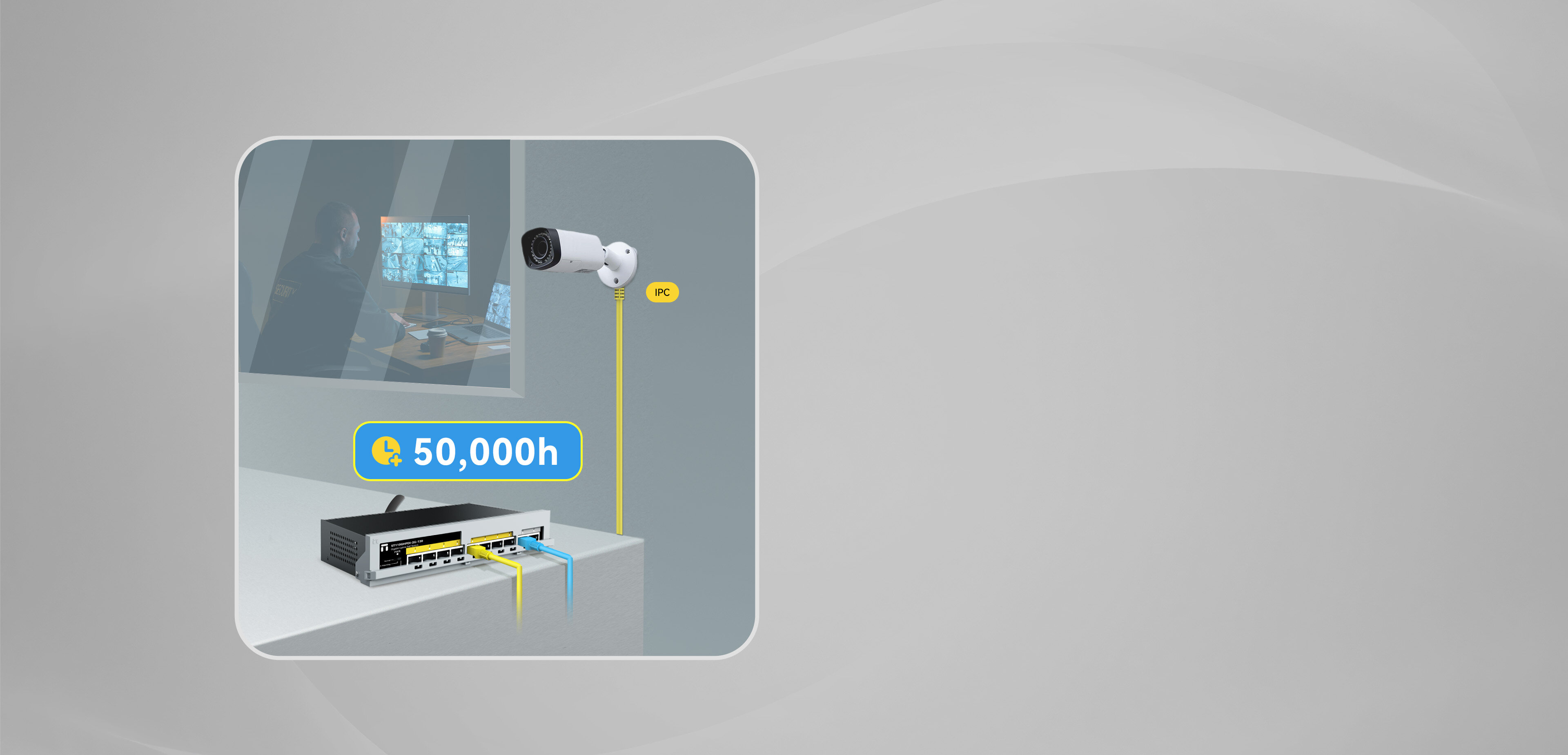

Reliable Operation for 50,000 Hours
ST110GHPDI-2G-130 delivers stable performance for 50,000 hours, ensuring long-lasting connectivity.
Operating smoothly in 0-40°C environments, it handles demanding conditions with ease.
Operating smoothly in 0-40°C environments, it handles demanding conditions with ease.

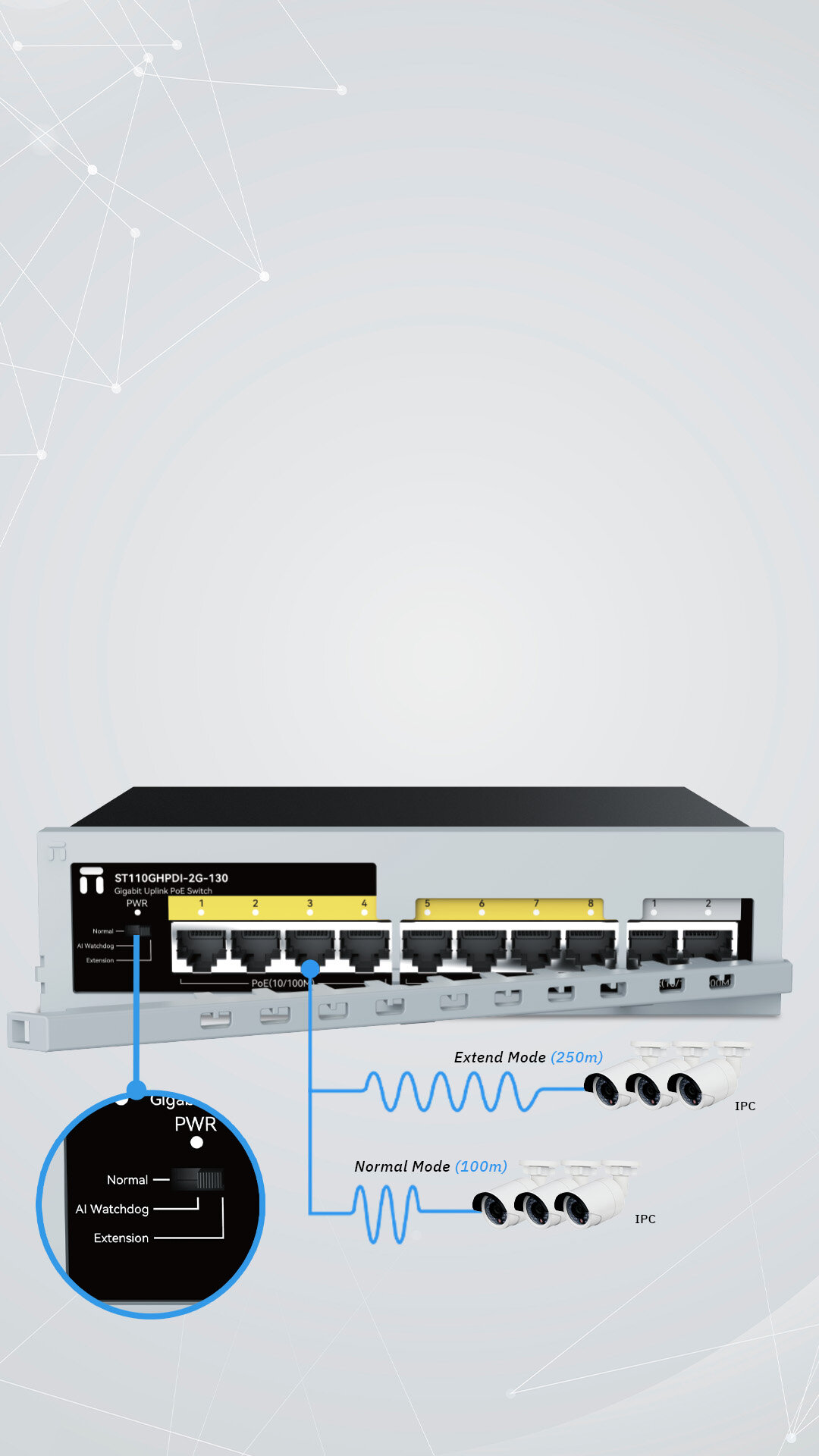

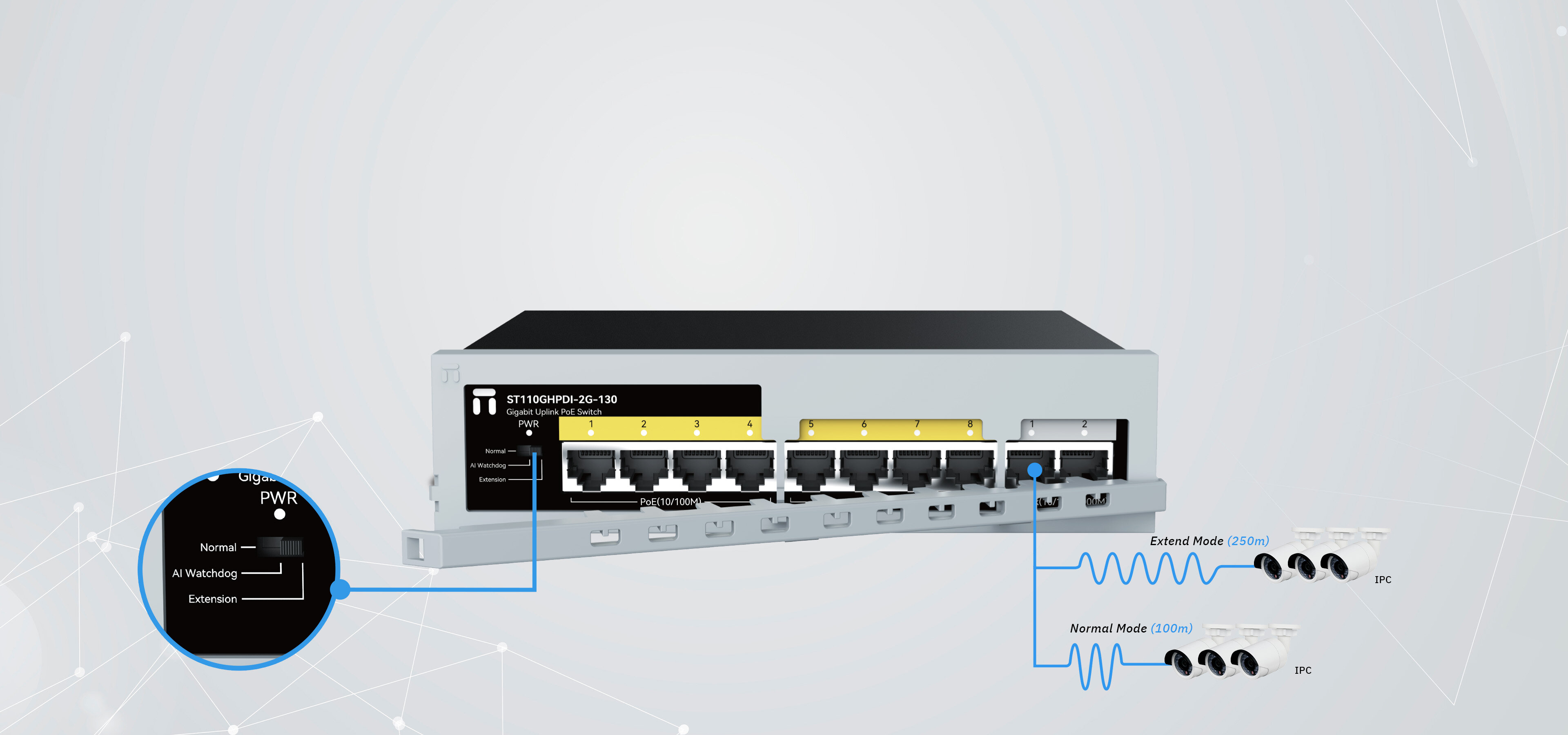

Extend to 250M
Unlocking More Possibilities
Equipped with a convenient DIP switch.
It can flexibly switch between Normal mode, Extension mode, and AI Watchdog mode to adapt to various network requirements.
It can flexibly switch between Normal mode, Extension mode, and AI Watchdog mode to adapt to various network requirements.

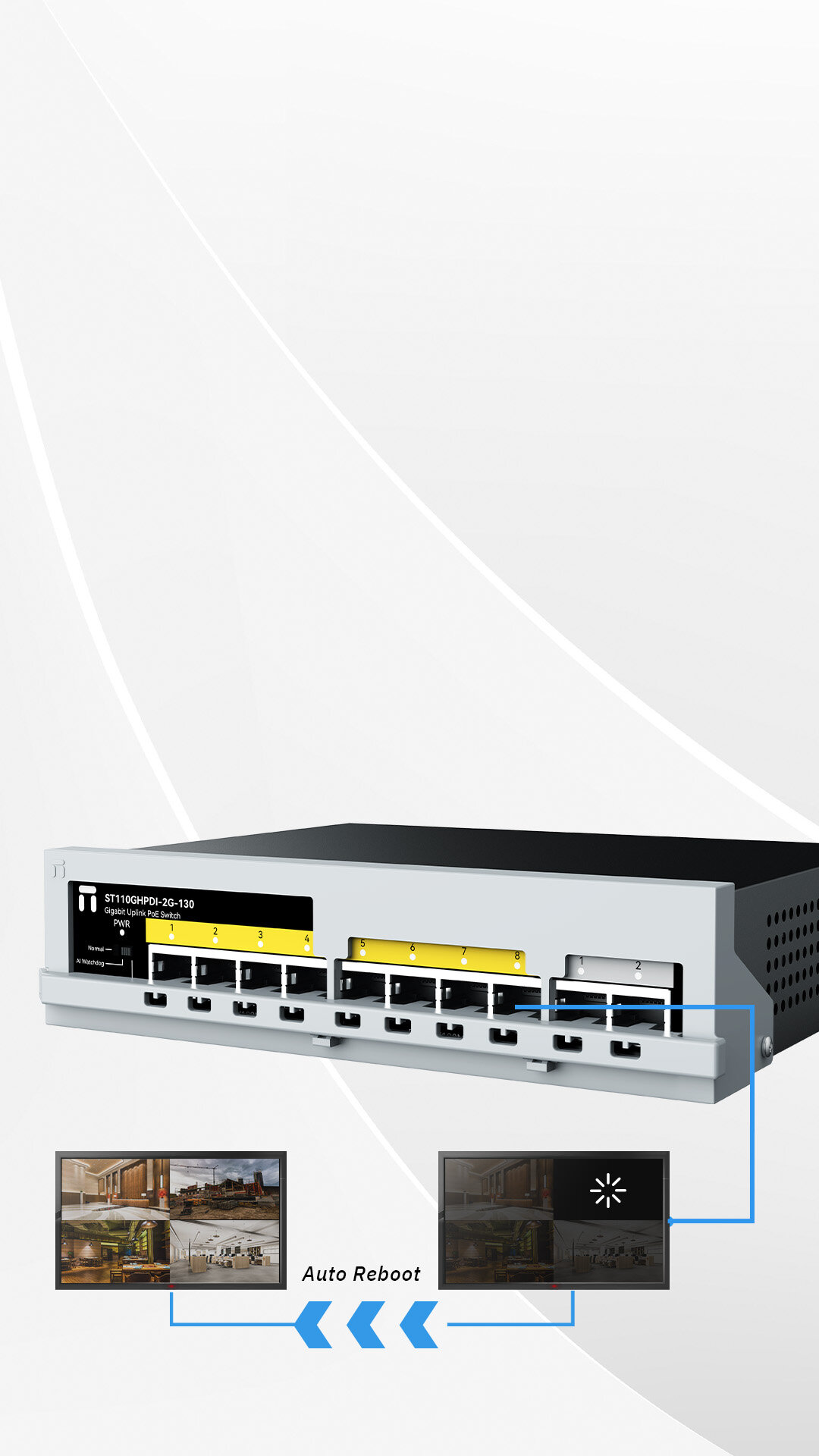

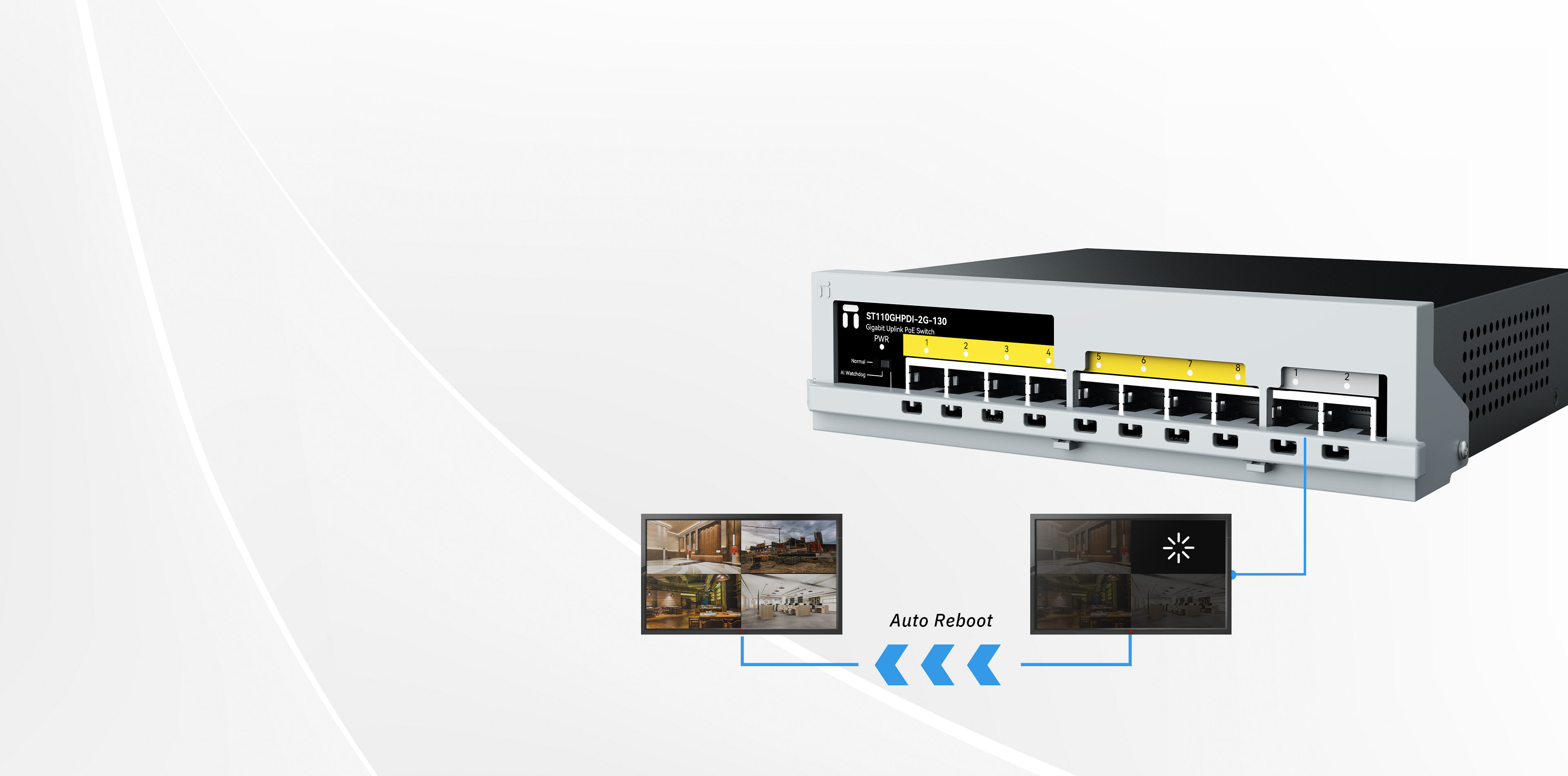

AI Watchdog for Reliable Networks
It ensures uninterrupted network stability by automatically detecting and recovering from system failures or connectivity disruptions in real-time.

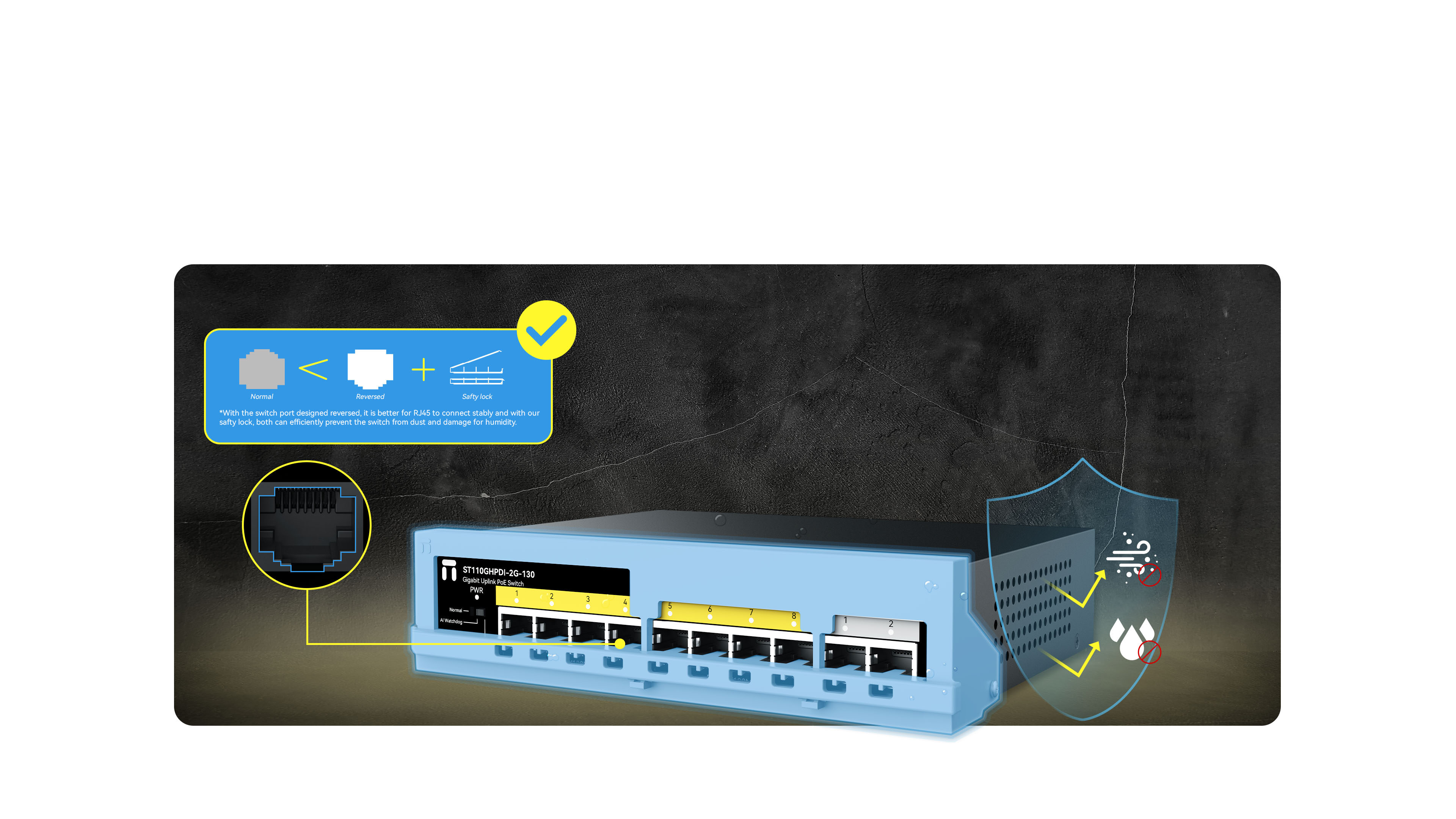

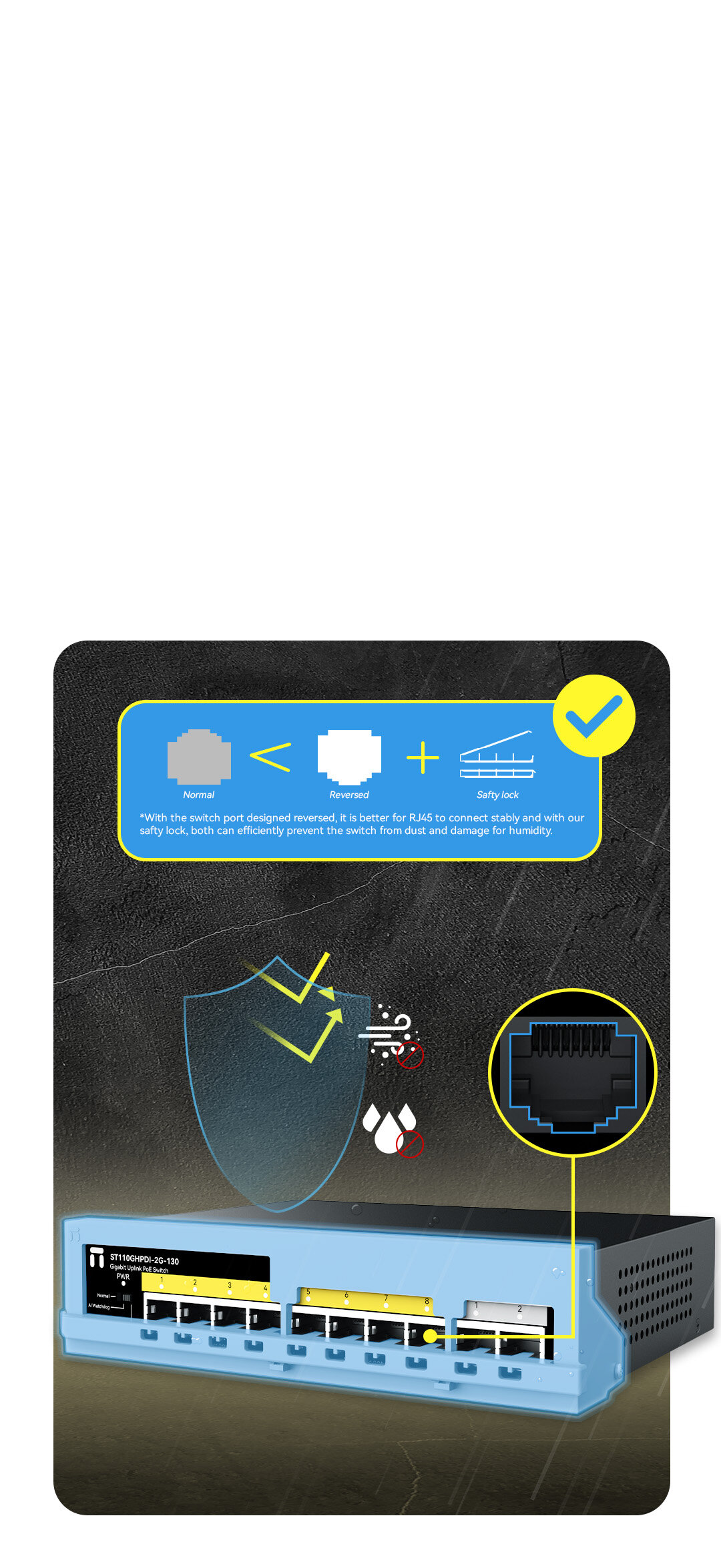

Ingenious Design Lowers Failure Rates
With the port designed upside down, it reduces the risk of damages from dust/humidity when connecting with cables. The attached safety lock also helps preventing dust from entering the switch, in order to avoid metal corrosion/board short circuit. Meanwhile in thunderstorm/humid environments, it helps to reduce product failure rates.
Multiple Protections
Ensure Safety without Worries
Built-in 4KV common-mode and differential-mode surge protection module can effectively resist lightning strikes and surges.
At the same time, it has overcurrent, overload and short-circuit protection functions.
At the same time, it has overcurrent, overload and short-circuit protection functions.
Multiple Application Scenarios
Specification
LED Indicators
|
Power Indicator |
On |
The switch is powered on. |
|
|
Off |
The switch is powered off. |
|
POE / Uplink Indicator (Link/ACT) |
On |
The corresponding port is connected to a network device but no activity |
|
|
Flashing |
Data is transmitting through the corresponding port. |
|
|
Off |
No device is connected to the corresponding port. |
Hardware
|
Button |
1* Dip Switch |
|
Ports |
8*100Mbps POE ports 2*1000Mbps uplink ports |
|
Backplane Bandwidth |
5.6 Gbps |
|
MAC Address Table |
4K |
|
Maximum POE Output Power |
120W |
|
Network Media & Transmission Distance |
1000BASE-T: UTP category 5, 5e, 6 or above cable (≤ 100m) 100Base-TX: UTP category 5, 5e, 6 Category 5 (Cat5) or higher UTP/STP cables (≤100m) 10Base-TX: UTP category Category 6 (Cat6) or higher UTP/STP cables (≤250m) Tips：The actual transmission distance is related to the connected terminal/network cable type and condition; it is recommended to use Category 6 cable preferentially. |
Software
|
Basic Functions |
|
|
Ethernet Protocols and Standards |
|
|
Data Transfer Rate |
POE port :10/100M full-duplex/ half-duplex modes Uplink port : 10/100M full-duplex/ half-duplex modes 1000M full-duplex mode |
Environmental Requirements
|
Temperature |
|
|
Humidity |
|
|
Altitude |
|
Lightning Surge Protection
|
Differential Mode |
2KV |
|
Common Mode |
4KV |

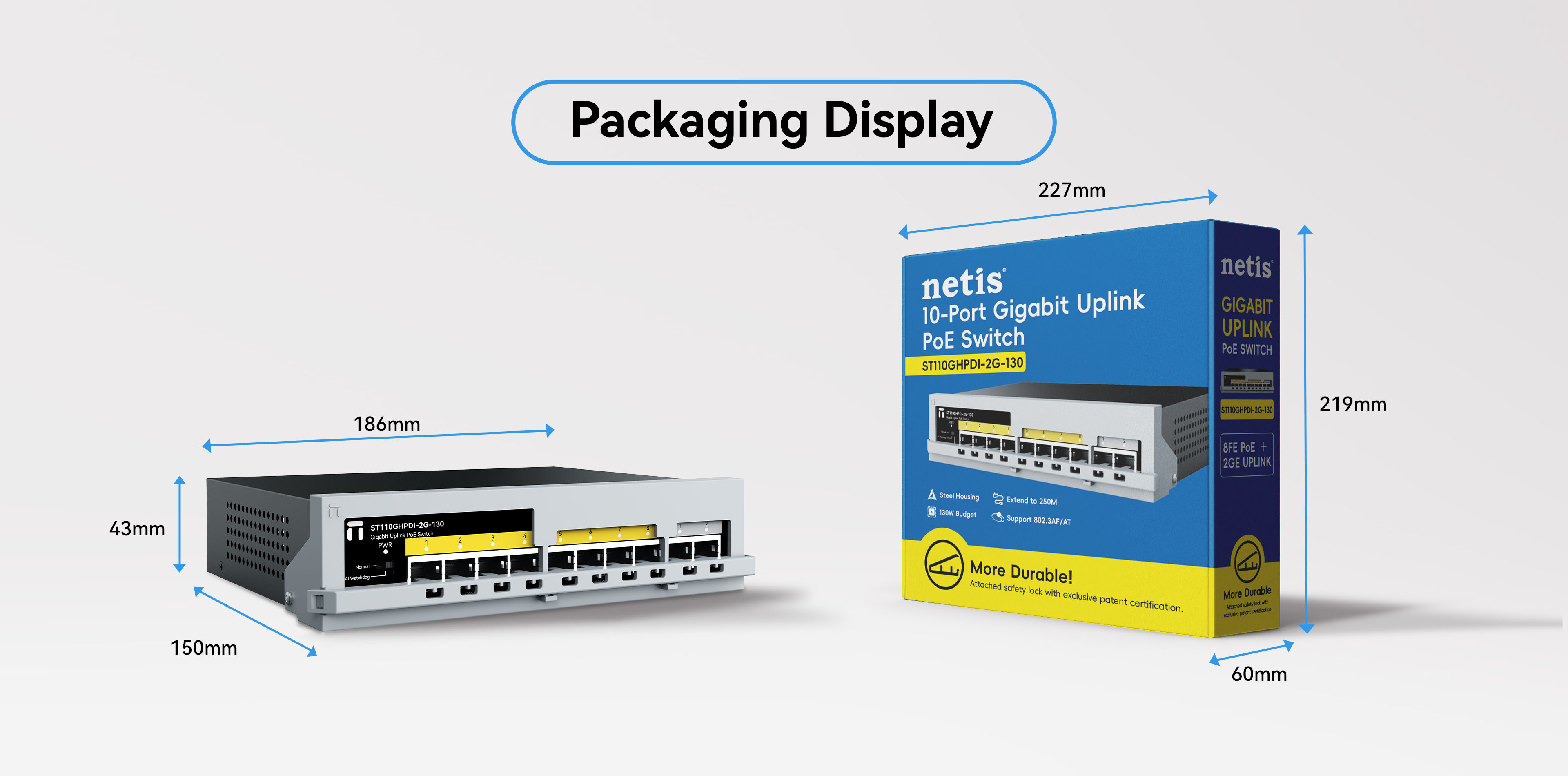

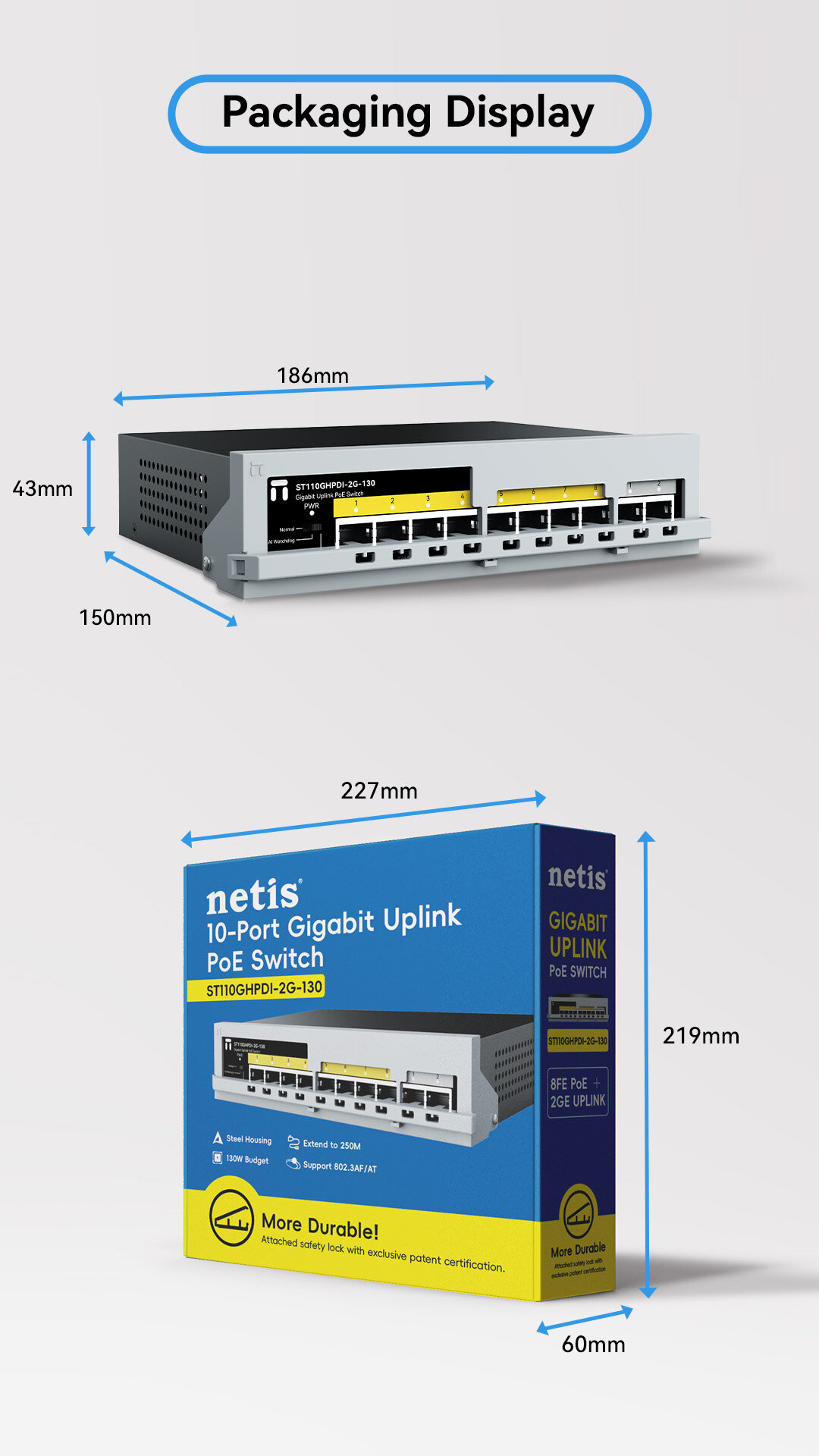

Physical Dimensions
|
Dimensions (W x D x H) |
186mm*150mm*43mm(7.32*5.91*1.69 in) |
Others
|
Stacking Limit |
Maximum of 4 layers when fully packaged |
|
Humidity |
5%～90% RH(non-condensing) |
|
Storage Temperature |
-40℃ ~ 70℃(-40°F ~158°F),with the most suitable storage condition being room temperature considering humidity |
|
Storage Precautions |
Store in a clean,ventilated environment free from corrosive gases,flammable,explosive,and other hazardous chemicals.Keep away from heat sources and sources of strong mechanical vibration |
|
Storage Period |
Under the above conditions,the product can be stored for one year.It is recommended to re-inspect and test the product after two years before use |
