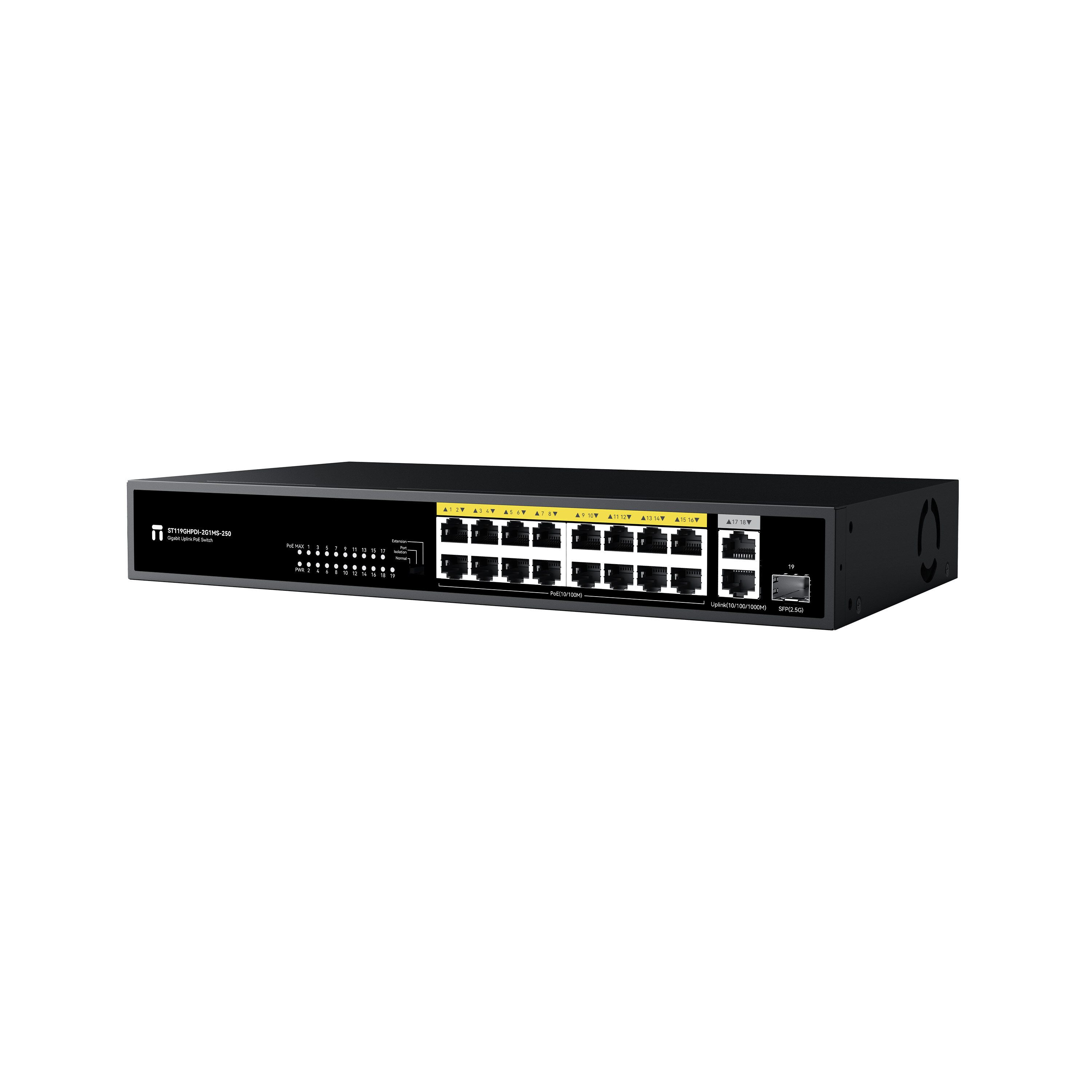

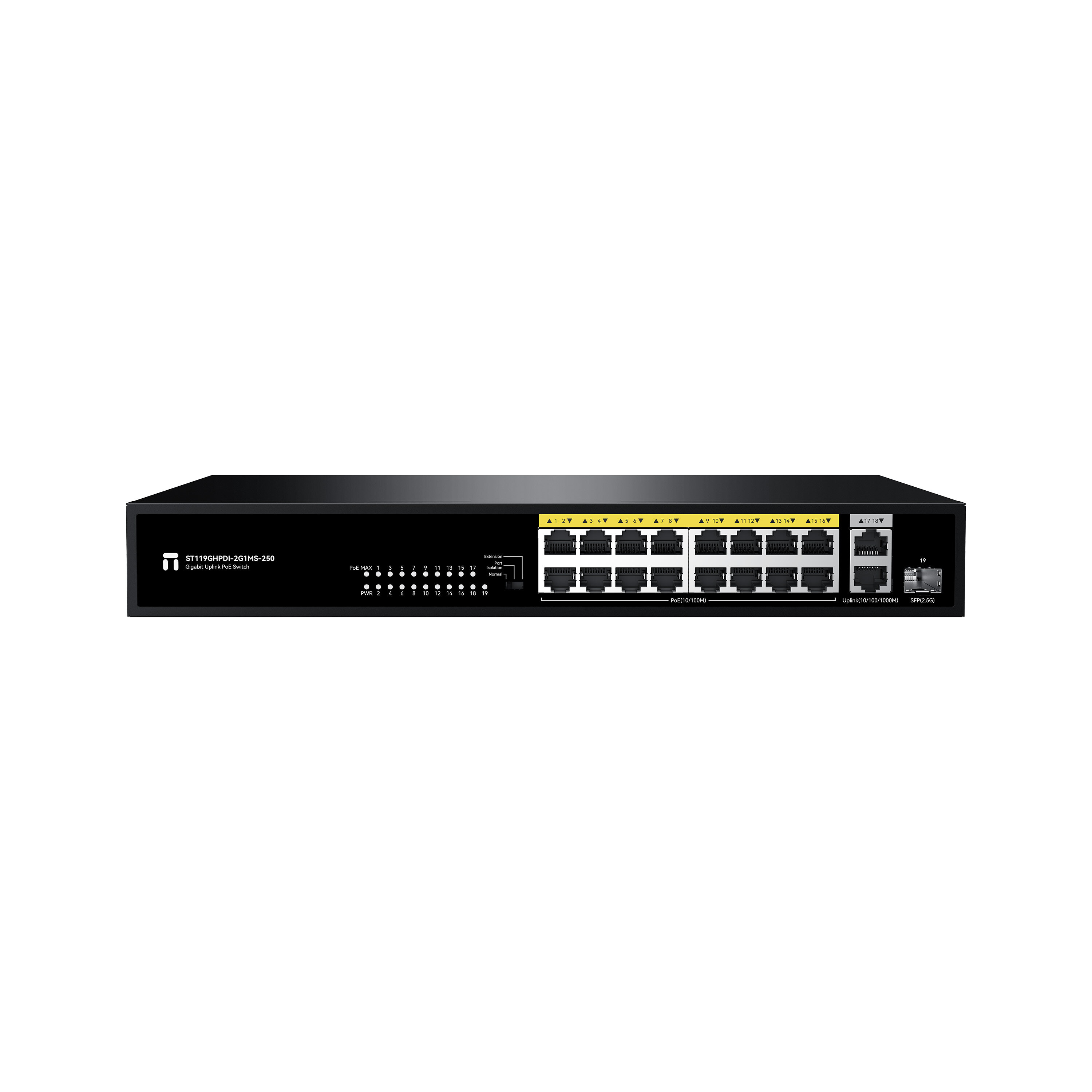

ST119GHPDI-2G1MS-250
16FE PoE+2GE Uplink + 2.5G SFP PoE Switch

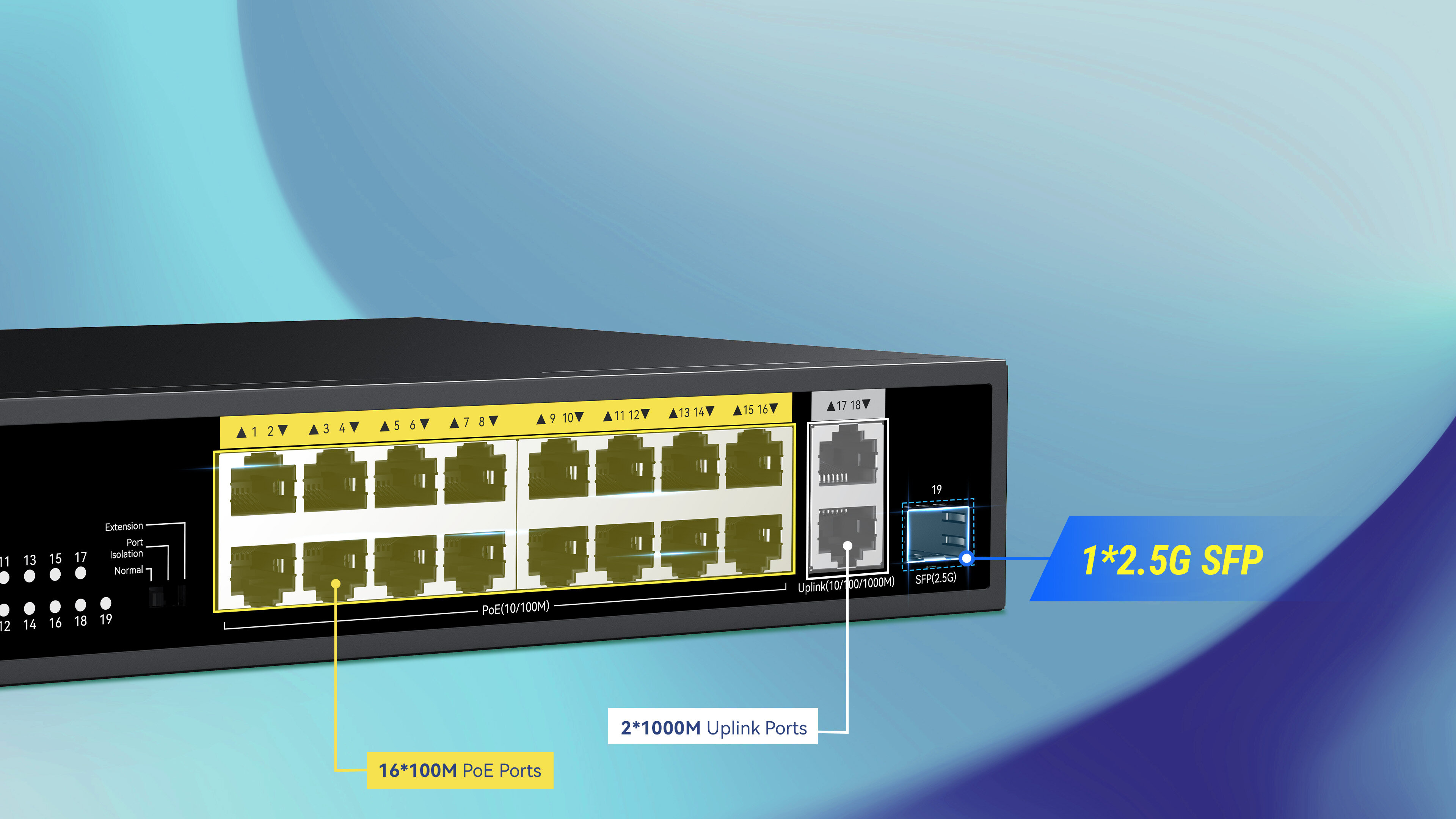

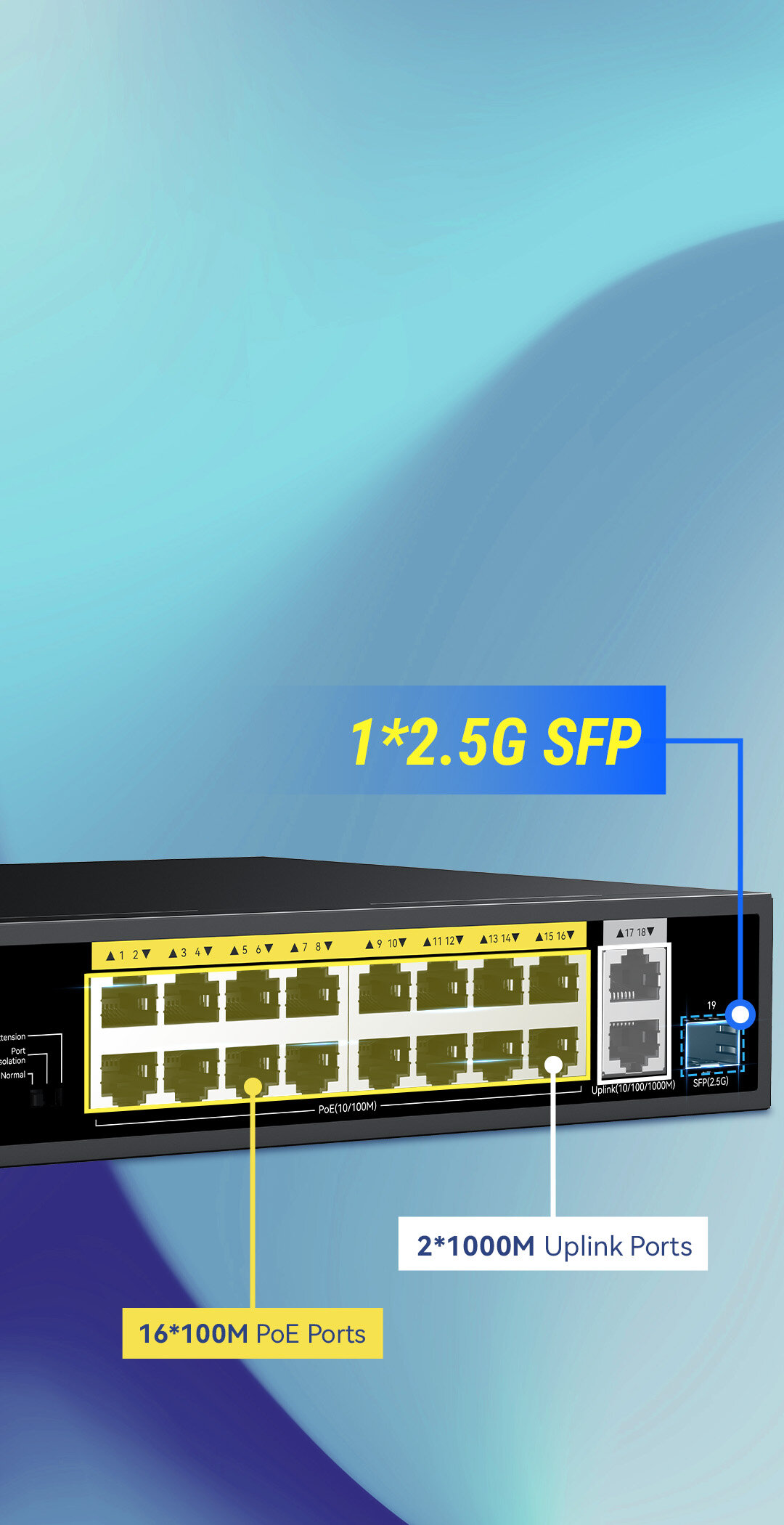

- 16* 10/100M PoE ports+2* 10/100/1000M uplink ports+1* 2.5G SFP port.
- Internal 250W power supply with up to 30W PoE output per port.
- Durable steel housing for better heat dissipation.
- Support IEEE 802.3af/at standards, compatible with powered devices (PD) that meet IEEE 802.3af/at.
- All ports support auto MDI/MDI-X function.
- Equipped with a convenient DIP switch that can be easily switched between Normal mode, Port Isolation mode, and Extension mode.
16FE PoE + 2GE Uplink +2.5G SFP PoE Switch
16FE PoE + 2GE Uplink +2.5G SFP
ST119GHPDI-2G1MS-250
ST119GHPDI-2G1MS-250
Port Isolation
250W Power Supply Unit
Support 802.3AF/AT
Extend to 250M
Steel Housing
Surge Protection
AI Watchdog
Plug and Play
Standard PoE Power Supply
Up To 30W PoE Output Per Port
ST119GHPDI-2G1MS-250 has a total power of 250W with 16*100M PoE ports, 2*1000M uplink ports and 1*2.5G SFP slot.
It can support multiple IP cameras and other high-power devices running simultaneously, ensuring a stable and sufficient power supply.
It can support multiple IP cameras and other high-power devices running simultaneously, ensuring a stable and sufficient power supply.

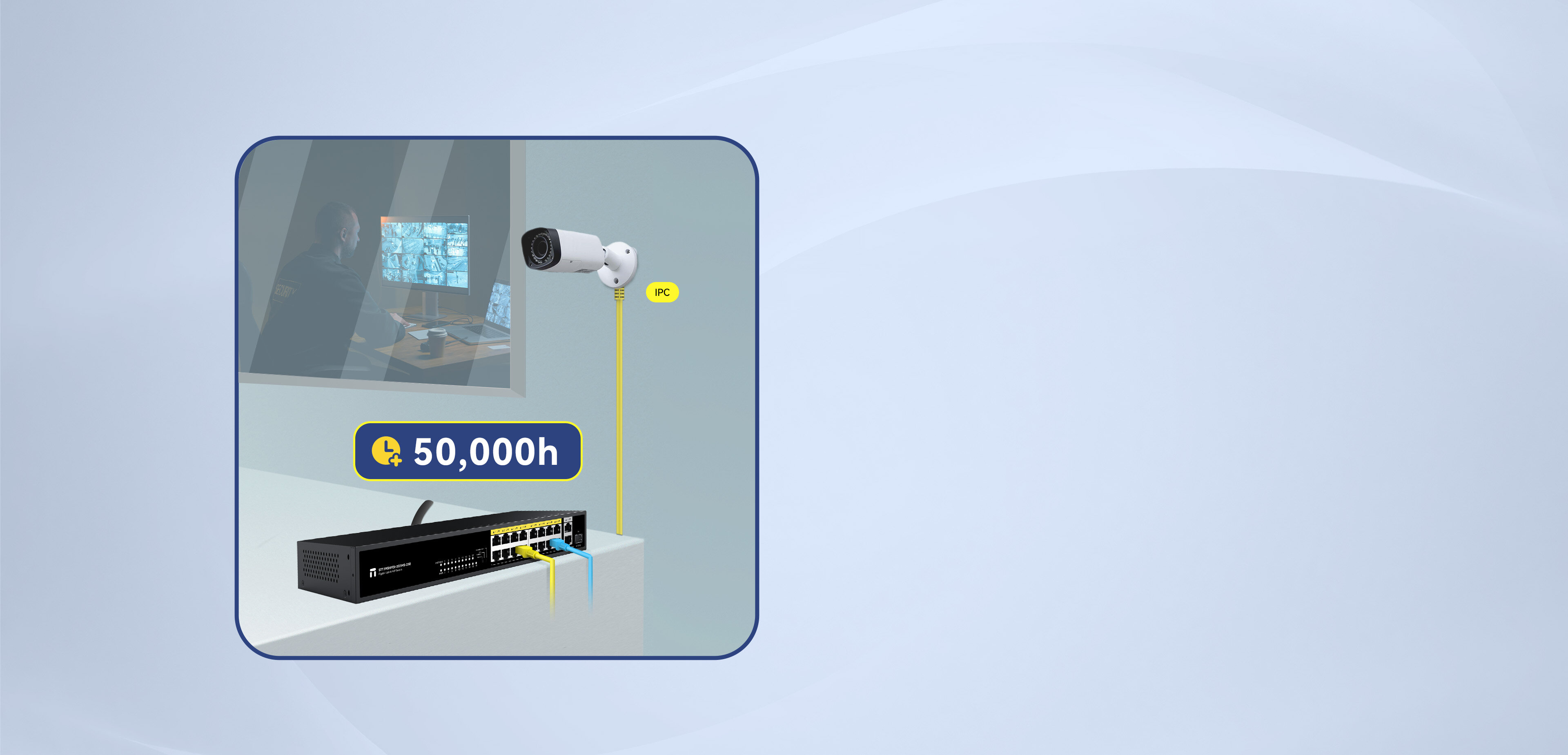

Reliable Operation for 50,000 Hours
ST119GHPDI-2G1MS-250 delivers stable performance for 50,000 hours, ensuring long-lasting connectivity.
Operating smoothly in 0-40°C environments, it handles demanding conditions with ease.
Operating smoothly in 0-40°C environments, it handles demanding conditions with ease.

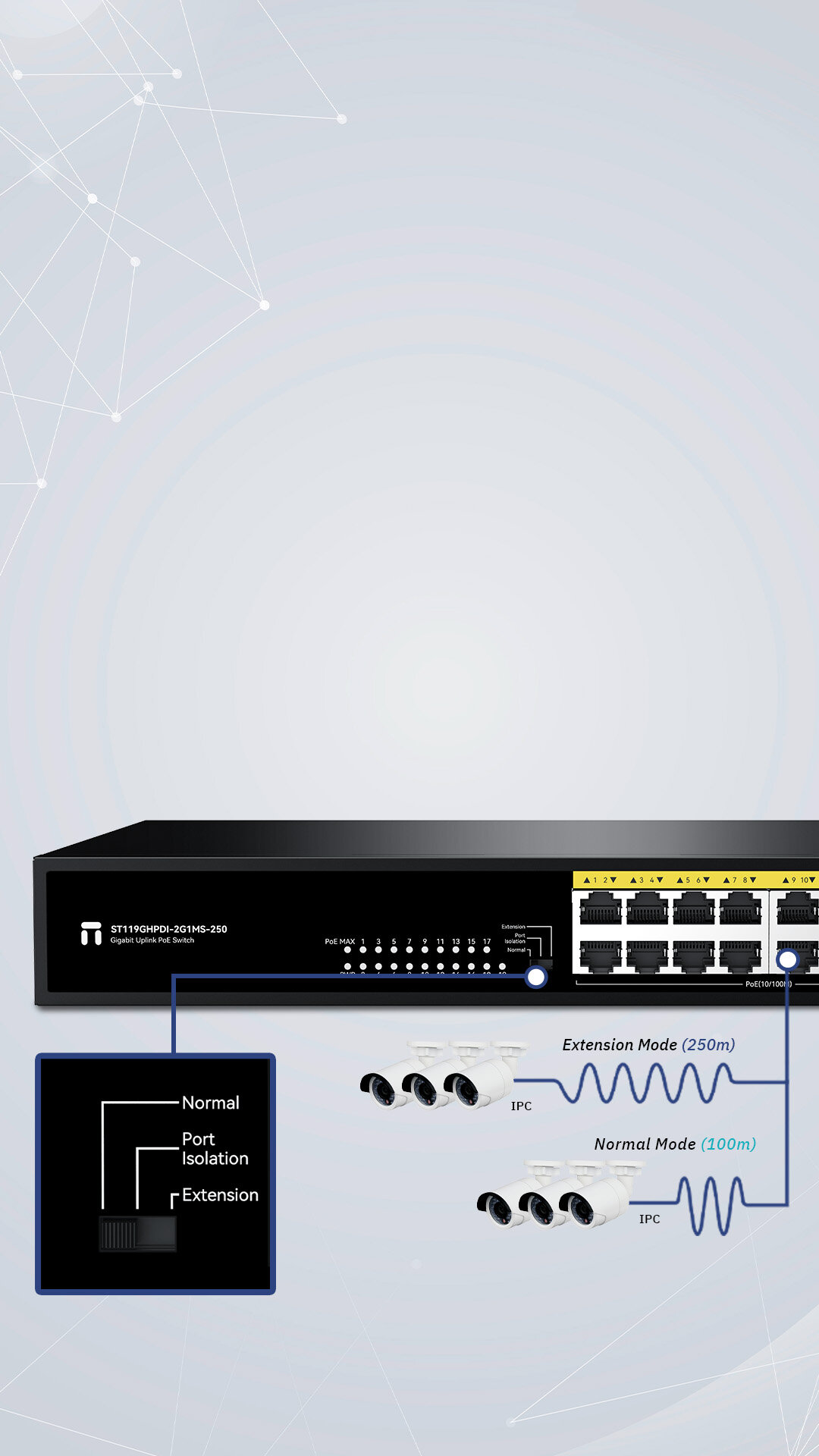

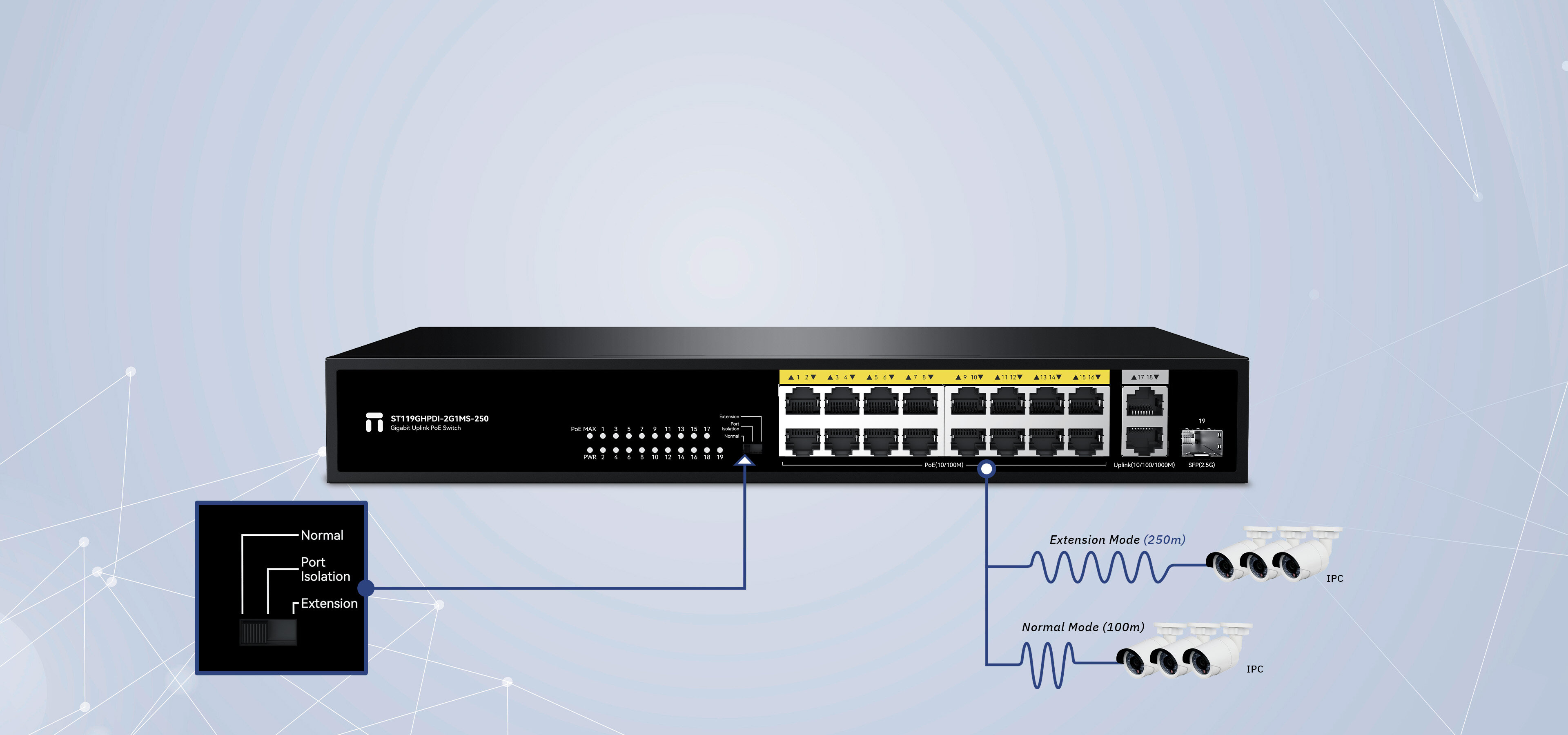

Extend to 250M
Unlocking More Possibilities
Equipped with a convenient DIP switch.
It can flexibly switch between Normal mode, Extension mode, and Port Isolation mode to adapt to various network requirements.
It can flexibly switch between Normal mode, Extension mode, and Port Isolation mode to adapt to various network requirements.

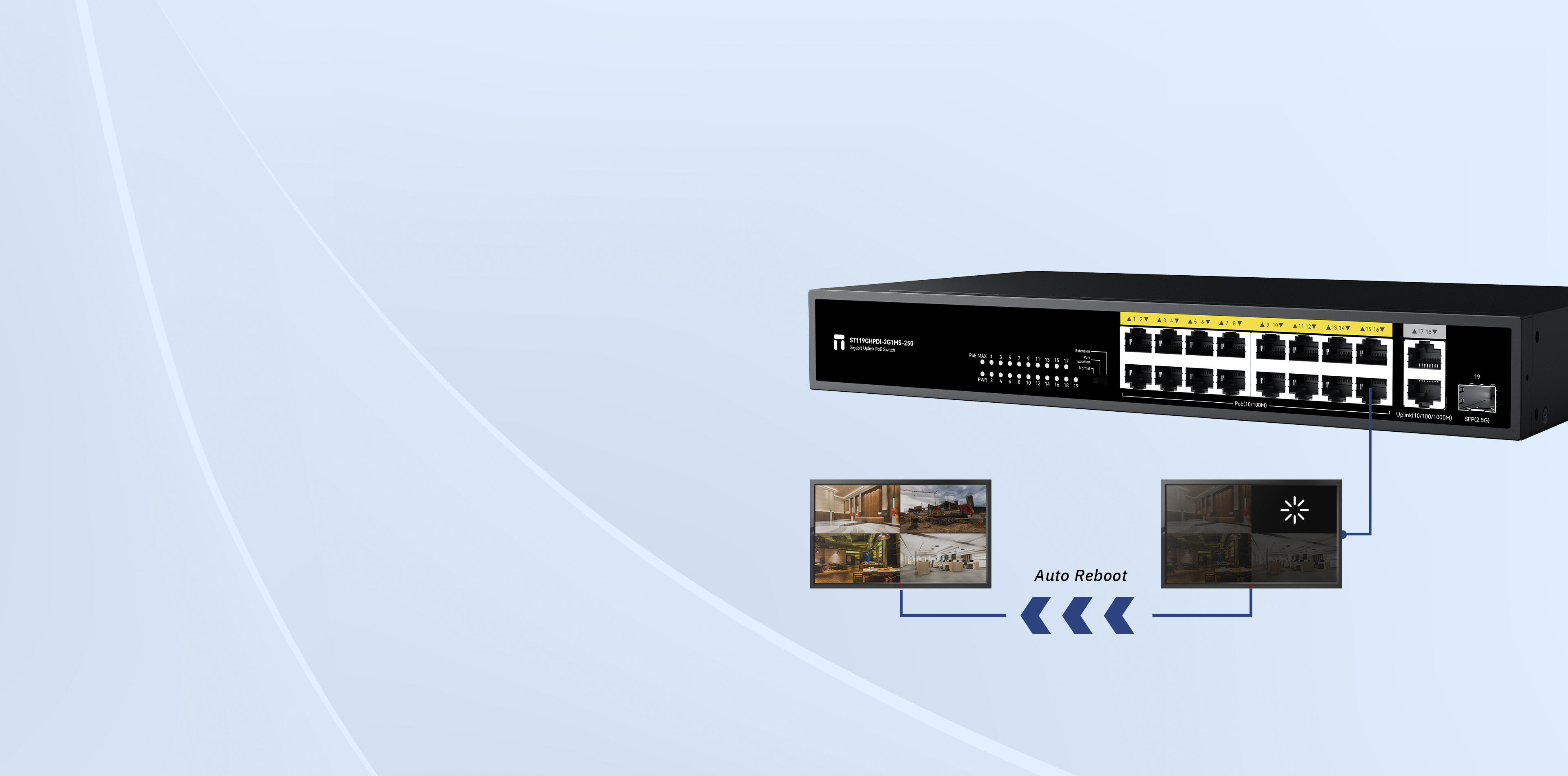

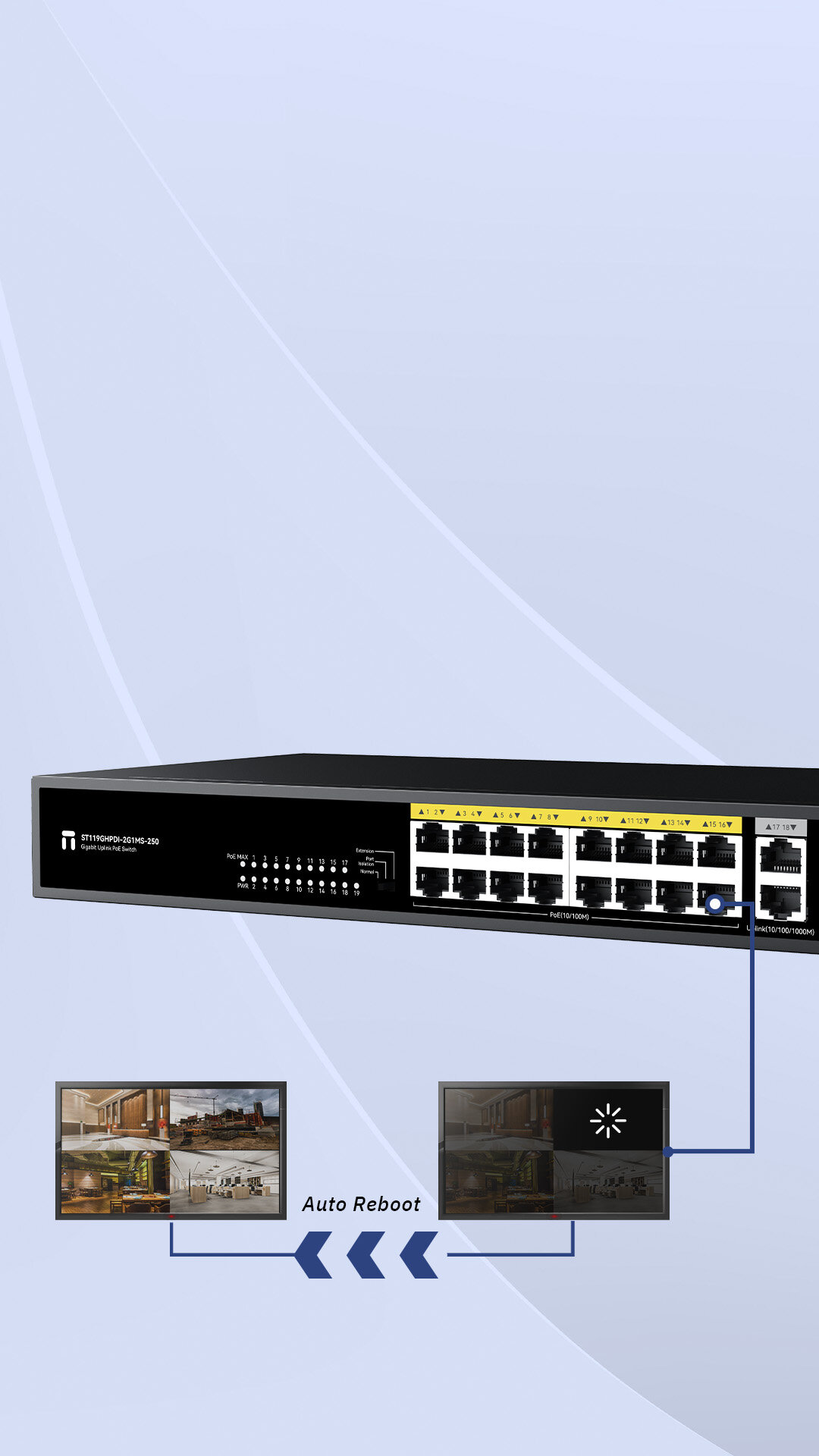

AI Watchdog for Reliable Network
It ensures uninterrupted network stability by automatically detecting and recovering from system failures or connectivity disruptions in real-time. It is work on Port isolation/Extension Mode.
Port Isolation Enhances Security
It prevents direct connections between terminal devices, enhances network security by blocking attacks, reduces bandwidth waste from broadcast storms, and simplifies network management without extra VLANs.

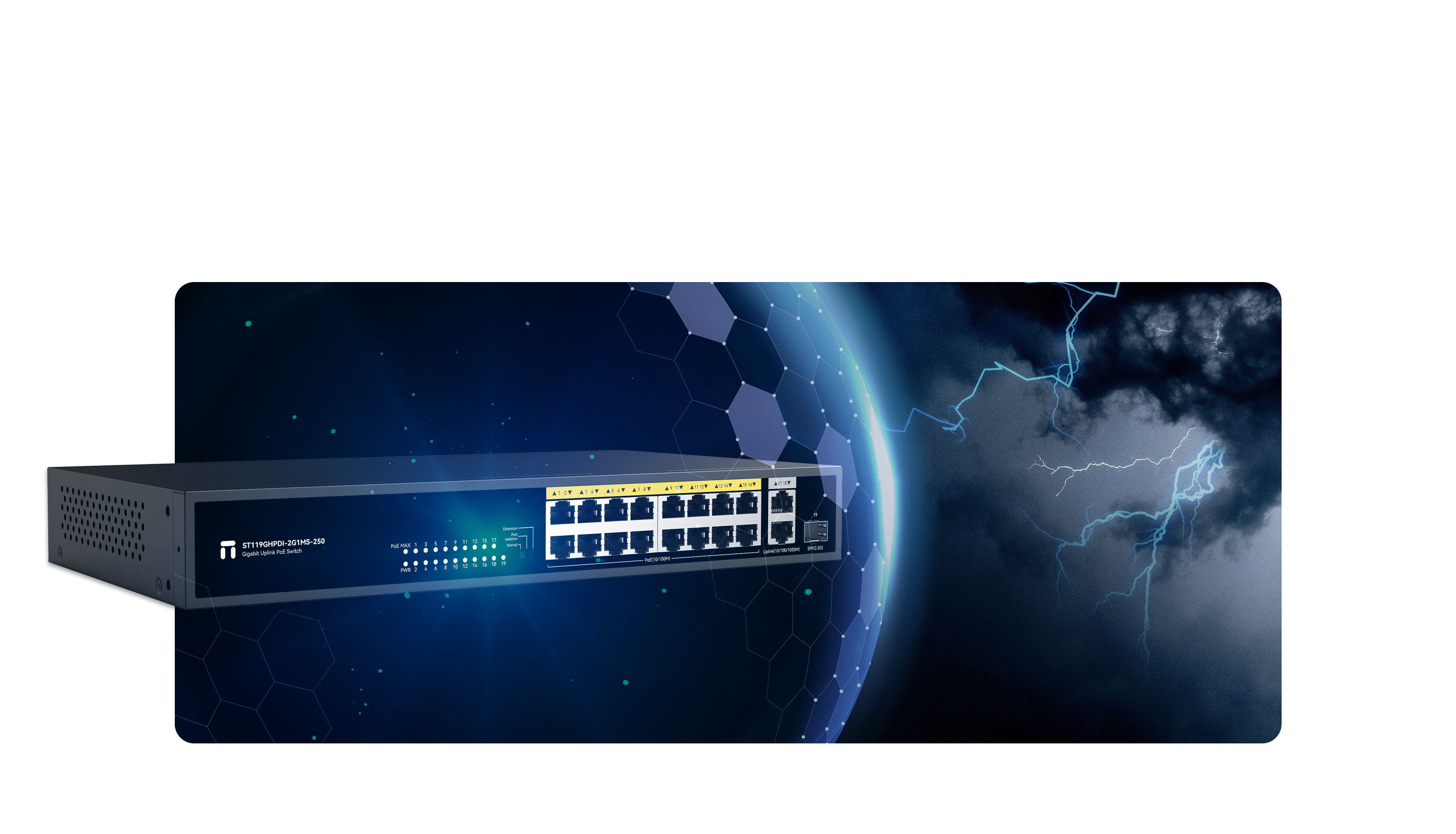

Multiple Protections
Ensure Safety without Worries
Built-in 6KV common-mode and differential-mode surge protection module can effectively resist lightning strikes and surges.
At the same time, it has overcurrent, overload and short-circuit protection functions.
At the same time, it has overcurrent, overload and short-circuit protection functions.
Multiple Application Scenarios

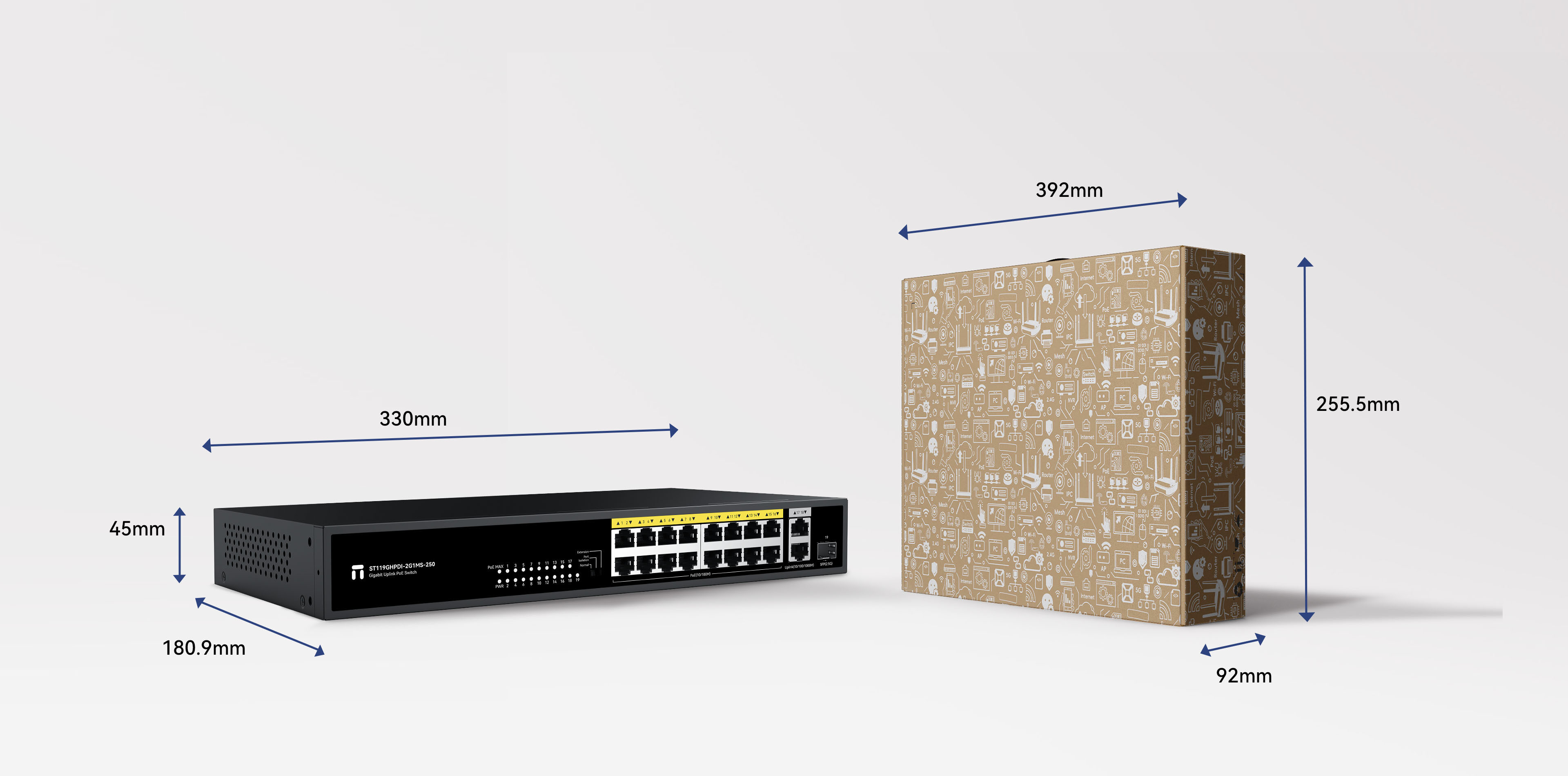

Package Display
Specification
LED Indicators
|
PWR On |
The switch is powered on. |
|
PWR Off |
The switch is powered off. |
|
Port Indicator (Link/ACT) On |
The corresponding port is connected to a network device but no activity |
|
Port Indicator (Link/ACT) Flashing |
Data is transmitting through the corresponding port. |
|
Port Indicator (Link/ACT) Off |
No device is connected to the corresponding port. |
|
PoE MAX On |
Lights up when the PoE power supply exceeds 110W. |
|
PoE MAX Flashing |
PoE power supply reaches the maximum PoE output. |
|
PoE MAX Off |
the PoE power supply did not exceed 110W. |
Hardware
|
Ports |
16*100Mbps POE ports 2*1000Mbps uplink ports 1*2500Mbps SFP+ |
|
DIP Switch |
Normal/Port isolation/Extension |
|
Backplane Bandwidth |
12.2Gbps |
|
MAC Address Table |
8K |
|
Input Power |
100-240V~ 50/60Hz |
|
Power Supply |
250W |
|
Maximum POE Output Power |
225W |
|
Network Media & Transmission Distance |
1000BASE-T: UTP category 5, 5e, 6 or above cable (≤ 100m) 100Base-TX: UTP category 5, 5e, 6 Category 5 (Cat5) or higher UTP/STP cables (≤100m) 10Base-TX: UTP category Category 6 (Cat6) or higher UTP/STP cables (≤250m) Tips：The actual transmission distance is related to the connected terminal/network cable type and condition; it is recommended to use Category 6 cable preferentially.
|
Software
|
Basic Functions |
|
|
Ethernet Protocols and Standards |
|
Environmental Requirements
|
Temperature |
|
|
Humidity |
|
Lightning Surge Protection
|
Common Mode |
6KV |
Physical Dimensions
|
Dimensions (W x D x H) |
330*180.9*45mm(12.99x7.12x1.77 in) |
Packaging and Transportation
|
Protective Packing |
EPE protection |
Others
|
Storage Temperature |
-40℃ ~ 70℃(-40°F ~158°F),with the most suitable storage condition being room temperature considering humidity |
|
Storage Precautions |
Store in a clean,ventilated environment free from corrosive gases,flammable,explosive,and other hazardous chemicals.Keep away from heat sources and sources of strong mechanical vibration |
|
Storage Period |
Under the above conditions,the product can be stored for one year.It is recommended to re-inspect and test the product after two years before use |
