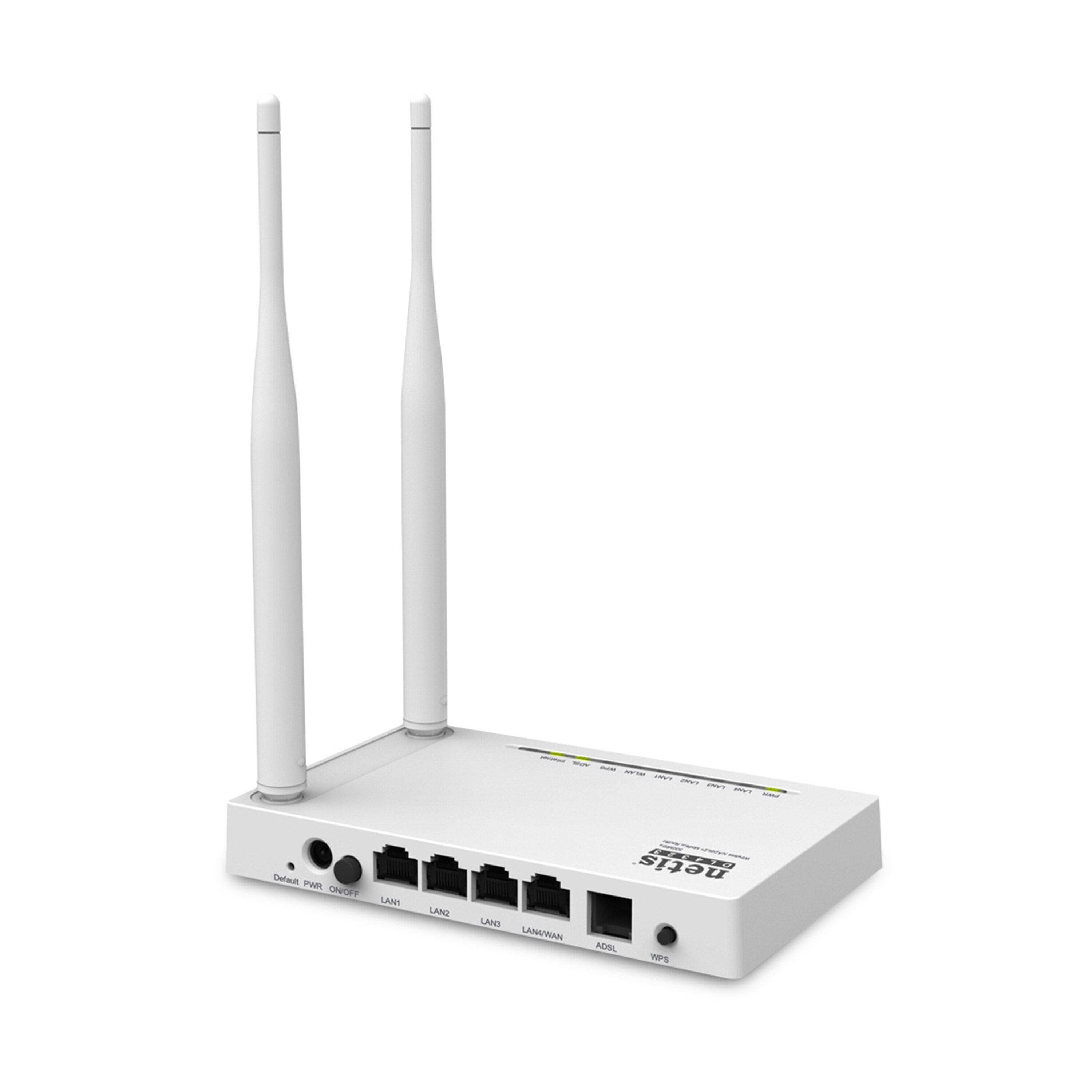

DL4323
N300 Wireless ADSL2+ Modem Router
- High speed ADSL2+ modem, 4-port NAT router and wireless N access point in one device
- ADSL2/2+ standar
- Powerful wireless N speed up to 300Mbps
- Port mapping function ensuring wonderful IPTV experience
- Ethernet WAN offers additional connectivity option for Cable or Fiber modem
- Built-in firewall to safeguard home network from potential Internet attacks
- Pv6 supported for improved network usability and experience
- 4KV super lightning protection to avoid device damage caused by tough thunderstorms
- Easy setup wizard providing quick and hassle free installationds ensuring high-speed Internet access up to 24Mbps downstream
Specification
Hardware
| Ethernet Standards | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX |
| Interface | 1* RJ11 ADSL Port, 4*10/100Mbps Auto MDI/MDIX RJ45 LAN Port(Optional Ethernet WAN for LAN4) |
| LED | PWR, LAN4, LAN3, LAN2, LAN1, WLAN, WPS, ADSL, Internet |
| Power Supply | DC 12V/500mA(Output) |
| Button | WPS, Default, Power ON/OFF |
Software
| ADSL Version | ADSL, ADSL2, ADSL2+ |
| Data Rate | Downstream: Up to 24Mbps Upstream: Up to 1Mbps |
| ATM / PPP Protocol | ATM Forum UNI3.1/4.0 PVC (up to 8PVCs) ATM Adaptation Layer Type 5 (AAL5) ATM QoS Bridged and Routed Ethernet Encapsulation VC and LLC Based Multiplexing PPP over Ethernet (RFC2516) PPP over ATM (RFC 2364) IPoA (RFC1577/2225) |
| Main Feature | DHCP, DHCP Relay NAT, Static Routing VPN (PPTP, L2TP, IPsec) Pass-through PVC/Ethernet Port Mapping DNS Relay, DDNS IGMP Multicast, IGMP Snooping V1/V2 Virtual Server, DMZ, ACL (Access Control List) UPnP IPv6 |
| Management | Web Based Configuration (HTTP), Remote Management, Telnet Management, Command Line Interface, TR-069, SNMP, Web Based Firmware Upgrade, CWMP (TR-069), Diagnostic Tools |
| Wireless Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Range | 2.4-2.4835GHz |
| Wireless Speed | Up to 300Mbps |
| Wireless Security | WEP 64/128bits, WPA(TKIP/AES)/WPA2(TKIP/AES)/WPA2 Mixed, 802.1x Authentication Wireless MAC Filtering |
| Wireless Security Power | 20dBm |
| Antenna Type | 2* 5dBi Antennas |
Others
| Certification | CE, FCC |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing |
| Dimensions | 144.5mm *90mm* 26.5 mm (L *W * H ) |
| Package | 1 * DL4323 1 * 12V/500mA Power Adapter 2 * RJ11 Telephone Cable 1 * RJ45 Ethernet Cable 1 * ADSL Splitter 1 * Quick Installation Guide (Multilingual) |
