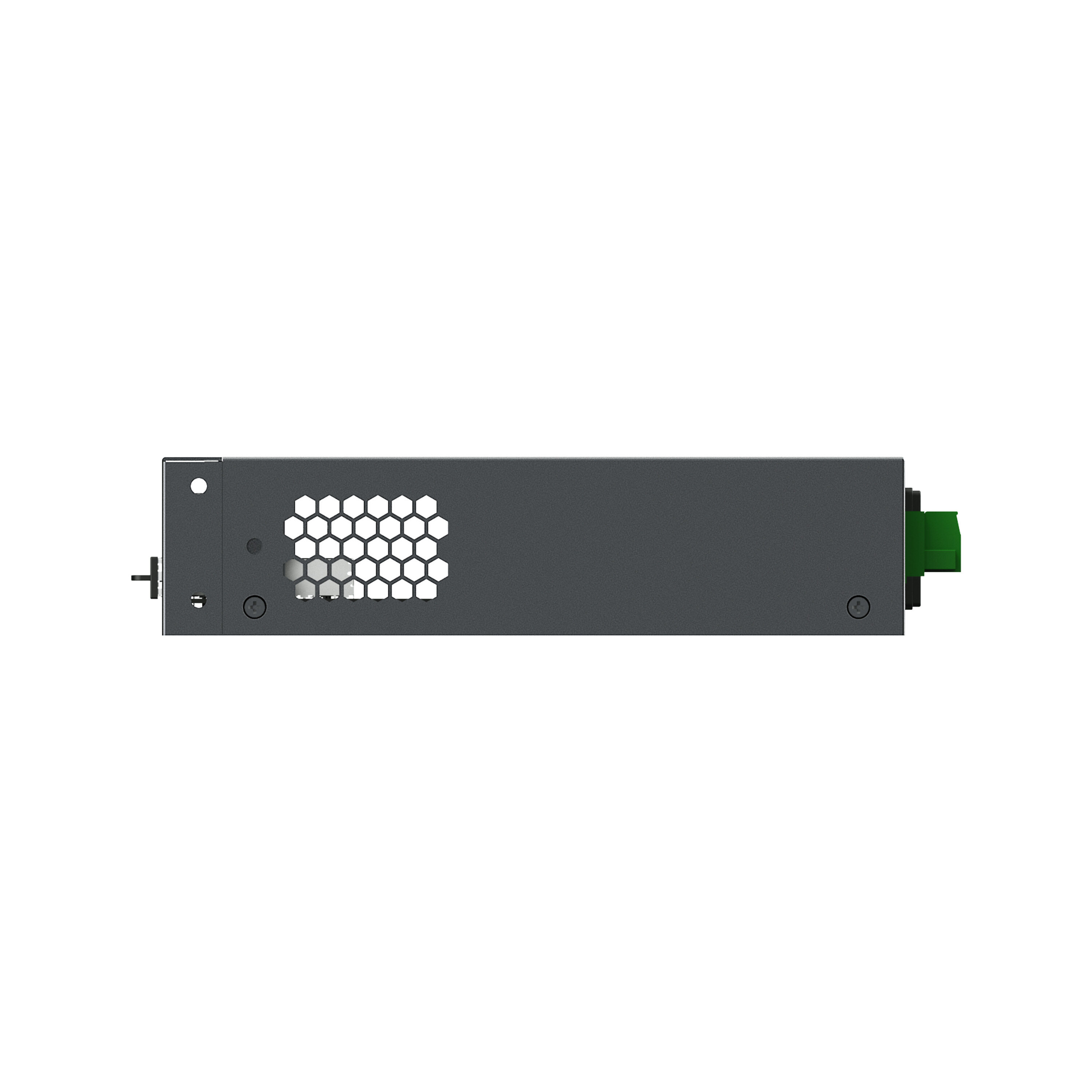

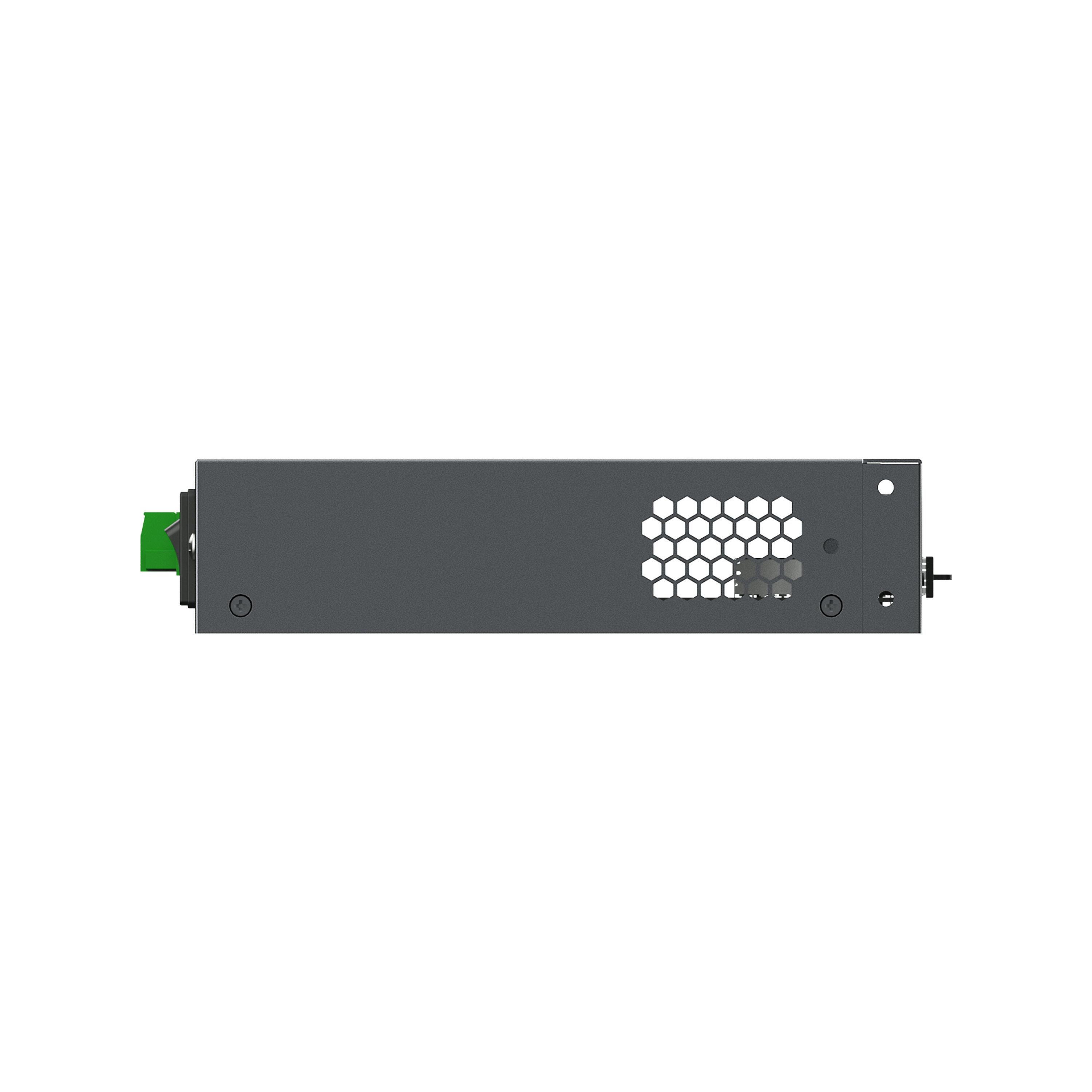

NOG5802
2*GPON + 2GE + 2SFP+(10GE) GPON OLT
- High-Performance OLT: 2*GPON + 2*GE + 2*SFP+(10GE) + 1*Console Port+1*Management Port, delivering optimized bandwidth utilization and robust Ethernet services.
- Dual Power Supply for Reliability: Equipped with dual power supply support (AC + DC ), featuring dual hot-swappable power units to ensure continuous operation and carrier-class reliability.
- Advanced Management & Security: Offers flexible management via Console and Management ports
- Scalable & Flexible Networking: Supports a 1:128 splitting ratio per GPON port, enabling support for up to 256 ONT/ONU devices.
- Energy-Efficient & Environmentally Friendly: Designed with low power consumption (≤30W) and compliance with China RoHS and EEE standards, ensuring energy efficiency and environmental sustainability.
- Versatile Deployment Options: With its compact size, it can be easily deployed in hallway or rack-mounted installations, providing flexibility for various network infrastructures.
- Rich Layer 2/3 switching features and Flexible management methods
Specification
Hardware
|
Interface |
2 * GPON port; 2 * 10/100/1000M Base-T; 2*1000M Base-X SFP/2*10GE SFP+; Dual power supply optional |
|
Exchange Capacity |
51.5Gbps |
|
Packet Forwarding Rate |
59.7Mpps |
|
Memory and Storage |
Memory: 512MB; Storage: 32MB |
|
MAC Address |
16K |
|
Packet Buffer |
12Mbit |
|
Management Port |
1*Console Port; 1*Management Port |
|
PON |
1:128 maximum splitting ratio |
|
Weight |
≤2kg |
|
Fan |
2*Fixed Fans |
|
Power |
AC: 100～240V, 47/63Hz； DC: 12V |
|
Power Consumption |
≤30W |
|
Dimensions (W *D *H) |
270mm*180mm*44mm |
|
Environment Temperature |
Working Temperature：-10℃～55℃ Storage Temperature：-40℃～70℃ |
|
Environment Humidity |
Operating Humidity: 10%～95% (non-condensing) Storage Humidity: 10%～95% (non-condensing) |
|
Environment Friendly |
China RoHs,、EEE |
Software
|
PON |
Support ITU-T G.984/G.988 standards Supports a physical differential distance of 20KM and a logical distance of 60KM Supports maximum 1:128 spectral ratio Support standard OMCI management functionality Supports compatibility with ONT of any brand Support batch upgrade of ONT |
|
VLAN |
Support 4K VLAN Support VLAN based on port, MAC and protocol |
|
MAC |
32K Mac address Support static MAC address setting Support black hole MAC address filtering Support port MAC address limit |
|
Ring Network Protocol |
Support STP/RSTP/MSTP Support Loopback-detection port loopback detection |
|
Port Control |
Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding |
|
Port Aggregation |
Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports |
|
Mirroring |
Support port mirroring |
|
ACL |
Support standard and extended ACL Support ACL policy based on time period Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc. |
|
QoS |
Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR |
|
VLAN |
Support 4K VLAN Support VLAN based on port, MAC and protocol Support dual Tag VLAN, port-based static Q-in-Q and flexible Q-in-Q |
|
Safety |
Support user hierarchical management and password protection Support Radius&TACACS+ authentication Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection |
|
Layer3 Routing |
Support ARP learning and aging Support static route Support dynamic route RIP/OSPF |
|
System Management |
CLI、Telnet、WEB、SNMP V1/V2/V3、SSH2.0 Support FTP, TFTP file upload and download Support SNTP Support LLDP neighbor device discovery protocol Support Ping and Traceroute |
