E0 | N300 Wi-Fi Range Extender

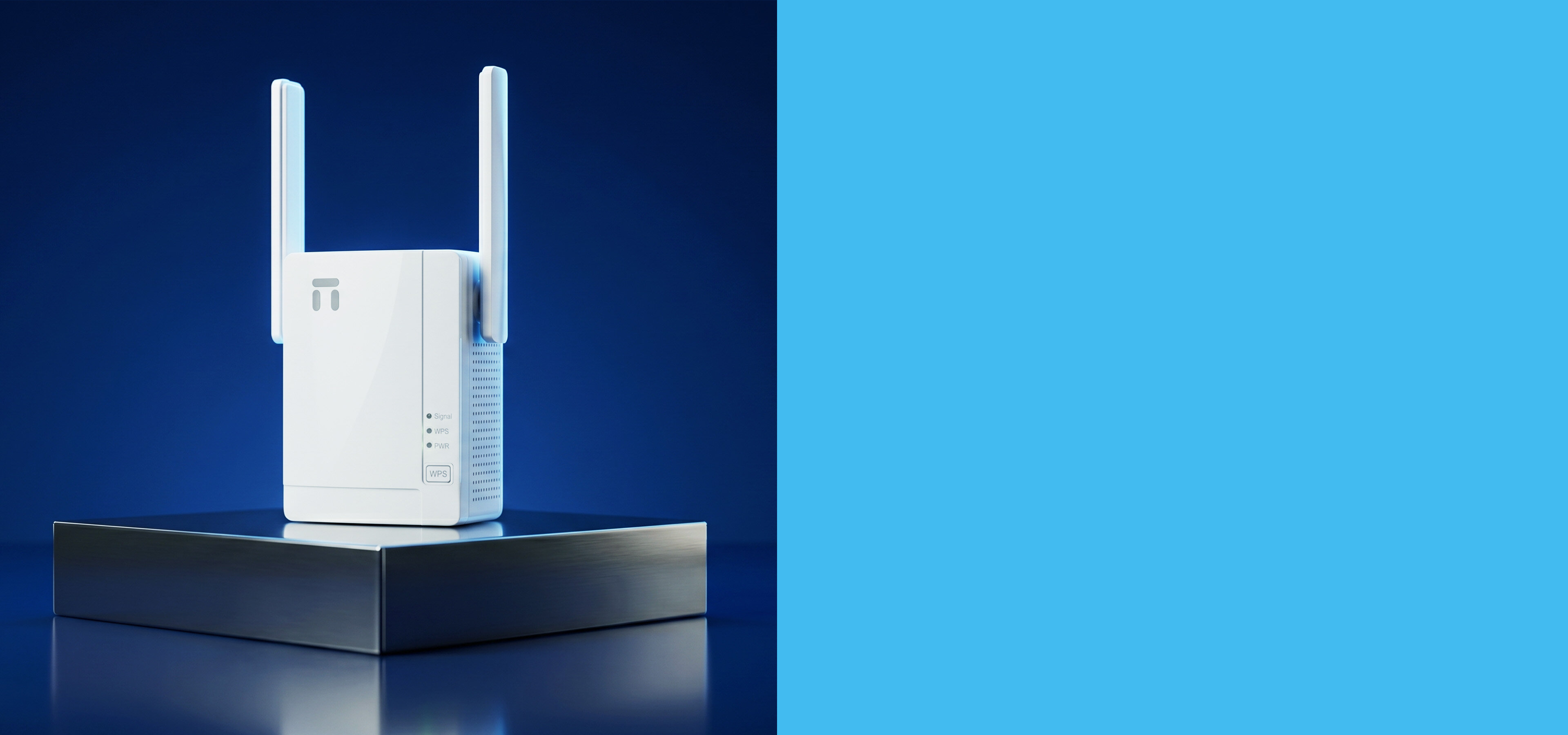

N300 Wi-Fi Range Extender

Wireless speeds up to 300 Mbps

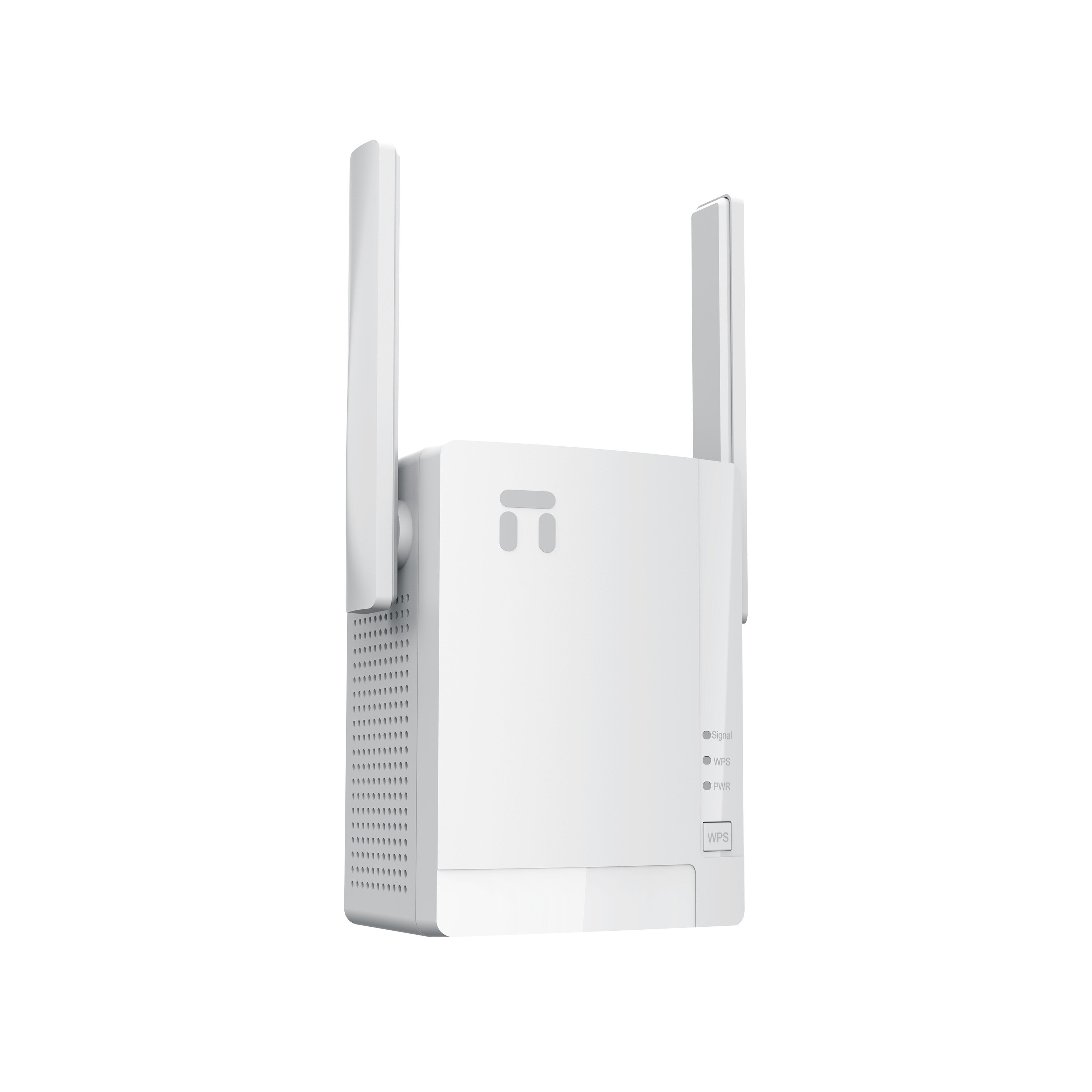

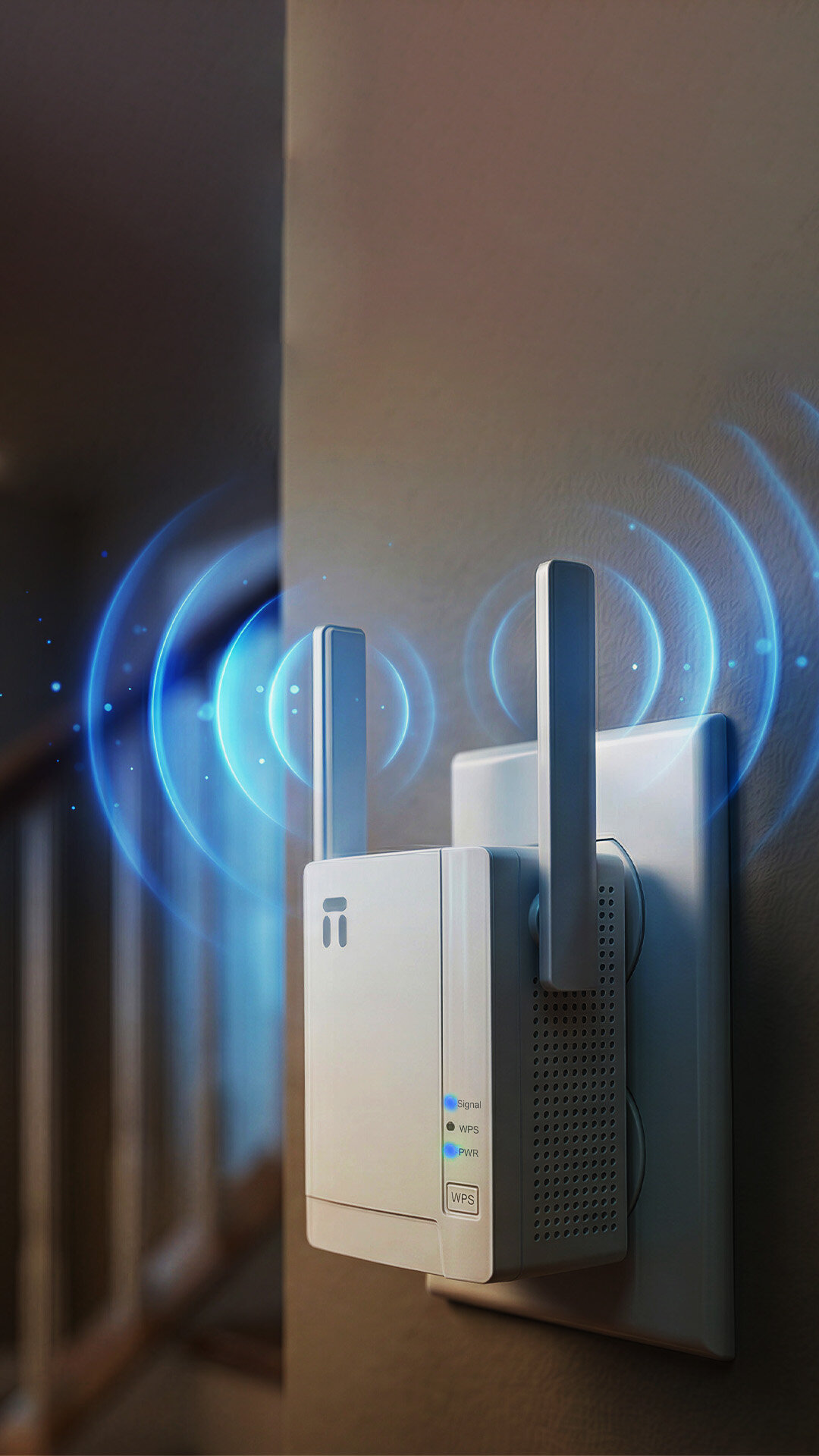

Strong WiFi Signal: 2 Fixed External Antennas for faster and more stable WiFi

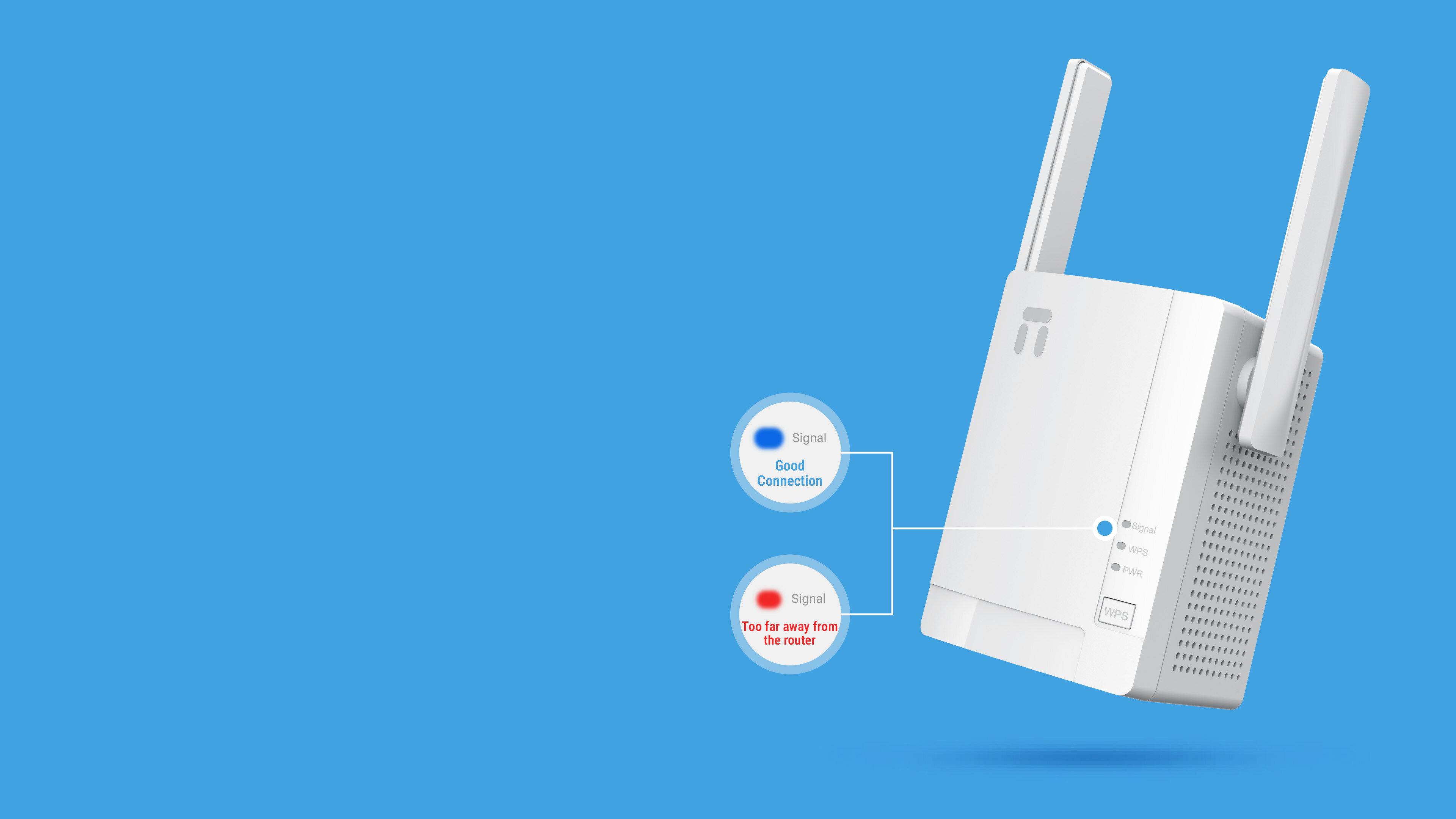

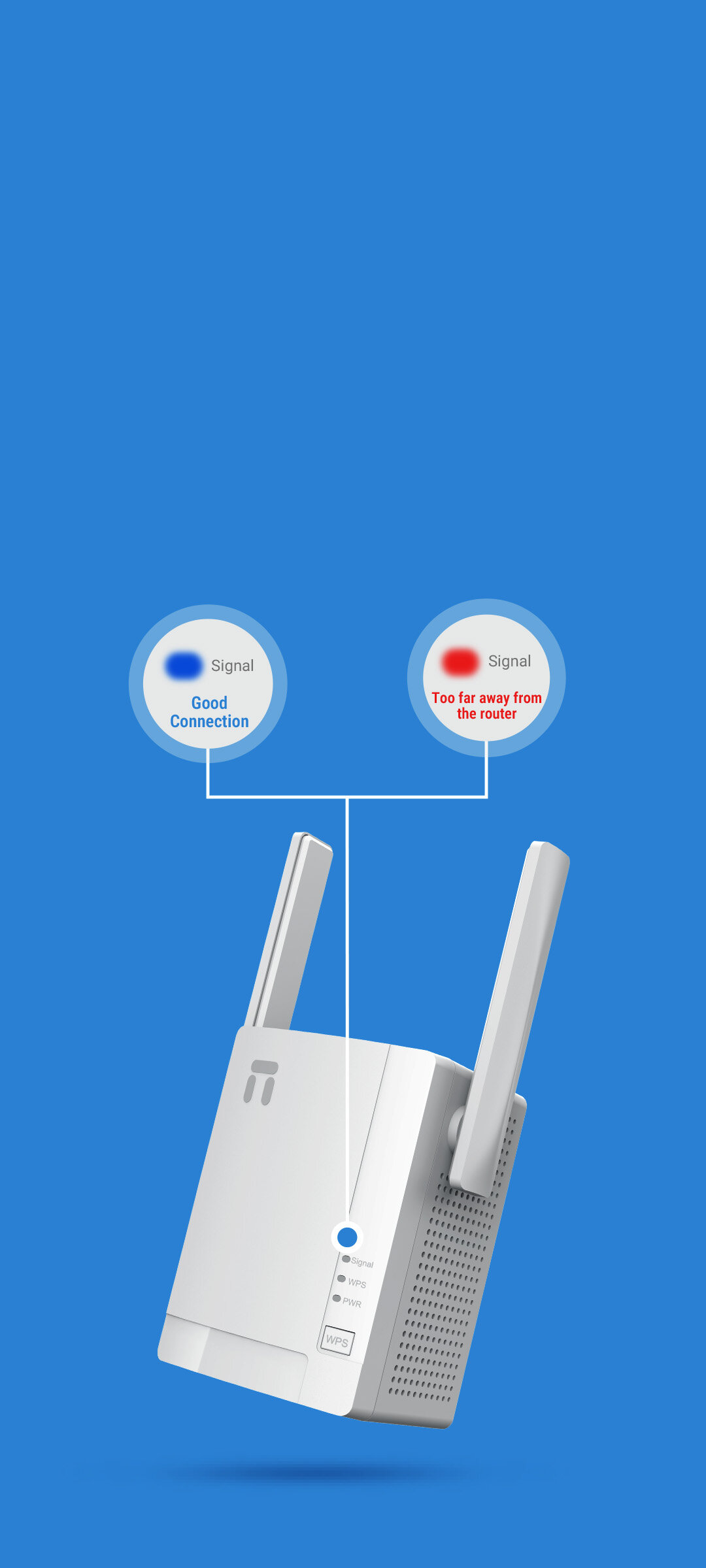

Smart Location Guide: Intelligent signal LED helps to find best location by showing the signal strength

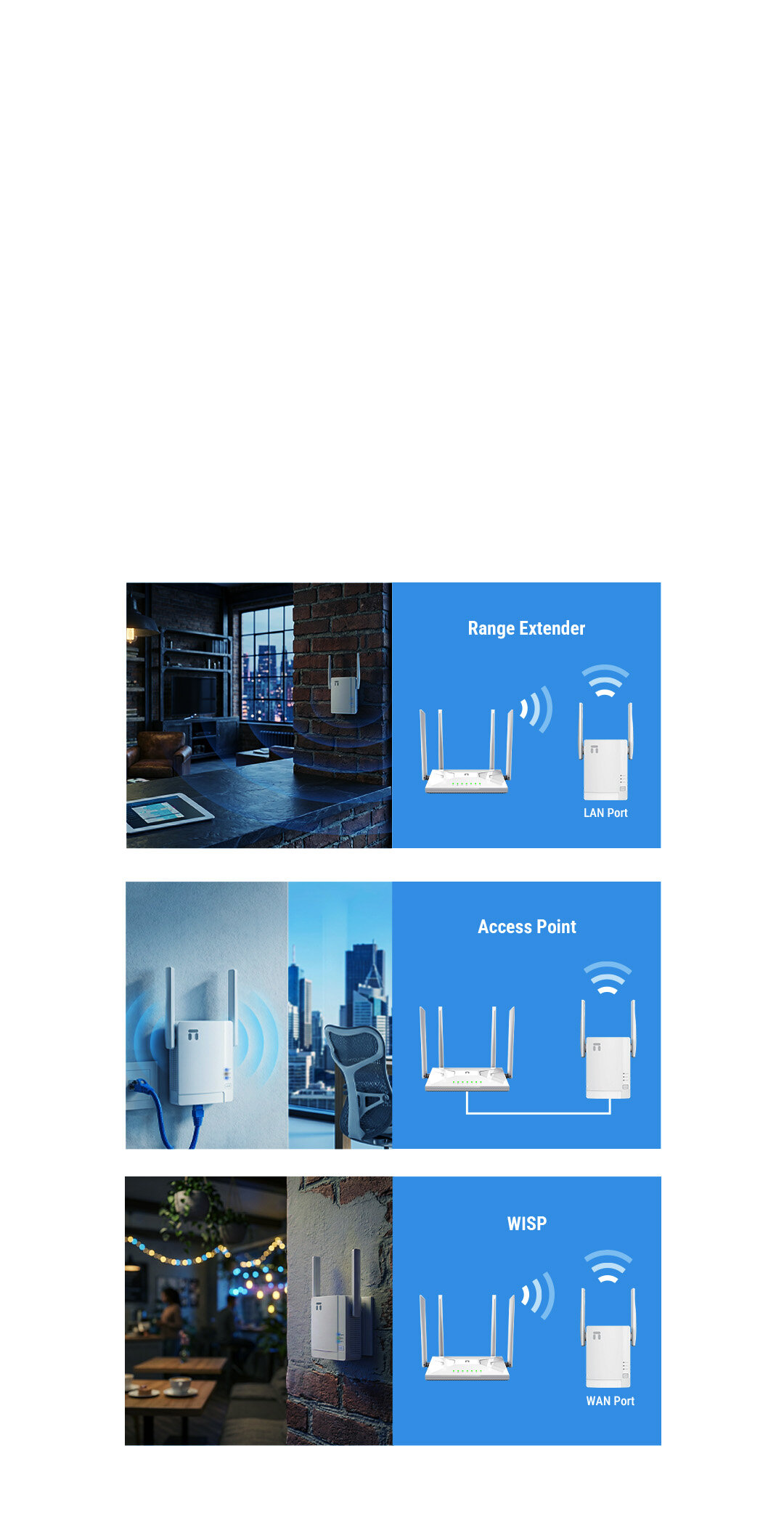

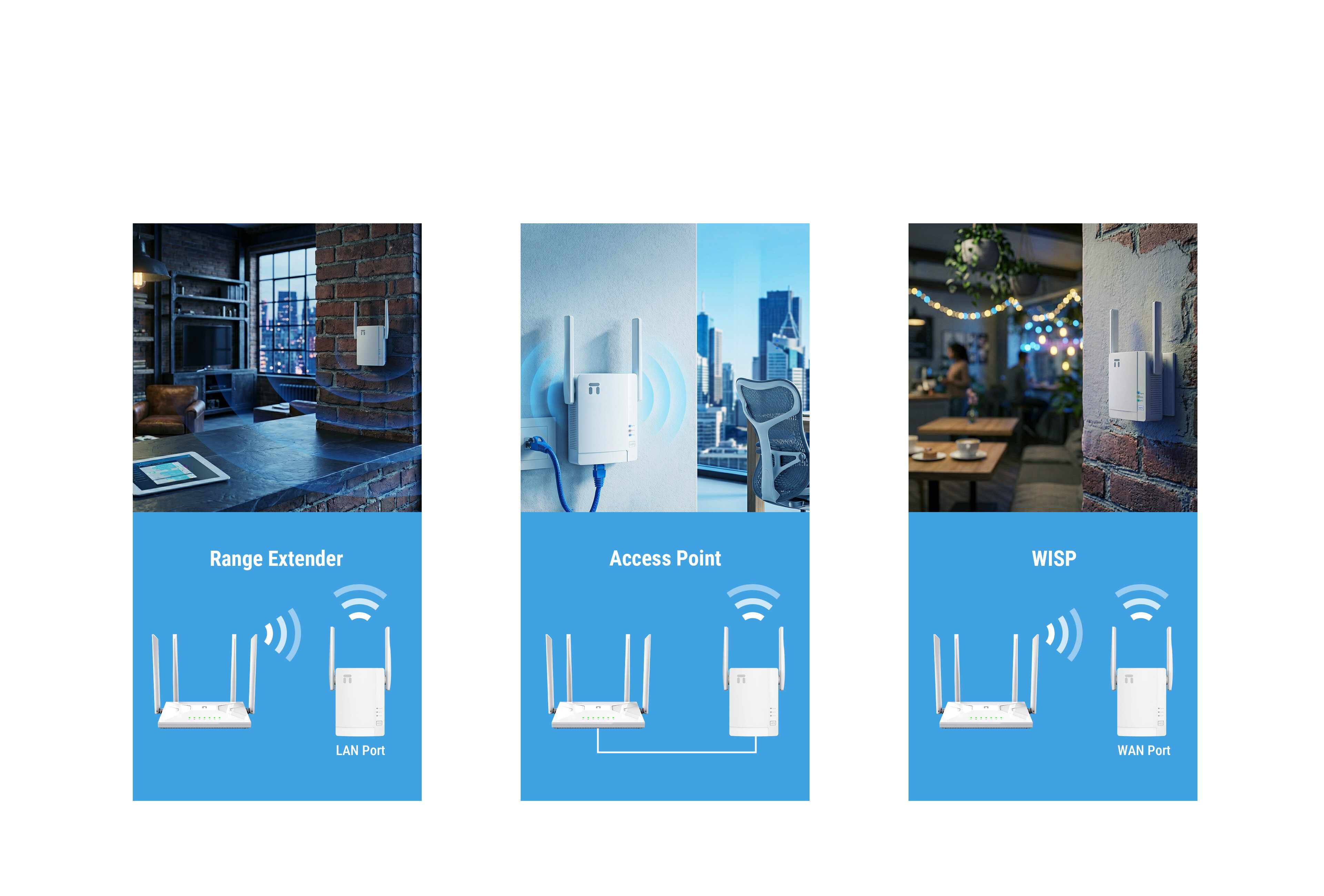

3 Working Modes：Range Extender/Access Point/WISP to meet various needs.

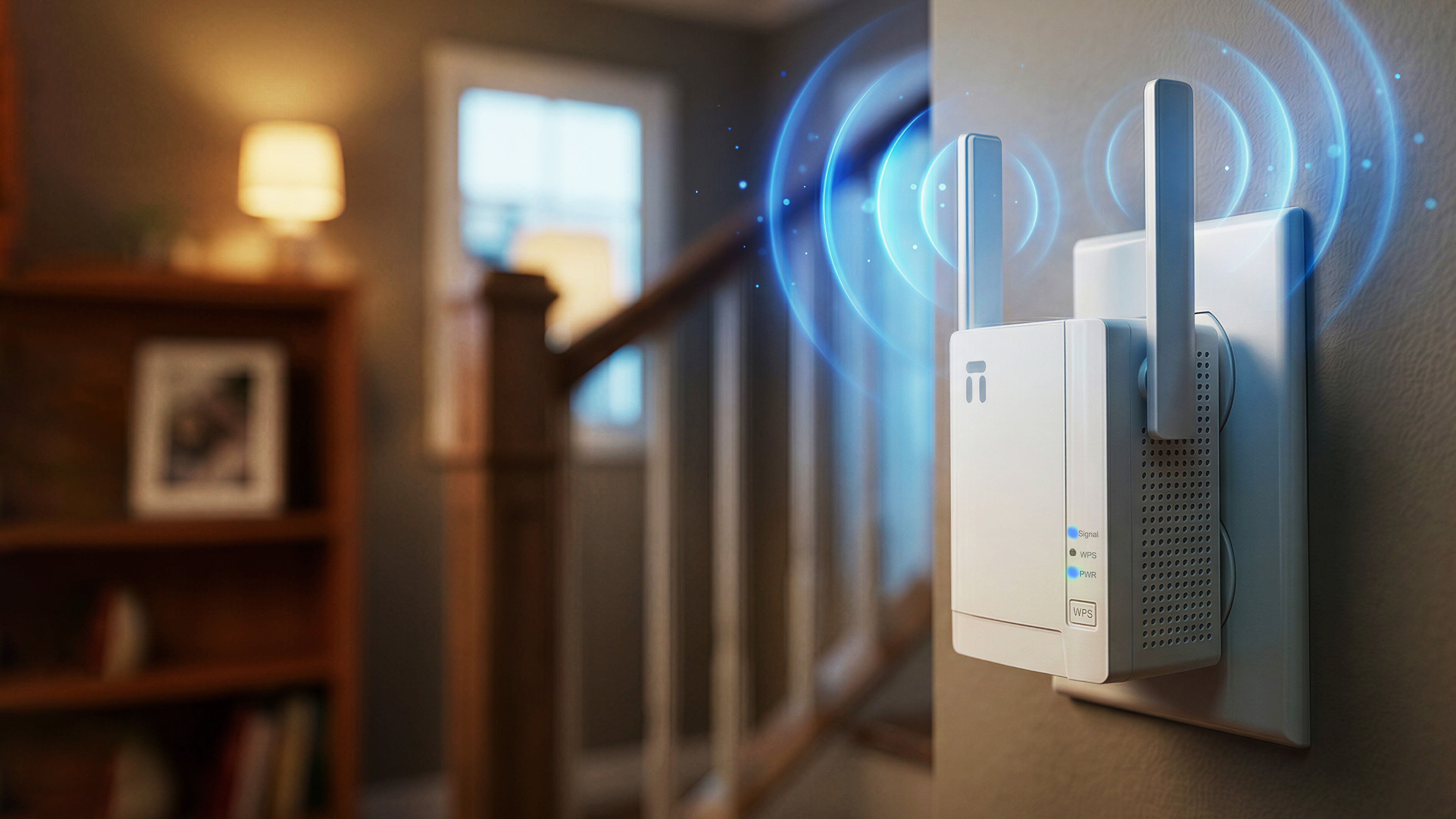

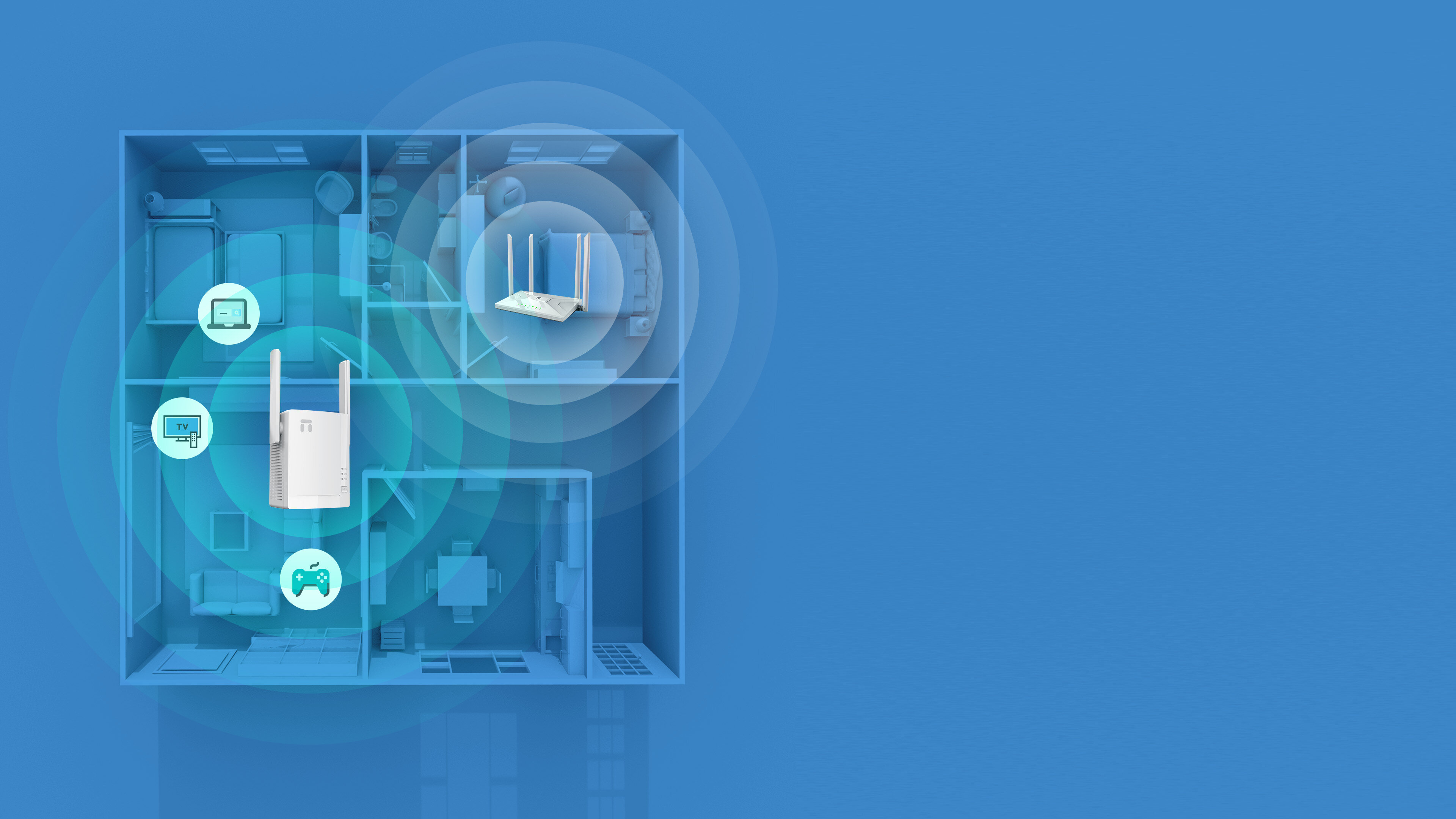

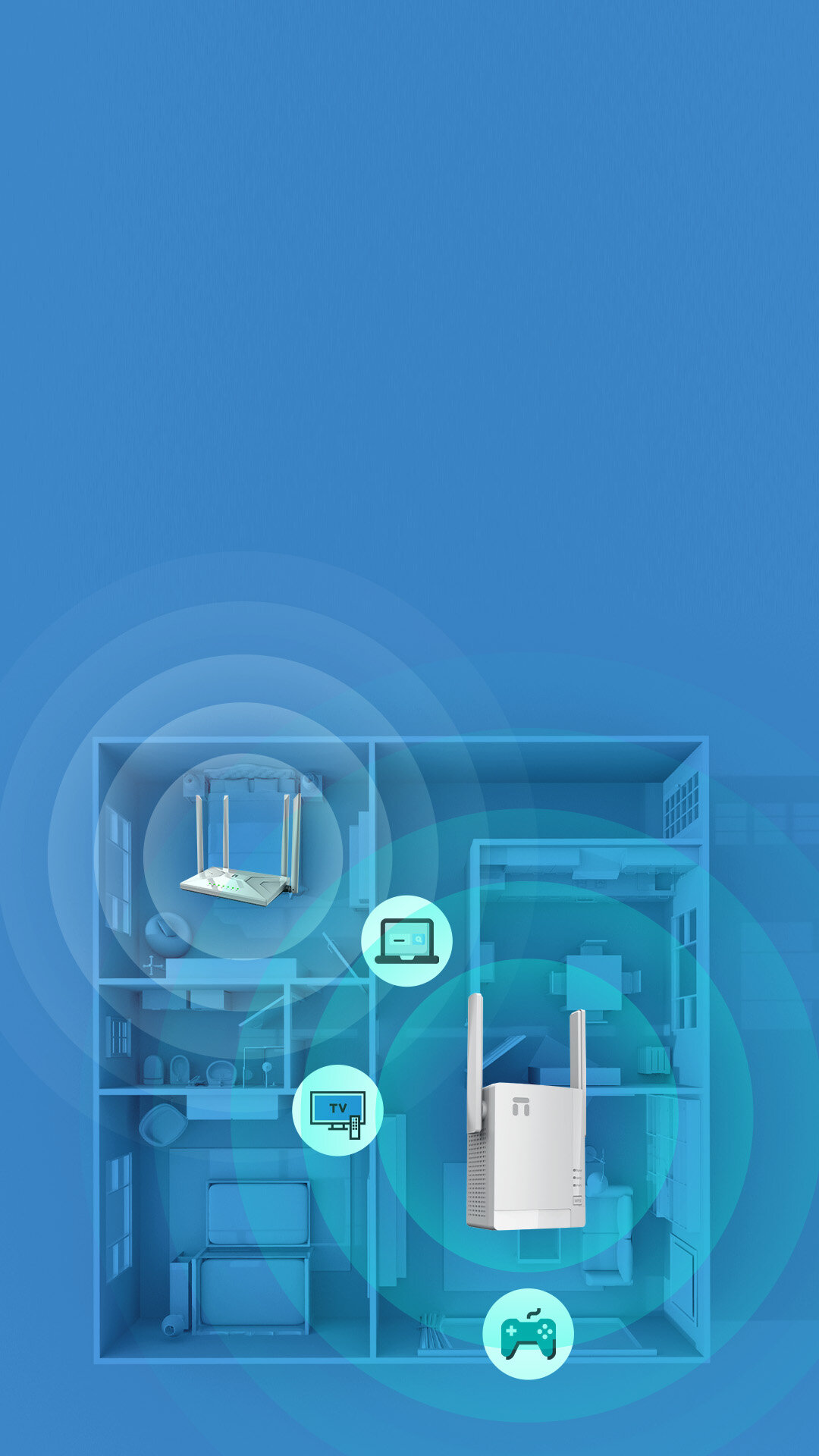

Range Extender Mode extends your existing wireless coverage to eliminate Wi-Fi dead zones
Built-in Access Point Mode creates a new WiFi access point in your house

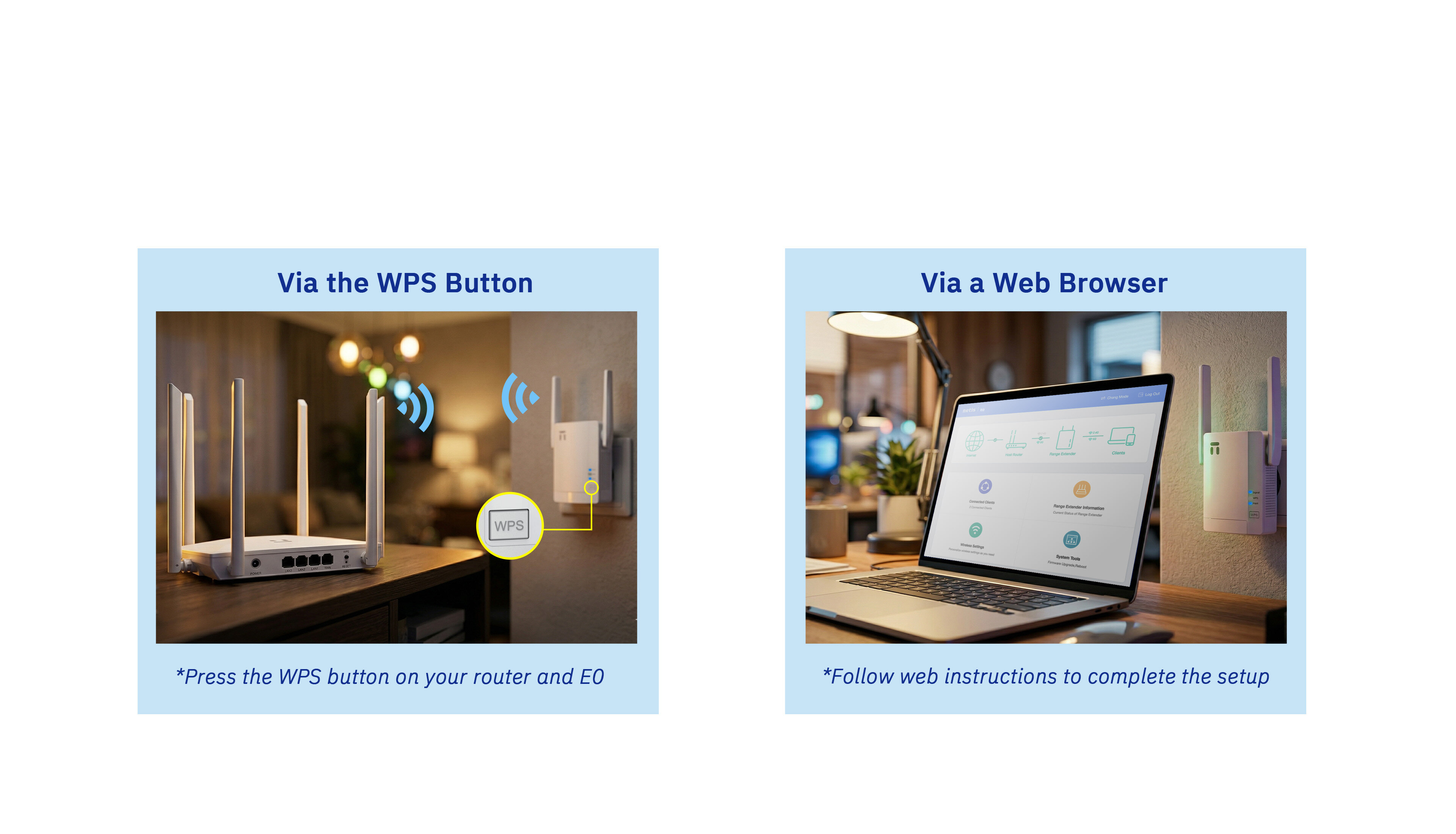

Easy Setup

Overview | Specifications | Download

Specification

Wireless

Standards	Wi-Fi 4 IEEE 802.11b/g/n 2.4 GHz
WiFi Speeds	N300 2.4 GHz: Up to 300Mbps
Frequency Range	2.4~2.4835GHz
Transmit Power	20dBm(MAX)
Data Transfer Rate	802.11n: 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps) 20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) 802.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps) 802.11b: (11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
Working Modes	Access Point, Range Extender,WISP
Wireless Security	None WPA-PSK WPA2-PSK WPA/WPA2-PSK WPA3 WPA3/WPA2-PSK
Management	Web based Configuration (HTTP),Remote Management, Firmware Upgrade

Hardware

DDR/FLASH	128MB/4MB

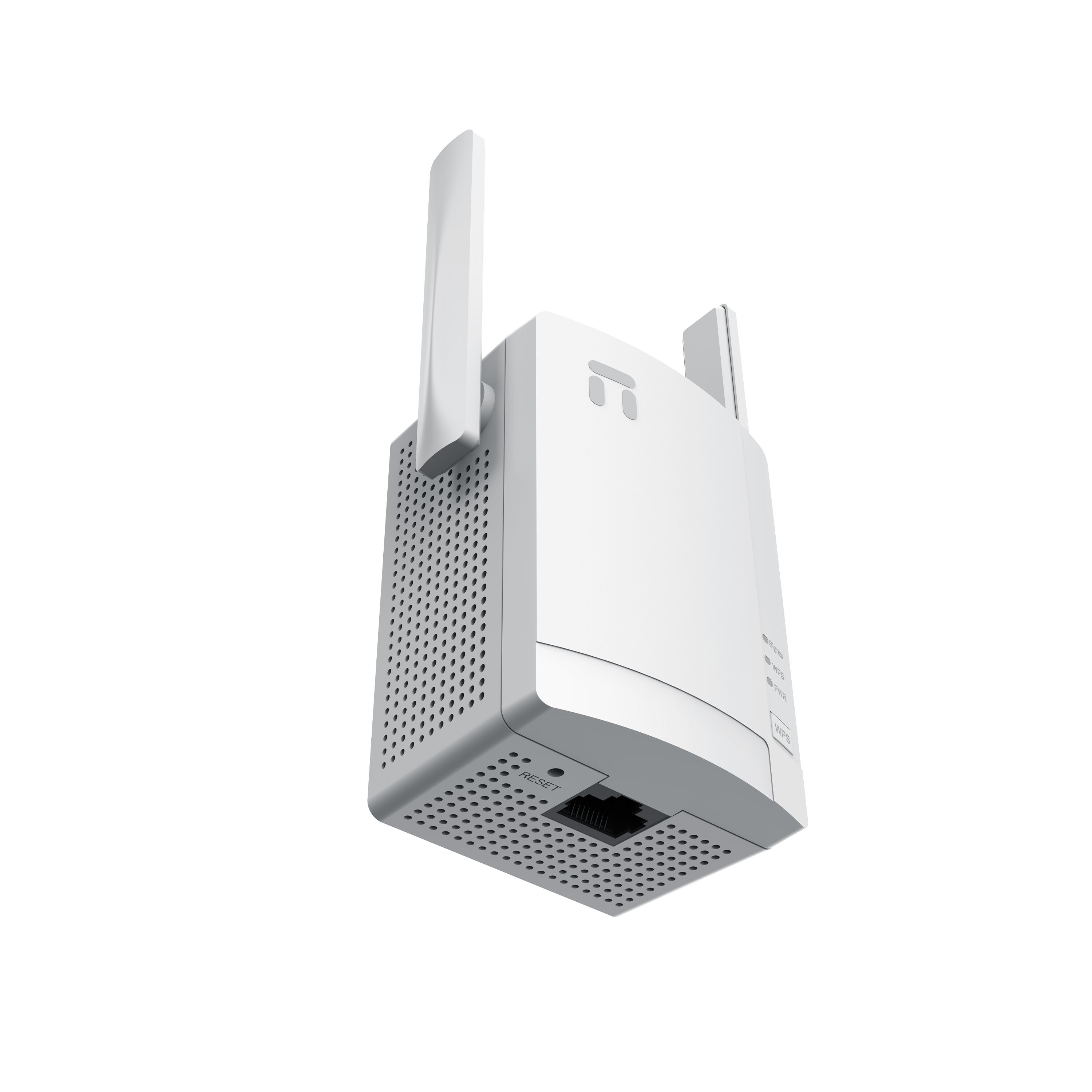

Interface	1x 10/100Mbps Auto MDI/MDIX RJ45 WAN port

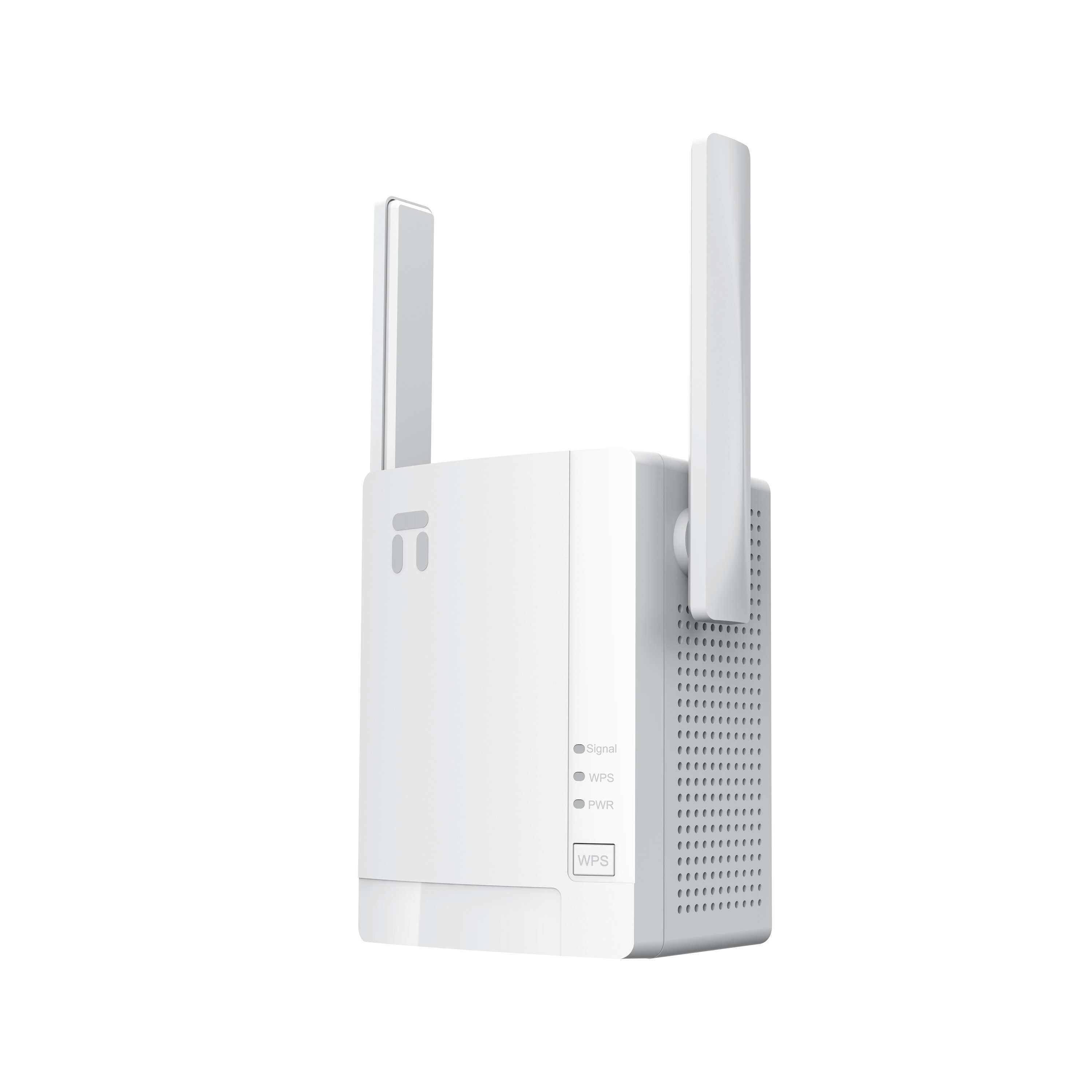

LED Indicators	Signal/WPS/Power
Buttons	1x WPS button/1x Reset to default button
Antenna	2x3dBi 2.4GHz External Antenna

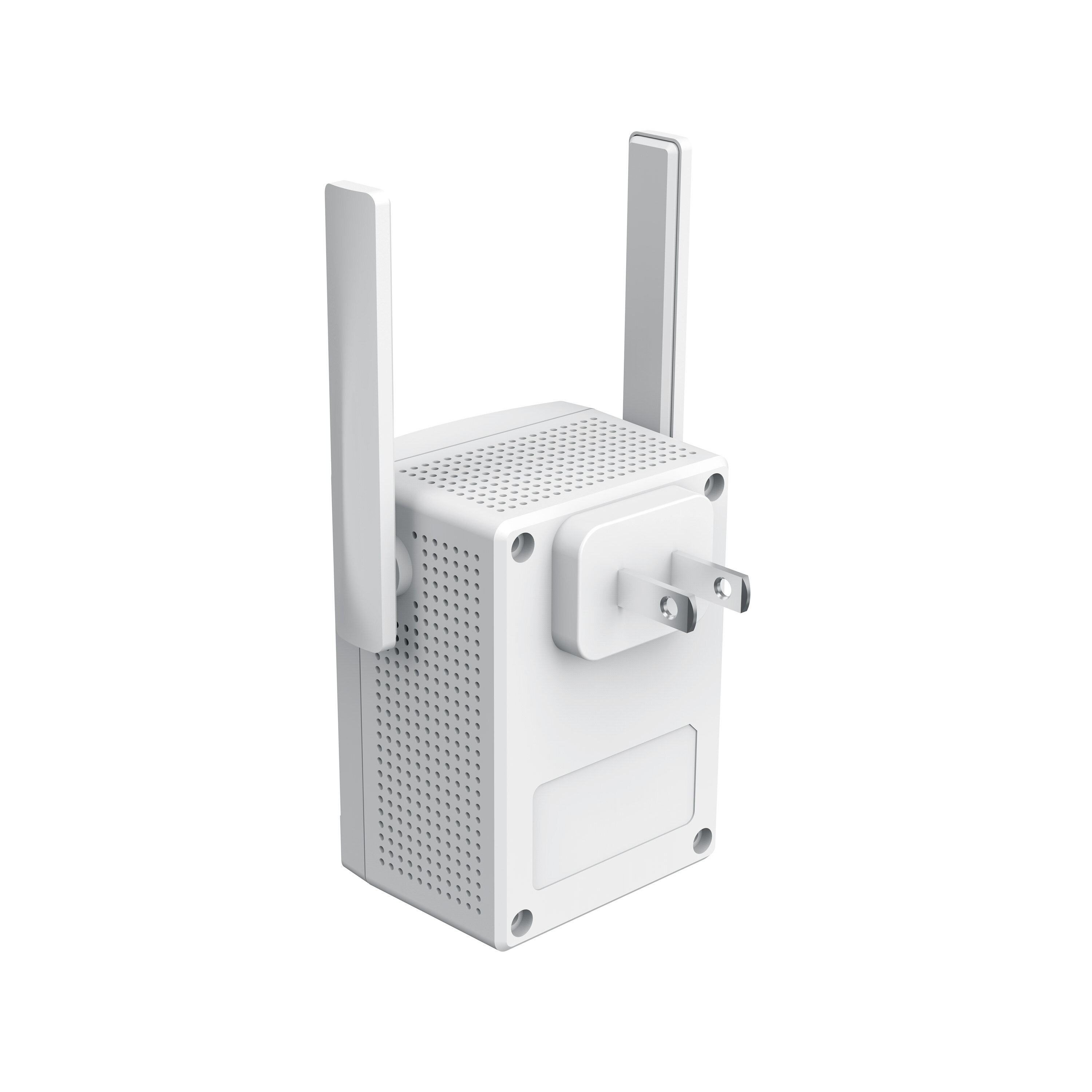

Power	100-240V~ 50/60Hz

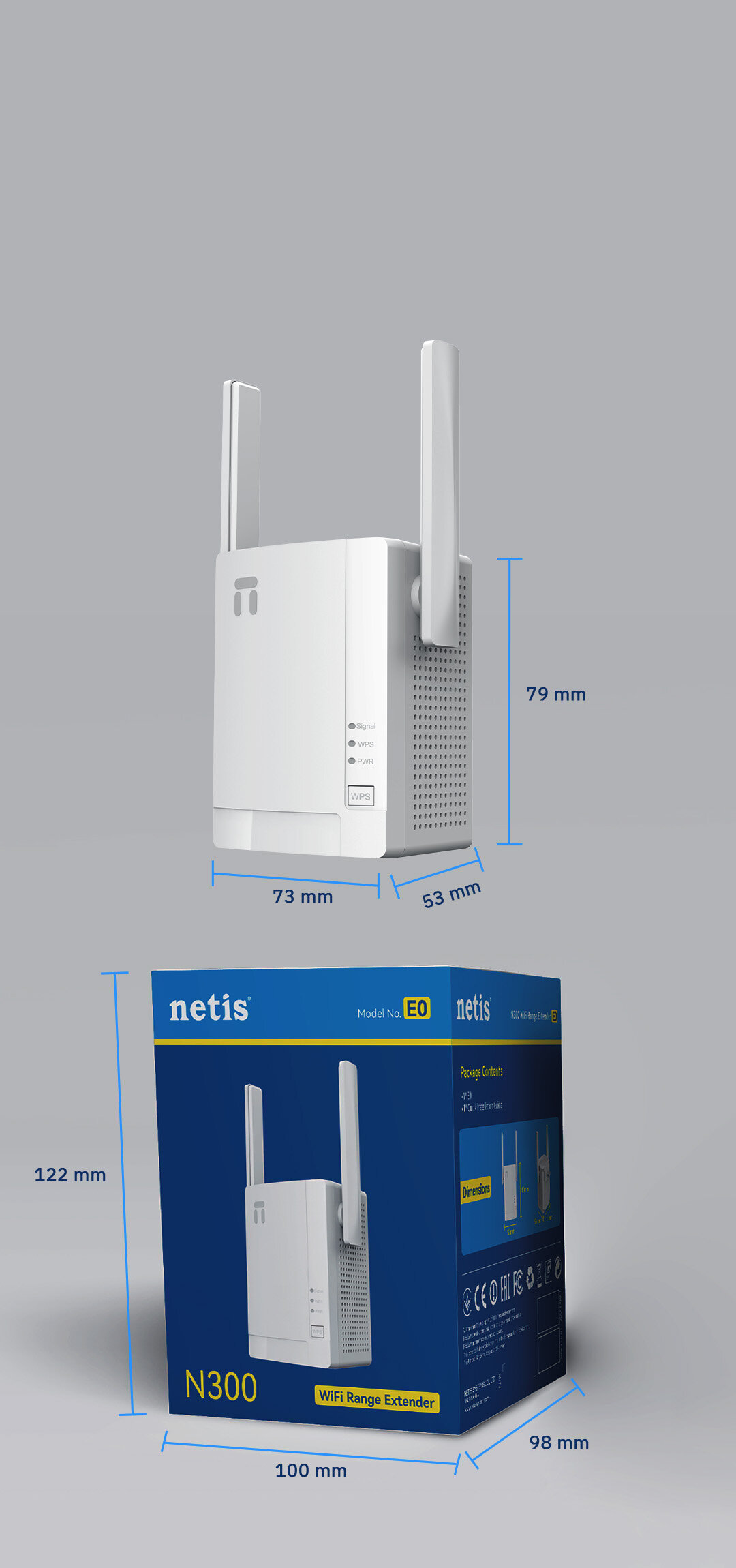

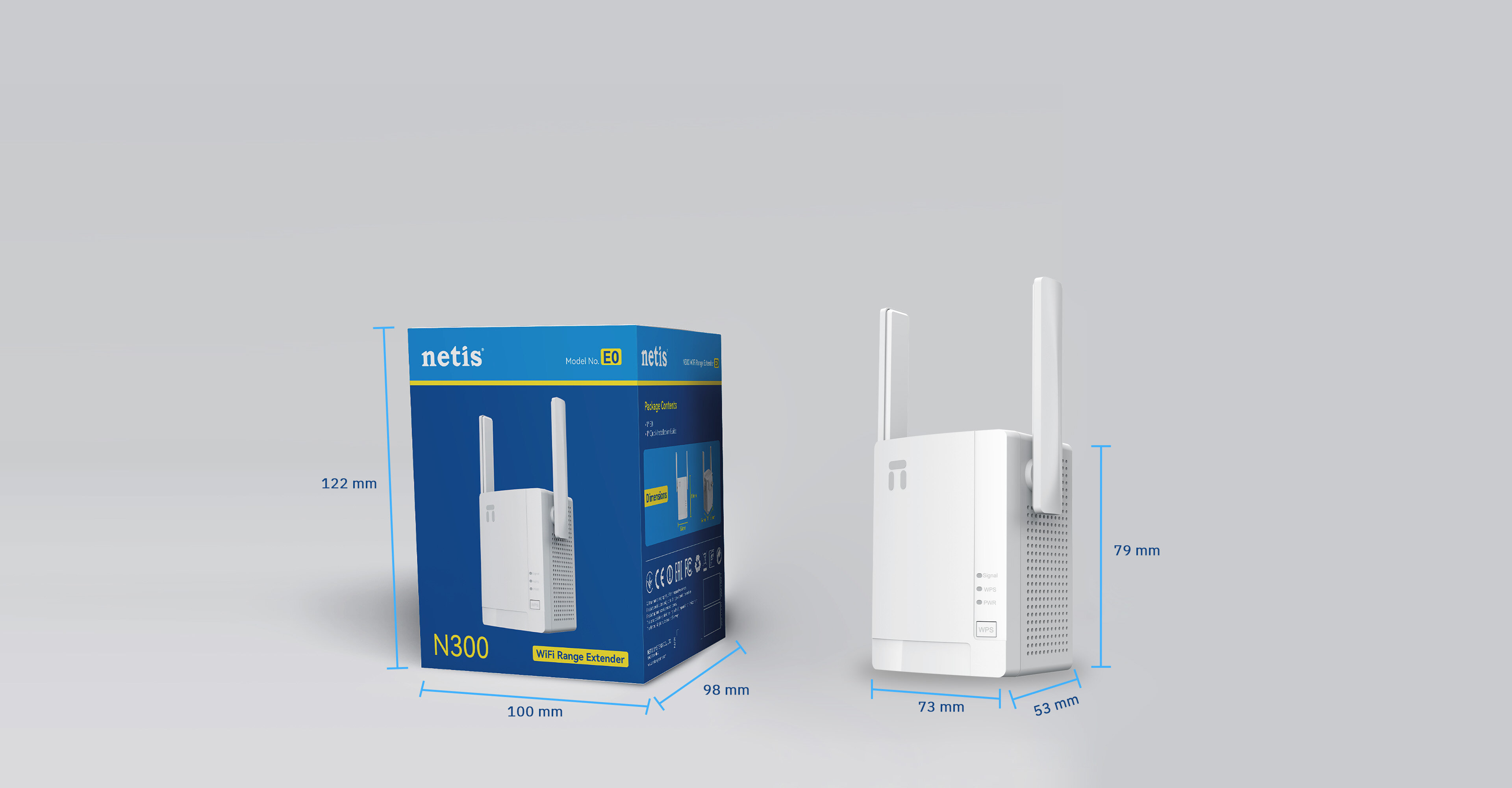

Dimensions (L x W x H )	73x53x79mm

Others

Package Contents

1* E0

1* Quick Installation Guide

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable Subscription with an internet service provider (for internet access)

Environment

Operating Temperature: 0℃ ~ 40℃

Storage Temperature: -40℃ ~ 70℃

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 90% non-condensing
