Mesh WiFi 6 / Neme X30S (1-Pack)
Neme X30S (1-Pack)
Overview | Specifications | Download
Neme X30S (1-Pack)
AX3000 Superior Whole Home Mesh Wi-Fi 6 System
  • AX3000 Dual Band WiFi: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
  • External FEM for Enhanced Signal Strength: External FEM ensures strong signal transmission, maximizing coverage and minimizing dead zones.
  • AI-Driven Mesh Network: Adapts to network conditions for a seamless, self-optimizing Wi-Fi experience.
  • Beamforming for Targeted Coverage: directs Wi-Fi signals towards individual devices rather than broadcasting them in all directions. This targeted coverage improves connection strength and stability, especially for devices located further from the mesh WiFi.
  • Easy Setup and Remote Management: supports BeeWiFi app, allowing for easy setup, remote network management, and real-time monitoring. Users can effortlessly adjust settings, run diagnostics, and access parental controls through the app, even when away from home.
  • Advanced Security Features: WPA3 encryption, built-in firewall protection, automatic updates, and guest network options ensure a secure network environment.
Overview | Specifications | Download
Specification
Wireless

Standards

 Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11b/g/n 2.4 GHz

WiFi Speeds

 AX3000

5 GHz: 2402Mbps

2.4 GHz: 574Mbps

WiFi Range
  • 4-7+ Bedroom Houses（3-pack）
  • 2*internal High-Performance Antennas
  • Multiple antennas form a signal-boosting array to cover more directions and large areas
  • Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
  • High-Power External FEM Improves transmission power to strengthen signal coverage

WiFi Capacity
  • Dual-Band：

Allocate devices to different bands for optimal performance

  • OFDMA：

Simultaneously communicates with multiple Wi-Fi 6/5/4 clients

  • Airtime Fairness：

Improves network efficiency by limiting excessive occupation

  • 4 Streams Connect your devices to more bandwidth
Hardware

Processor

Dual-core 1.3GHz CPU

DDR/FLASH

256MB/128MB

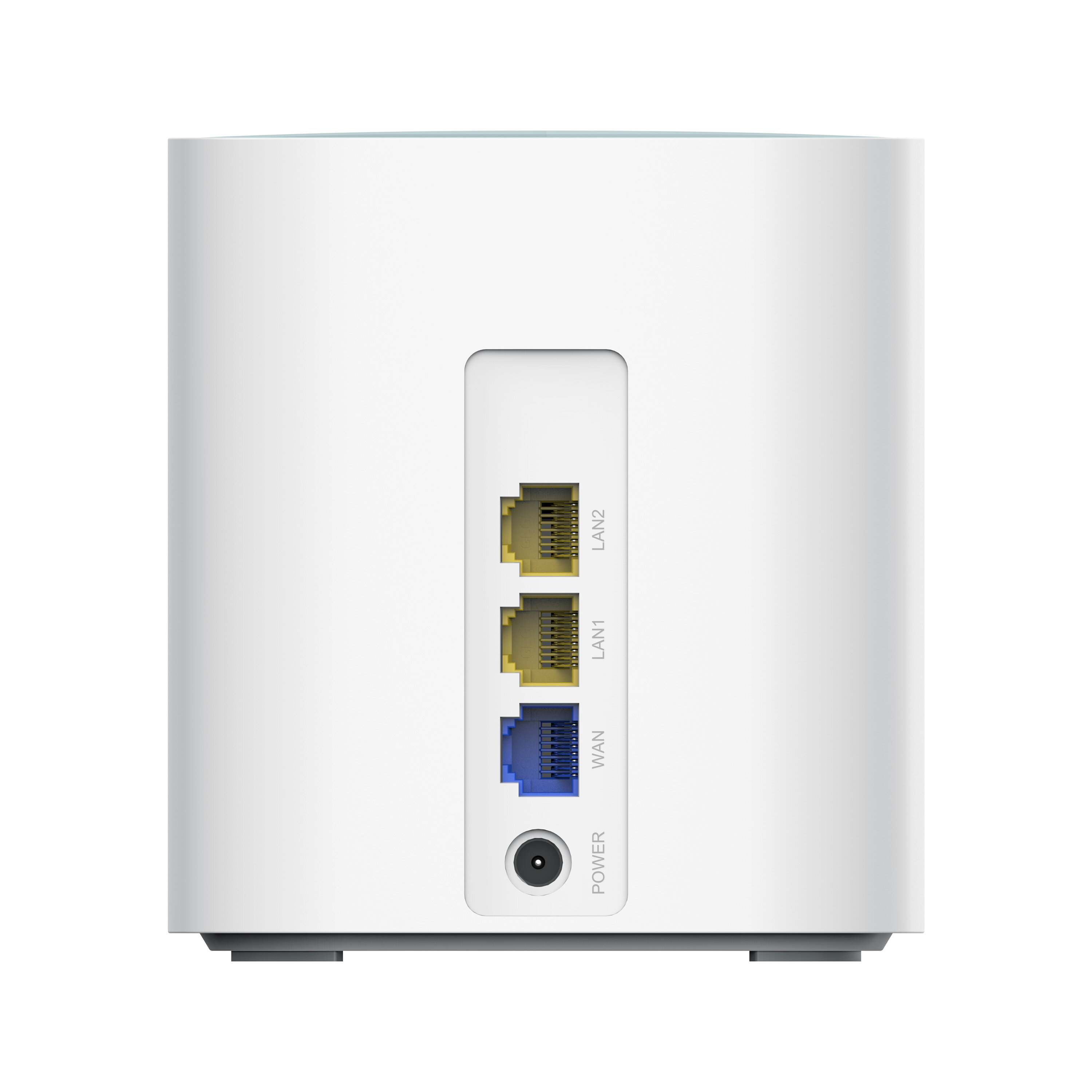

Interface

1x Gigabit WAN Port+2x Gigabit LAN Ports

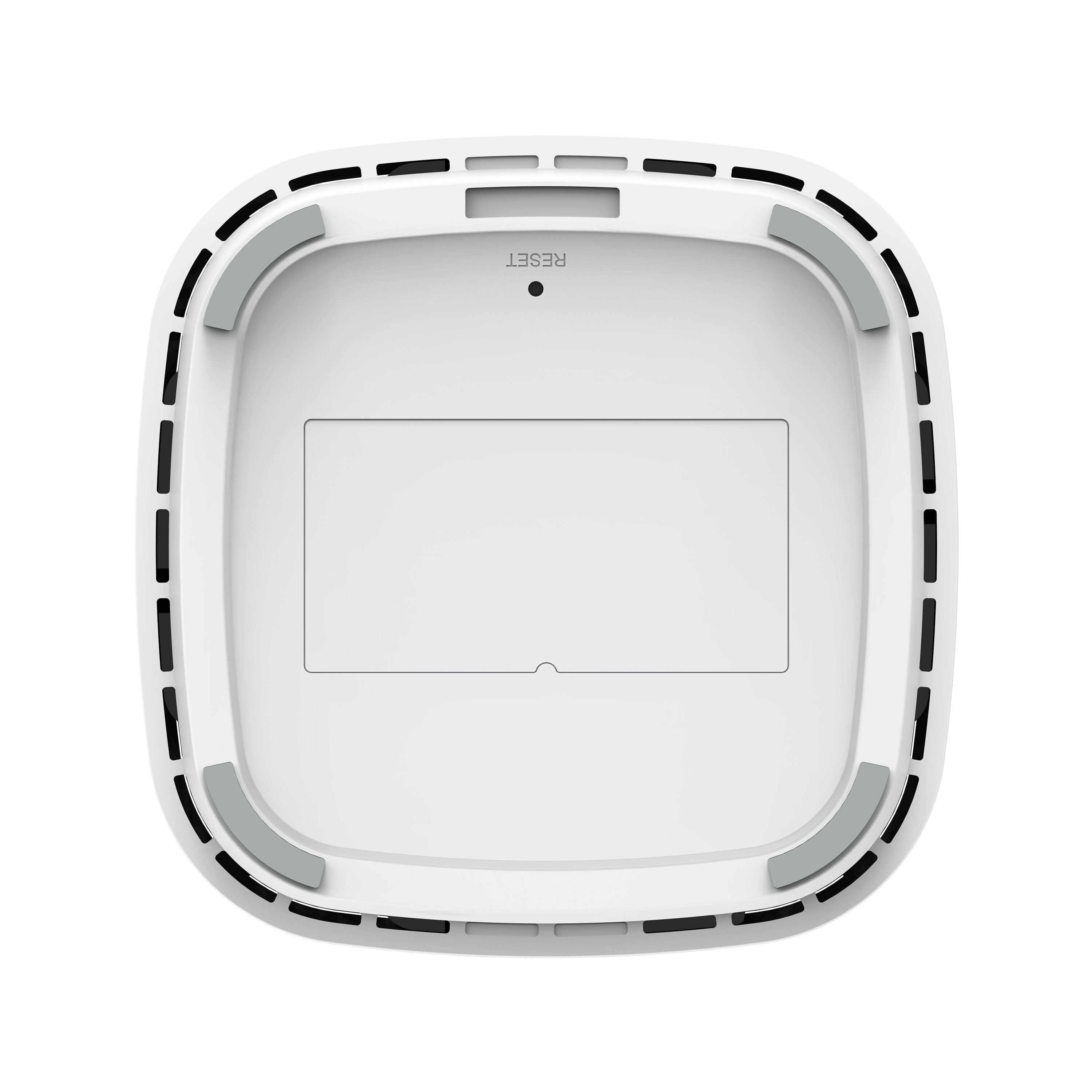

Buttons

1 RESET button on the underside

Power Adapter Input

100-240V ~ 50-60Hz 0.6A

Power Adapter Output

DC 12V/1.5A

Dimensions

(W × D × H)

106mmX106mmX115mm
Software

Working Mode

Router, Access Point

WiFi Encryption

WPA, WPA2, WPA/WPA2-Enterrprise, WPA3

Network Security

SPI Firewall, Access Control, IP & MAC Binding,Application Layer Gateway

Guest Network

5 GHz Guest Network

2.4 GHz Guest Network

Protocols

IPv4, IPv6

WAN Types

Dynamic IP, Static IP, PPPoE, PPTP, L2TP

Parental Controls

URL Filtering, Time Controls

Quality of Service

QoS by Device

IPTV

Bridge, Tag VLAN

NAT Forwarding

Port Forwarding, Port Triggering, DMZ, UPnP

Dynamic DNS

DynDns, no-ip

Management

Local Management; Remote Management; Multi-Managers

Others

FOTA, TR069, Remote Access, Backup & Restore
Physical

Package Contents

Package Contents for Neme X30S(1-pack):

1*Neme X30S unit

1*RJ45 Ethernet cable

1*Power adapter

1* Quick Installation Guide



Package Contents for Neme X30S(2-pack):

2*Neme X30S unit

1*RJ45 Ethernet cable

2*Power adapter

1* Quick Installation Guide



Package Contents for Neme X30S(3-pack):

3*Neme X30S unit

1*RJ45 Ethernet cable

3*Power adapter

1* Quick Installation Guide
Others

Certification

CE, FCC, RoHS

Environment

Operating Temperature: 0℃ ~ 40℃

Storage Temperature: -40℃ ~ 70℃

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 90% non-condensing
