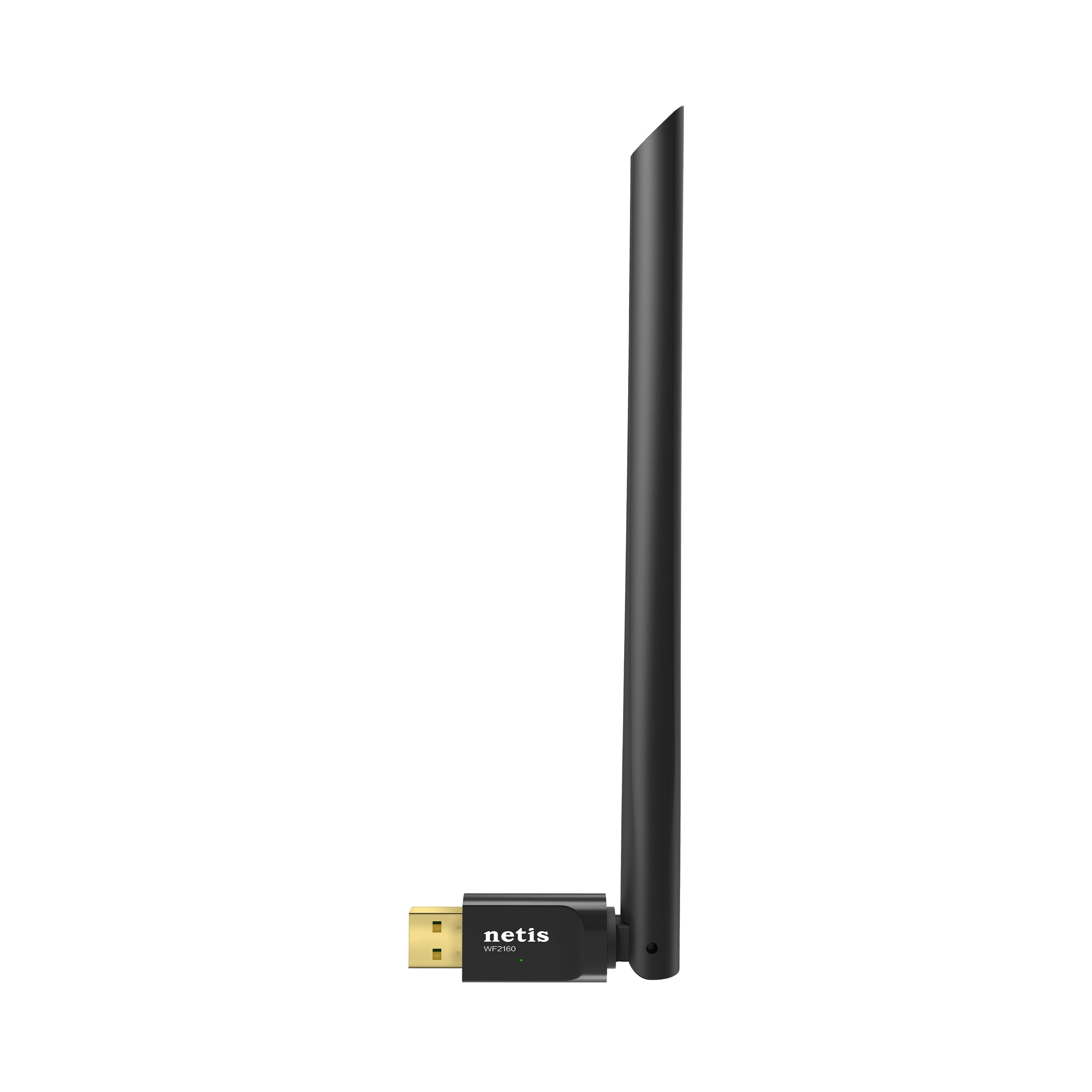

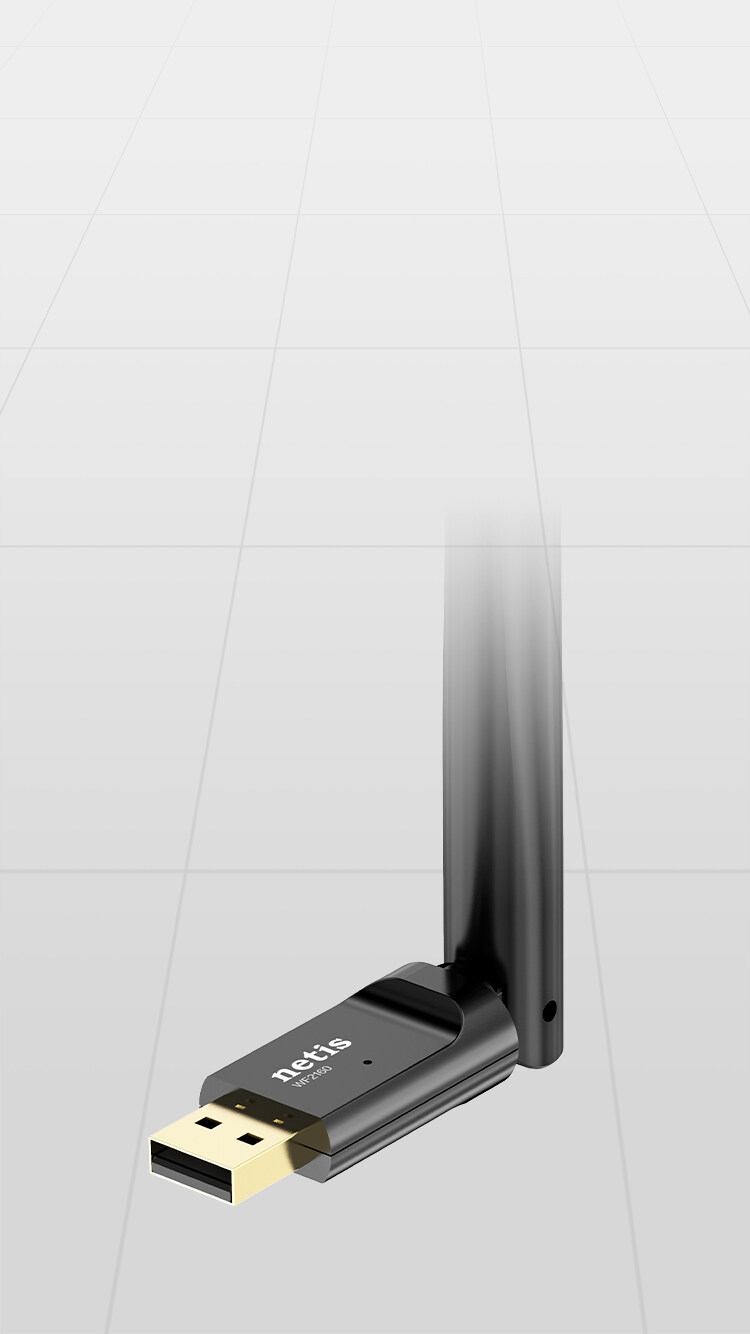

WF2160
AC650 Dual Band Driver Free WiFi Adapter
- Maximum speed up to 2.4GHz 200Mbps and 5GHz 433Mbps
- Integrate the latest 802.11 AC technology, use in 2.4 G or 5 G Networks
- 6dBi external antennas allowing for stronger antenna upgrades
- Advanced security feature with the latest WPA2 encryption to protect the network.
- Access Point feature to set up a Wi-Fi hotspot to share the Internet
- Free drive, plug and play
Dual Band
WiFi Adapter
WiFi Adapter
AC650 Drive Free USB WiFi Adapter
WF2160
6dBi High-Gain Antenna
Strong Signal
Free Driver
AP Setup
Specification
Wireless
|
Standards |
IEEE 802.11b/g/n 2.4GHz IEEE 802.11a/n/ac 5GHz |
|
Signal Rate |
Up to 200Mbps2.4GHz UP to 433Mbps 5GHz |
|
Frequency Range |
2.4-2.4835GHz;5.180-5.825GHZ |
|
Wireless Security |
WEP/WPA-PSK/WPA2-PSK |
|
Transmission Rate |
11b: 1/2/5.5/11Mbps 11g: 6/9/12/18/24/36/48/54Mbps 11n: 200Mbps 11ac: 433Mbps |
|
Transmit Power |
17dBm(Max) |
Hardware
|
USB Port |
USB2.0 |
|
Button |
Default |
|
Antenna |
1* external 6dBi antenna |
|
Support Systems |
Windows XP (32/64bits), Windows Vista (64/86bits), Windows 7 (64/86bits), Windows8(64/86bits), Windows 8.1 (64/86bits), Win 10(32/64bits) MAC 10.6-10.15 |
Others
|
Certification |
FCC, CE, EAC |
|
Soft AP |
Install a driver with UI or third-party software. (64-bit system and win10 system do not support soft AP) |
|
Package |
1* WF2160 1* Quick Installation Guide |
|
Environment |
Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
Dimensions (LxWx H) |
245 x 19x 13.5 mm |
