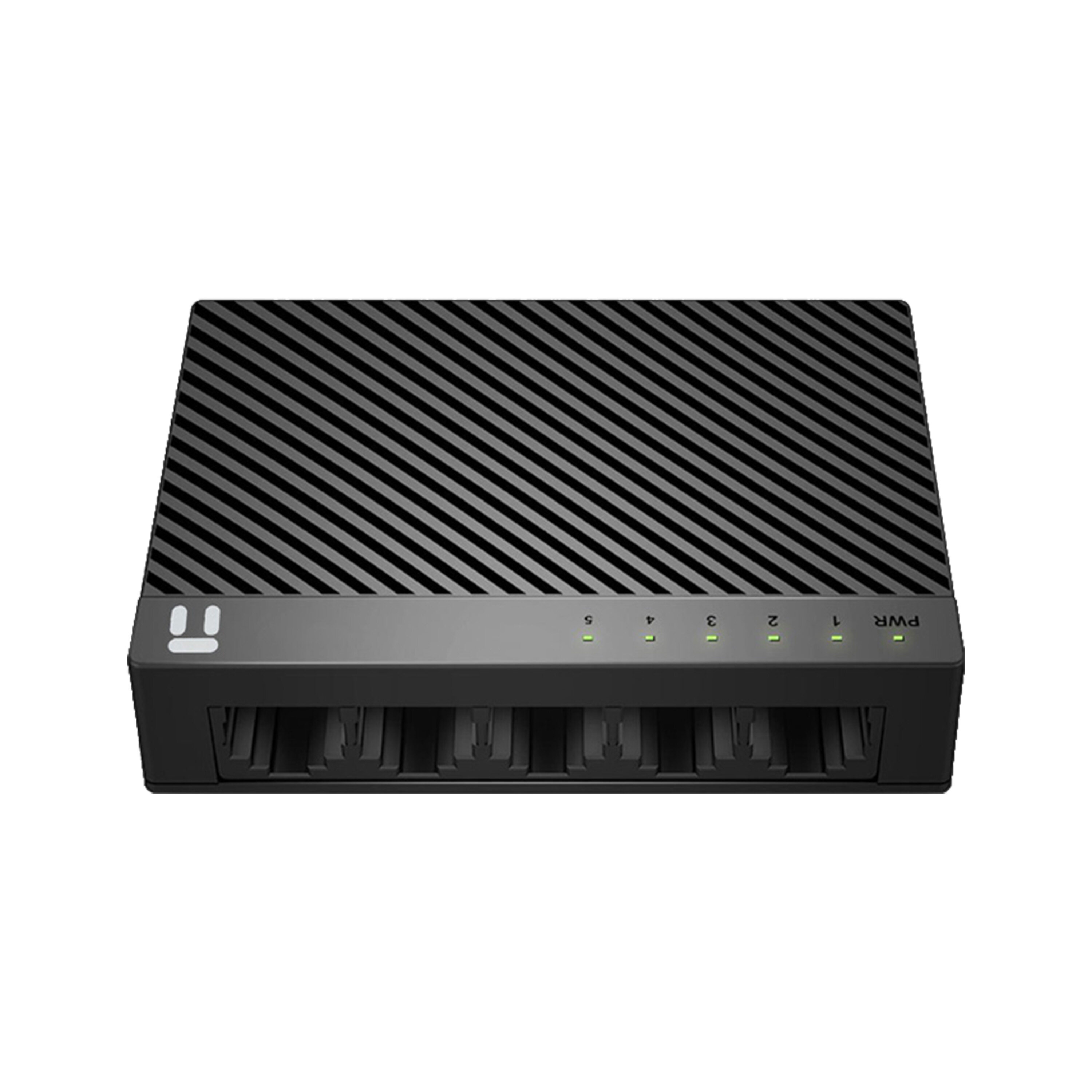

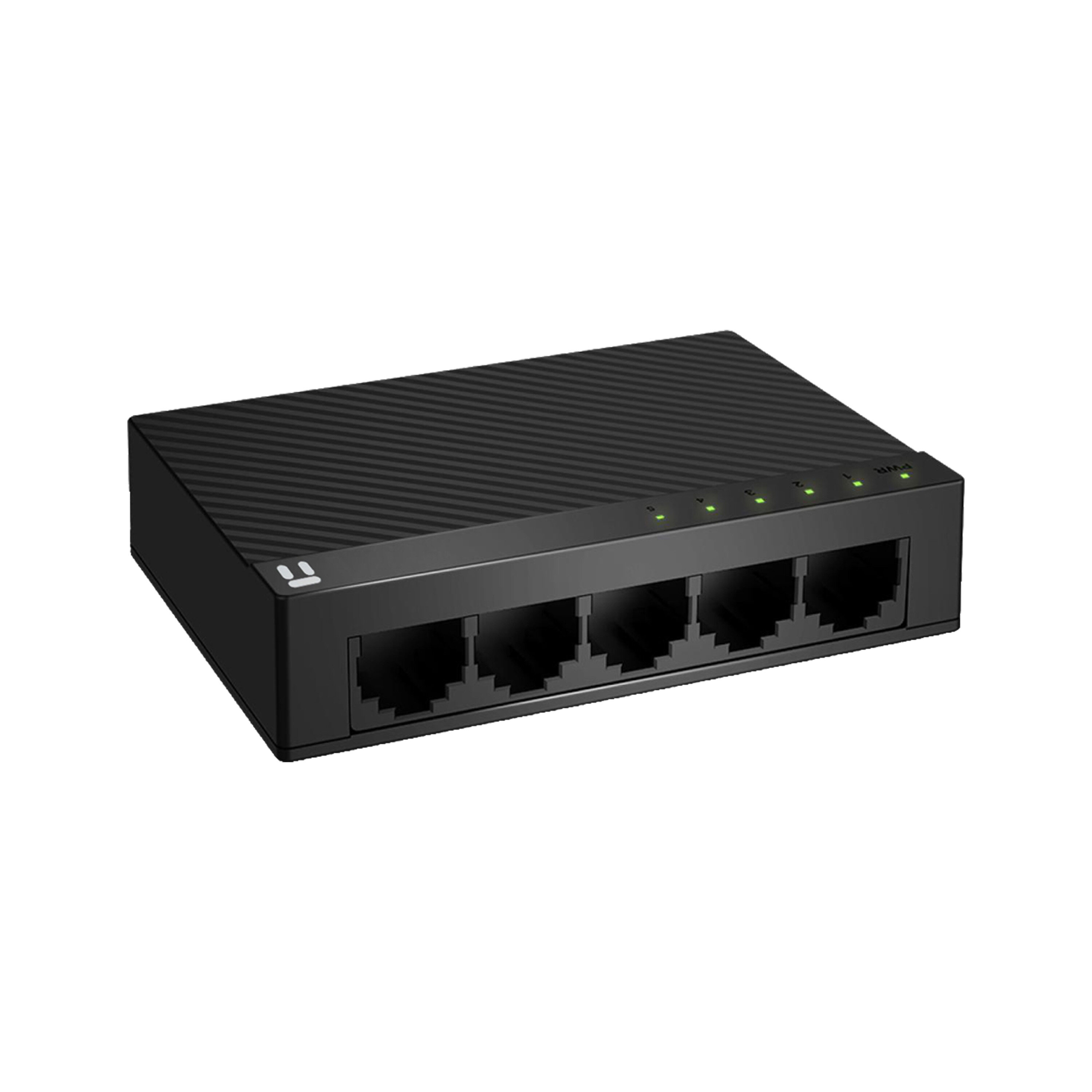

ST3105C
5 Port Fast Ethernet Switch

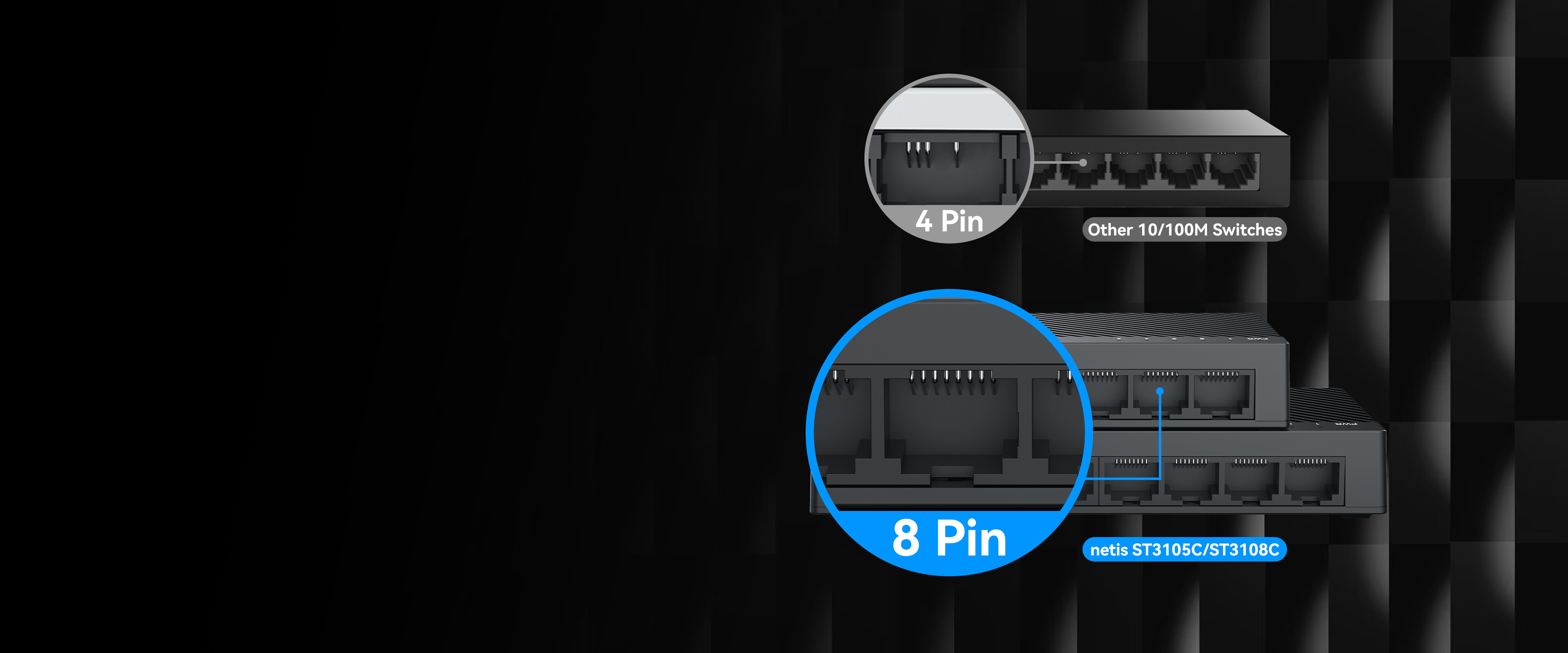

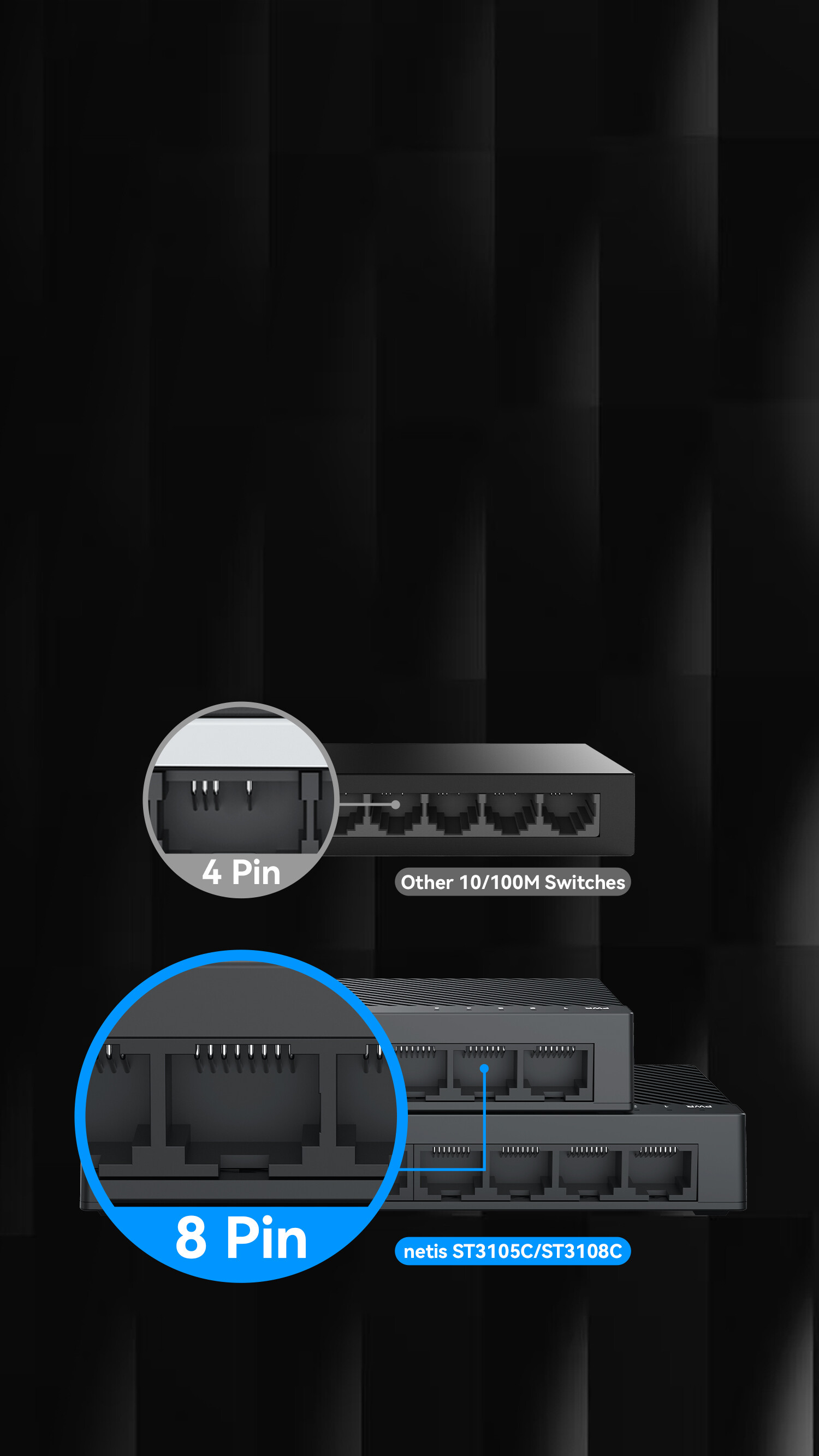

- 5*10/100Mbps Auto-Negotiation RJ45 ports, supports auto MDI/MDIX
- Green Ethernet technology saves the power up to 70%
- IEEE 802.3x flow control provides reliable data transfer

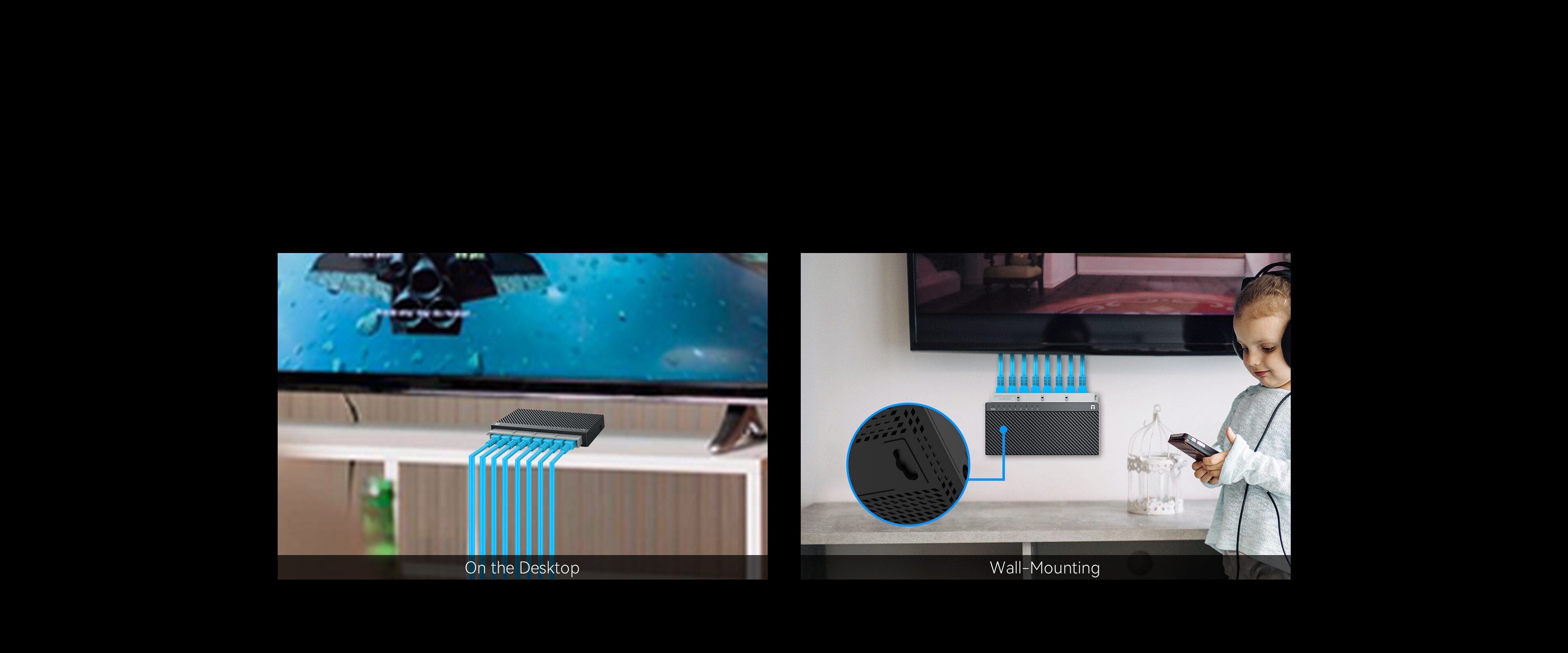

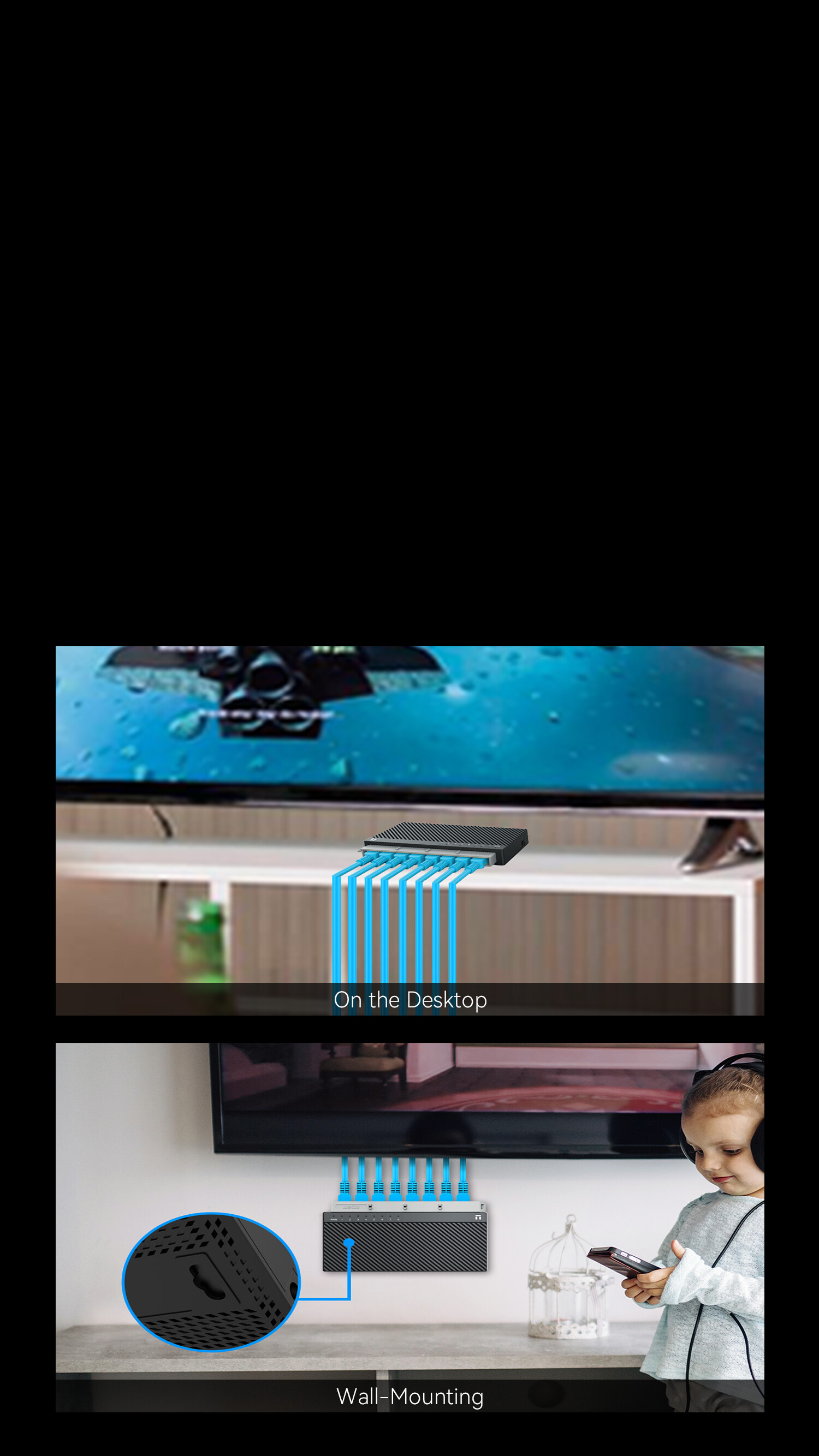

- Plastic case, desktop or wall-mounting design better for home and office use
- Plug and play, no configuration required
Specification
Hardware
|
Interface |
5 * 10/100M RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
|

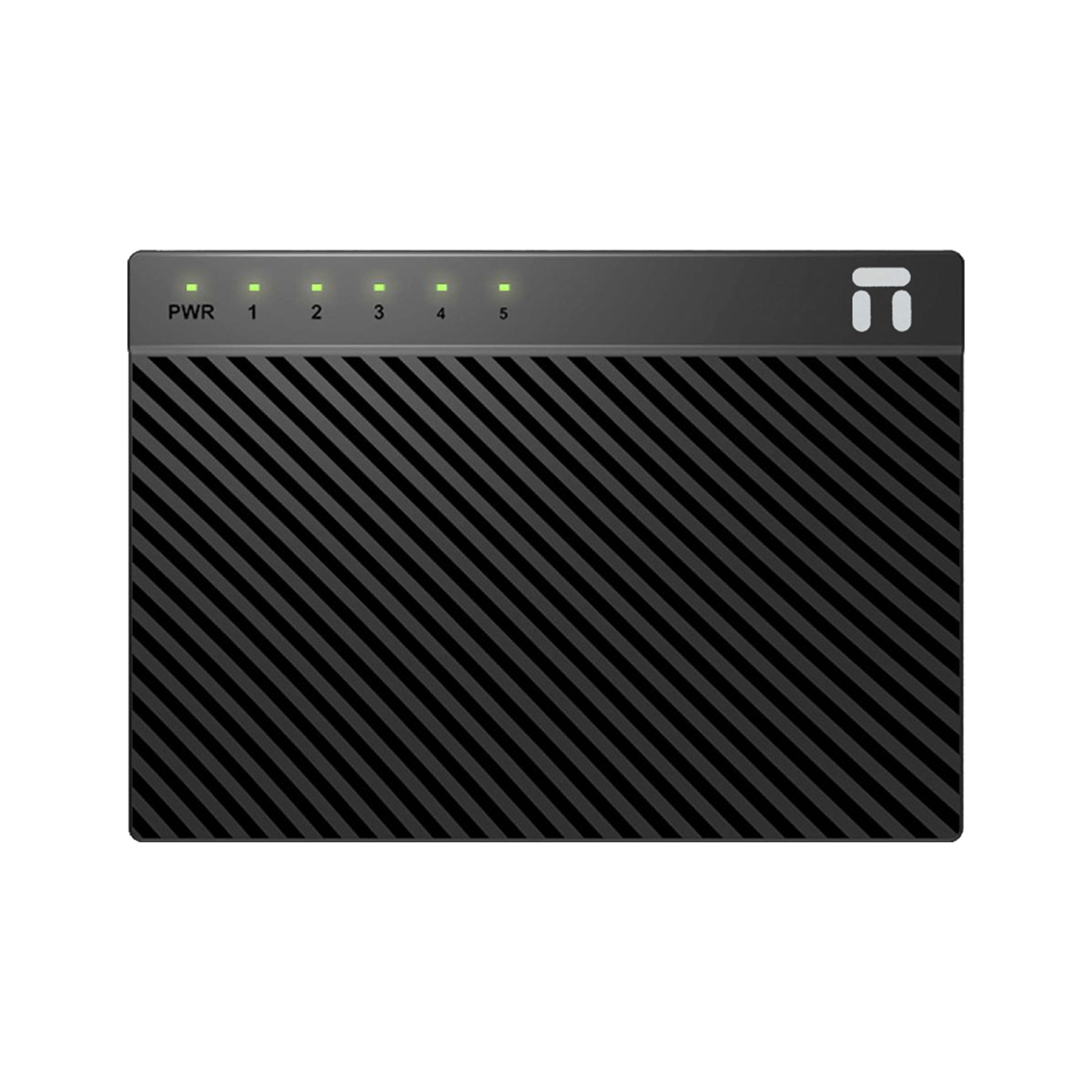

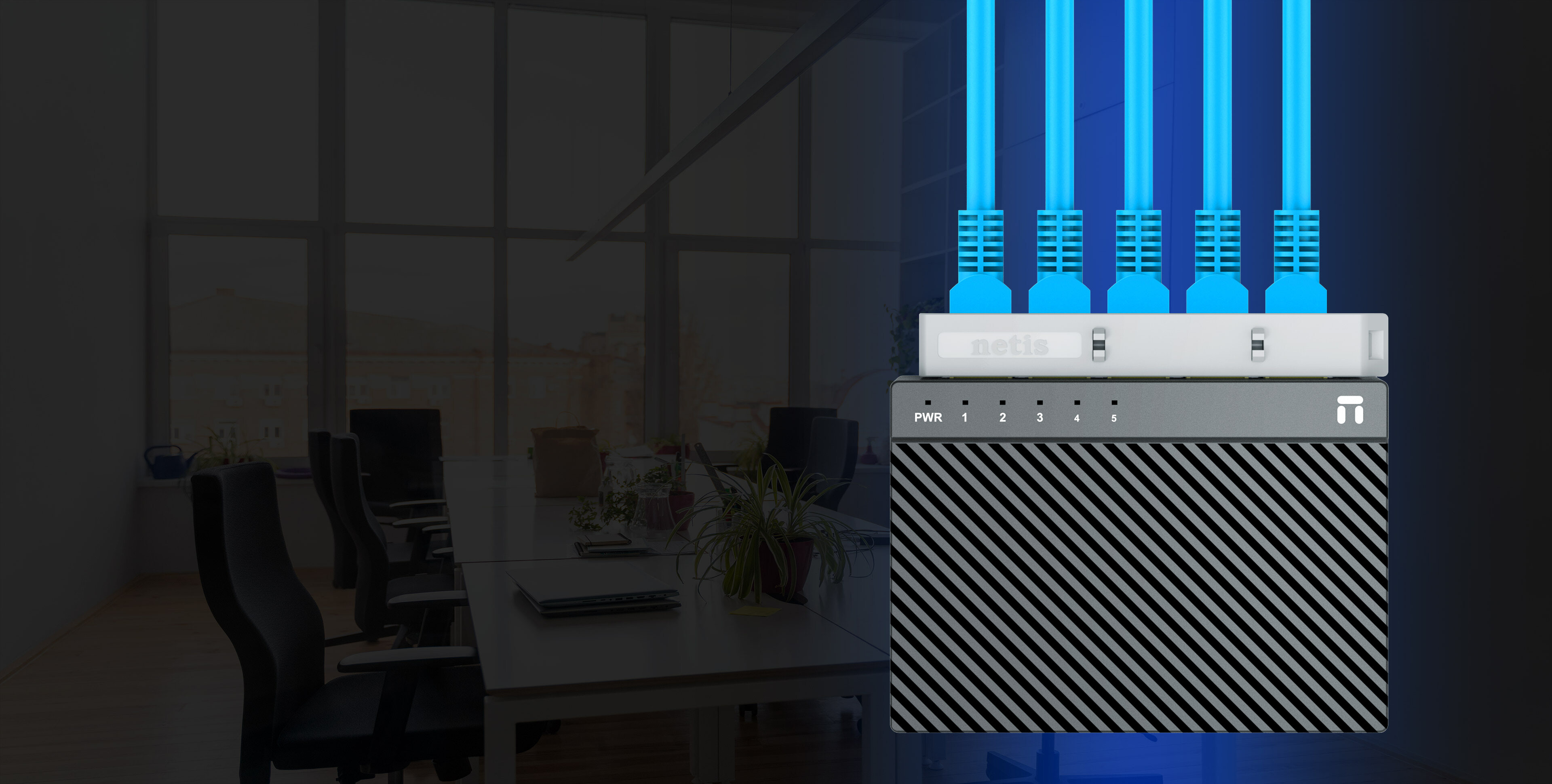

LED |
PWR, 1-5 |
|
Power Supply |
DC 5V/600mA(Output) |
|
Dimensions (L x W x H ) |
85* 75 * 222 mm |
Switching Features
|
Standard |
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, |
|
Access Method |
CSMA/CD |
|
Transmission Method |
Store and Forward |
|
Data Transmission Rate |
10/100Mbps(Half-duplex) |
|
MAC Address Table |
2K |
Others
|
Certification |
FCC, CE, BSMI |
|
Environment |
Operating Temperature: 0℃~40℃ |
|
Package |
1 * ST3105C |
