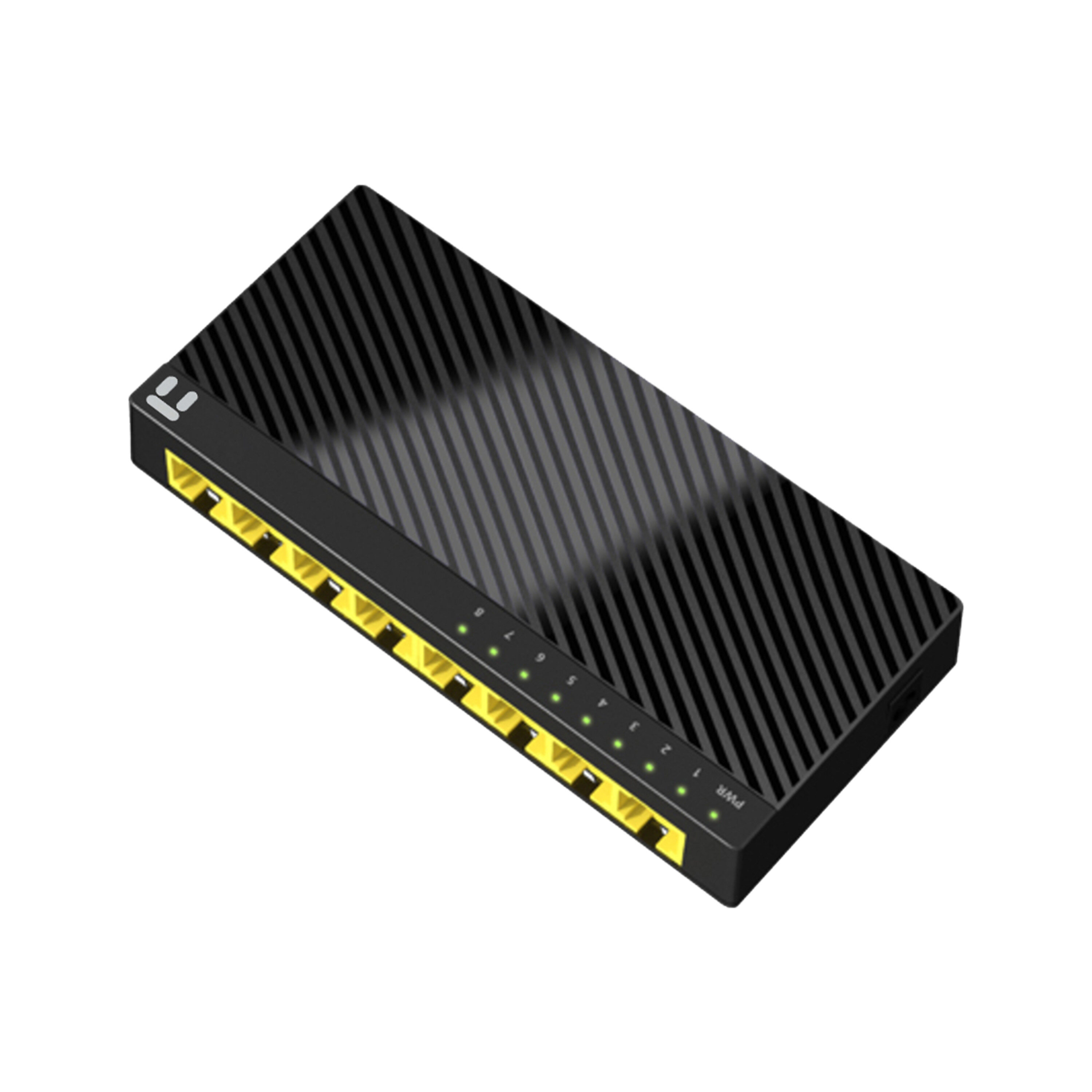

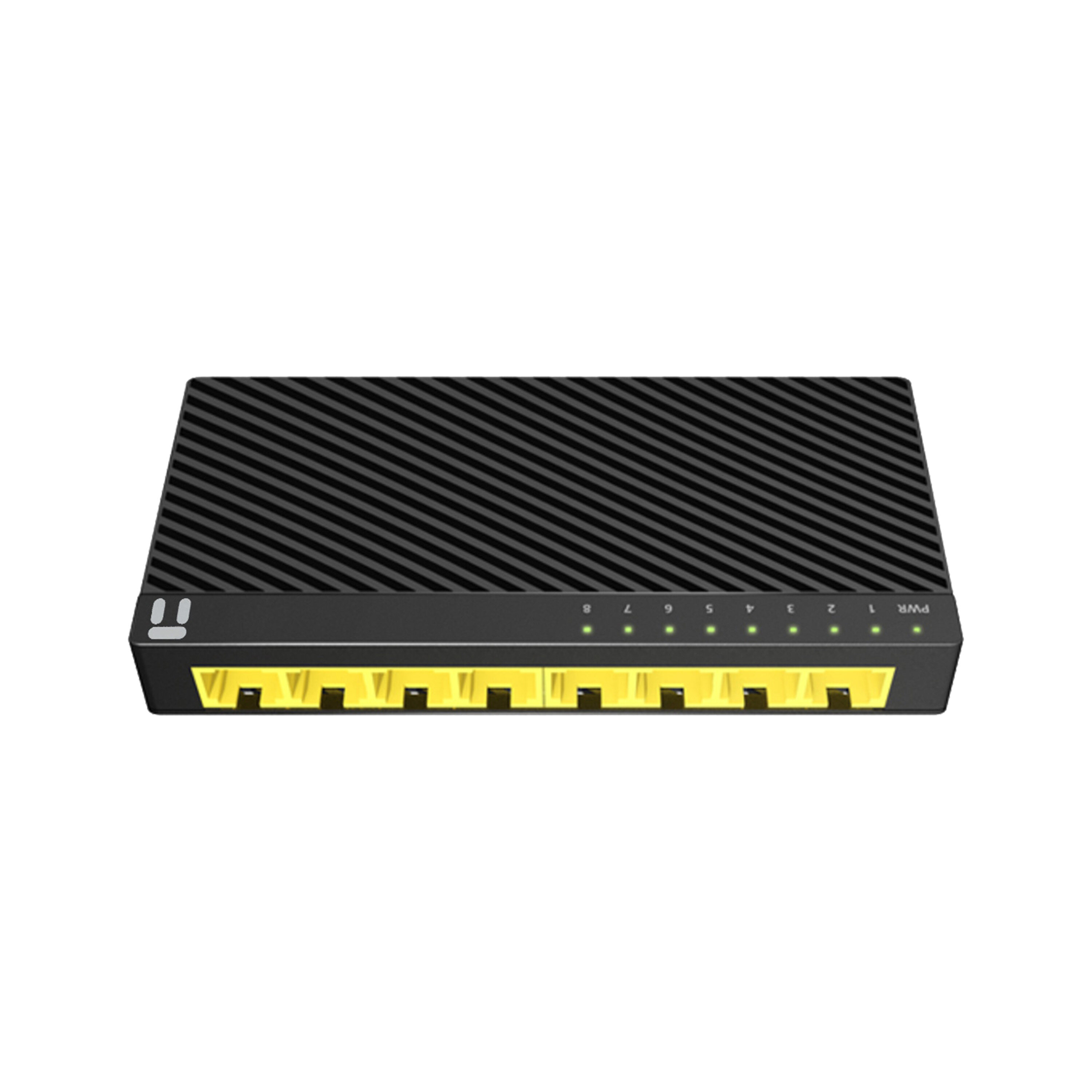

ST3108GC
8 Port Gigabit Ethernet Switch
- 8 10/100/1000Mbps RJ45 ports, Auto-Negotiation & Auto MDI/MDIX
- IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- 16Gbps switching fabric capacity/backplane bandwidth
- Support 9216-byte jumbo packet length forwarding at wired speed
- Supports 4K MAC address table, MAC address auto-learning & auto-aging
- Green Ethernet technology for effective power saving
- LED indicators for simple diagnostics and management
- Plug and play ,no configuration required
Plastic Dumb Switch
with Separated Safety Lock
with Separated Safety Lock
10/100/1000M Series:
ST3105GC | ST3108GC
ST3105GC | ST3108GC

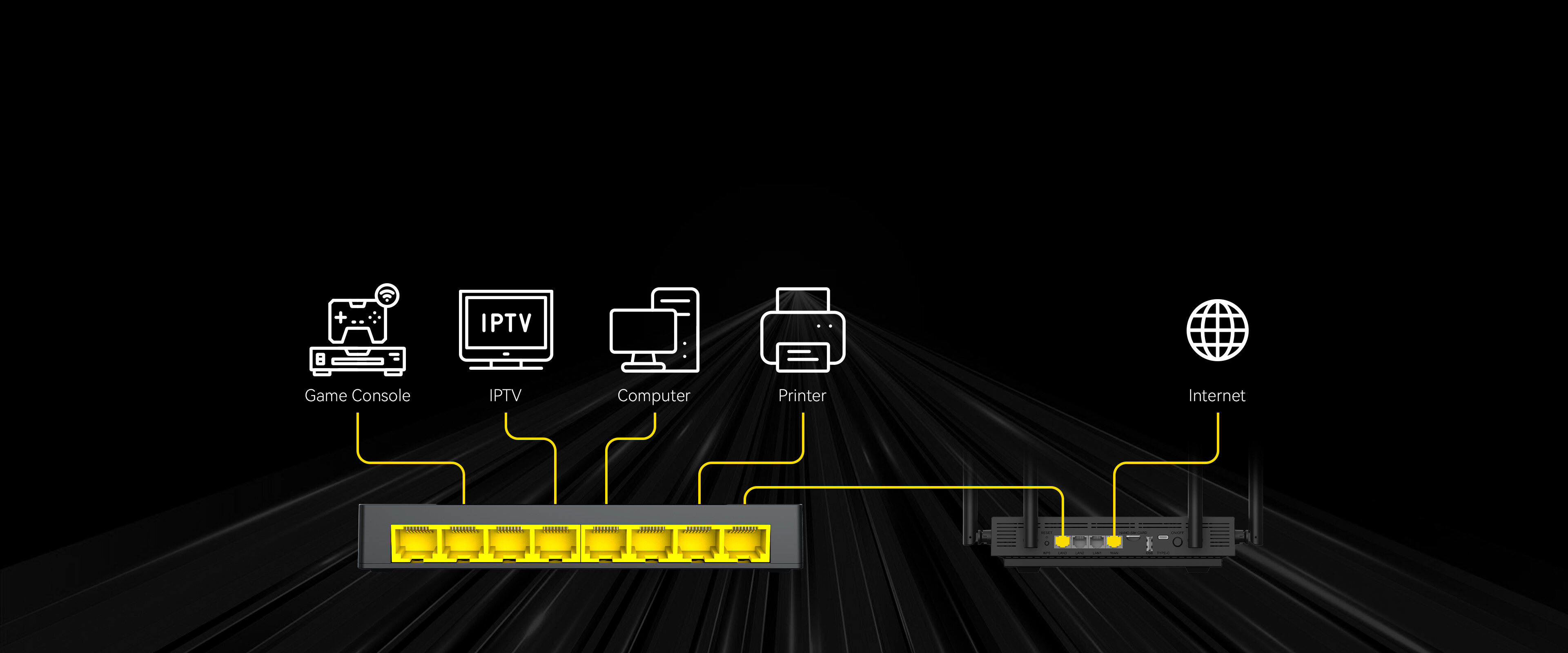

Multi-Port Flexibility, Smooth & Stable Data Flow
Effortlessly expands network and connects multiple devices—PCs, printers, smart TVs, game consoles, or IP cameras—using any standard Ethernet cable (thanks to Auto MDI/MDIX). Each 10/100Mbps port instantly finds the best speed for its device, ensuring consistently smooth and stable performance.
All Gigabit Ports
Gigabit adaptive ports provide faster data transfer, and make full use of broadband resources.
More Stable，Fewer Network Failures

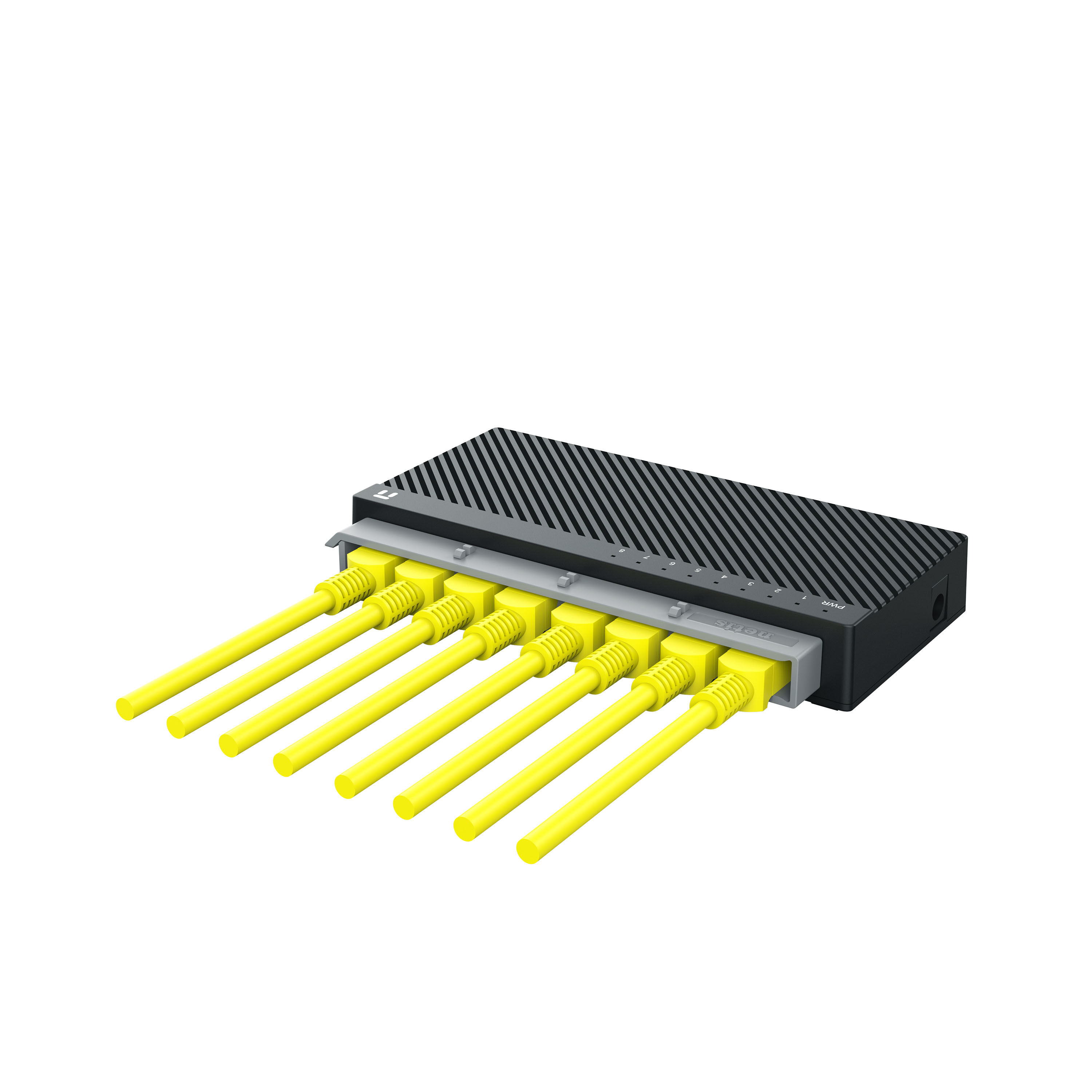

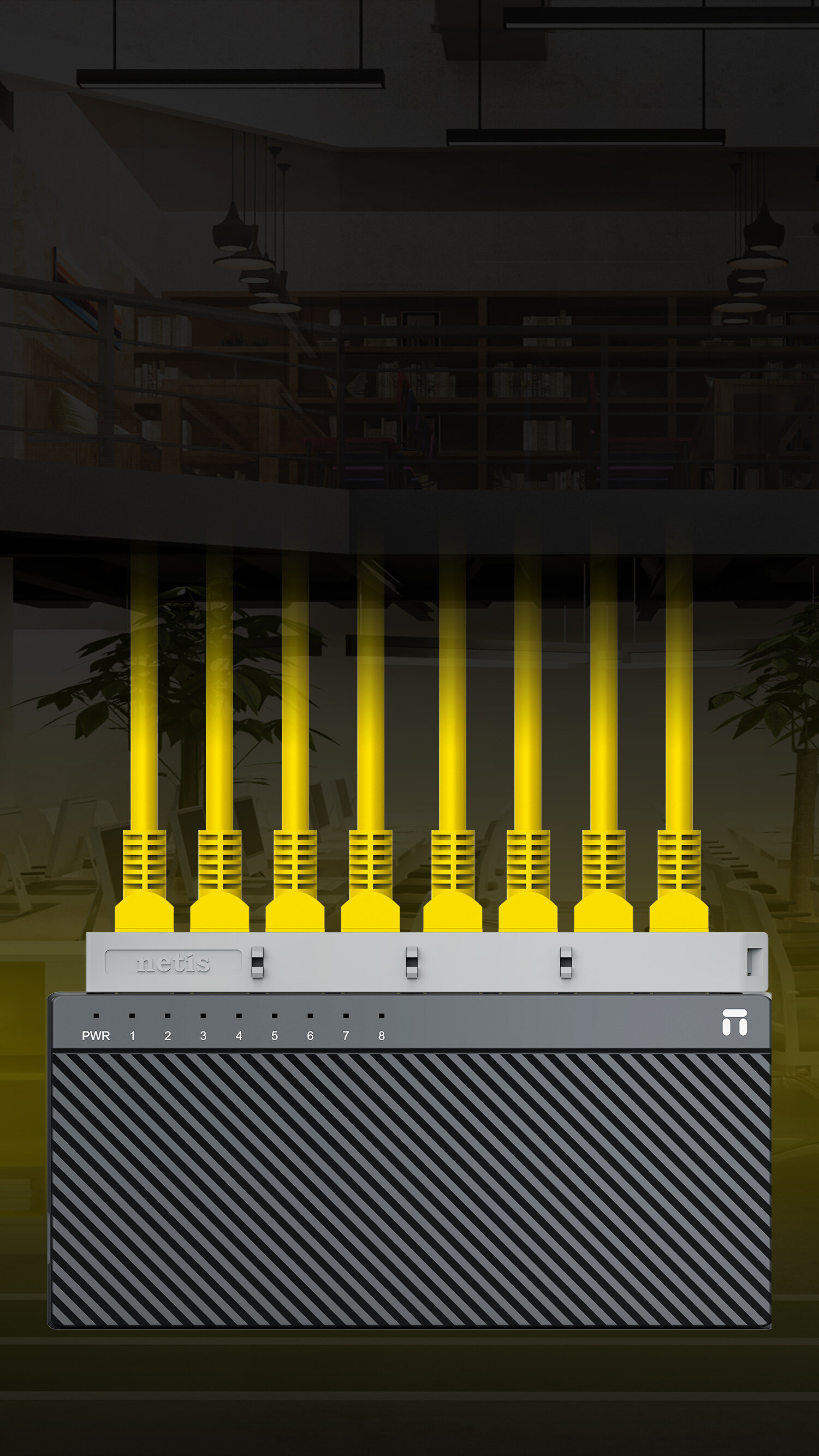

Netis' patented safety lock effectively guards against most network failures caused by loosen or broken modular plugs, ensuring stable data transmission. Additionally, it aids in cable management, making after-sales troubleshooting easier.

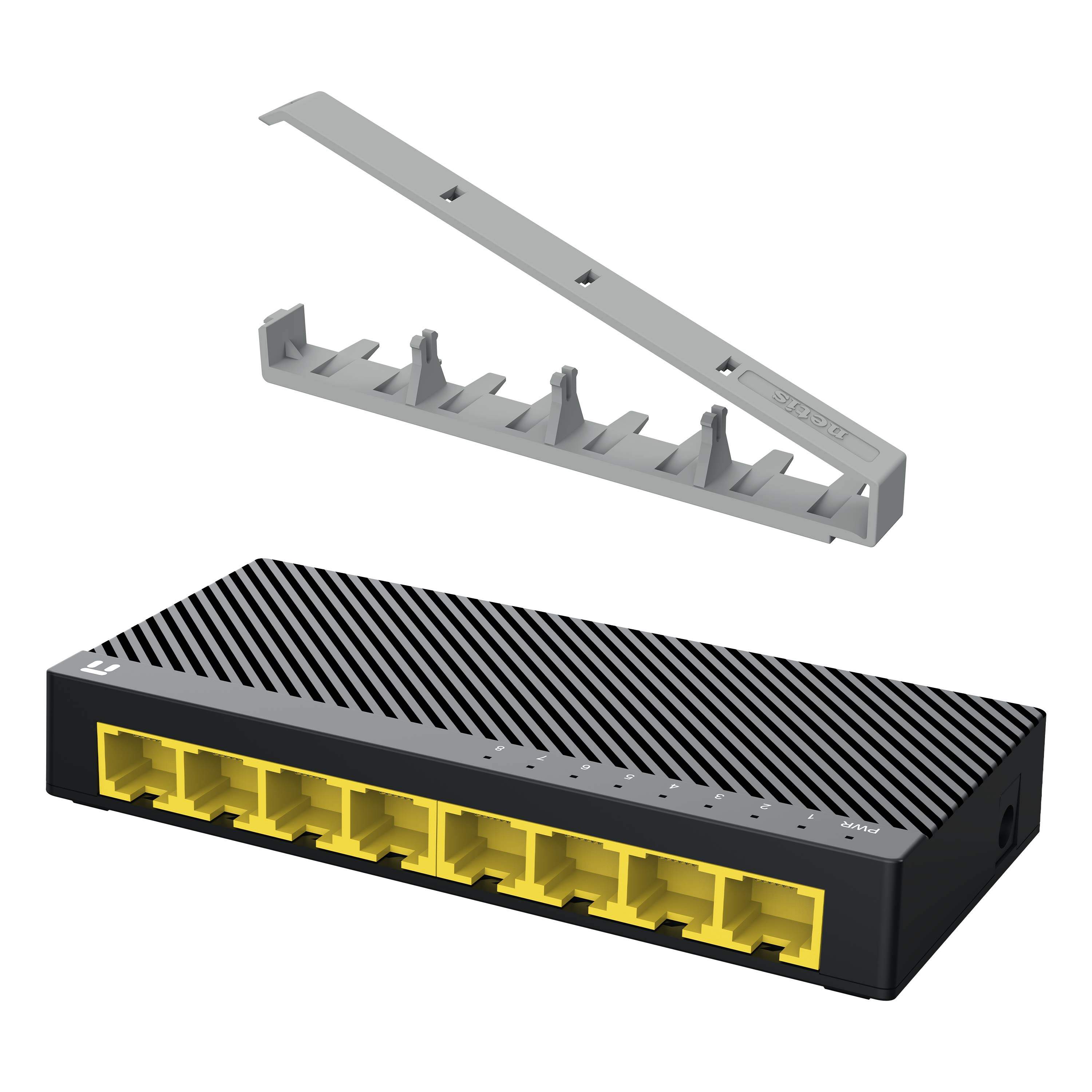

How to Use the Safety Lock
Green Ethernet Technology for Energy Savings
ST3108GC intelligently adjusts power usage based on cable length and link status, reducing energy consumption when ports are inactive or connected to low-power devices.It helps to minimize your energy consumption and operational costs while maximizing efficiency.
Diamond-Shaped Vent for Efficient Heat Dissipation
Designed with a diamond-shaped ventilation pattern, ST3108GC promotes better airflow and heat dissipation, preventing overheating and extending the lifespan of your switch.

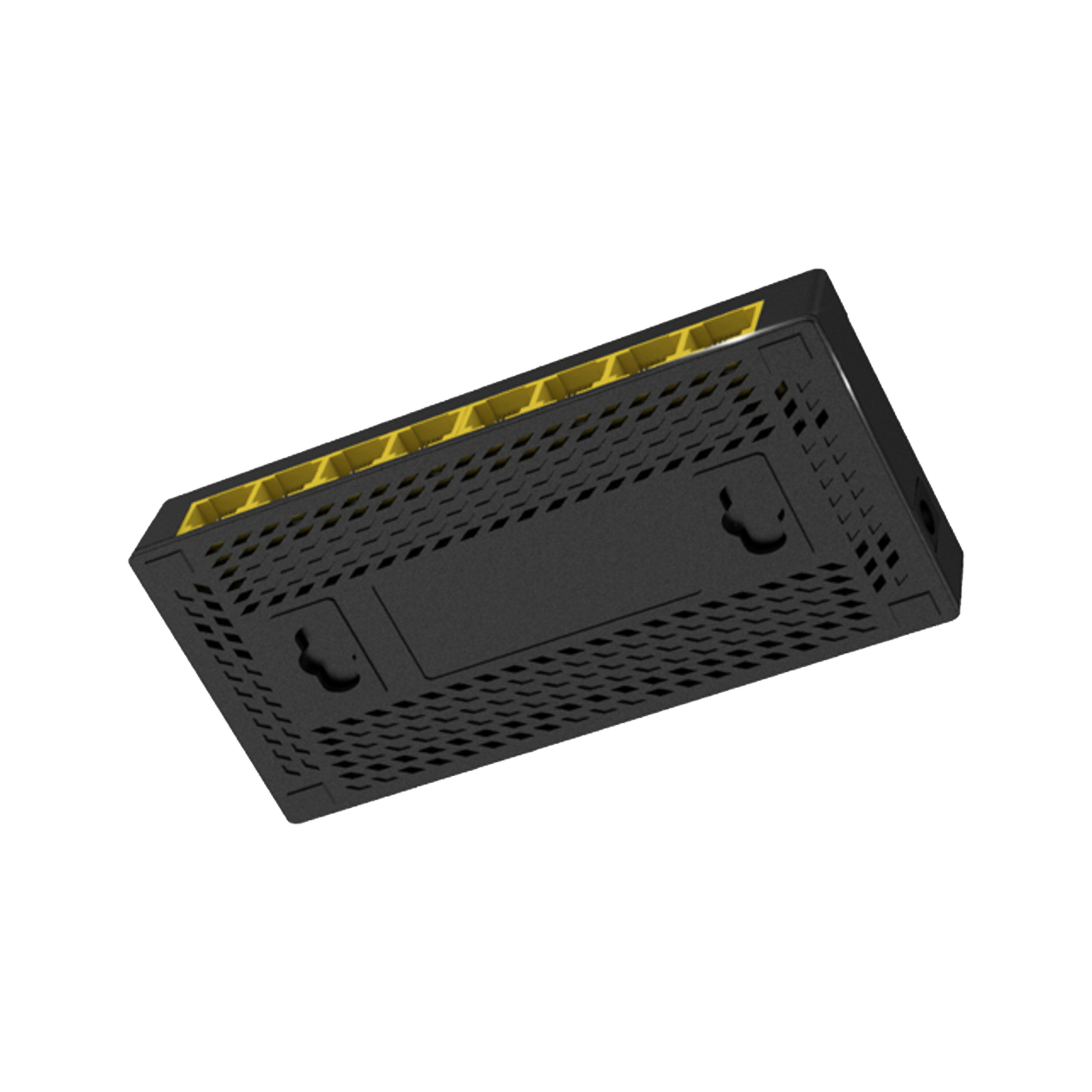

Flexible Desktop or Wall-Mounting Design
ST3108GC features a compact desktop design that fits seamlessly into any environment. The two mounting ports on the back allows for convenient wall mounting, saving space and providing flexibility in deployment.
Plug and Play，Adapt Anywhere
No configuration needed, simply plug in your devices, and the ST3108GC will automatically establish connections, providing immediate network expansion for homes, offices, dormitories, or surveillance systems,ect.
Specification
Hardware
|
Interface |
8* 10/100/1000M T ports |
|
LED |
PWR, LAN1-LAN8 |
|
Power Supply |
DC 5V/800mA (Output) |
|
Dimensions (L x W x H ) |
135 * 62.5 * 18mm |
|
Cabling Type |
10Base-T: UTP Cat.3 or up |
Software
|
Standard |
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Bast-T |
|
Access Method |
CSMA/CD |
|
Transmission Method |
Store and Forward |
|
Switch Architecture |
Non-blocking |
|
Data Transmission Rate |
10/100Mbps(Half-duplex) |
|
MAC Address Table |
4K |
Others
|
Certification |
FCC, CE |
|
Environment |
Operating Temperature: 0℃~40℃ |
|
Package |
1* ST3108GC |
