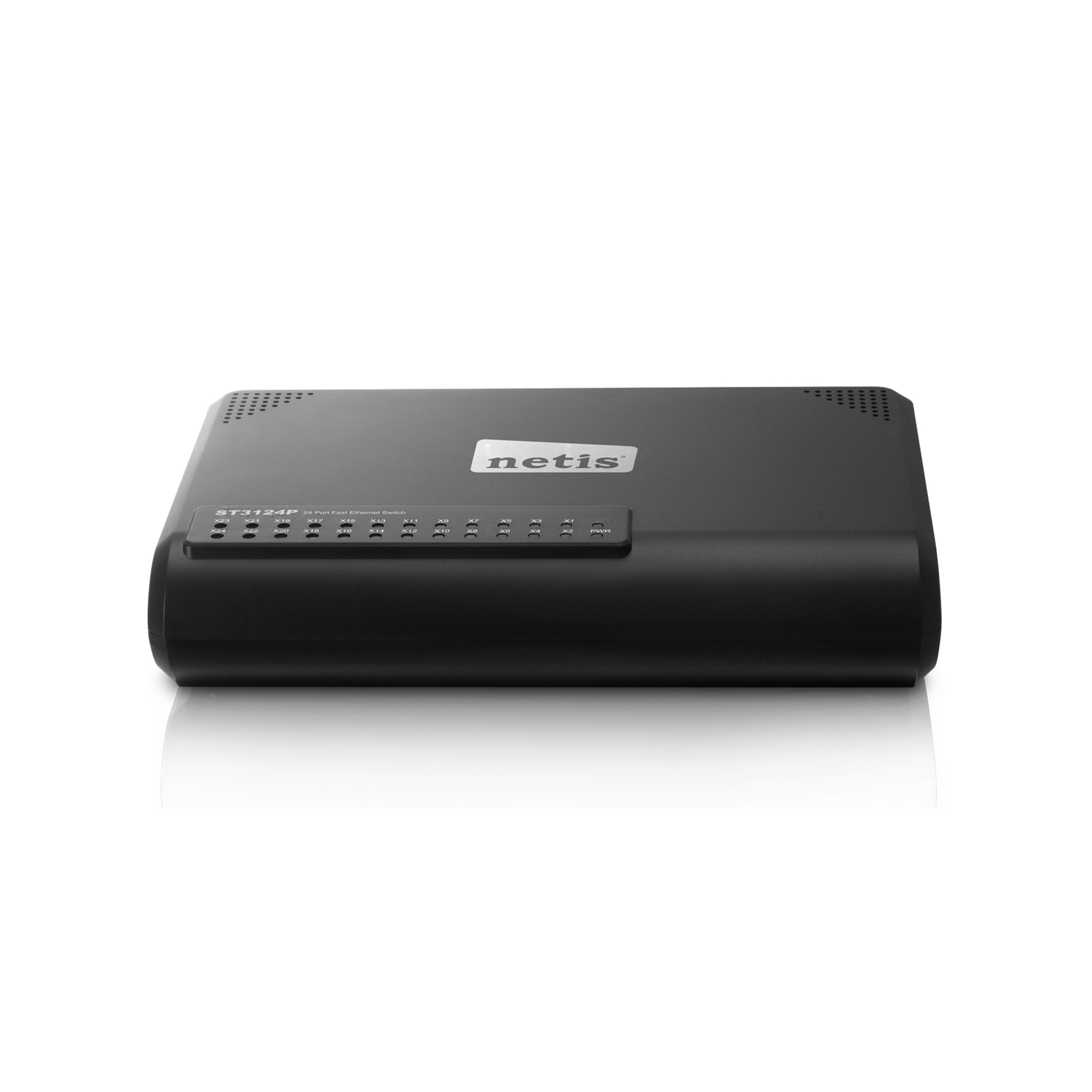

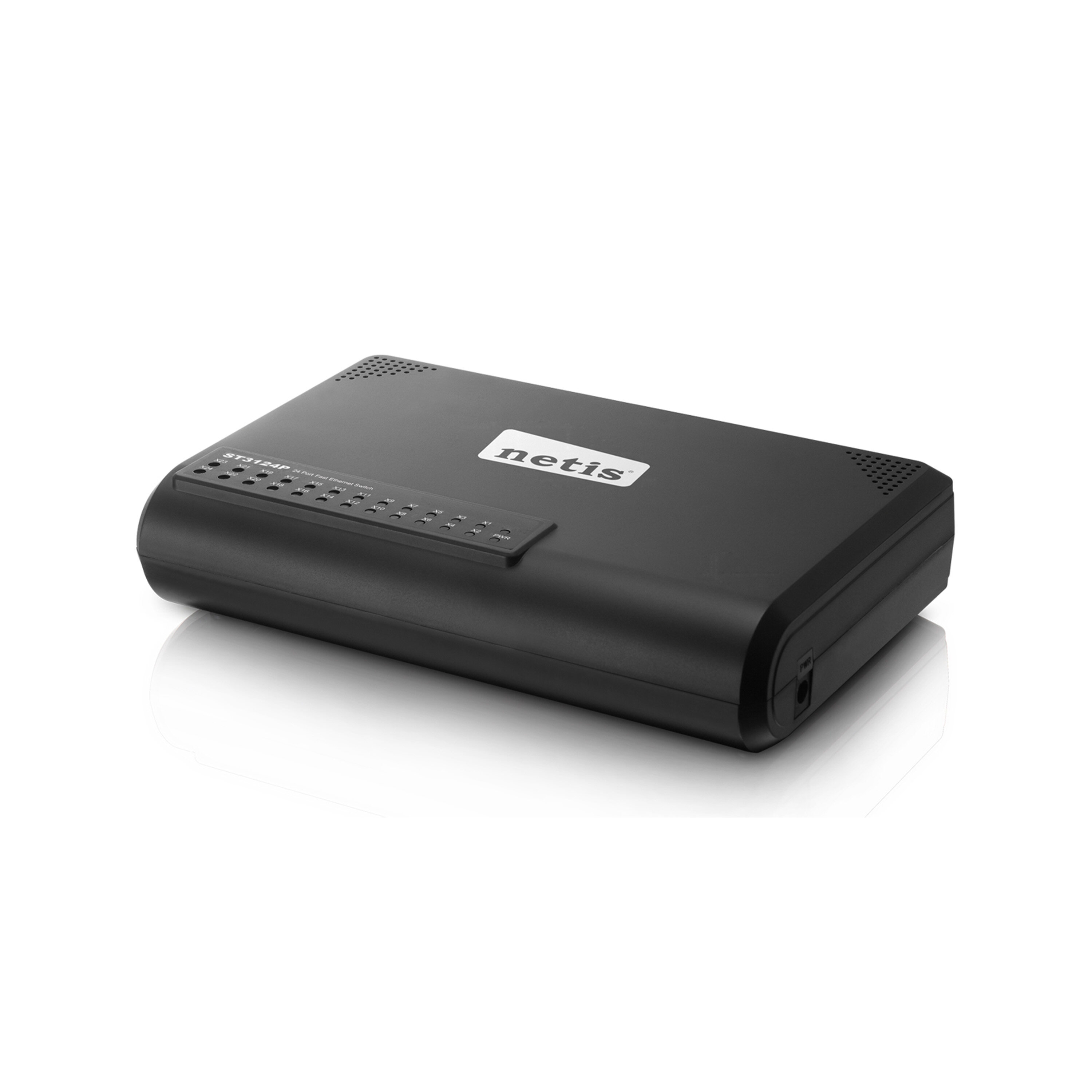

ST3124P
24 Port Fast Ethernet Switch
- 24*10/100Mbps RJ45 ports
- Supports MAC address self-learning and auto MDI/MDIX
- Green Ethernet technology link down power saving and link on various cable length power saving
- Supports Jumbo frame
- Supports 8K MAC address table
- 4.8 Gbps Switching Capacity
- Fanless design to make sure it works quietly without disturbing your family
- Plug and play, no configuration required
Specification
Hardware
|
Interface |
24 * 10/100Mbps RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
|
LED |
PWR, 1X-24X |
|
Power Supply |
DC 12V/1A(Output) |
|
Dimensions (L x W x H ) |
310 * 200 *70 mm |
Switching Features
|
Standard |
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control, IEEE 802.3az |
|
Access Method |
CSMA/CD |
|
Transmission Method |
Store and Forward |
|
Data Transmission Rate |
10/100Mbps(Half-duplex) |
|
Switching Fabric Capacity |
4.8Gbps |
|
Jumbo Frame |
2KB |
|
MAC Address Table |
8K, auto-learning & auto-aging |
Others
|
Certification |
FCC, CE |
|
Environment |
Operating Temperature: 0℃~40℃ |
|
Package |
1 * ST3124P |
