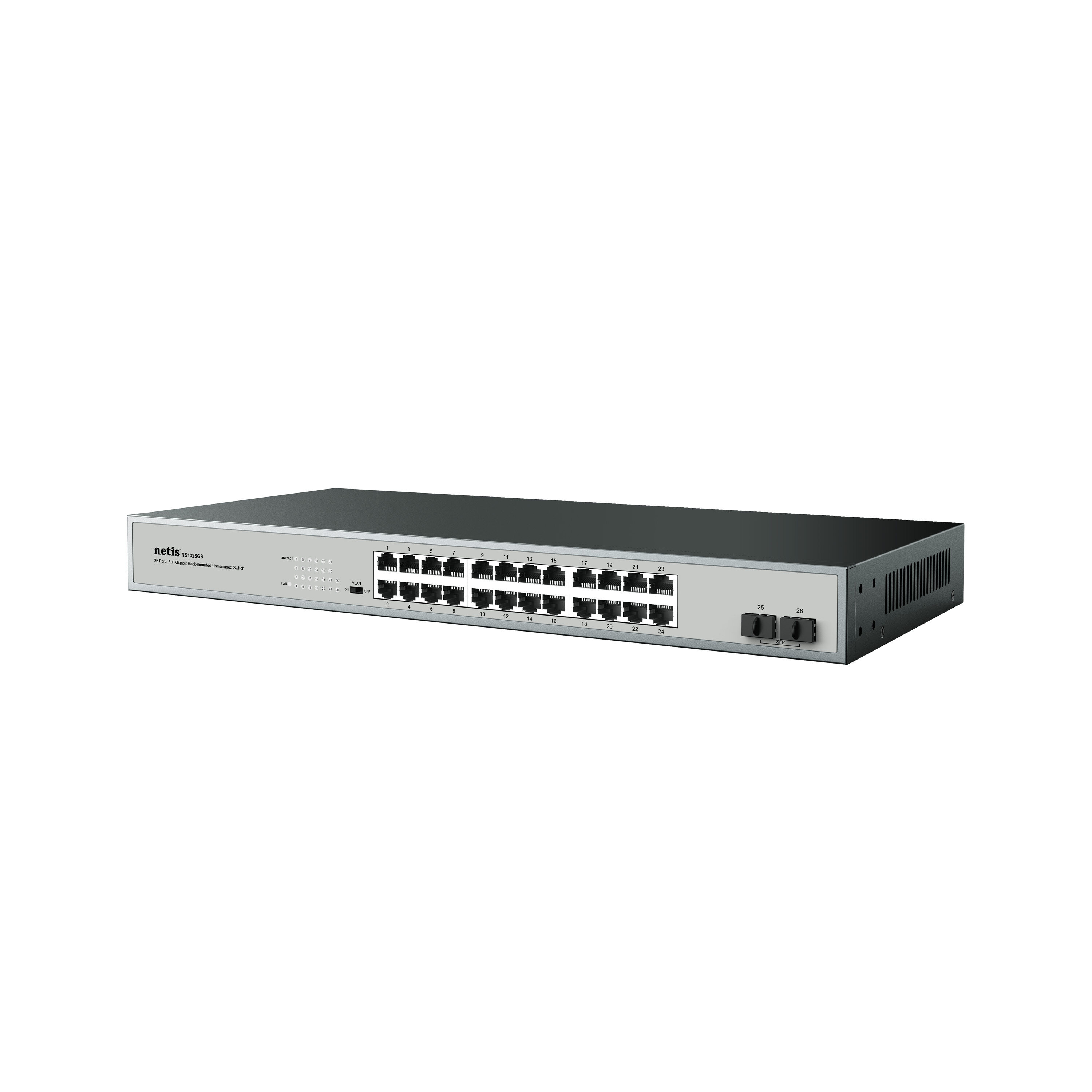

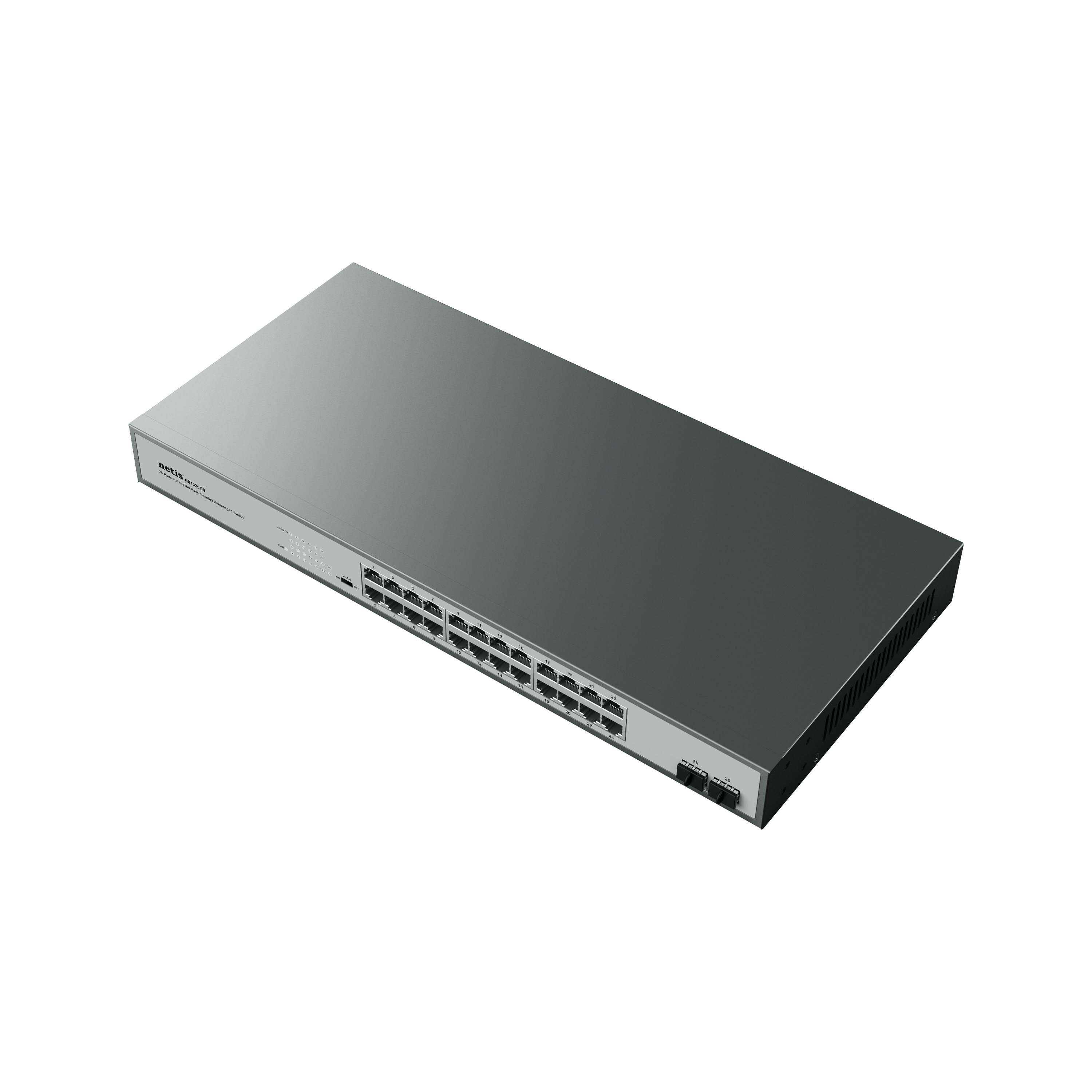

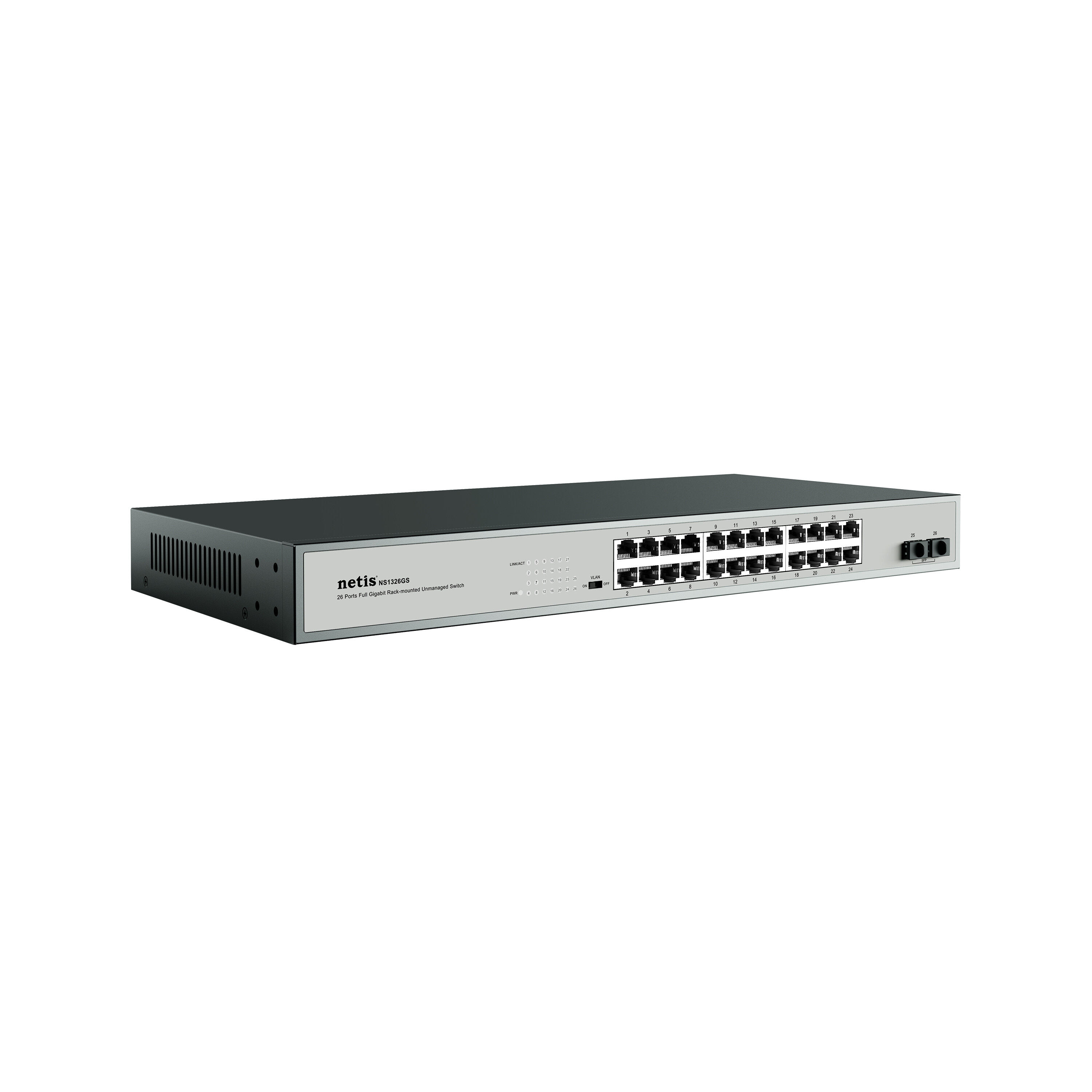

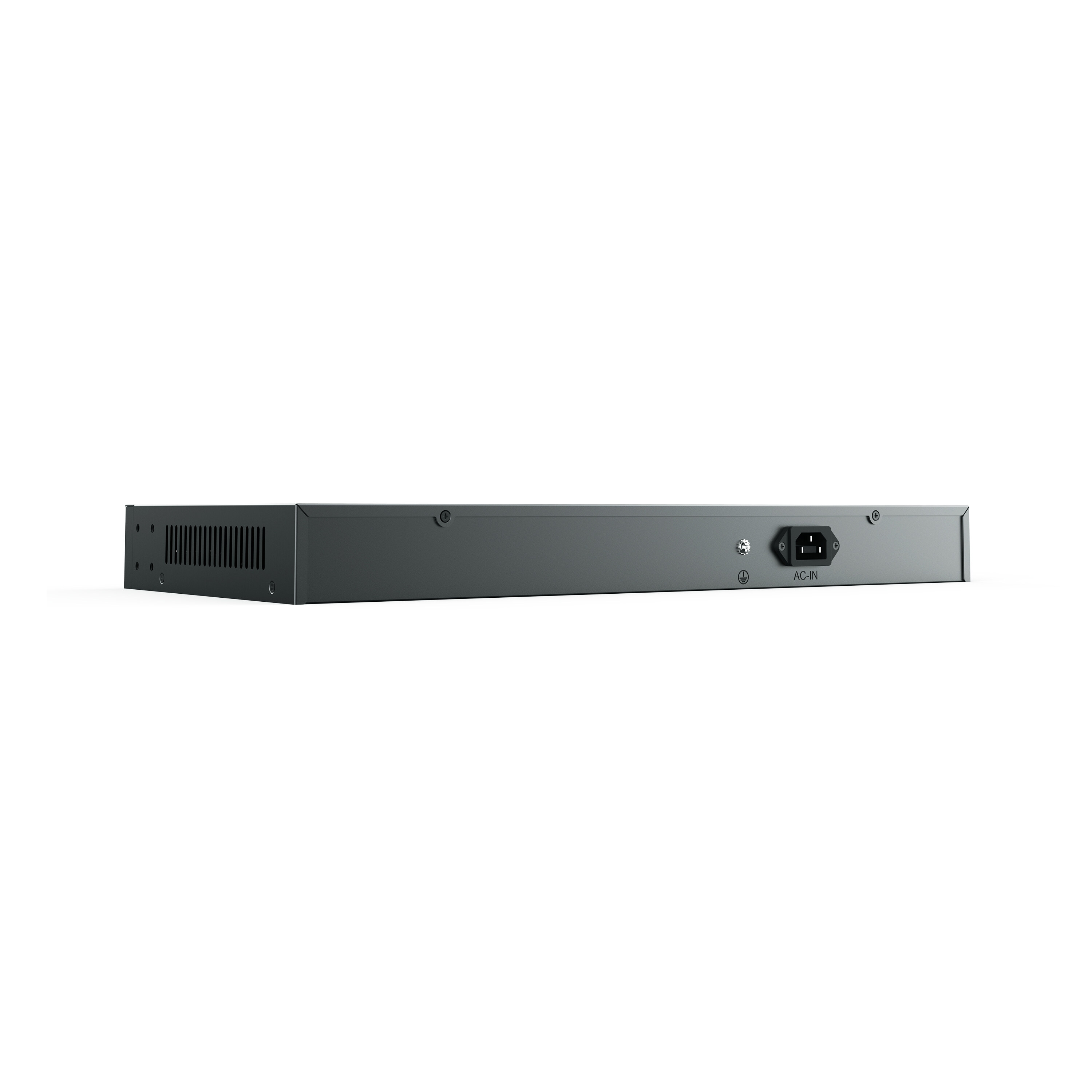

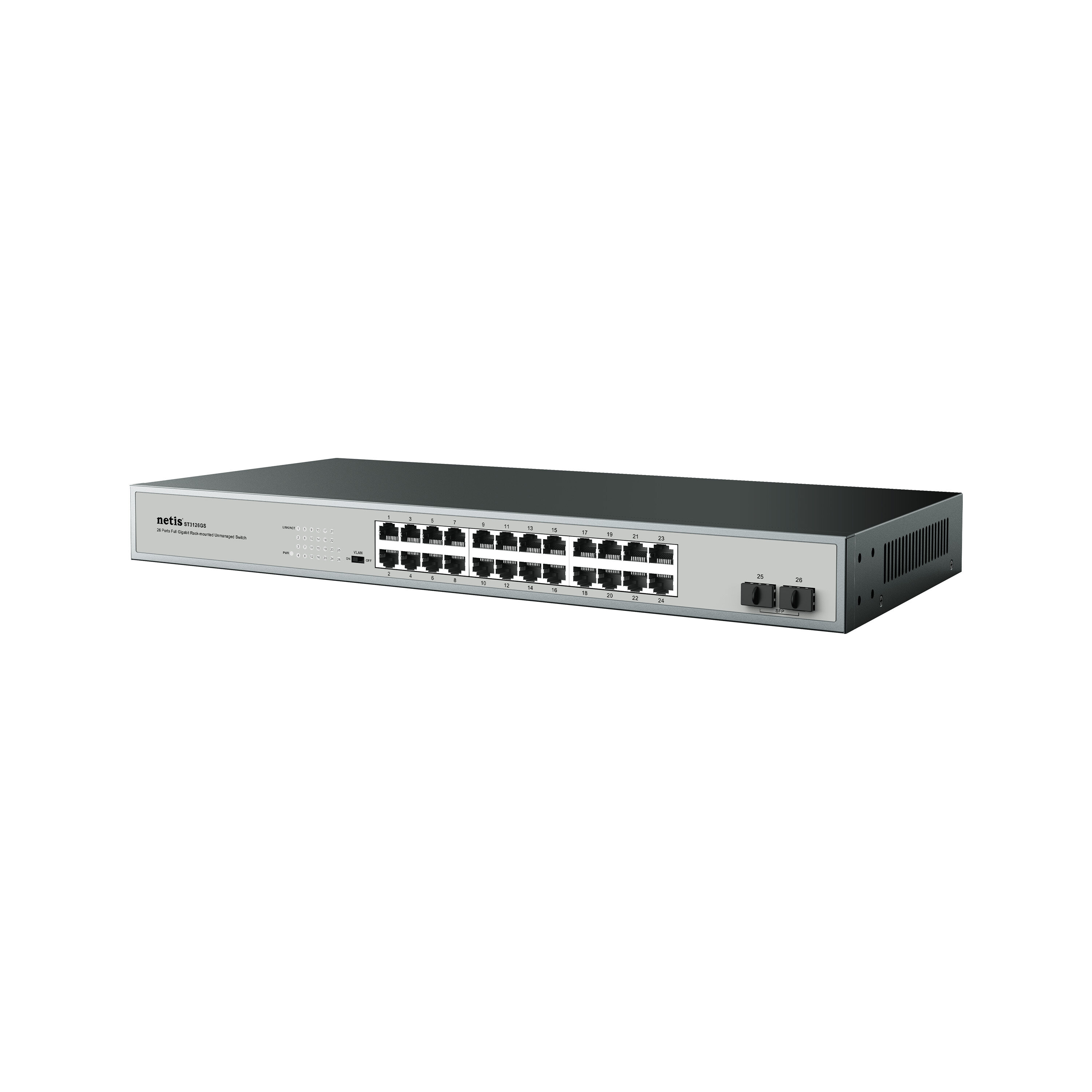

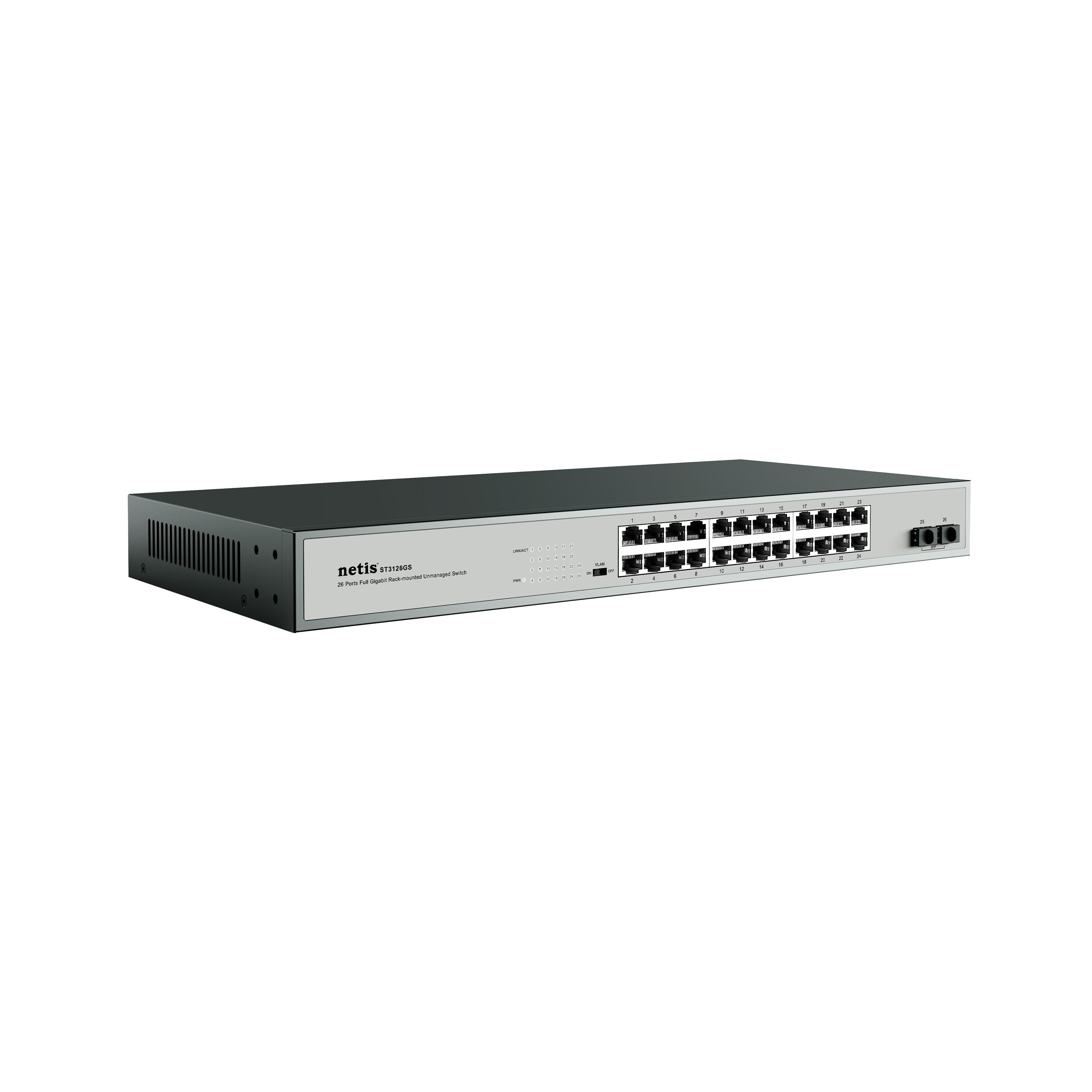

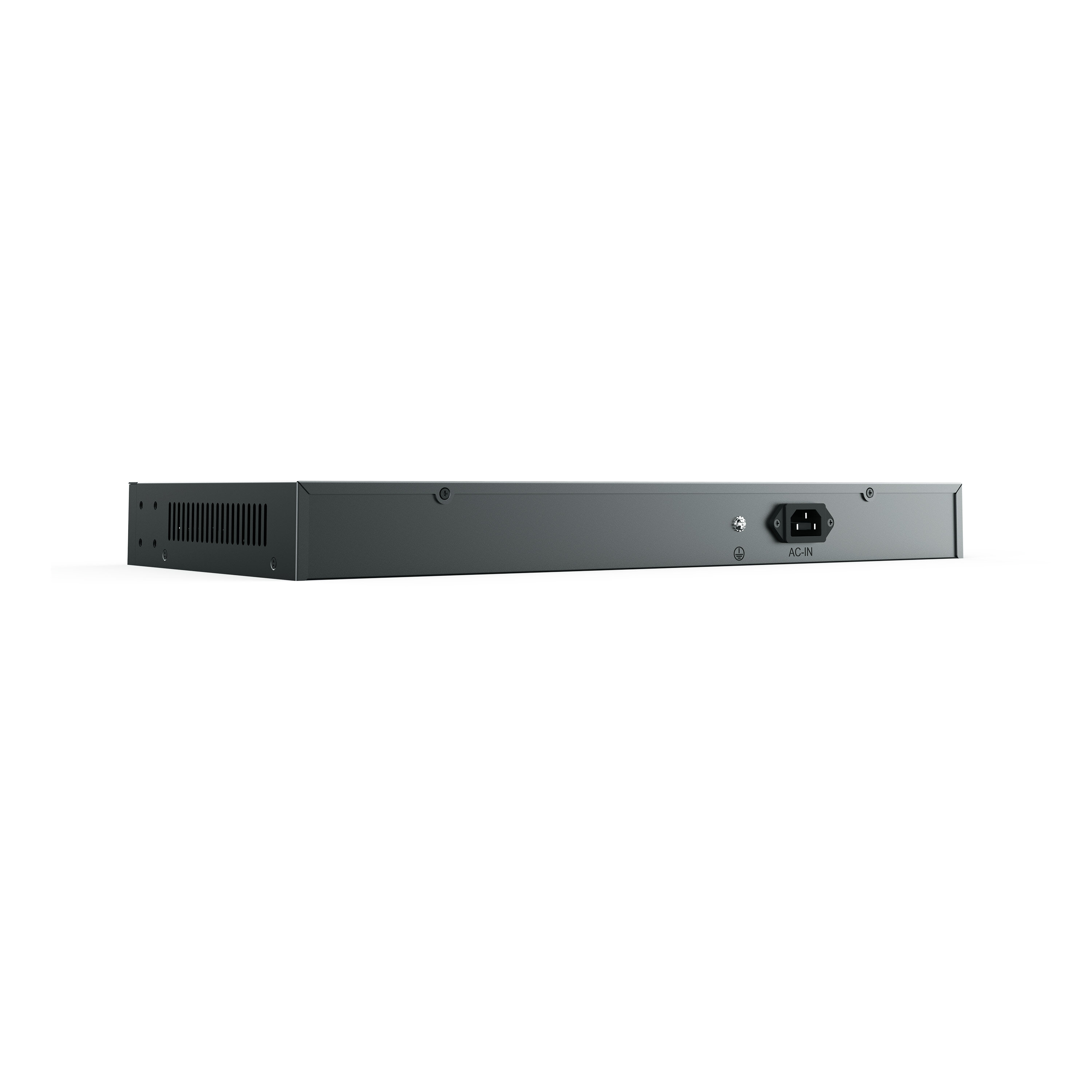

ST3126GS
26 Port Gigabit Ethernet Switch
- 24 10/100/1000M RJ45 ports and 2 gigabit SFP ports
- MAC address auto-learning & auto-aging
- 4KV surge protection
- Supports 8K MAC addresses
- 52Gbps backplane bandwidth
- Port isolation, data transmission will not affect the other ports
- Installation is not limited, more convenient networking
- Plug and play, no configuration required
Specification
Hardware
|
Interface |
24 * 10/100/1000M RJ45 port 2 * gigabit SFP |
|
LED |
PWR 1X-26X |
|
Power Supply |
Built-in supply the 12V/1.5A power |
|
Dimensions (L x W x H ) |
528 * 478 * 316mm |
Software
|
Standard |
IEEE802.3,IEEE802.3u,IEEE802.3z ,IEEE802.3x |
|
Backplane bandwidth |
52G |
|
Packet forwarding rate |
38.68Mbps |
|
Data Transmission Rate |
10Mbps(Half-duplex and Full-duplex) 100Mbps(Half-duplex and Full-duplex) 1000Mbps(Full-duplex) |
|
Model |
Normal mode (default) Port VLAN(On):Port Vlan function is enabled: Ports 1-24 are isolated from each other and can only communicate with SFP1 and SFP2. SFP1 and SFP2 are able to communicate freely. |
Others
|
Environment |
Operating Temperature: 0℃~40℃ Storage Temperature: -20℃~70℃ Operating Humidity: 10%~90% RH non-condensing Storage Humidity: 5%~90% RH non-condensing |
