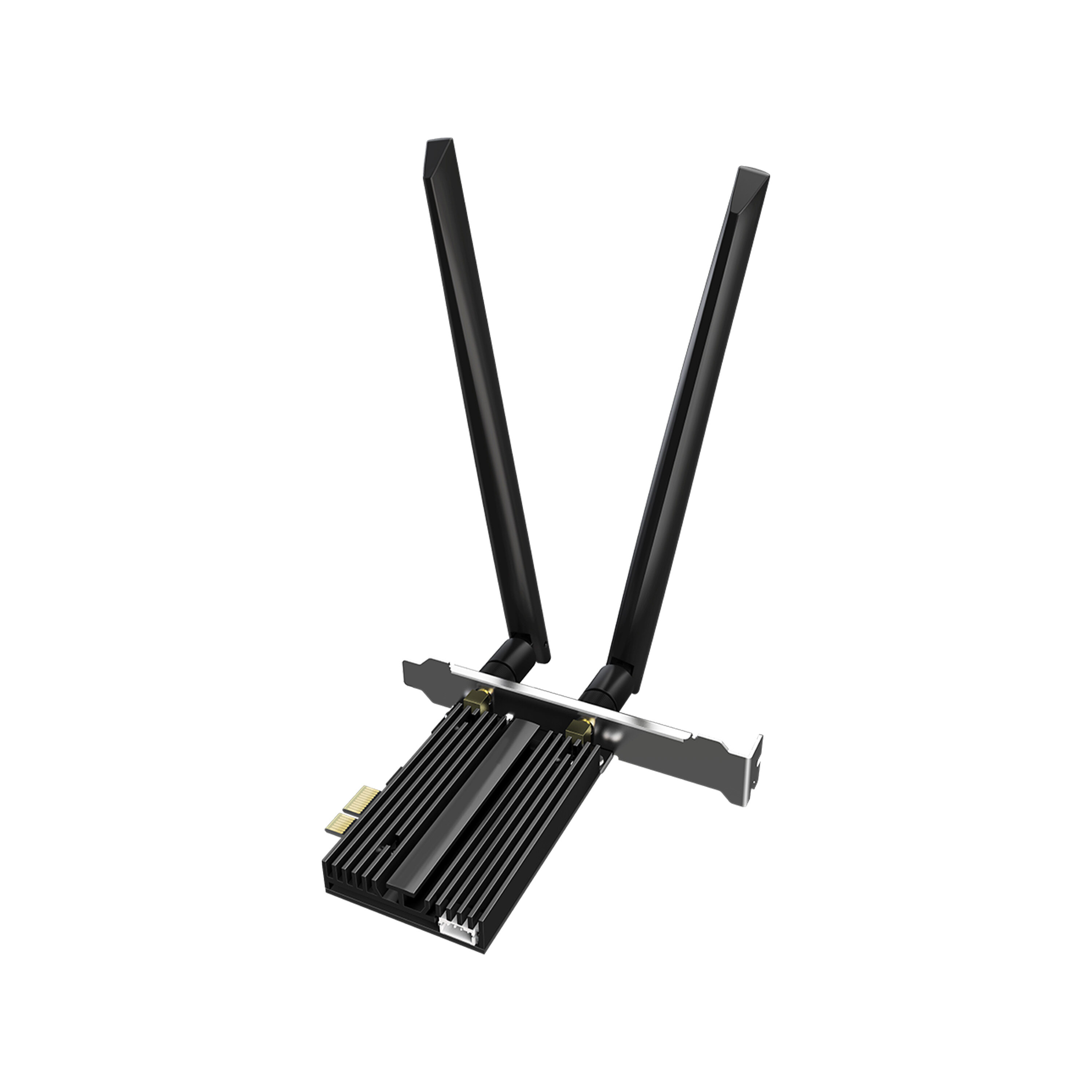

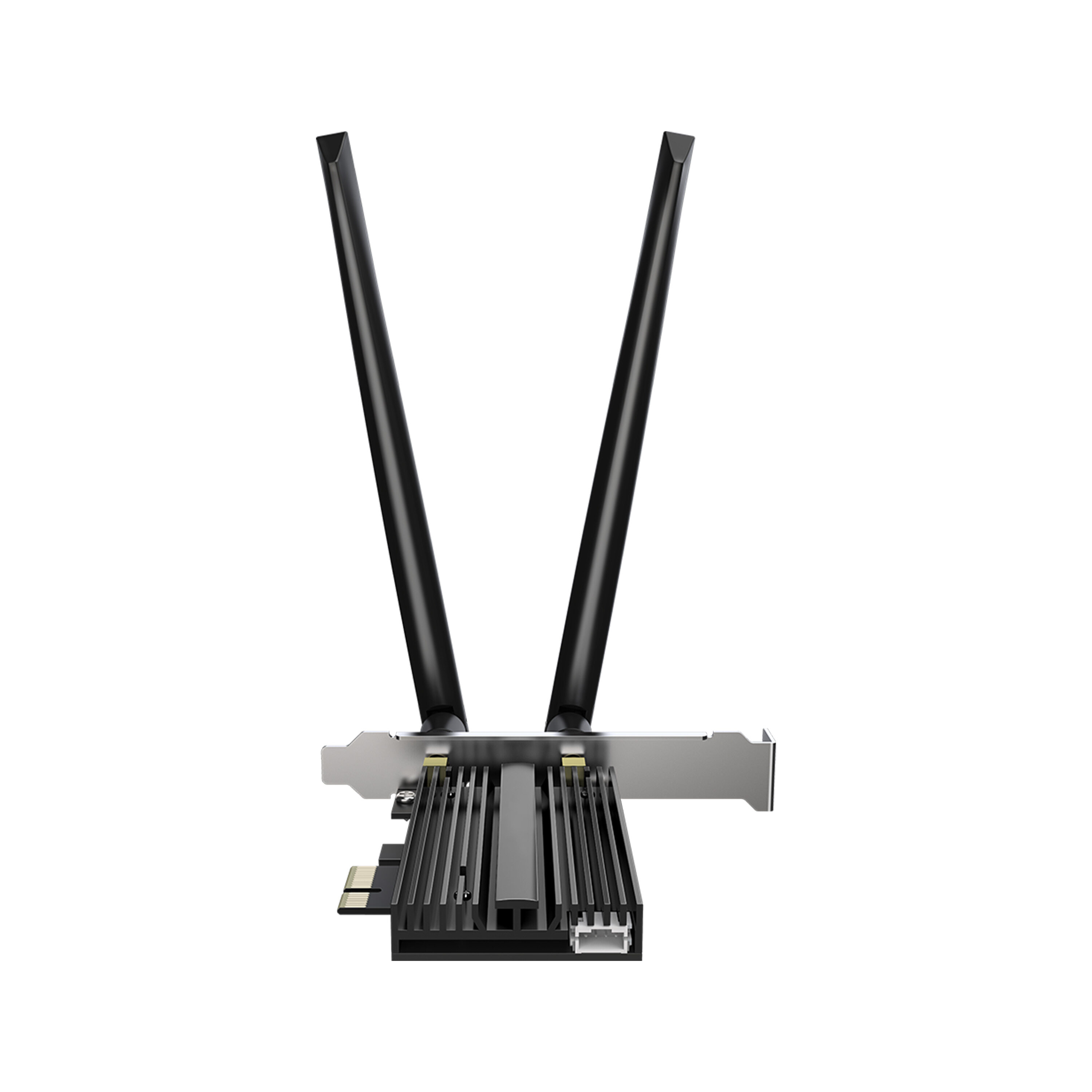

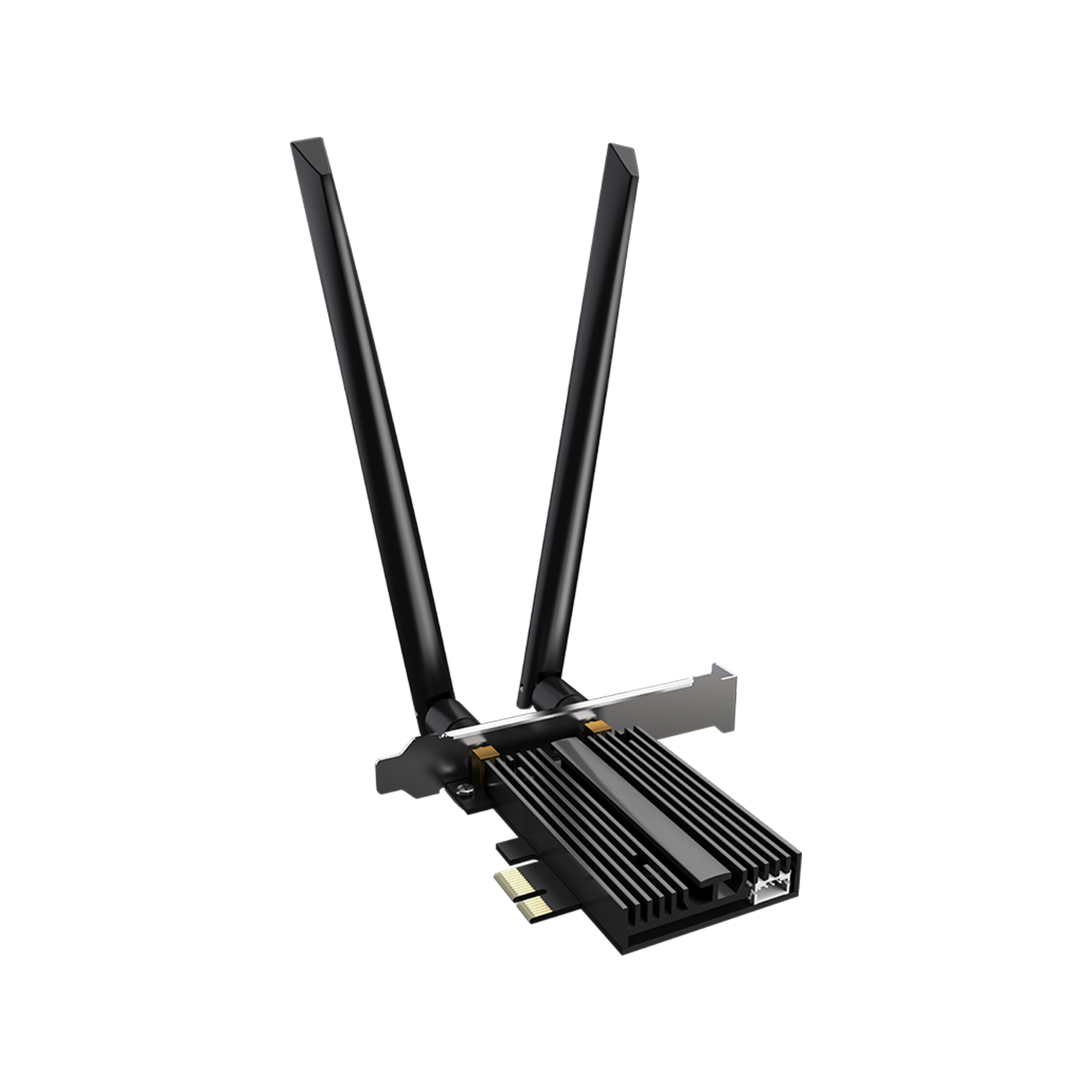

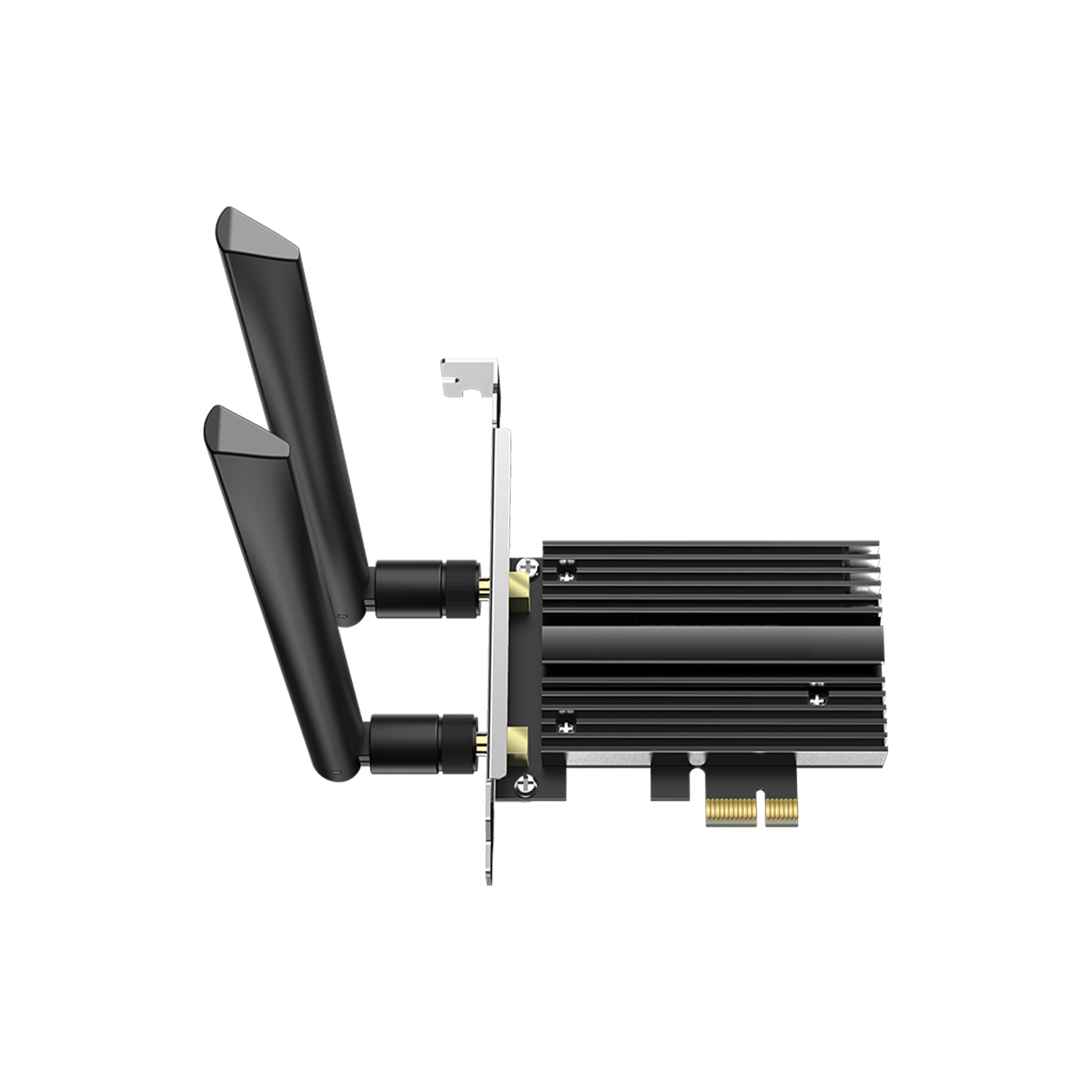

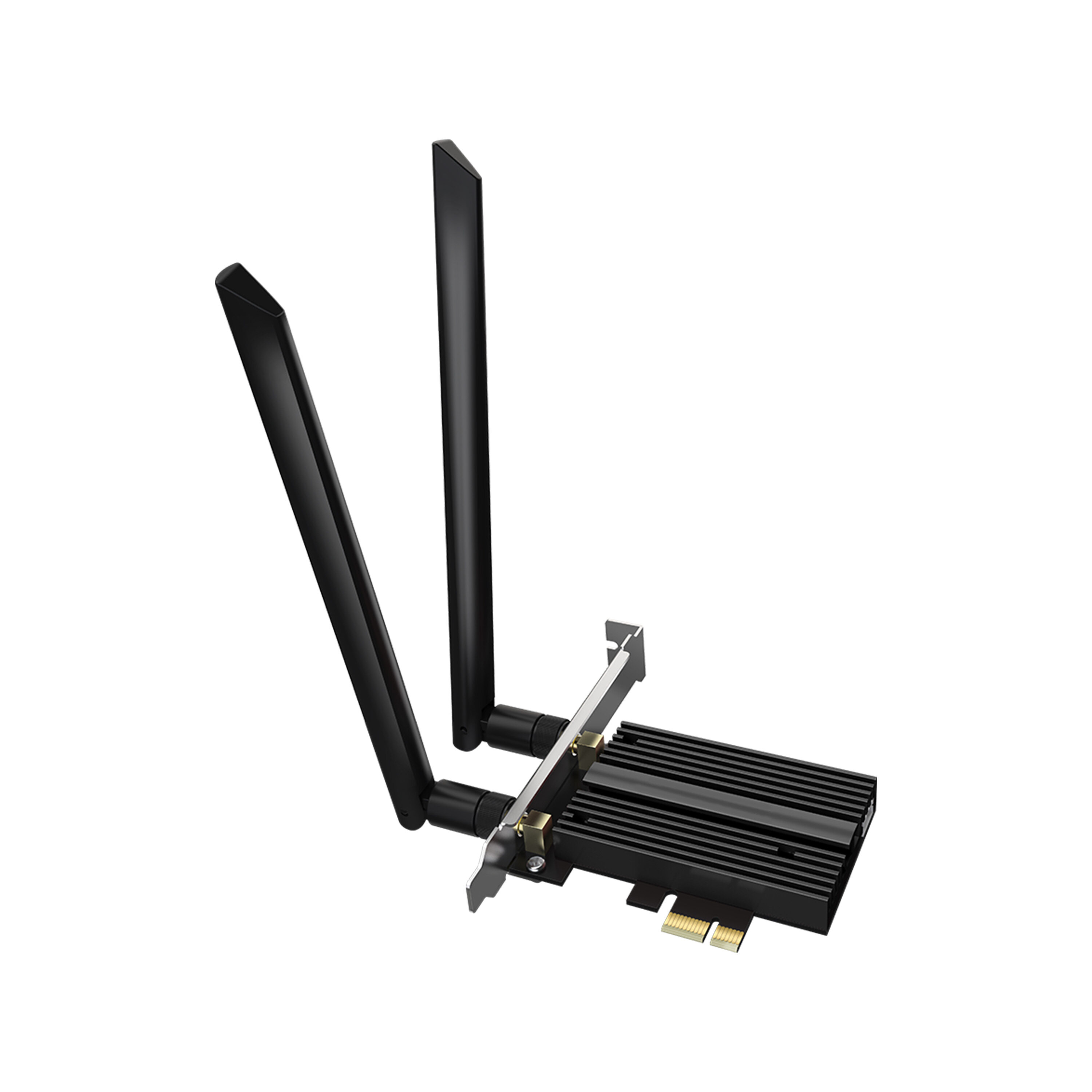

F2 | 5400Mbps High Power PCI-E WiFi6E Adapter

5400Mbps High Power PCI-E WiFi6E Adapter

Boost your overall speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Two multi-directional antennas are designed for optimal signal reception
The latest security enhancement, WPA3, provides enhanced protection in personal password safety
The latest Bluetooth 5.2 technology achieves faster speeds and broader coverage
The gold plating improve stability and performance even at high CPU temps
Full support for 802.11ax/ac/a/b/g/n standards

Overview | Specifications | Download

Specification

Hardware

Interface	PCI-E (Compatible Card slot: PCIE-16X,PCIE-4X,PCIE-8X,PCIE-1X; Graphics slot)
Blutooth	Blutooth 5.2
Antenna Type	2*5 dBi external antennas

Button

Dimensions

Size: 95*64mm; Antenna Size:173mm

Wireless

Wireless Standards	IEEE802.11a/b/g/n/ac/ax
Frequency	2.412~2.484GHz 5.180~5.825GHz 6GHz
Data Rate	6 GHz: 11ax: Up tp 2402Mbps 5 GHz: 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11ax: Up to 574 Mbps(dynamic) 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic)
Transmit Power	5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP) 2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP) 6 GHz: 12dBm(FCC)
Wireless Modes	Infrastructure mode
Wireless Security	WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK

Others

Certification	CE,FCC
Package Contents	1× F2 2× High-Gain Antennas 1× Low-Profile Bracket 1× Bluetooth Header Cable 1× Quick Installation Guide 1× Resource CD
System Requirements	Windows7 / 8 / 8.1 / 10(32 digit, 64 digit) / 11; Windows XP, Mac, Linux systems need to download the
Environment	Operating Temperature: 0℃~40℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
