NX10
AX1500 Wireless Dual Band Gigabit Router
- Simultaneous 2.4GHz 300Mbps and 5GHz 1201Mbps connections.
- Various WAN connection types in AP Router mode: DHCP, Static IP, PPPoE, L2TP, PPTP, Dual Access (Russia PPPoE/PPTP/L2TP).
- MU-MIMO, beamforming technology.
- 4* 5dBi high gain antennas.
- Easy wireless security setup at a push of the WPS button.
- Intelligent bandwidth control.
- Complete Gigabit ports.
- Support EASY MESH networking.
- Easy setup and support App management conveniently.
Extremely Fast
Wi-Fi 6 Experience
Wi-Fi 6 Experience
AX1500 Wireless Dual Band Gigabit Router
NX10
WiFi 6
IPv6
OFDMA+MU-MIMO Technology
Easy-Mesh
1500Mbps
(2.4G+5G)
1GHz CPU
TR069
Remote Management
Full Gigabit Ports
Guest Network
WiFi 6
WiFi 6
1500Mbps High Speed
5GHz up to 1201Mbps
Equipped with 4 external, high-gain antennas, NX10 can transmit dual band wireless signals at both 2.4 GHz and 5 GHz frequencies.
The 5G wireless rate can reach up to 1201 Mbps, and it also comes with full gigabit ports that support gigabit broadband access, making full usage of bandwidth.
The 5G wireless rate can reach up to 1201 Mbps, and it also comes with full gigabit ports that support gigabit broadband access, making full usage of bandwidth.
WiFi 6
WiFi 6
1500Mbps High Speed
5GHz up to 1201Mbps
Equipped with 4 external, high-gain antennas, NX10 can transmit dual band wireless signals at both 2.4 GHz and 5 GHz frequencies.
The 5G wireless rate can reach up to 1201 Mbps, and it also comes with full gigabit ports that support gigabit broadband access, making full usage of bandwidth.
The 5G wireless rate can reach up to 1201 Mbps, and it also comes with full gigabit ports that support gigabit broadband access, making full usage of bandwidth.
MU-MIMO+OFDMA
Extraordinary lnternet speed with WiFi6
Supports MU-MIMO technology for transmitting multiple data packets simultaneously and OFDMA technology for both uplinkand downlink data transmissions. This greatly improves the average transmission speed, reduces latency, increases total throughput and network capacity, and ultimately leads to a significant improvement in network speed, even with many devices connected.
Easy-mesh Fast Networking
Whole-house WiFi coverage
With two or more NX10 routers, it can be quickly set up for a WiFi6 mesh network environment with faster network transmission speeds, lower latency, and greater capacity. This effectively expands wireless signal coverage range, achieves seamless roaming, and solves problems such as signal attenuation and poor internet connection due to multiple walls in large space.
Compliant TR-069 Protocols
for Telecom Operators
for Telecom Operators
NX10 is dedicated not only to consumers but also compatible with the telecom operators, which supports device management and control remotely via their ACS (Auto-Configuration Sever) system.
IPv6
Larger address space
Compared to IPv4 IPv6 offers numerous advantages when it comes to routing capabilities and network security, thanks to its significantly larger address space.As the number of devices in smart homes continue to grow, this becomes an important consideration. NX10 is designed to address this issue by also offering backward compatibility with IPv4, ensuring efficient access to a wide range of network resources.
Easy Setup and Use

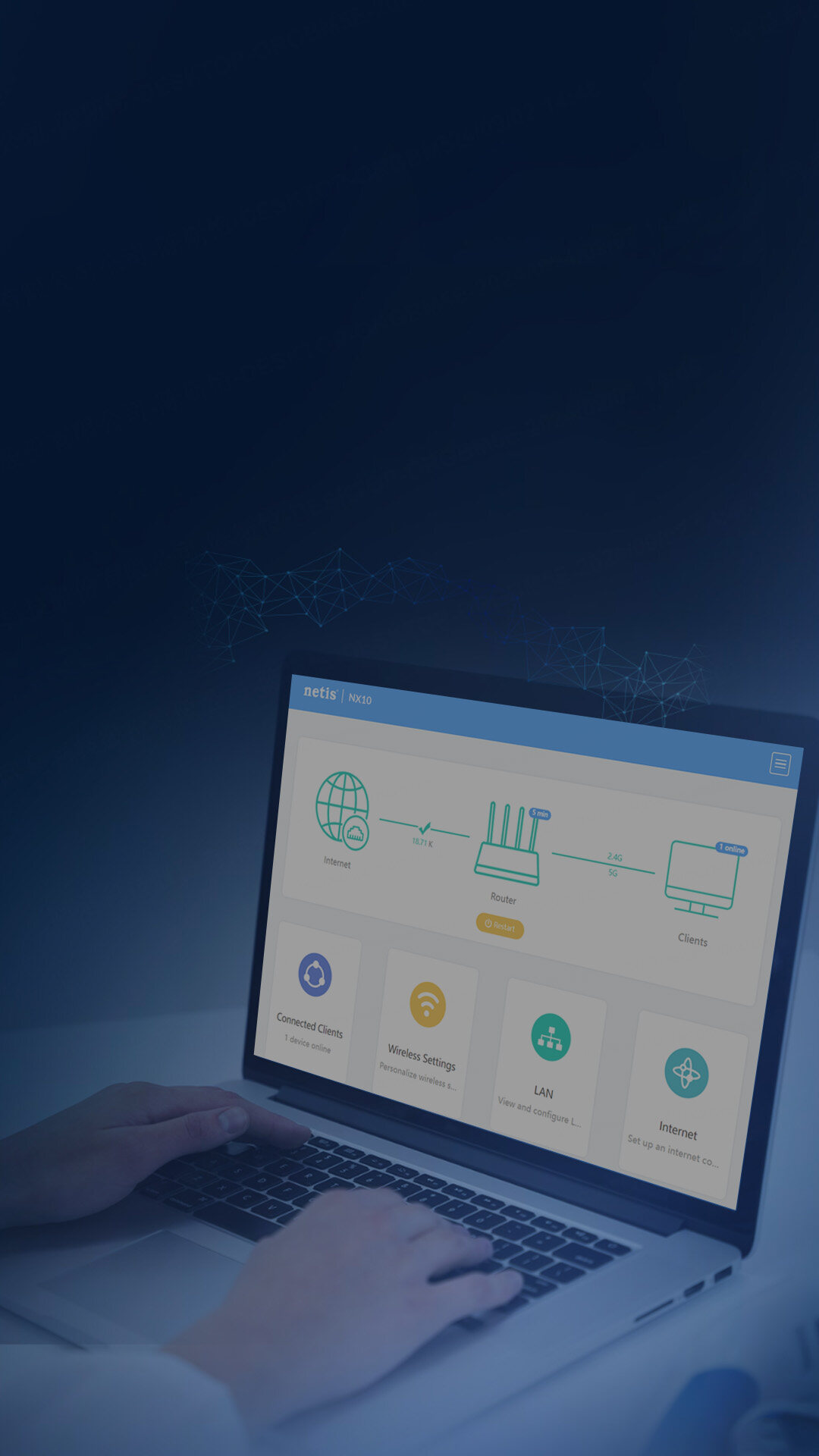

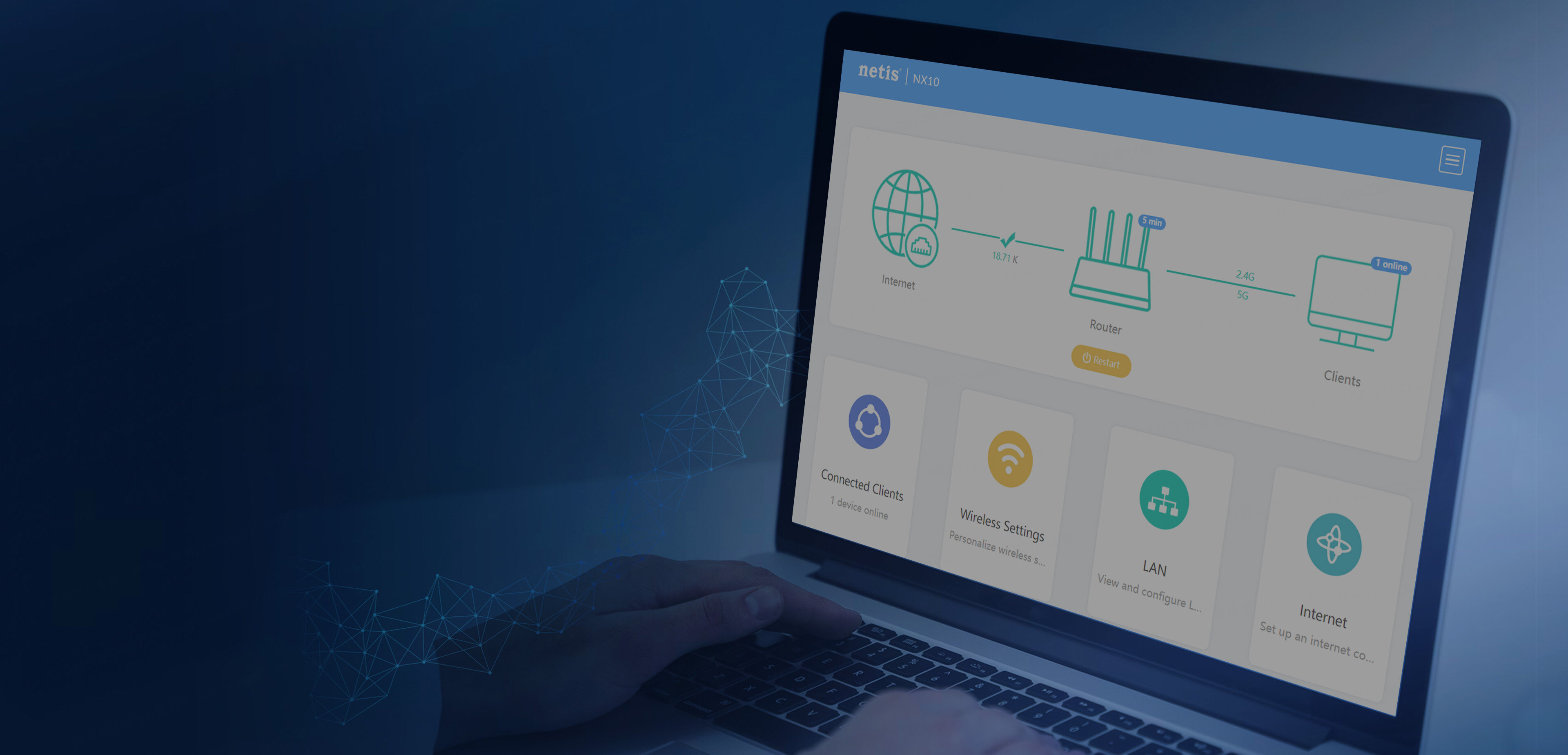

Set up your router in minutes with the intuitive web interface.
Specification
Wireless
|
Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11b/g/n 2.4 GHz |
|
WiFi Speeds |
AX1500 5 GHz: 1201Mbps (802.11ax) 2.4 GHz: 300Mbps (802.11n) |
|
WiFi Range |
3 Bedroom Houses 4x Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage |
|
WiFi Capacity |
Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6/5/4 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth |
|
Working Modes |
Router Mode, Repeater Mode |
Hardware
|
Processor |
1GHz CPU |
|
DDR/FLASH |
128MB/16MB |
|
Interface |
1* Gigabit WAN Port+3*Gigabit LAN Ports |
|
Buttons |
WPS/MESH、RESET |
|
Power |
12V1A |
Software
|
WiFi Encryption |
WPA-PSK, WPA2-PSK, WPA/WPA2-PSK,WPA3 |
|
Guest Network |
1*5GHz Guest Network /1*2.4GHz Guest Network |
|
Protocols |
IPv4, IPv6 |
|
WAN Types |
DHCP, Static IP, PPPoE, L2TP, PPTP |
|
Port mapping |
Virtual Server, DMZ |
|
IPTV |
Bridge, Tag VLAN |
|
Dynamic DNS |
DynDns, no-ip |
|
Others |
FOTA, TR069, Remote Access, Backup & Restore |
Physical
|
Dimensions(W×D×H) |
226*144*190.5mm |
|
Package Contents |
1*NX10 1* Power Adapter 1* RJ45 Ethernet Cable 1* Quick Installation Guide |
Others
|
System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable Subscription with an internet service provider (for internet access) |
|
Certifications |
FCC, CE, RoHS, EAC, UkrSEPRO |
|
Environment |
Operating Temperature: 0℃~40℃ ( 32℉ ~104℉ ) Storage Temperature: -40℃~70℃ (-40℉ ~158℉ ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Test Date
|
WiFi Transmission Power |
2.4H: 22DB 5G: 19DB |
