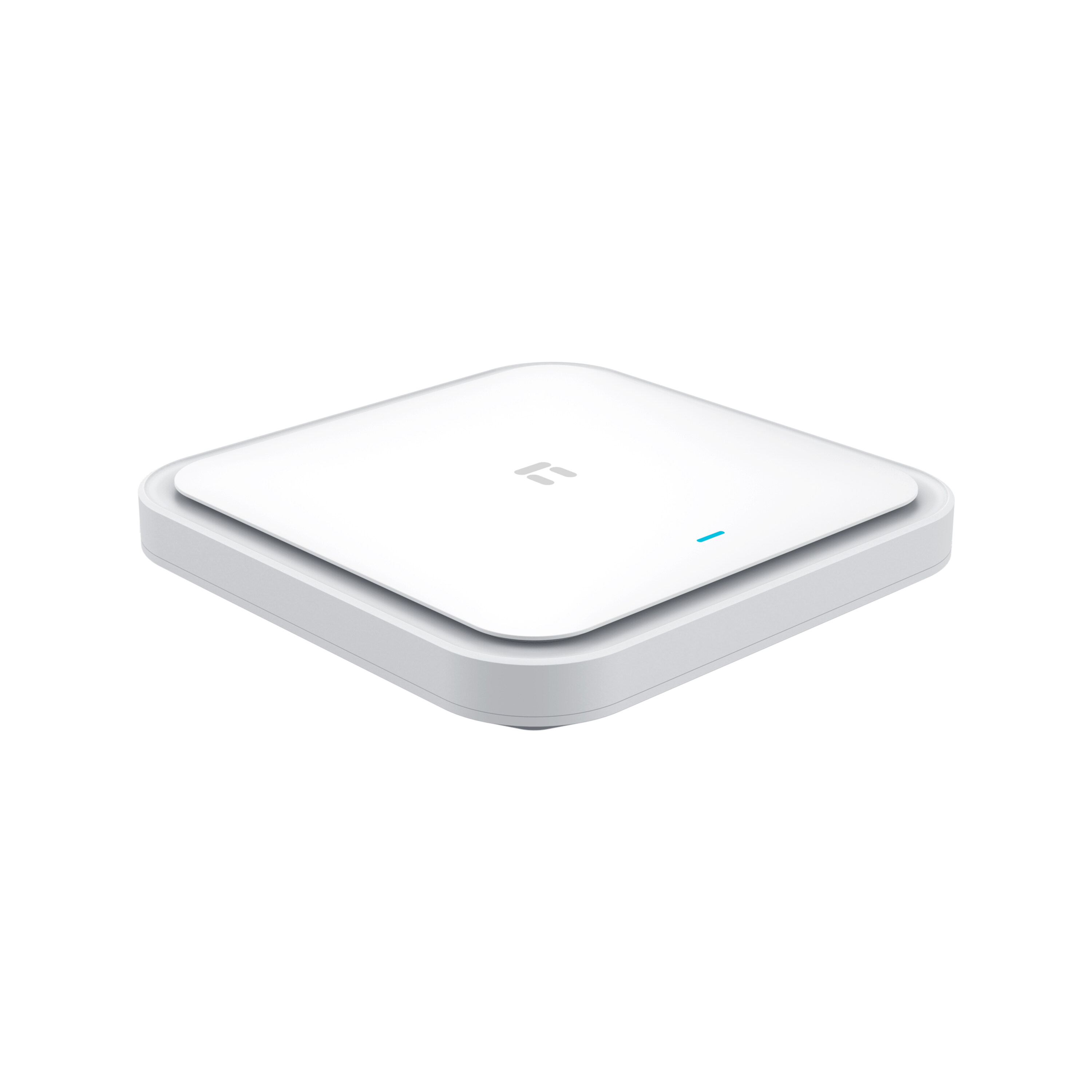

EAP930
AX3000 Wireless Gigabit Ceiling Mount Access Point
- Simultaneous 574 Mbps on 2.4GHz and 2402 Mbps on 5GHz
- Adjustable power, reduce the interference between the AP
- Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations
- Unified AP management without the need for additional AC controllers
- Enable wireless connectivity between access points for smooth network and flexible deployment
Specification
LED Indicators
|
LED |
Blue: network normally Red: network anomaly |
Software
|
Basic Functions |
Complies with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet protocol standards Compatible with IEEE 802.3af/at compliant powered devices (PD) Compatible with certified non-standard powered devices (PD) Supports store-and-forward switching Supports full power output Supports automatic MAC address learning and aging Extended cable transmission,supports long-distance monitoring power supply Supports IEEE 802.3X full-duplex flow control and Backpressure half-duplex flow control |
|
Ethernet Protocols and Standards |
IEEE 802.3 10BASE-T Ethernet IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
|
Wireless Mode |
Access Point |
|
Wireless Security |
No encryption WPA/WPA2-PSK AES WPA2/WPA3-PSK AES |
|
Wireless functions |
Internal network setting Signal conditioning Wireless network TWT Reboot Time setting Firmware update Dial-up log Indicator light Firemware Update |
Hardware
|
Wireless Standards |
IEEE 802.11ax/ac/n/a 5GHz IEEE 802.11ax/n/g/b 2.4GHz |
|
Signal Rate |
5GHz: 2402Mbps (802.11ax) 2.4GHz: 574Mbps (802.11ax) |
|
Button |
1* Reset |
|
Power Supply |
48V standard POE or external DC 12V/2A power supply |
|
Ports |
1 * 10/100/1000M RJ45 LAN/POE port(POE power supply) |
|
Antenna |
5 * built-in high gain antenna (2.4G 2*FEM 5G 2*FEM) |
|
Mounting |
Ceiling /Wall Mounting (Kits included) |
|
DDR |
256MB |
|
FLASH |
128MB |
|
Forwarding rate |
1000Mbps |
Environmental Requirements
|
Temperature |
Operating Temperature:0℃ ~ 40℃(32 °F ~104°F) Storage Temperature:-20℃ ~ 70℃(-4 °F ~158°F) |
|
Humidity |
Operating Humidity:10% ~ 90% RH(non-condensing) Storage Humidity:5% ~ 90% RH(non-condensing) |
Physical Dimensions
|
Dimensions (W x D x H) |
194 * 194 * 45.5mm(7.64*7.64*1.79 in) |
Packaging and Transportation
|
Package Contects |
1* EAP930 1* RJ45 Ethernet cable 1*Quick Installation Guide 1*Ceiling Mounting Kit |
Others
|
Stacking Limit |
Maximum of 4 layers when fully packaged |
|
Humidity |
5%～90% RH(non-condensing) |
|
Storage Temperature |
-20℃ ~ 70℃(-4 °F ~158°F),with the most suitable storage condition being room temperature considering humidity |
|
Storage Precautions |
Store in a clean,ventilated environment free from corrosive gases,flammable,explosive,and other hazardous chemicals.Keep away from heat sources and sources of strong mechanical vibration |
|
Storage Period |
Under the above conditions,the product can be stored for one year.It is recommended to re-inspect and test the product after two years before use |
