EAP912

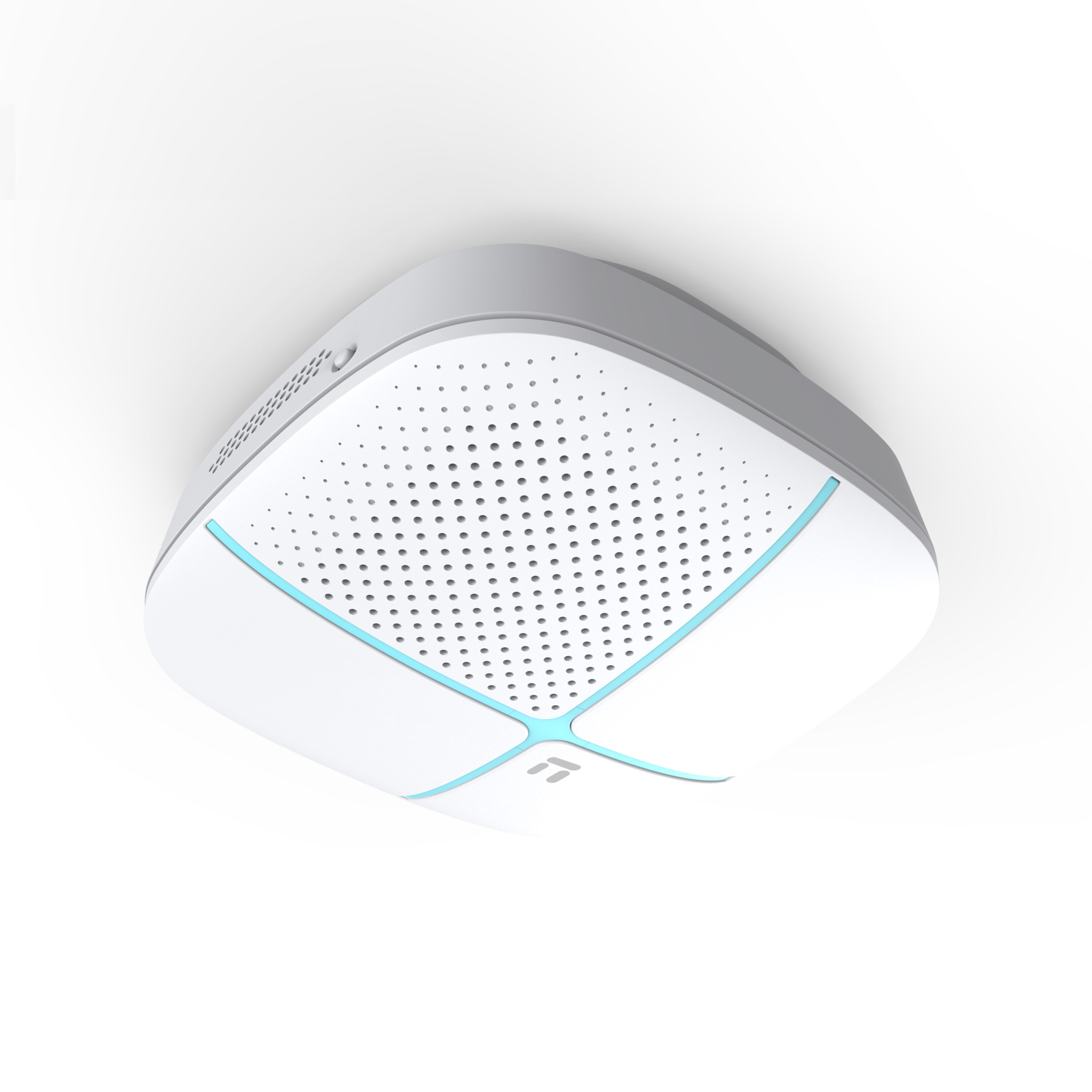

AC1200 Wireless Gigabit Ceiling Mount Access Point
- Simultaneous 300Mbps on 2.4GHz and 867Mbps on 5GHz
- Adjustable power, reduce the interference between the AP
- Automatically weed out weak signal and improve wireless network performance
- Power adjustable to reduce interference
- Unified AP management without the need for additional AC controllers
- Support two power supply mode, more flexible networking
Specification
Hardware
|
Wireless Standards |
IEEE 802.11ac/n/a 5GHz IEEE 802.11n/g/b 2.4GHz |
|
Signal Rate |
5GHz: 867Mbps (802.11ac) 2.4GHz: 300Mbps (802.11ac) |
|
Interface |
1 * 10/100/1000M adaptive LAN port(POE power supply) 1 * 10/100/1000M adaptive WAN port |
|
Antenna |
4 * built-in high gain antenna |
|
Button |
Default Button |
|
Power Supply |
48V standard POE or external DC 12V/1A power supply |
|
LED |
6 * red and blue LED |
|
Mounting |
Ceiling /Wall Mounting (Kits included) |
|
Memory |
128MB |
|
FLASH |
16MB |
|
Forwarding rate |
10/100/1000Mbps |
Software
|
Basic Functions |
Complies with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet protocol standards Compatible with IEEE 802.3af/at compliant powered devices (PD) Compatible with certified non-standard powered devices (PD) Supports store-and-forward switching Supports full power output Supports automatic MAC address learning and aging Extended cable transmission,supports long-distance monitoring power supply Supports IEEE 802.3X full-duplex flow control and Backpressure half-duplex flow control |
|
Ethernet Protocols and Standards |
IEEE 802.3 10BASE-T Ethernet IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
|
Wireless Mode |
Access Point |
|
Wireless Security |
No encryption WPA/WPA2-PSK AES |
|
Wireless functions |
Connected devices Wireless network Internal network settings Signal conditioning Router Information Indicator light Initialization Manage Passwords Restarting the router Time setting Firmware update |
Others
|
Dimensions |
145 * 145 * 45mm |
|
Environment |
Operating Temperature : 0℃ ~ 40℃ Operating Humidity : 10% ~ 90% RH non condensing Storage Temperature : -20℃ ~ 70℃ Storage Humidity : 5% ~ 90% RH non condensing |
