EAP830

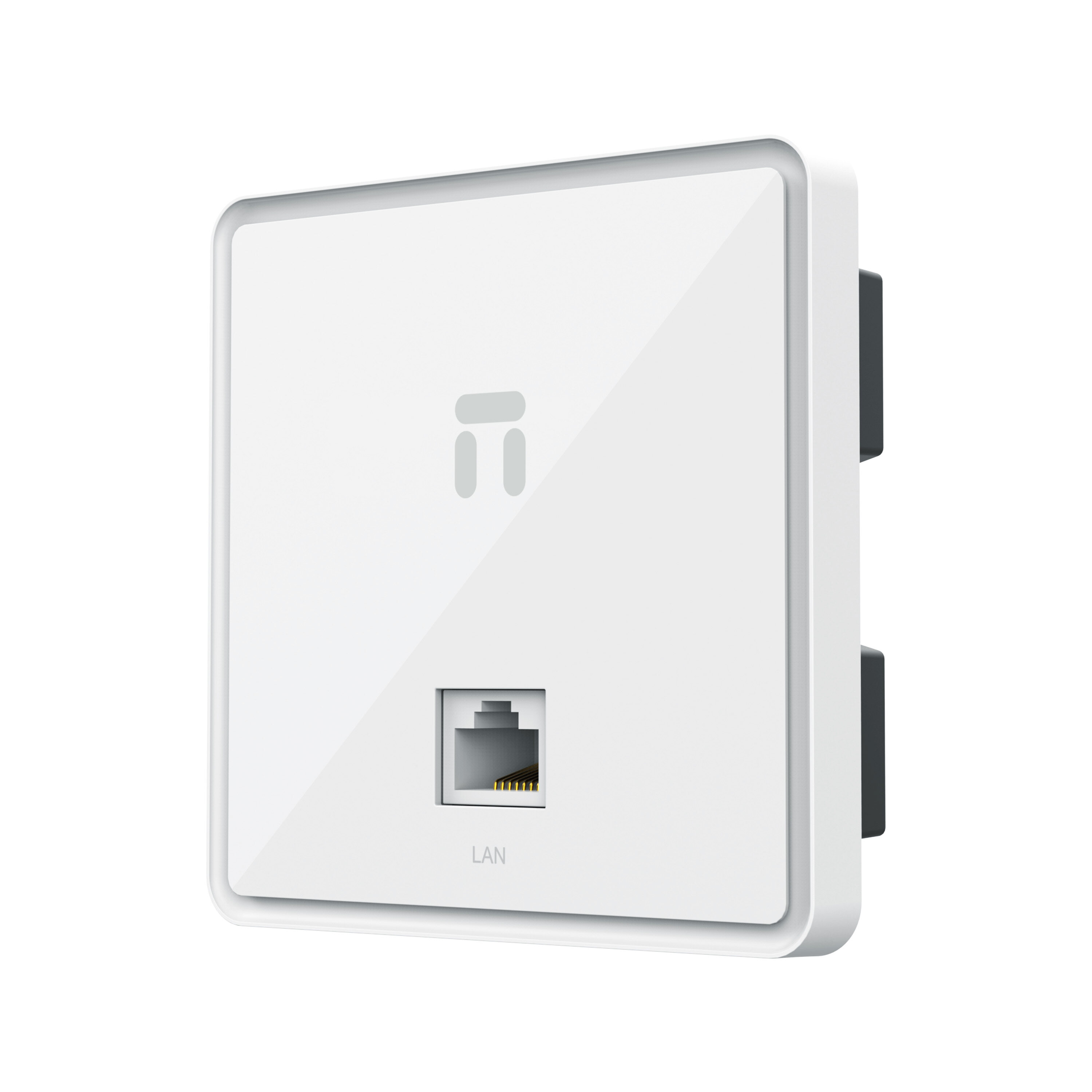

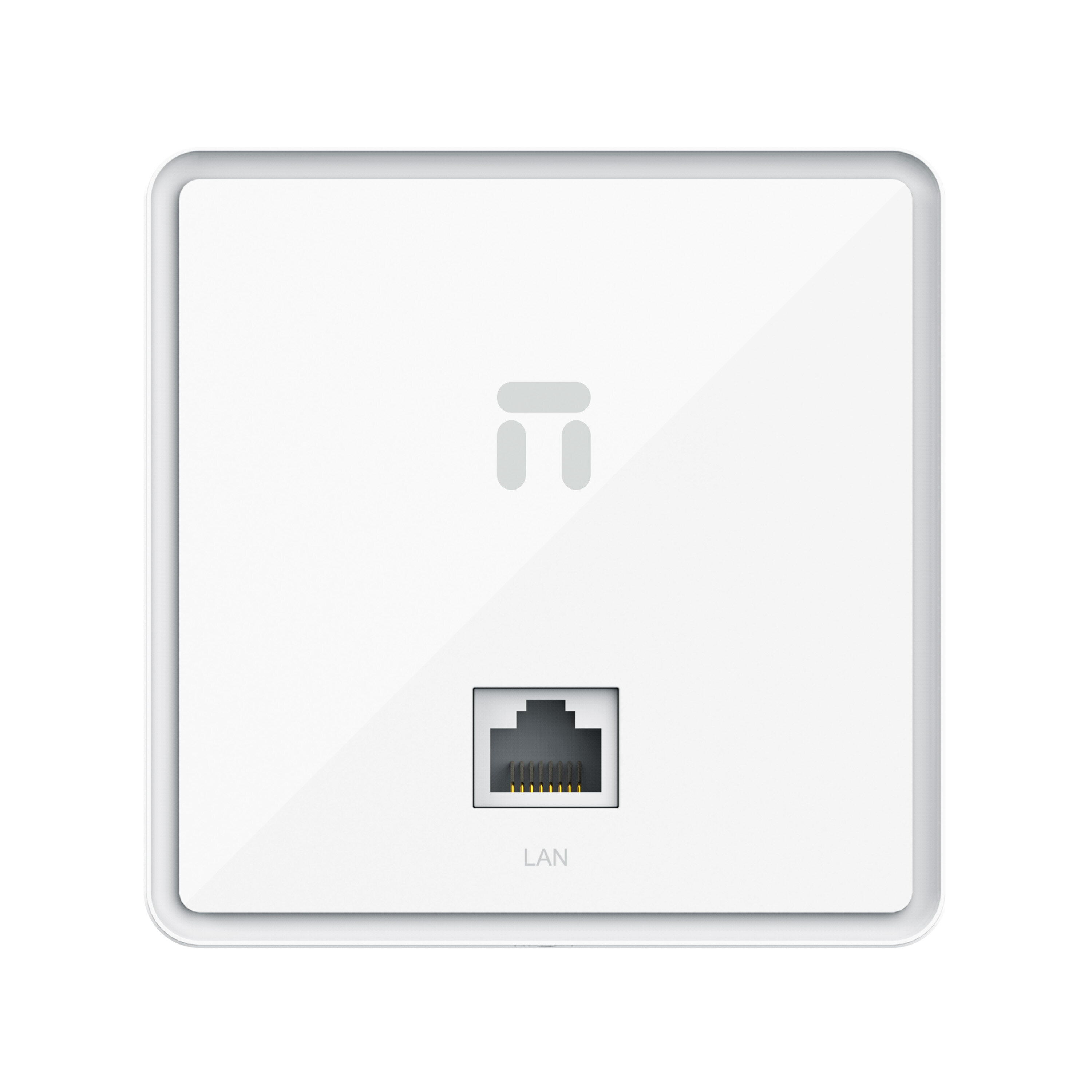

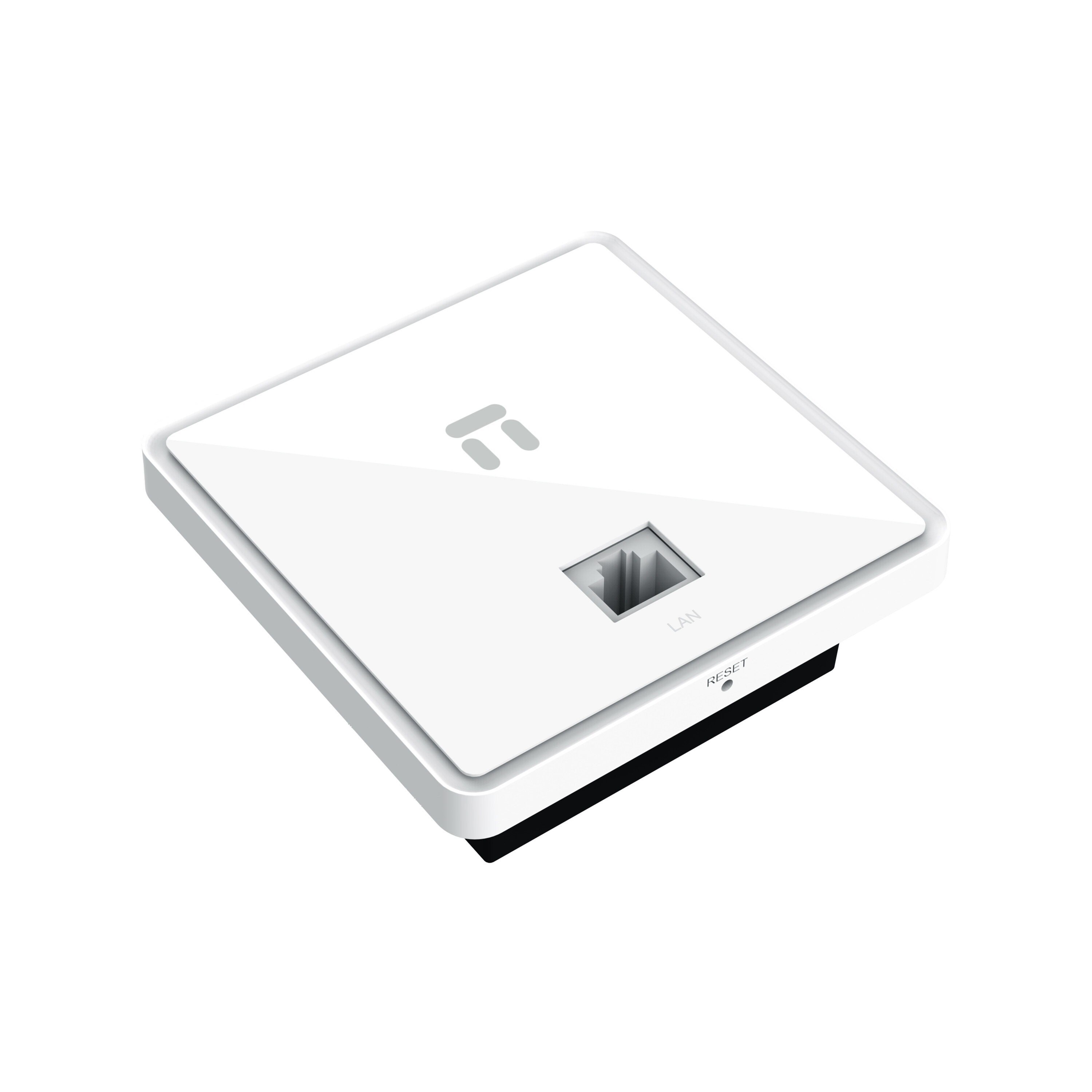

AX3000 Wireless Gigabit WiFi6 Panel Access Point
- Simultaneous 574Mbps on 2.4GHz and 2402Mbps on 5GHz totals 2976Mbps Wi-Fi speeds
- Remote management through APP, security is more assured
- Support remote device management by APP
- Power adjustable to reduce interference
- Flexible deployment，supports Passive POE to carry electrical power and data simultaneously
- Intelligent networking meet any network needs, and easy to configure
Specification
Hardware
|
Interface |
2 * Gigabit Port (Supports Passive POE) |
|
Antenna |
Omnidirectional antenna |
|
Button |
Reset Button |
|
Power Supply |
802.3at POE |
Software
|
Wireless Features |
Multi-SSID Wireless switch Power regulation Periodic restarts |
|
Wireless Security |
WPA-Personal/WPA2-Personal/WPA3-Personal Wireless VLAN Wireless host isolation |
|
LED Switch |
Yes |
|
Remote management |
BeeWiFi |
|
Emergency management |
Support one as AC, when many APs network Support AC centralized management and configuration |
|
Local web management |
HTTP |
Wireless
|
Frequency |
2.4 GHz and 5 GHz |
|
Signal Rate |
574Mbps at 2.4GHz, 2402Mbps at 5GHz |
|
Wireless Standards |
IEEE 802.11ax/ac/n/g/b/a |
|
Stream numbers |
2.4G 2 streams and 5G 2 streams |
Others
|
Certification |
SRRC |
|
Dimensions |
86 * 86 * 42mm |
|
Package Contents |
Installation Guide NAP830 |
|
Environment |
Operating Temperature : 0℃ ~ 40℃ Operating Humidity : 10% ~ 90% RH non condensing Storage Temperature : -20℃ ~ 70℃ Storage Humidity : 5% ~ 90% RH non condensing |
