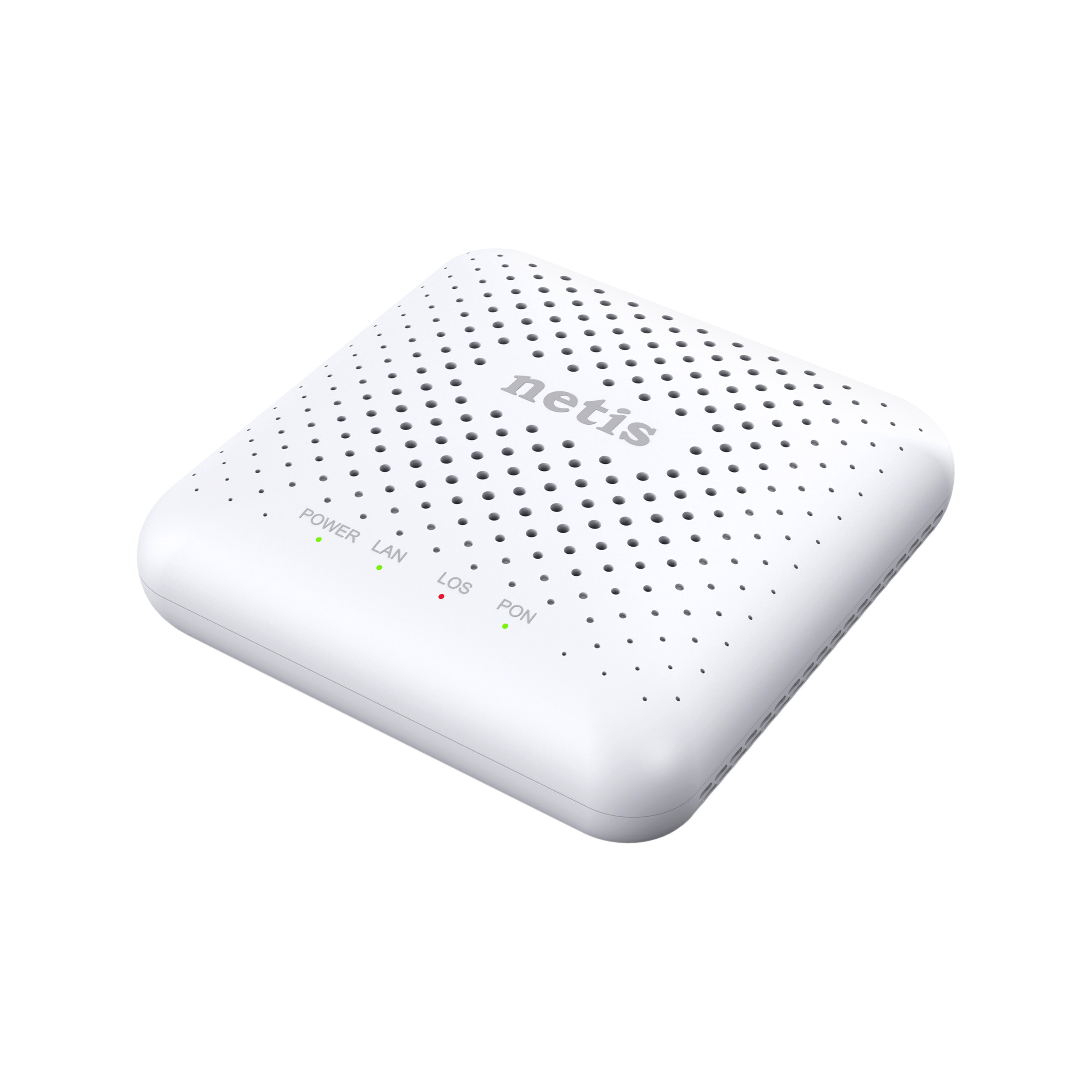

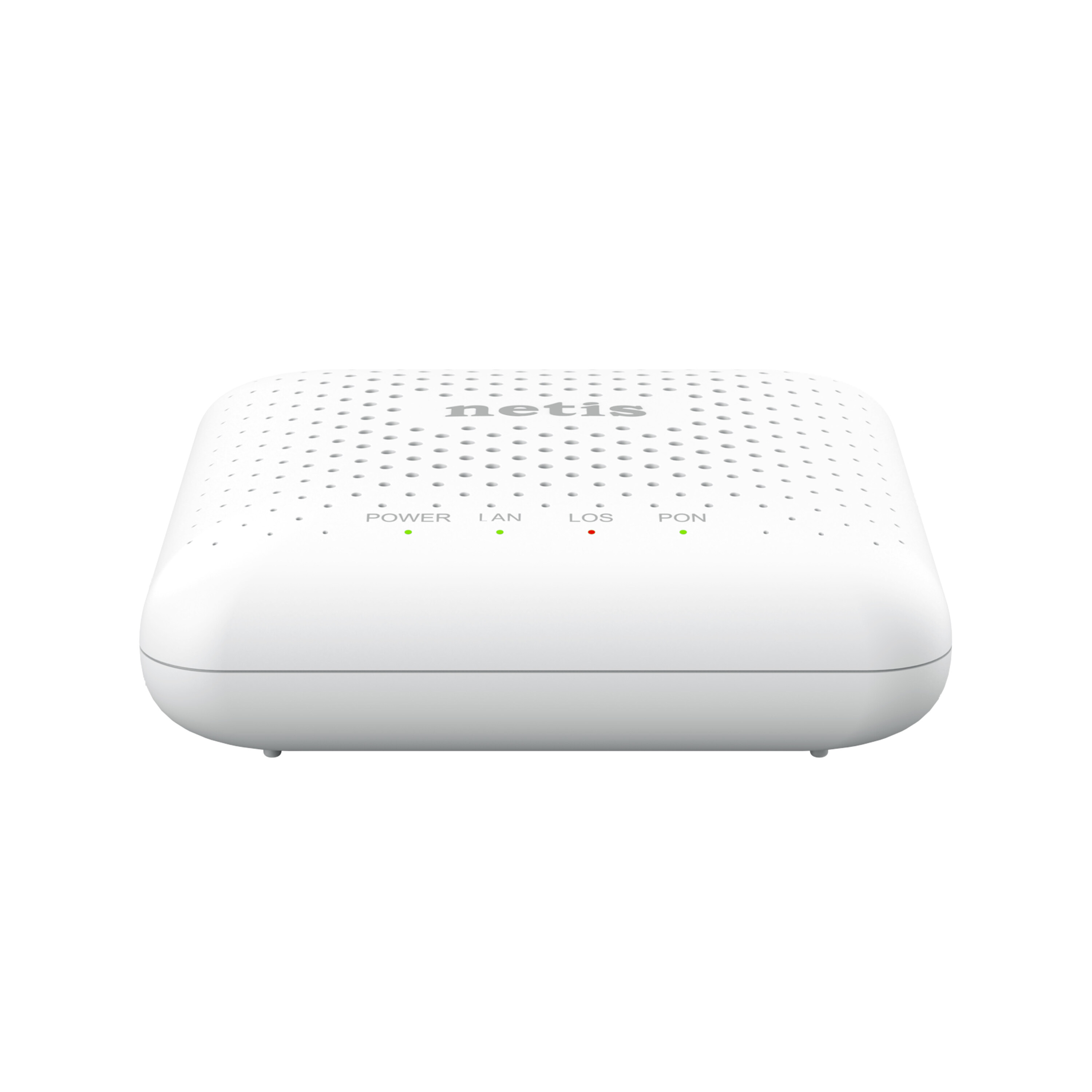

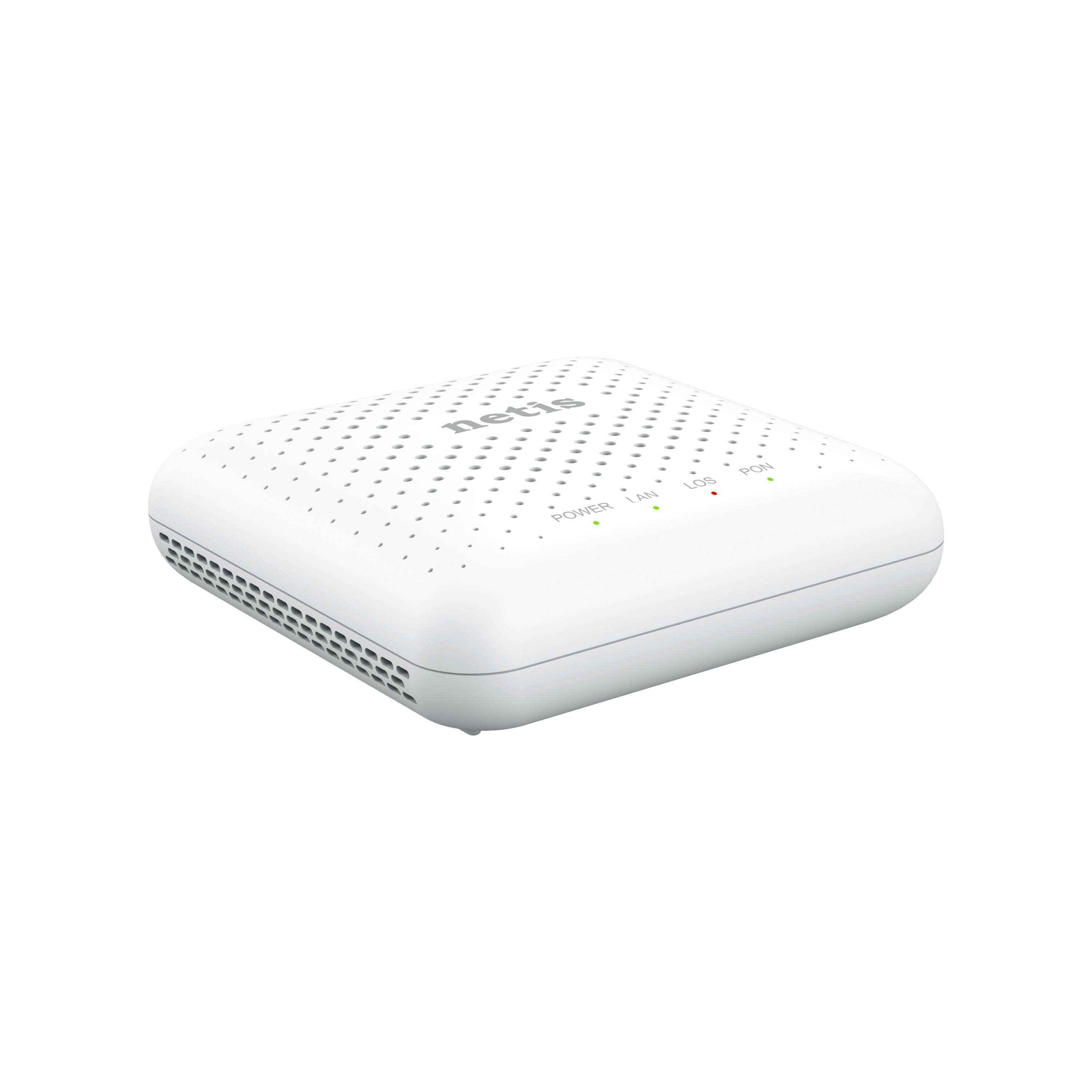

GP2101
Single Port GPON ONT
- The point to multi-point network topology is adopted to effectively collect and aggregate the scattered Ethernet services of users, and the 10 / 100 / 1000mEthernet standard RJ45 interface is provided on the user side
- Dynamic bandwidth allocation mechanism enables all users to share 2.5Gbps bandwidth more reasonably, realize reliable quality of service (QoS), and ensure the quality of different services in the same network
- Support IGMP multi-cast and make effective use of broadband
- Support multi-cast VLAN
- GPON or EPON up-link is adopted to meet ITU-T g.984/g.988 standards
- Provide remote management through OLT and support local console management
- Support the line loopback detection function of Ethernet interface on user side
- Support IEEE 802.1Q VLAN protocol
- Support broadcast storm suppression
- Support PPPOE routing function
Specification
Hardware
|

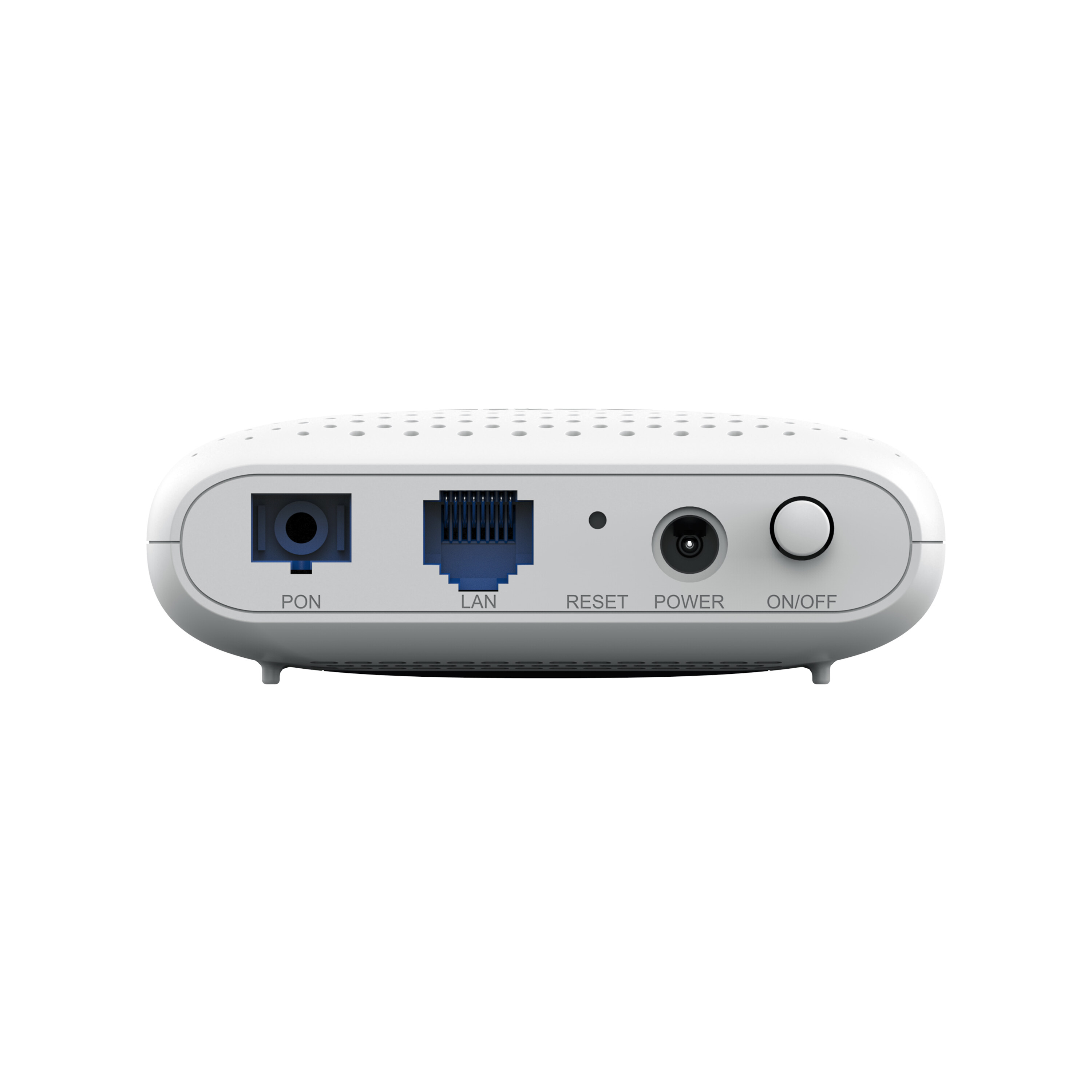

User Interface |
1 * 10/100/1000Mbps RJ45 Interface with LAN |
|
PON Interface |
Up Stream 1.25Gbps,Down Stream 2.5Gbps or 1.25Gbps on both streams Distance:20 km High sensitivity optical receiver: <=-28dBm Laser power: >=0dBm Security: ONU authentication mechanism |
|
DDR/Flash |
32MB 64MB(optional) / 8MB |
Software
|
Compliance |
IEEE 802.3ah YD/T 1475-2006 IEEE 802.1D, Spanning Tree IEEE 802.1Q VLAN IEEE 802.1w RSTP |
|
VLAN |
Port VLAN IEEE802.1Q VLAN |
|
QOS |
Back pressure flow control (half duplex) IEEE 802.3x flow control (full duplex) Prevent head of line mechanism IEEE p802.1p, CoS Four transmission queues per port mapped to eight priorities of 802.1p WR and SP queue scheduling algorithm Rate Limitation per port |
|
Reliability |
UDLD(Unidirectional link detection protocol to prevent spanning tree loop) |
|
Network Security |
IEEE 802.1x port based access control Support local and remote authentication EAP termination or transparent transmission Limit maximum users per port Port Protection Message storm control |
|
Management and Configuration |
Support IGMP Snooping Support 255 multicast entry Support IGMP v1/v2 |
|
Network Security |
Web, TELNET，TR069(optional) |
Others
|
Dimensions |
89 * 85.9 * 30.7mm(L * W * H) |
|
Environment |
Operating temperature: 0°C ~ 60°C Operating humidity: 10 ~ 85%(non-condensed) Storing temperature: -40°C ~ 80°C Storing humidity: 5 ~ 95%(non-condensed) |
|
Power Supply |
110～240AC 12V/0.5A DC Power Interface 2.1/5.5mm Power:2.5W |
