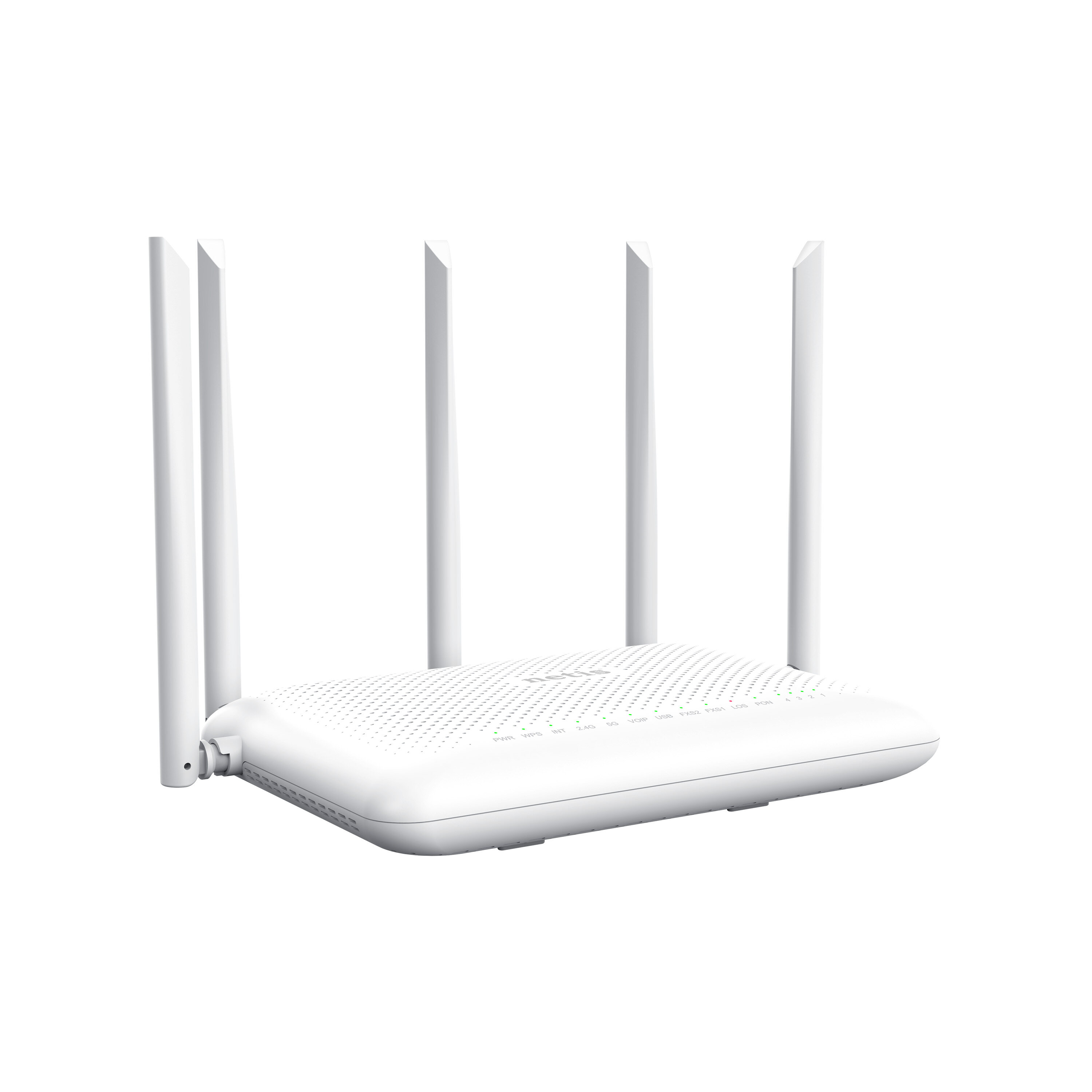

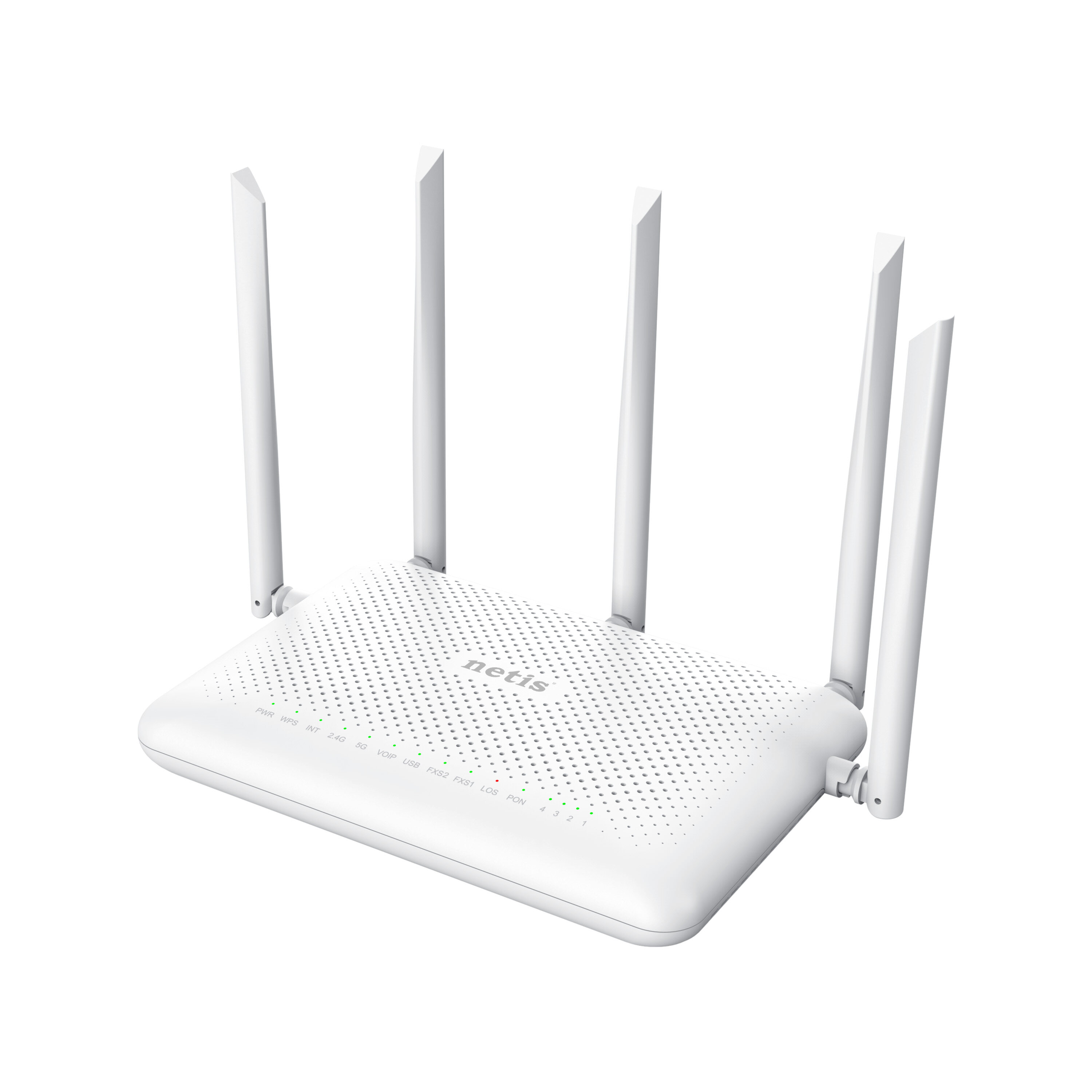

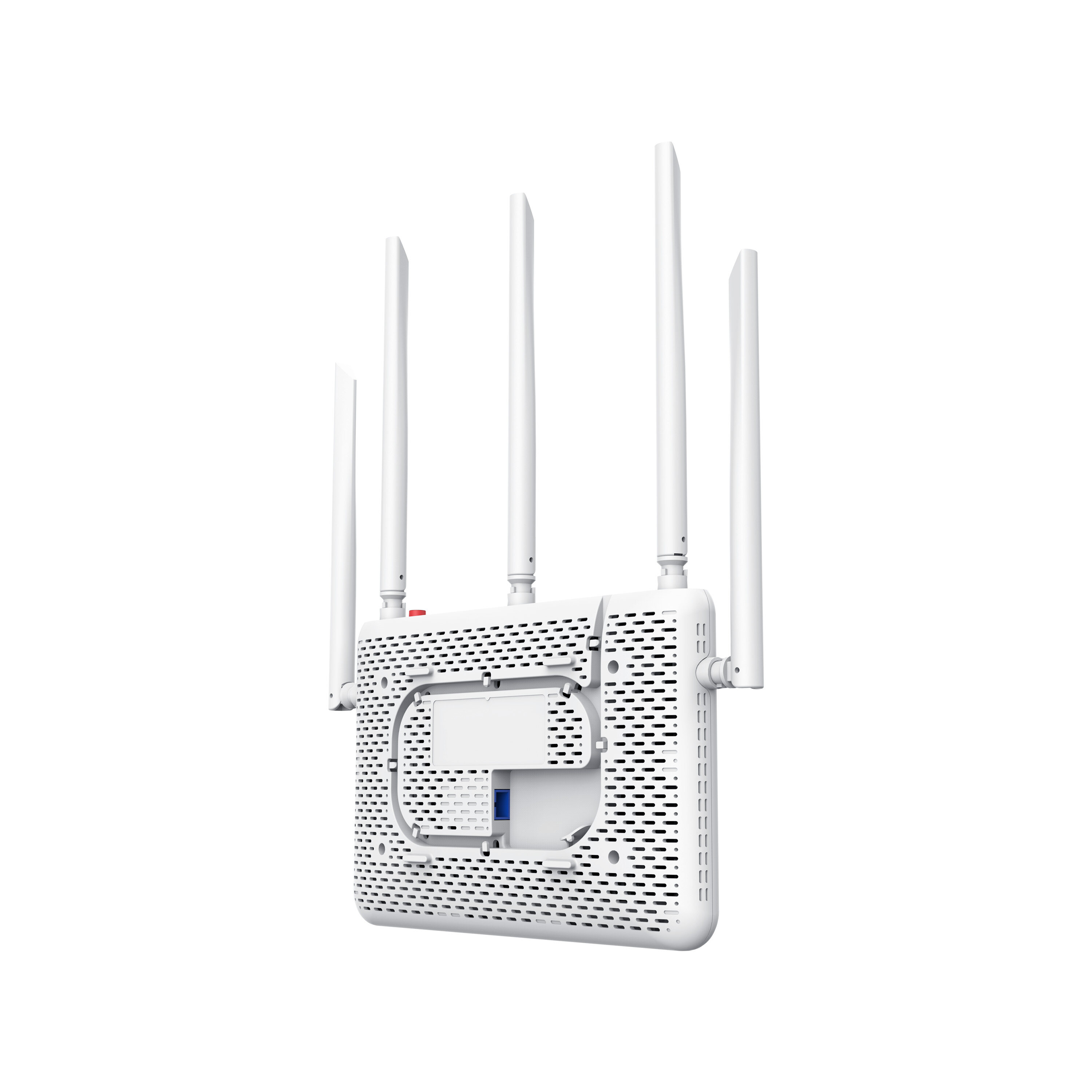

GP3001
AX3000 Dual Band Gigabit WiFi6 GPON
- Comprehensive GPON network compatibility: Complies with ITUG.984.1, ITU G.984.2, ITU G.984.3 and ITU G.984.4, providing you comprehensive GPON network compatibility, Supports OMCI (ONT Management Control Interface) remote management Quality of Service control for bandwidth management, Mass remote management through OMCI(G.984.4 and G.988) and TR-069standards, thus offering a full remote control without user intervention
- Extremely high speed：Extremely high access speed up to 2.5Gbps Downstream and 1.25Gbps Upstream, High speed GPON ONT, equipped with 1.0Gbps Lan port to break the Gigabit bottleneck between you and the internet service provider, enabling you to make the most of the ultra-fast Wi-Fi 6 system
- Support VEIP configuration(Virtual Ethernet Interface Point)at interface card number 14
- Support Layer 2 configuration shall be performed through OMCI (via OLT and EMS)
- Support Layer 3 configuration shall be performed through TR-069 for discovery and management over Auto Configuration Server (ACS)platform when connected to OLT
- Support High Speed Internet (HSI) , IPTV and OTT services, Voice over Broadband
- Support Netis Wi-Fi Connect Apps for easy management , built in Ookla Speed test to measure the upload and download speed easily
Specification
Hardware
|
Interface |
1 * GPON SC/UPC optical ports 1 * 10/100/1000 WAN port 3 * 10/100/1000 LAN ports 2* FXS Port 1* USB 3.0 574Mbps for 2.4GHz band(802.11ax 40Mhz 2*2) 2402Mbps for 5.0GHz band (802.11ax 160Mhz 2*2) 5 antennas, AX3000 |
|
LED |
Power,PON,LOS,Internet,LAN LED(LAN 1-4),USB |
|
Button |
Power ON/OFF Switch, RESET, WPS/MESH |
|
Power Supply |
12V/2A DC power supply |
|
Transmission Rate |
Upstream: 1.25Gbps Downstream: 2.5Gbps |
Software
|
PON Port |
Compliance with ITU-T G.984.x Support 4 priority queues scheduling with SP algorithms Support Dying gasp |
|
Ethernet Ports |
Support MDI/MDIX Support ingress/egress rate limitation Support isolation |
|
WLAN |
Support 802.11b/g/n/ac/ax Support multiple SSIDs Support WPA3, WPA/WPA2, WPA-PSK/WPA2-PSK Support auto channel |
|
WAN Type |
Support 4094 Vlan Support Bridge/Router Mode Support DHCP/PPPOE/Static IP/Dynamic IP/Static IP with Dual LAN Support Service including Internet, VOIP, IPTV and TR069 |
|
MAC Learning |
Support 2K MAC address Support MAC limitation |
|
Multicast |
Support IGMP Snooping Support 255 multicast entry Support IGMP v1/v2 |
|
Network Security |
IEEE 802.1x, port based access control. Support local and remote authentication, EAP termination or transparent transmission Limit maximum users per port Port Protection Message storm control |
|
Mesh |
Support 1 Main + 3 Satellite ( 1 +3 ) |
|
IPv6 |
IPv6 and IPv4 dual stack IPv6 Tunnels: DS-Lite IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6 |
|
Operation Mode |
Bridge mode Routed mode for GPON ( GPON + Mesh Wireless Gateway) Mesh satellite mode only RG mode only |
|
Technical Regulation |
ITU-T G.384.3C( 01/2014 edition) ITU-T G.988 Managed Entities ( MEs) |
|
Voice Over Broadband (VOBB) |
Digit map- *xx*x.*x.#|*xx*x.#|*xx#|*#xx#|*#60*x.#|#x.#|#x.*x.#|**x.T|*11*x.T |x.T Support DHCP Option 120 ITU-T G.711 pass-through fax protocol |
|
Mobile Apps |
Netis Wi-Fi Connect ( Android & IOS ) - Support LAN & WAN Environment |
|
DDR/FLASH |
256MB/128MB |
|
VLAN |
Port VLAN IEEE802.1Q VLAN |
|
USB |
Storage Sharing, FTP Server, Media Server |
|
VoIP |
Support SIP Support DTMF, Call Waiting, Call transfer, Call holding, Call forwarding,3-way conference, etc. Support Echo canceller, VAD, CNG Support G.711 a/u law, G.729, G.722, G.726, G.722, T.30, T.38 |
|
Management |
Support Quick Installation Wizard Support configuration saving,and restore to factory configuration Support firmware upgrading via WEB GUI Support remote upgrading from OLT Support Telnet server for remote/local management Support System log monitoring TR-069/TR-181/TR-143/TR-156/TR-104 compliance |
|
Standard Compliance |
|
|
Broadband Forum |
TR-124 (2022) Functional Requirement for Broadband Residential Gateway TR-187 (2013) for IPv6 for PPP Broadband Access BBF TR-142 (2017) Framework for BBF TR-069 enabled PON devices BBF TR-156 (2017) Using GPON Access in the context of TR-101 BBF TR-155 (2017) GPON UONU Requirements for Proposed UONU BBF TR-247 (2011) Abstract Test Plan for GPON UONU Conformance TR-255 (2013) GPON Interoperability Test Plan TR-104 (2014) Provisioning Parameters for VoIP CPE |
|
Standards |
IEEE 802.1p for QoS (also known as Class of Service) IEEE 802.1p VLAN prioritization IEEE 802.1q for VLAN tagging. IEEE 802.3ab Gigabit Ethernet IETF RFC 2131 : Dynamic Host Configuration Protocol (DHCP) IETF RFC 2132 : DHCP Options and BOOTP Vendor Extensions IETF RFC 4862 Stateless Address Auto conf iguration (SLAAC) IETF RFC 3736 Stateless DHCPv6 (for LAN Interface) IETF RFC 3315 Stateful DHCPv6 for Wan Interface. IETF RFC 3376: Internet Group Management Protocol,Version 3 IETF RFC 2236: Internet Group Management Protocol,Version 2 IETF RFC 2710: Multicast Listener Discovery (MLDv2),minimum Version 2 for IPv6 IETF RFC 2617 (HTTP Digest authentication) IETF RFC 3261 (SIP: Session Initiation Protocol) IETF RFC 3264 (An Offer/Answer Model with the Session Description Protocol (SDP)) IETF RFC 3361 (Dynamic Host Configuration Protocol (DHCP-for-IPv4) Option for Session Initiation Protocol (SIP) Servers) IETF RFC 3550 (RTP: A Transport Protocol for Real-Time Applications) IETF RFC 3551 (RTP Profile for Audio and Video Conferences with Minimal Control) IETF RFC 3966 (The tel Uniform Resource Identifier (URI) for Telephone Numbers) IETF RFC 4028 (Session Timer) IETF RFC 4566 (SDP: Session Description Protocol) 3GPP TS 24.229 Release 10 (IP multimedia call control protocol based on Session Initiation Protocol (SIP) and Session Description Protocol (SDP); Stage 3) IETF RFC 3351 : User Requirements for the Session Initiation Protocol (SIP) in Support of Deaf, Hard of Hearing and Speech-impaired Individuals ITU-T G.652 (2016) Characteristics of a single-mode optical fibre and cable ITU-T G.984.1 Amendment 2 (04/2012) : GPON General Characteristics ITU-T G.984.2 (08/2019): GPON Physical Media Dependent (PMD) layer specification ITU-T G.984.3 (2014) Amendment 1 (03/20) : GPON Transmission convergence layer specification ITU-T G.984.4 Amendment 3 (07/2010): GPON ONT management and control interface (OMCI) specification ITU-T G.988 Amendment 4 (09/2021): GPON UONU Management & Control Interface (OMCI) specification |
Others
|
Certification |
FCC, CE |
|
Weight |
402g |
|
Dimensions(L* W * H) |
234 * 154.5 *43.5mm（excluding antenna ） |
|
Environment |
Operating temperature: 0°C — 60°C Operating humidity: 10-85%(non-condensed) Storing temperature: -40°C — 80°C Storing humidity: 5-95%(non-condensed) |
|
Package |
1 * Dual Band AX3000 Combo Box 1 * UK Pin Power Adapter 2 * 1.5M Cat6 RJ45 cables 1 * Quick Setup Guide |
