User Interface

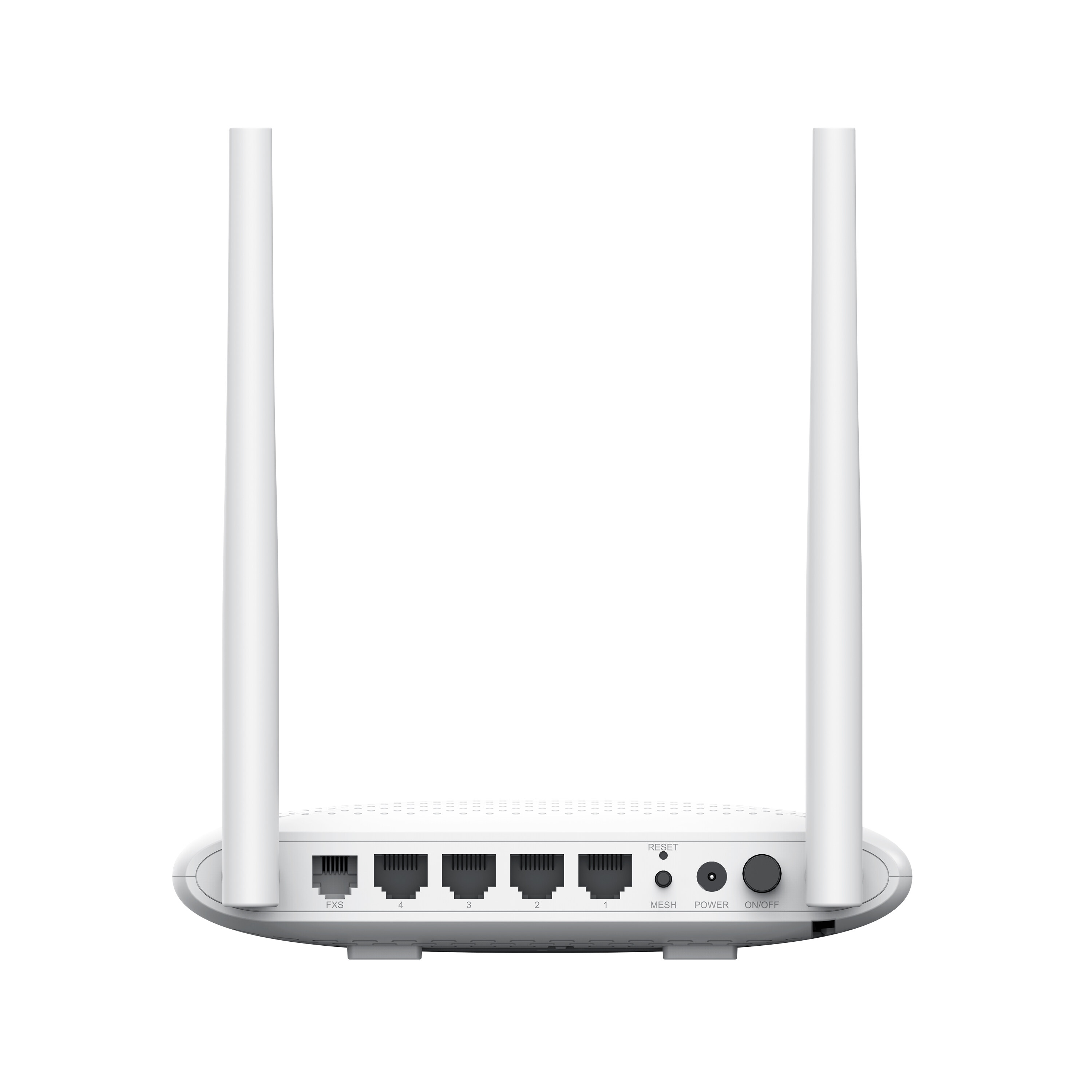

1*SC/UPC GPON Port+ 4x Gigabit LAN Ports+ 1 FXS port

Processor

1.15GHz CPU

PON Interface

Up Stream 1.25Gbps,Down Stream 2.5Gbps or 1.25Gbps on both streams

Distance:20 km

High sensitivity optical receiver: <=-28dBm

Laser power: >=0dBm

Security: ONU authentication mechanism

DDR/FLASH

256MB/128MB

Optical Mode

Class B+

Optical Wavelength

Transmit at 1310nm, Receive at 1490nm

Transmission Distance

20km Max

Bandwidth

Upstream 1.25Gbps Max, Downstream 2.5Gbps Max

Buttons

WPS/MESH、RESET、Power on/off

Power

12V1A

WiFi Encryption

WPA-PSK, WPA2-PSK, WPA/WPA2-PSK

Protocols

IPv4, IPv6

Parental Control

URL Filtering, Time Controls

WAN Types

Dynamic IP, Static IP, PPPoE

Quality of Service

QoS by Device

VoIP

Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan , Codec, Hotline, DND, Alarm

NAT Forwarding

Port Forwarding, Port Triggering, DMZ, UPnP

IPTV

IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN

DHCP

Address Reservation, DHCP Client List, Server

Management

Web based Configuration (HTTP),Remote Management, Telnet Management,TR069,TR143,TR181,TR098,SNMP,Web Based Firmware Upgrade, CWMP, Diagnostic Tools

DDNS

NO-IP, DynDNS

Dimensions

169*121*193mm(including antenna）

Environment

Operating Temperature: 0℃~40℃ ( 32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Package Contents

1* GP2201

1* Power Adapter

1* RJ45 Ethernet Cable

1* Quick Installation Guide

Certifications

FCC, CE, RoHS, EAC, UkrSEPRO

WiFi Transmission Power

2.4G: 22DB

5G: 19DB
