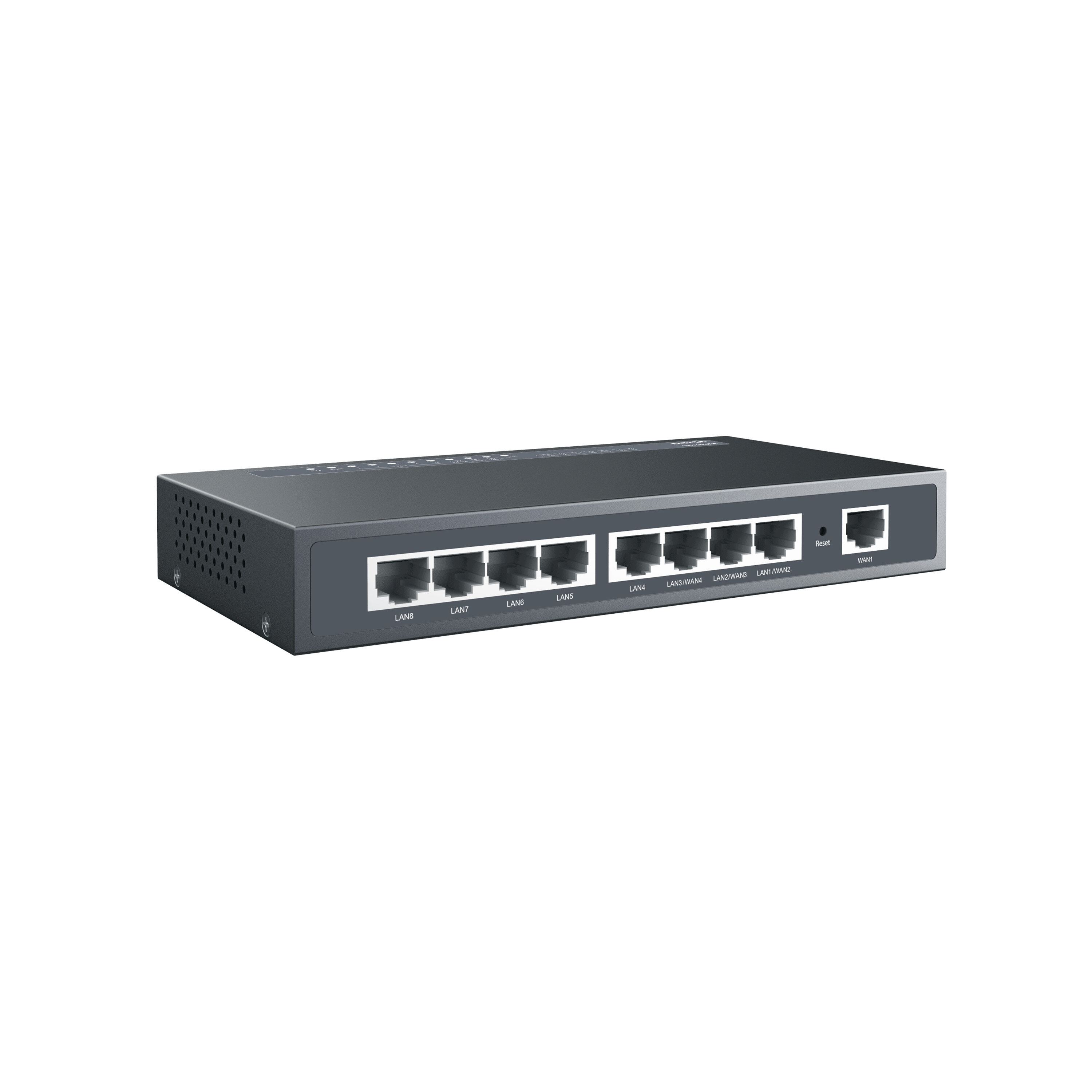

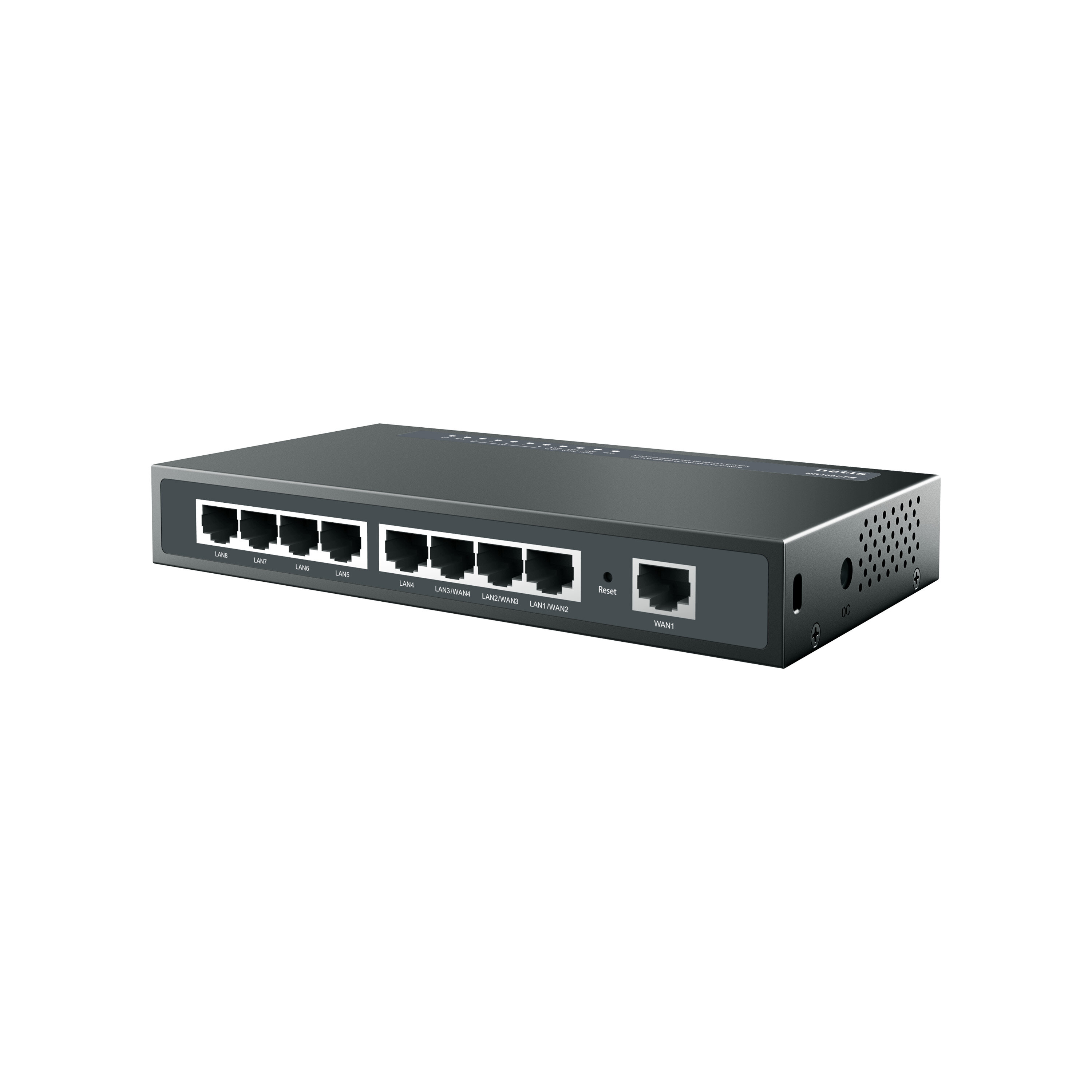

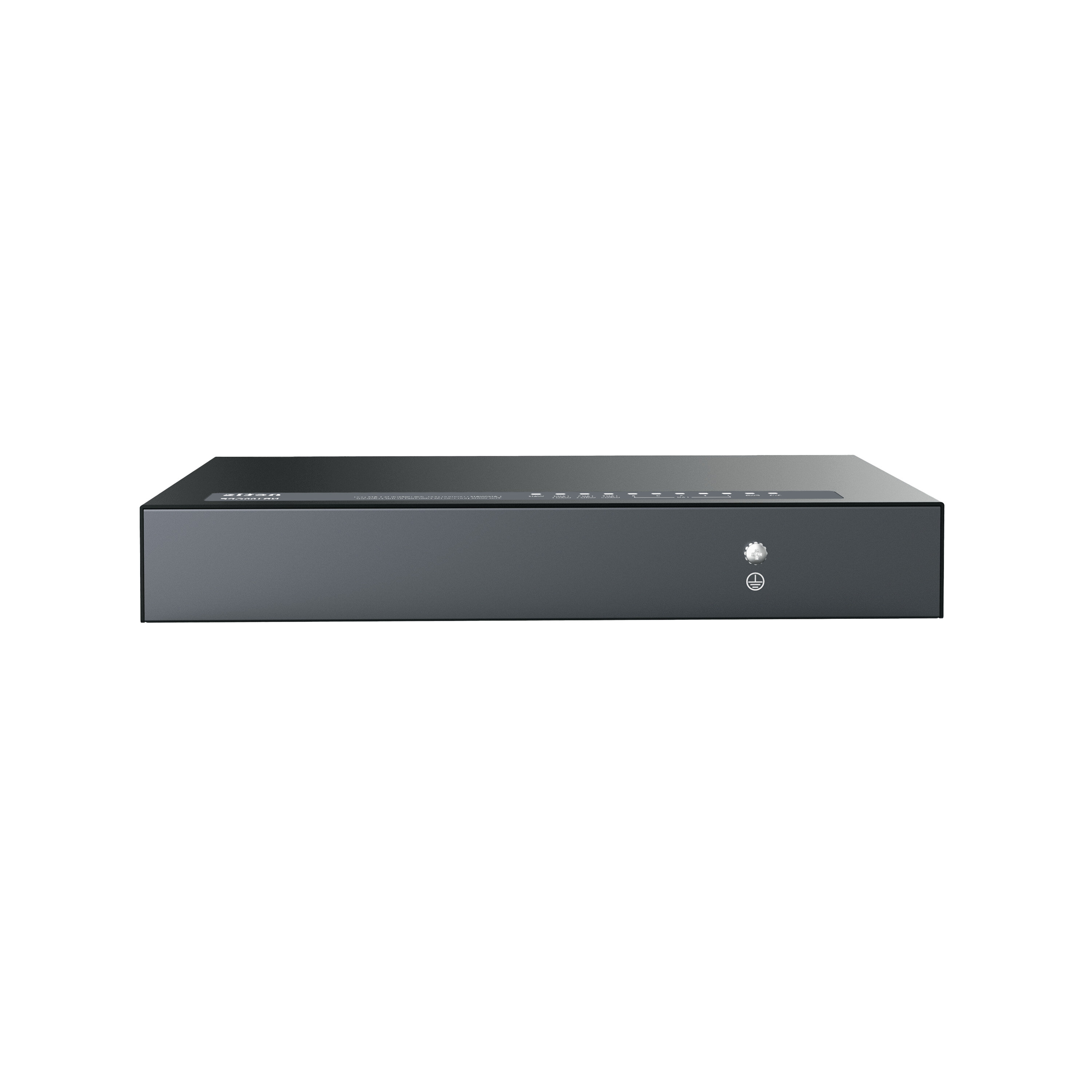

NR109GPE
9-port Gigabit Enterprise-grade POE Router
- 1-3 variable WAN ports and 1 fixed WAN port, with full gigabit ports supporting large bandwidth networks.
- Suitable for 500M Broadband.
- Support remote device management by BeeWiFi application.
- Up to 30W for each port, support IEEE802.3af/at power supply.
- Unified AP management without the need for additional AC controllers.
Specification
Hardware
|
Interface |
5 * 10/100/100/1000M AUTO MDI/MDIX RJ45 LAN ports(Supports Passive POE) 3 * 10/100/100/1000M AUTO MDI/MDIX RJ45 WAN/LAN ports (Supports Passive POE) 1 * 10/100/100/1000M AUTO MDI/MDIX RJ45 WAN port. |
|
LED |
PWR, WAN, LAN, SYS |
|
Button |
Reset Button |
|
Forwarding rate |
10/100/1000Mbps |
|
FLASH |
16MB |
|
Memory |
128MB |
|
Power Supply |
52V/2.5A |
Software
|
Applications |
Policy routing Dynamic domain name Remote access Port mapping Static routing PPTP Client L2TP Client |
|
Network |
Host monitoring Access control Network firewall IPTV Guest network Advanced Settings |
|
AC |
Wireless control RF setup Indicator light AP device Management Restart/upgrade/restore default |
|
Remote management |
BeeWiFi |
|
Setup wizard |
Quick Configuration Wizard |
|
System |
Dial-up log Firmware upgrade Password Management Routing information Time setting |
Others
|
Dimensions |
440×205×45mm |
|
Environment |
Operating Temperature : 0℃ ~ 40℃ Operating Humidity : 10% ~ 90% RH non condensing Storage Temperature : -20℃ ~ 70℃ Storage Humidity : 5% ~ 90% RH non condensing |
