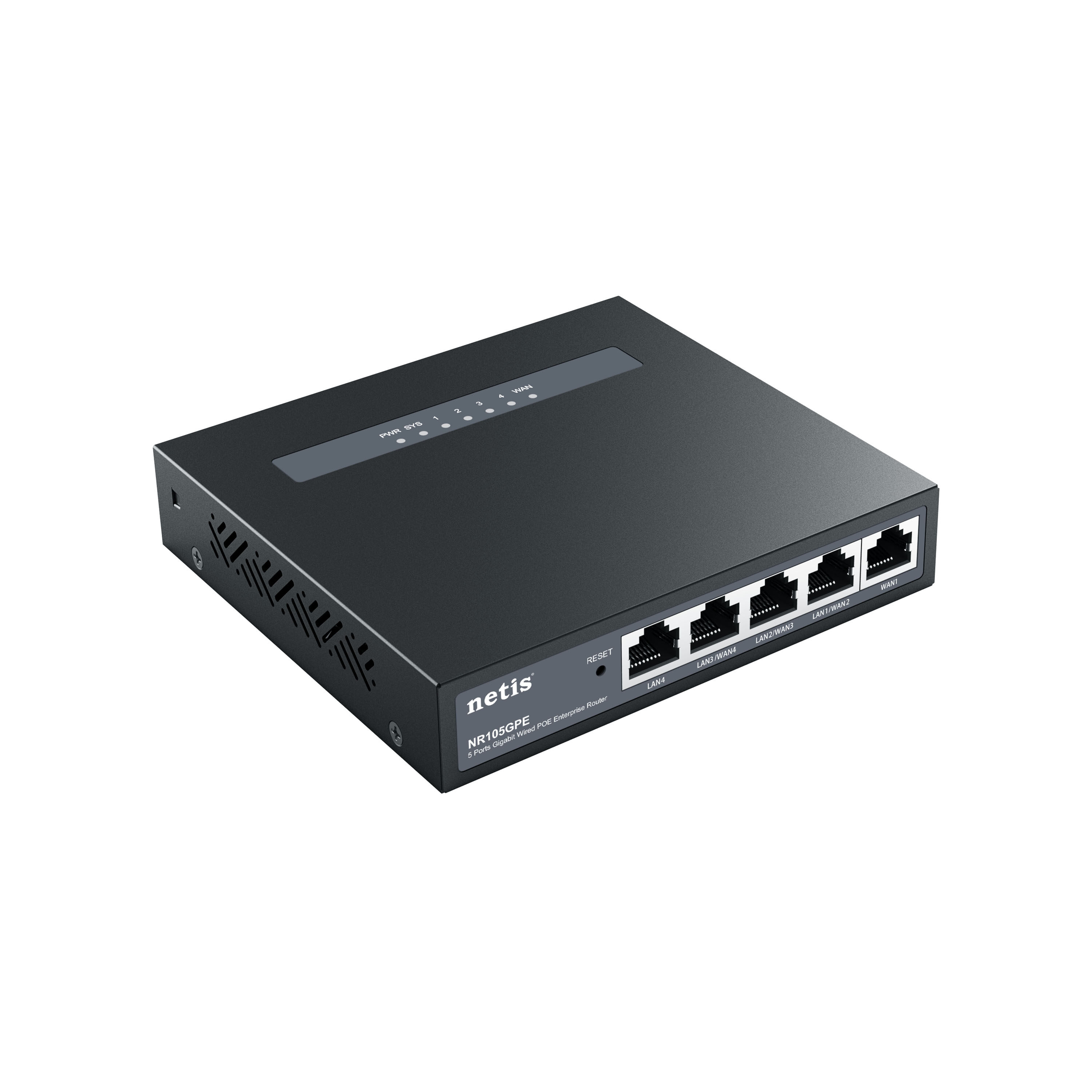

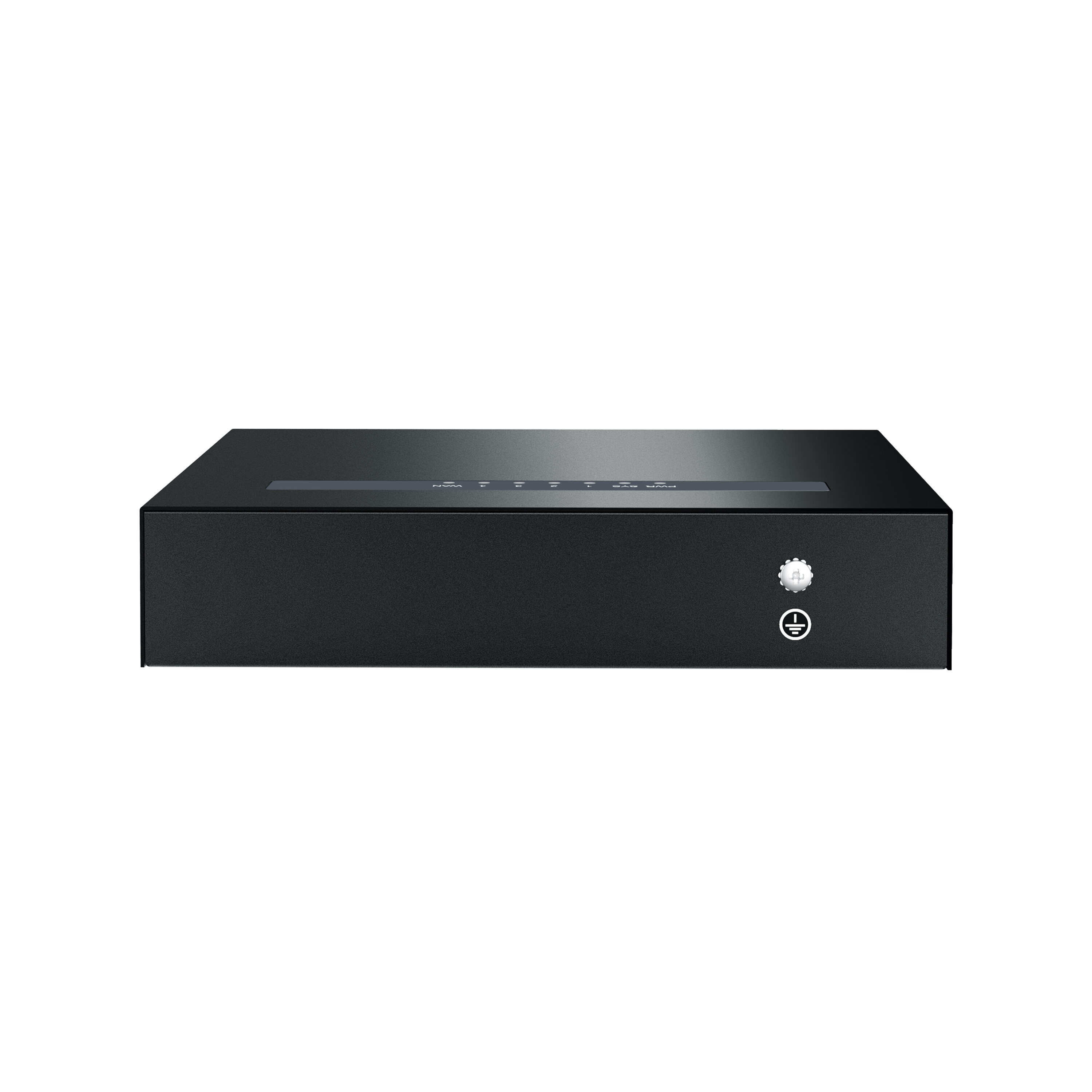

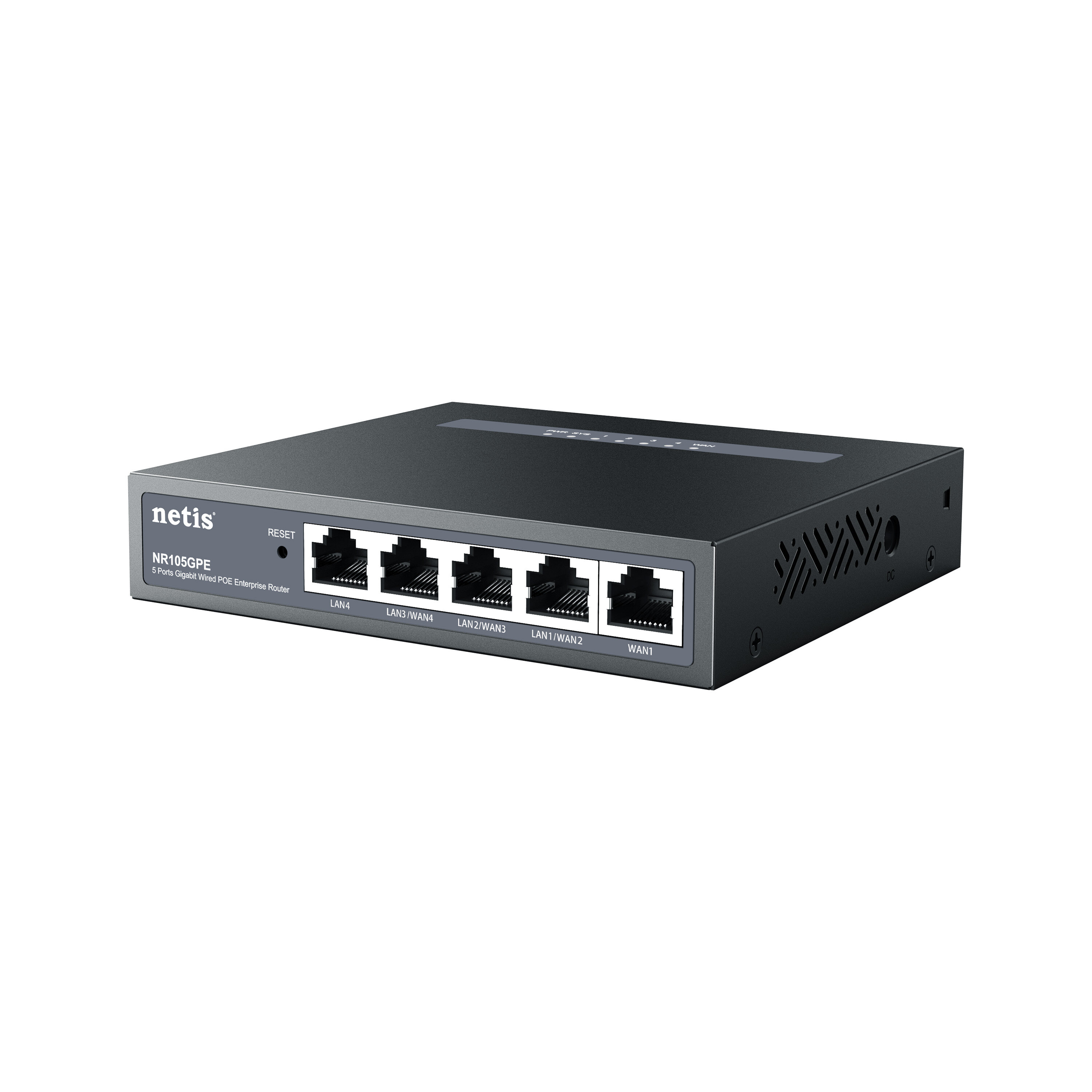

NR105GPE
5-port Gigabit Enterprise-grade POE Router
- 1-3 variable WAN ports and 1 fixed WAN port, with full gigabit ports supporting large bandwidth networks.
- Support a cable transmission of IPTV and network services at same time.
- Support remote device management by BeeWiFi application.
- Power POE powered devices such as cameras, APs, etc.
- Unified AP management without the need for additional AC controllers.
Specification
Hardware
|
Interface |
1 * 10/100/100/1000M RJ45 LAN ports(Supports Passive PoE) 3 * 10/100/100/1000M RJ45 WAN/LAN ports(Supports Passive PoE) 1 * 10/100/100/1000M RJ45 WAN ports |
|
LED |
PWR, WAN, LAN, SYS |
|
Button |
Reset Button |
|
Flash |
16MB |
|
Memory |
128MB |
|
Power Supply |
External 54V/1.11A |
Software
|
Login page |
User Name Password |
|
Home |
Networking Status Working Hours Current Speed Online Devices Networking device lntranet settings Internal network settings Mobile management router |
|
Network |
Network Firewall Access Control Advanced Settings |
|
Application |
Policy routing Static Routing Port Mapping Dynamic DNS Remote Access Diagnostic Function PPTP Client L2TP Client |
|
Tools |
Router Information Scheduled Tasks Indicator Light Reset Admin Password Restart Router Time Setting Firmware Upgrade Dial-up Log |
|
AC controller |
Statistics AP management Wireless settings RF settings Indicator light Wired vlan settings Restart Upgrade/Reset Auto bind AC parameter backup |
Others
|
Dimensions |
139 * 119 * 26mm |
|
Environment |
Operating Temperature : 0℃ ~ 40℃ Operating Humidity : 10% ~ 90% RH non condensing Storage Temperature : -20℃ ~ 70℃ Storage Humidity : 5% ~ 90% RH non condensing |
