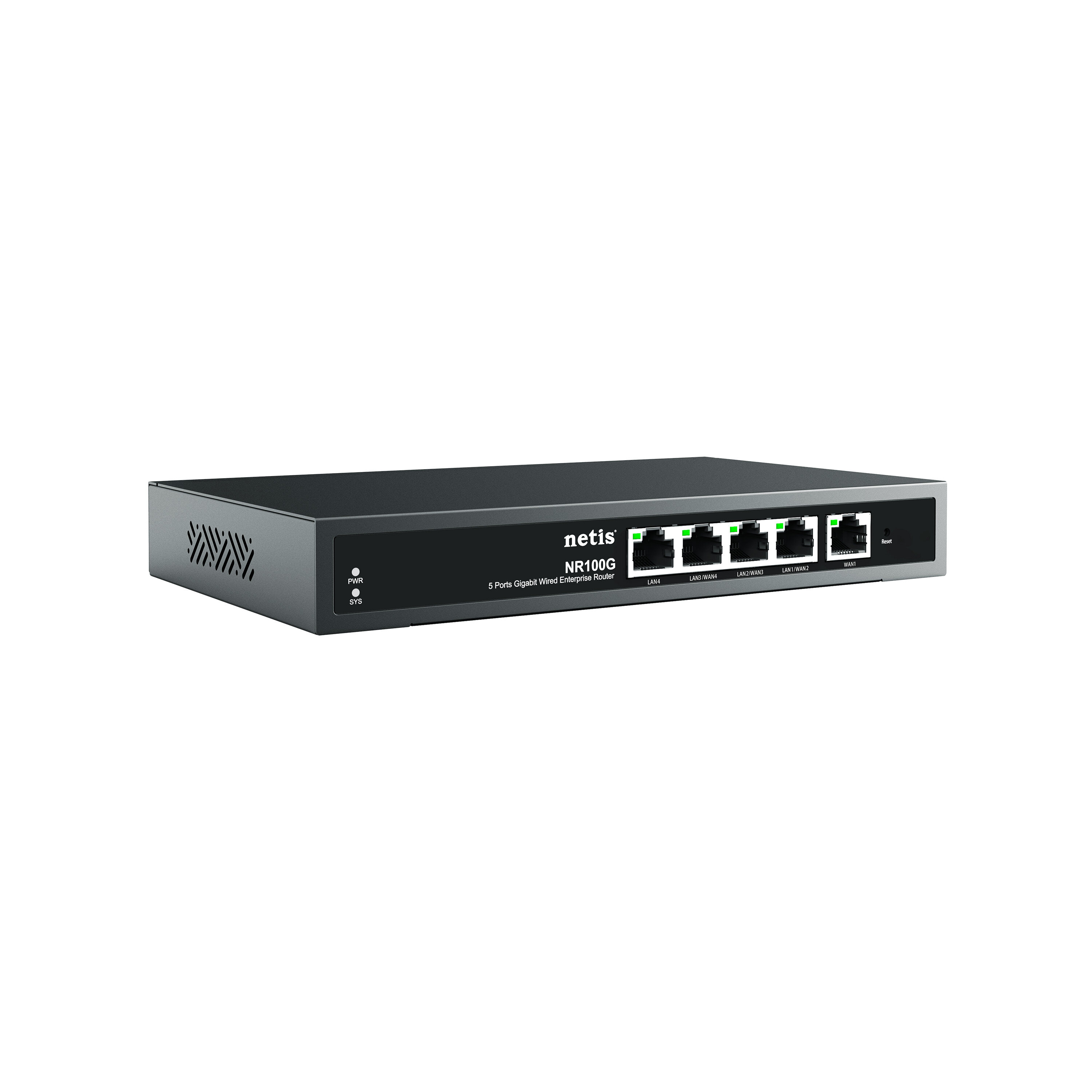

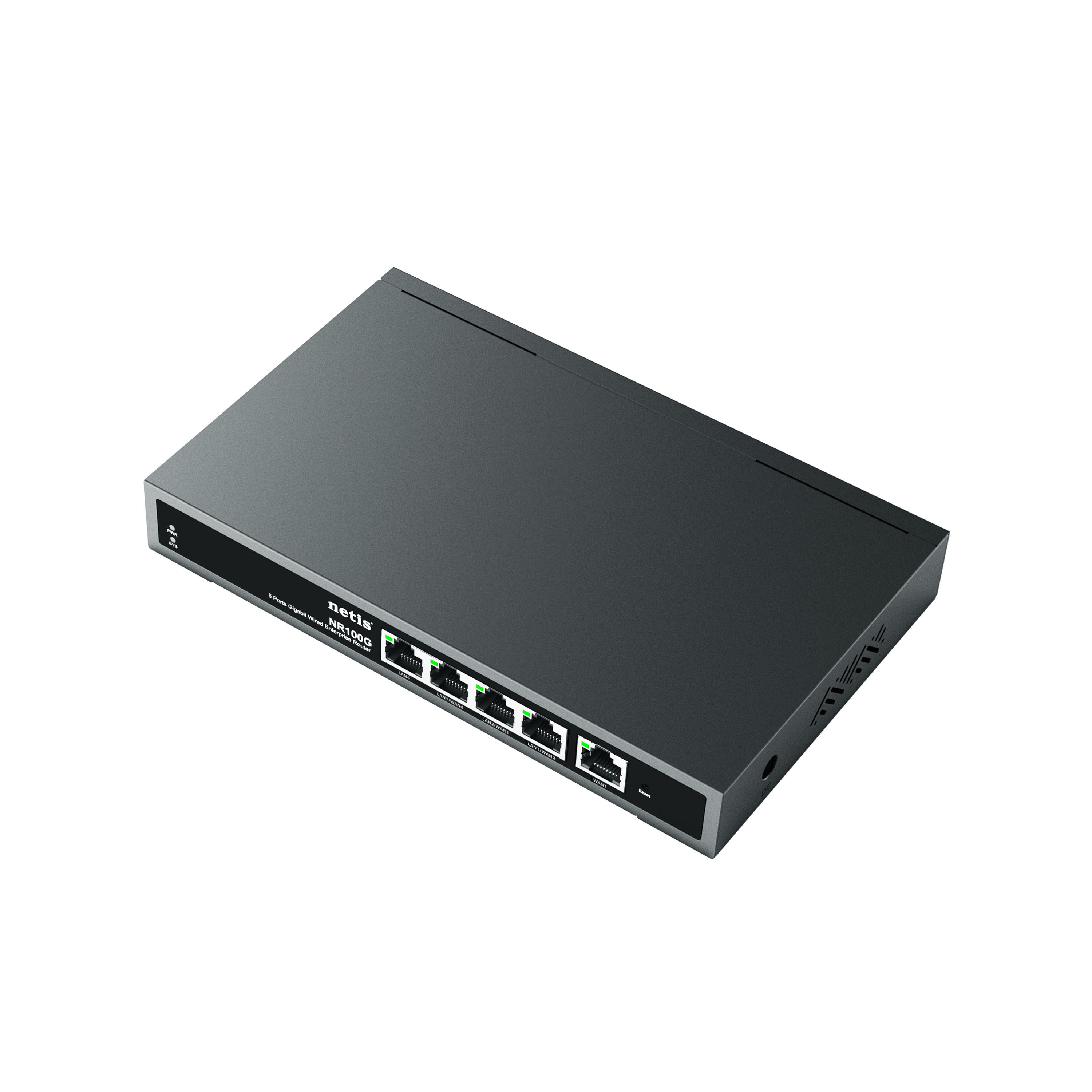

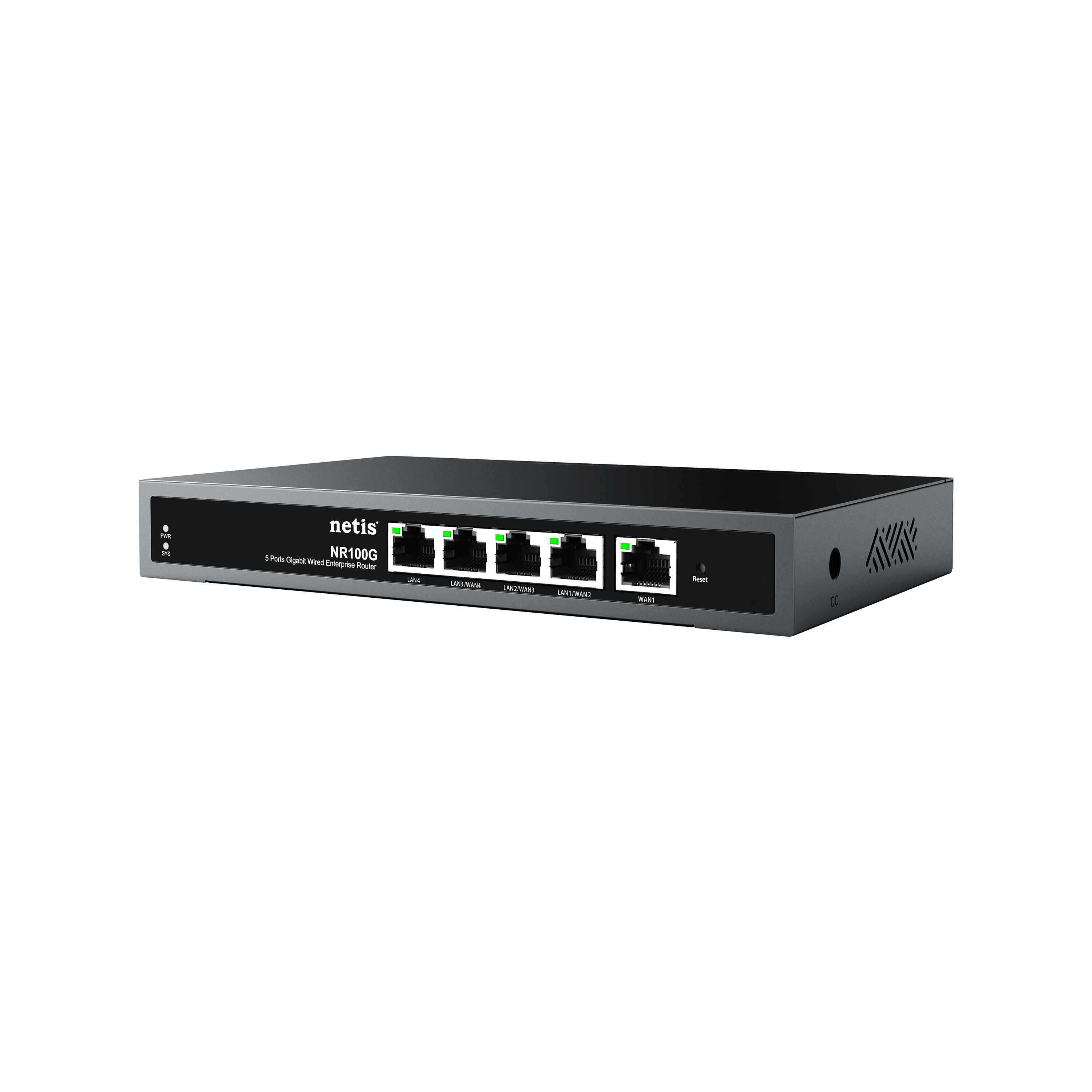

NR100G
5-Port Gigabit Multi-WAN Port Internet Behavior Management Enterprise Router
- 1-3 variable WAN ports and 1 fixed WAN port, with full gigabit ports supporting large bandwidth networks.
- Support a cable transmission of IPTV and network services at same time.
- Support remote device management by BeeWiFi application.
- Unified AP management without the need for additional AC controllers.
Specification
Hardware
|
Memory |
128MB |
|
Flash |
16MB |
|
Standard |
IEEE802.3,IEEE802.3u,IEEE802.3z ,IEEE802.3x,IEEE802.1x |
|
Interface |
LAN：1×10/100/100/1000M AUTO MDI/MDIX RJ45 port WAN/LAN：3×10/100/100/1000M AUTO MDI/MDIX RJ45 ports WAN ：1×10/100/100/1000M AUTO MDI/MDIX RJ45 port |
|
LED |
PWR, WAN, LAN, SYS |
|
Button |
1×RESET |
|
Power Supply |
12V/1A |
Software
|
Login page |
User Name Password |
|
Home |
Networking Status Working Hours Current Speed Online Devices Networking device lntranet settings Internal network settings Mobile management router |
|
Network |
Network Firewall Access Control Advanced Settings |
|
Application |
Policy routing Static Routing Port Mapping Dynamic DNS Remote Access Diagnostic Function PPTP Client L2TP Client |
|
Tools |
Router Information Scheduled Tasks Indicator Light Reset Admin Password Restart Router Time Setting Firmware Upgrade Dial-up Log |
|
AC controller |
Statistics AP management Wireless settings RF settings Indicator light Wired vlan settings Restart Upgrade/Reset Auto bind AC parameter backup |
Others
|
Dimensions |
200×124.4×28mm |
|
Environment |
Operating Temperature：0℃ to 40℃ Storage Temperature：-20℃ to 70℃ Operating Humidity：10% to 90% RH non condensing Storage Humidity：5% to 90% RH non condensing |
